Ga
Garden
Fu u rnitu re
T:
03333 448 121
Before you commence the assembly process we recommend that you read these instructions thoroughly
beforehand to familiarise yourself with the assembly process and to also check that you have the correct
components. If for any reason you need assistance, you can find our contact details on the final page of
these instructions.
We highly recommend that any assembly is carried out on a flat, level surface if possible and that you
use another person to assist you if necessary.
Package contents
1 x Table top
2 x Seats
2 x Table leg frames
2 x Seats
4 x Seat leg frames
1 x Parasol support
2 x A frames
4 x Seat leg braces (not junior version)
2 x Table leg braces (not junior version)
28 x M8 Coach screws 60mm
12 x M8 Coach screws 70mm
40 Cover caps
* 8ft version additionally includes - 2 x seat supports and braces, 8 x
60mm Coach screws and 8 x cover caps.
ASSEMBLY INSTRUCTIONS
Direct

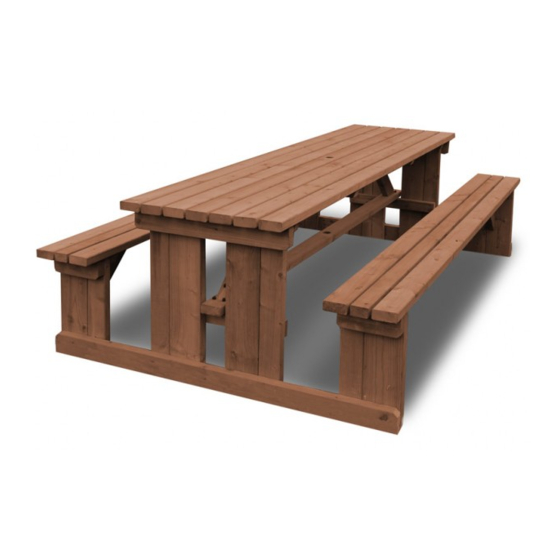

Newland picnic bench
Newland Picnic Bench
Tools required
10mm socket or spanner
1
Advertisement
Related Manuals for Garden Furniture Direct Newland Picnic Bench
Summary of Contents for Garden Furniture Direct Newland Picnic Bench
- Page 1 Garden Fu u rnitu re Direct Newland picnic bench 03333 448 121 Before you commence the assembly process we recommend that you read these instructions thoroughly beforehand to familiarise yourself with the assembly process and to also check that you have the correct components.
- Page 2 Newland picnic bench Step 1 Step 2 Ensure that you have all of the correct parts as listed Lay the table top upside down on a clean, flat on the front page of these instructions, including any surface taking care not to damage it. Now line up fixings.
- Page 3 Newland picnic bench Step 5 Step 6 ...and secure the other side in the same fashion. Now both ends are attached..Repeat steps 2-5 for the other table leg frame. Step 7 Step 8 ...turn the table right side up.
- Page 4 Newland picnic bench Step 9 Step 10 Using the pencil lines on the leg brace as a guide, ...using a 60mm coach screw. Then secure the other line up the brace in the correct position and attach it end of the brace in the same manner.
- Page 5 Newland picnic bench Step 13 Step 14 Ensure the end of the parasol brace is flush with the Then secure in place using 2 x 60mm coach screws in end frame. each end of the parasol brace. (For the junior/children's version proceed to Step 18)
- Page 6 Newland picnic bench Step 17 Step 18 Continue to hold the table leg brace firmly in place Now lay one of the seat panels upside down on a flat and attach it to both the parasol brace and table top surface as shown.
- Page 7 Newland picnic bench Step 21 Step 22 Place a seat leg brace in position and, as you did for Now attach it to the seat panel and seat end frame the table, ensure it is centrally aligned. (Omit this using 60mm coach screws.
- Page 8 Newland picnic bench Step 25 Step 26 ...and aligned centrally on the seat panel before Now place the brace set support brace as shown so fixing into place with 2 x 60mm coach screws as that it is also aligned centrally...
- Page 9 Newland picnic bench Step 29 Step 30 Ensure that the edge of the seat frame is flush with ... and fix into place using 2 x 60mm coach screws. the end of the leg brace... Repeat this for the remaining 3 seat frame ends.
