Before you commence the assembly process we recommend that you read these instructions
thoroughly beforehand to familiarise yourself with the assembly process and to also check that you have
the correct components. If for any reason you need assistance, you can find our contact details on the
final page of these instructions.
We highly recommend that any assembly is carried out on a flat, level surface if possible and that you
use another person to assist you if necessary.
Package contents
1 x Table top
2 x Seats
2 x Table A frames
4 x Bench A frames
6 x Cross braces (4 x for 3 & 4ft sets)
4 x M8 Coach screws - 70mm
28 x M8 Coach screws - 60mm
34 x Cover caps
* 8ft version additionally includes - 2 x seat supports and braces, 8 x
60mm Coach screws and 8 x cover caps.
Direct

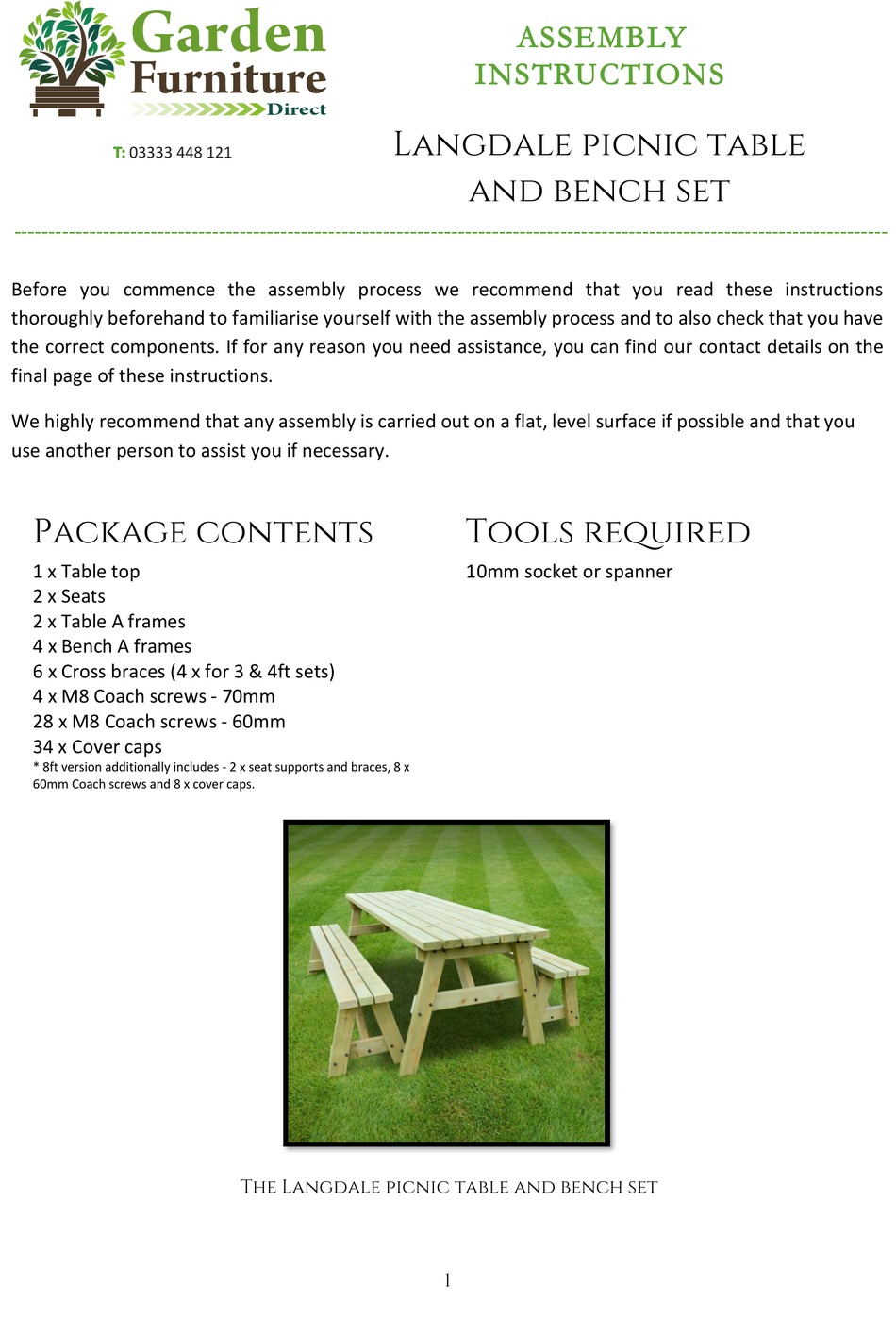

Langdale picnic table
The Langdale picnic table and bench set
ASSEMBLY
INSTRUCTIONS
and bench set
Tools required
10mm socket or spanner
1
