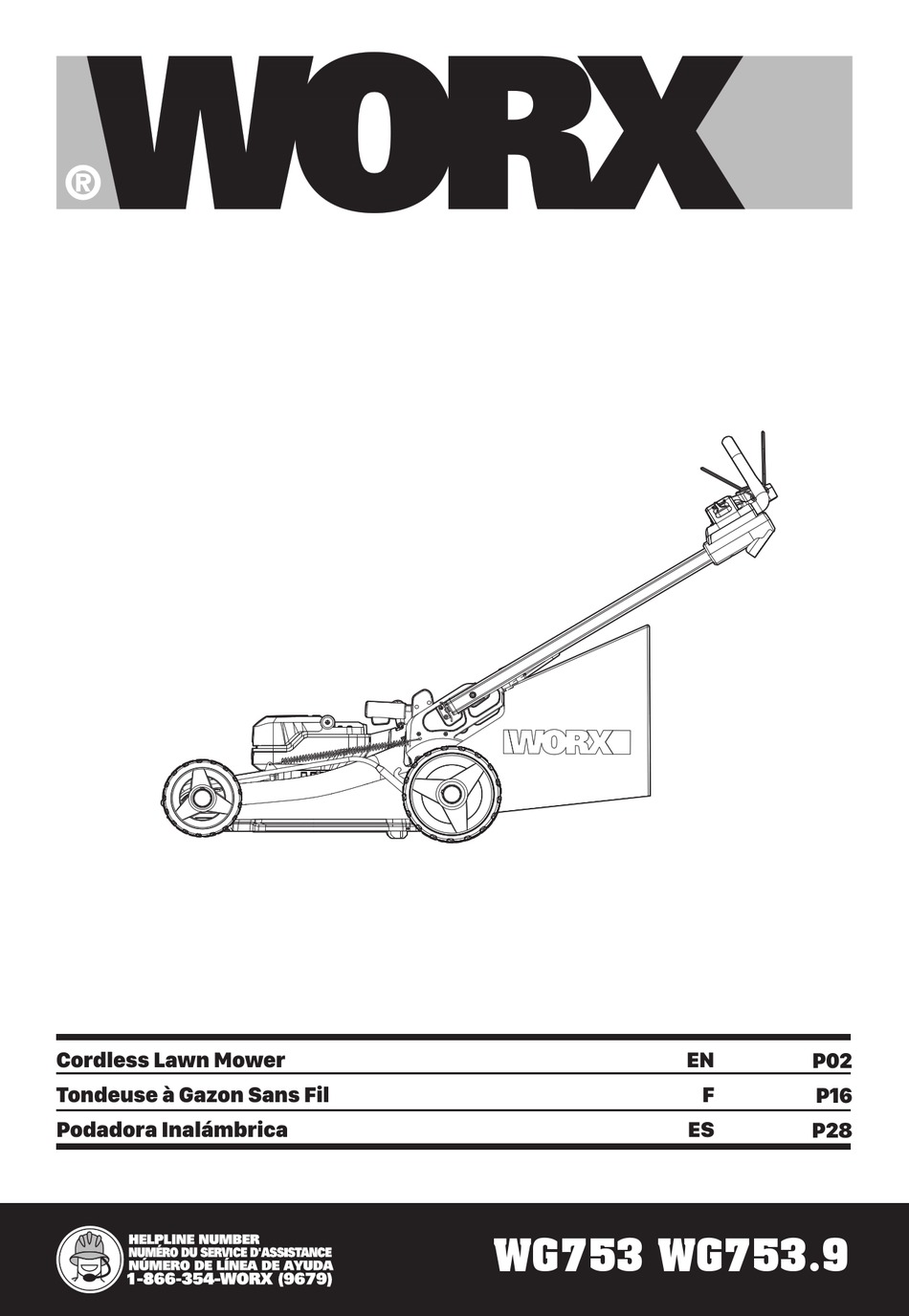

Cordless Lawn Mower
EN
P02
Tondeuse à Gazon Sans Fil
F
P16
Podadora Inalámbrica
ES
P28
WG753 WG753.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WG753 and is the answer not in the manual?

Questions and answers

George Bartha
February 10, 2025

Drive train mechanism

1 comments:
Mr. Anderson
May 14, 2025

The drive train mechanism of the Worx WG753 is a 2WD (two-wheel drive) system.

This answer is automatically generated

Mark Rusnak
June 7, 2025

How to put grass catcher bag on

Summary of Contents for Worx WG753

  • Page 1 Cordless Lawn Mower Tondeuse à Gazon Sans Fil Podadora Inalámbrica WG753 WG753.9...
  • Page 2 WARNING: Some dust created by power Maintain Lawn Mower With Care - Keep cutting sanding, sawing, grinding, drilling and other edges sharp and clean for best and safest construction activities contains chemicals known to performance. Follow instructions for lubricating the state of California to cause cancer, birth defects and changing accessories.
  • Page 3: General Safety Warnings For Battery Pack

    Recharge only with the charger specified by Worx. Do not use any charger other than GENERAL SAFETY WARNINGS that specifically provided for use with the equipment. A charger that is suitable for one type of...
  • Page 4: Slope Operation

    Never operate mower in wet grass. Always be sure of gloves, and use extra caution when servicing them. your footing; walk; never run. Maintain or replace safety and instruction labels, as Disengage the drive system, if so equipped, before necessary. starting the motor.
  • Page 5 Check bag frequently for deterioration and wear, and replace worn bags. Check that replacement bags comply with the original manufacturer’s Wear protective gloves recommendations or specifications. Replace the blade if it is bent or cracked. An unbalanced blade causes vibration that could damage the motor drive unit or cause personal Li-Ion battery, battery must be recycled injury.
  • Page 6 Cordless Lawn Mower...
  • Page 7: Component List

    COMPONENT LIST SELF-PROPEL SPEED-CONTROL LEVER OPERATING BAIL SELF-PROPEL SPEED CONTROL HANDLE BAR GRASS COLLECTION BAG CUTTING HEIGHT ADJUSTMENT LEVER CUTTING HEIGHT ADJUSTMENT POINTER BATTERY PACK COVER FRONT HANDLE LED HEADLIGHT MULCHING-BAG SWITCH LEVER REAR HANDLE SAFETY FLAP SAFETY LOCK-OUT BUTTON QUICK-RELEASE BUTTON SIDE-DISCHARGE COVER (SEE FIG.
  • Page 8: Technical Data

    TECHNICAL DATA WG753 WG753.9 Voltage 40 V Max.(2x20 V Max.)** No load speed 2800 /min Deck diameter 21‘‘ Cutting diameter 20‘‘ Front wheel diameter 8‘‘ Rear wheel diameter 10‘‘ Cutting height 1.6’’-4’’ Cutting height positions Grass collection capacity 2 bushels Battery capacity 5.0 Ah (WA3571)
  • Page 9 SIDE DISCHARGE Cordless Lawn Mower...
  • Page 10 SIDE DISCHARGE 100% Cordless Lawn Mower...
  • Page 11 7 — 100mm 6 — 90mm 5 — 80mm 4 — 70mm 3 — 60mm 2 — 50mm 1 — 40mm Cordless Lawn Mower...
  • Page 12 Cordless Lawn Mower...
  • Page 13: Assembly And Operation

    ASSEMBLY & OPERATION Charging the battery pack See Fig.G2 NOTE: The batteries are shipped NOTE: Read instruction handbook before operation this uncharged. Each battery must be fully machine. charged before the first mow. Always fully charge the two batteries at INTENDED USE same time.
  • Page 14: Maintenance

    disperse the grass throughout the lawn. If cutting The two batteries have a remain- Two, three or four a second time, it is advisable to cut perpendicular ing charge. The more lights are green lights are (across) the first cut pattern. DO NOT CHANGE CUT illuminated, the more battery illuminated.
  • Page 15: Troubleshooting

    Place the mower in stand up storage mode. 2. Motor stops while A. Release Operating Bail to turn mowing. mower off. Remove batteries. BLADE BALANCING (See Fig. O) Turn mower over and check that Check balance of blade by placing center hole in blade O-1 blade is free to turn.
  • Page 16 8. Mower not picking A. Remove mulch plate when up clippings with the bagging. Grass Collection Bag. B. Chute clogged. Release Operating Bail to turn mower off. Remove batteries. Clear chute of grass clippings. C. Too much cut grass. Raise cutting height of wheels to shorten length of the cut.
