H-1604
MINI PAK'R™
AIR CUSHION
MACHINE
BOX CONTENTS
• Air Cushion Machine
• Power Cord
• Two (2) Spare Teflon® Seal Belts
• Quick Start Guide
• User Manual
Power Cord and
EXTERNAL
Film Roll Holder
INTERNAL
PAGE 1 OF 7
1-800-295-5510
uline.com
ON/OFF Switch
Air FIll Nozzle

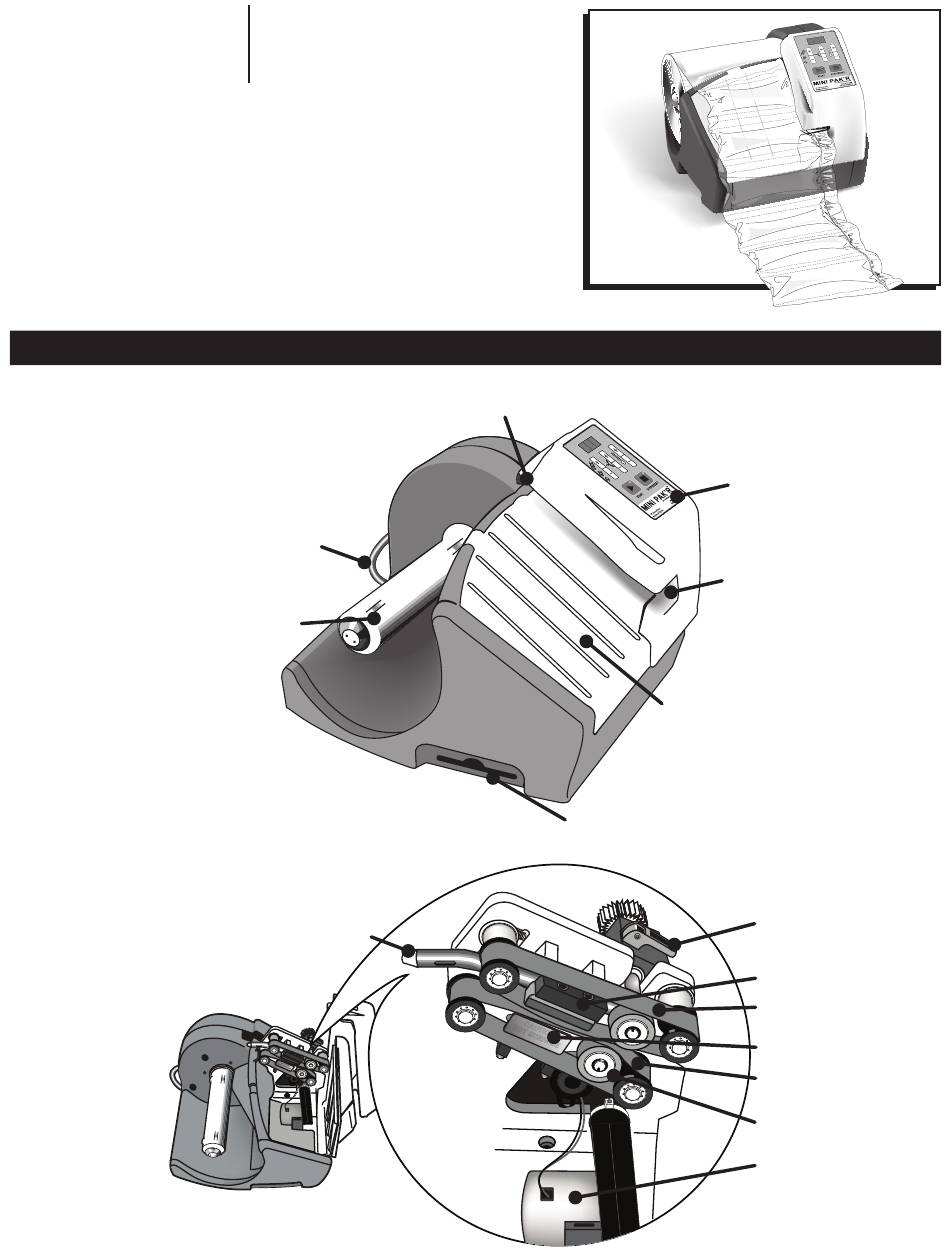

PARTS
Air Filling Tube
Quick Reference Guide
Control Panel
Upper Belt Cover
Lower Belt Cover
Belt Release Lever
Slitting Blade
Upper Teflon Seal Belt
Hot Sealing Bar
Lower Teflon Seal Belt
Drive Rollers
Air Pump
0715 IH-1604
Advertisement
Table of Contents
Related Manuals for U-Line MINI PAK'R H-1604
Summary of Contents for U-Line MINI PAK'R H-1604
- Page 1 π H-1604 1-800-295-5510 uline.com MINI PAK'R™ AIR CUSHION MACHINE BOX CONTENTS • Air Cushion Machine • Power Cord • Two (2) Spare Teflon® Seal Belts • Quick Start Guide • User Manual PARTS Air Filling Tube Control Panel Power Cord and ON/OFF Switch EXTERNAL Upper Belt Cover...
-
Page 2: Operation Overview
OPERATION OVERVIEW 1. Load Film Roll* onto the Film Roll Holder. (See Below) 4. Air Pump injects air through the Air Fill Nozzle and fills Air Cushions. 2. Guide right side of Film onto the Air Fill Nozzle and pull through the machine. (See Below) 5. -
Page 3: Control Panel
CONTROL PANEL Length Control LED display (in feet) Set Air Fill Level Green LED Set Seal Temperature • Blinks on warm-up. Red LED • Steady when ready. Stop Button Start Button • Stops Air Cushion production. START STOP/RESET • Switch on to warm up MINI PAK˙R ™... -
Page 4: Length Control
BASIC OPERATION CONTINUED STANDBY DISPLAY When out of use for 15 minutes, machines goes to "Standby" mode. Display shows "sty". (See Figure 10) 2. Press the Reset Button to resume Air Cushion production. (See Figure 10) RESET 3. Seal Bar begins heating up. START STOP/RESET MINI PAK˙R... -
Page 5: Air Control
CHANGING MINI PAK’R™ SETTINGS CONTINUED AIR CONTROL TEMPERATURE CONTROL Regulates the amount of air in the Air Cushions. Regulates the temperature of the Seal Bar. (See Figure 14) (See Figure 13) • To increase the sealing temperature, press the "+" •... -
Page 6: Routine Maintenance
MAINTENANCE ROUTINE MAINTENANCE WARNING! Burn Risk: Before opening the covers, turn power OFF, unplug the power cord and Weekly: Clean the Seal Belts and Drive Rollers with warm wait 10 minutes for Seal Bar to cool. water and mild detergent if needed. REPLACING SLITTING BLADES Monthly: Check the Mini Pak'r™... -
Page 7: Errors And Troubleshooting
ERRORS AND TROUBLESHOOTING ERROR CODES Consult the chart below if the Display shows an Error Code and the red LED flashes. Try the appropriate action for the problem, then press the STOP/RESET Button to resume operation. DISPLAY CODE ISSUE ACTION Cover open Make sure covers are closed Jam/end of roll...
