Use and Care Guide
®
Wine Captain
Models:
1115WC, 1175WC
1115WC
1175WC

Advertisement

Table of Contents
loading

Related Manuals for U-Line Wine Captain 1115WC

Summary of Contents for U-Line Wine Captain 1115WC

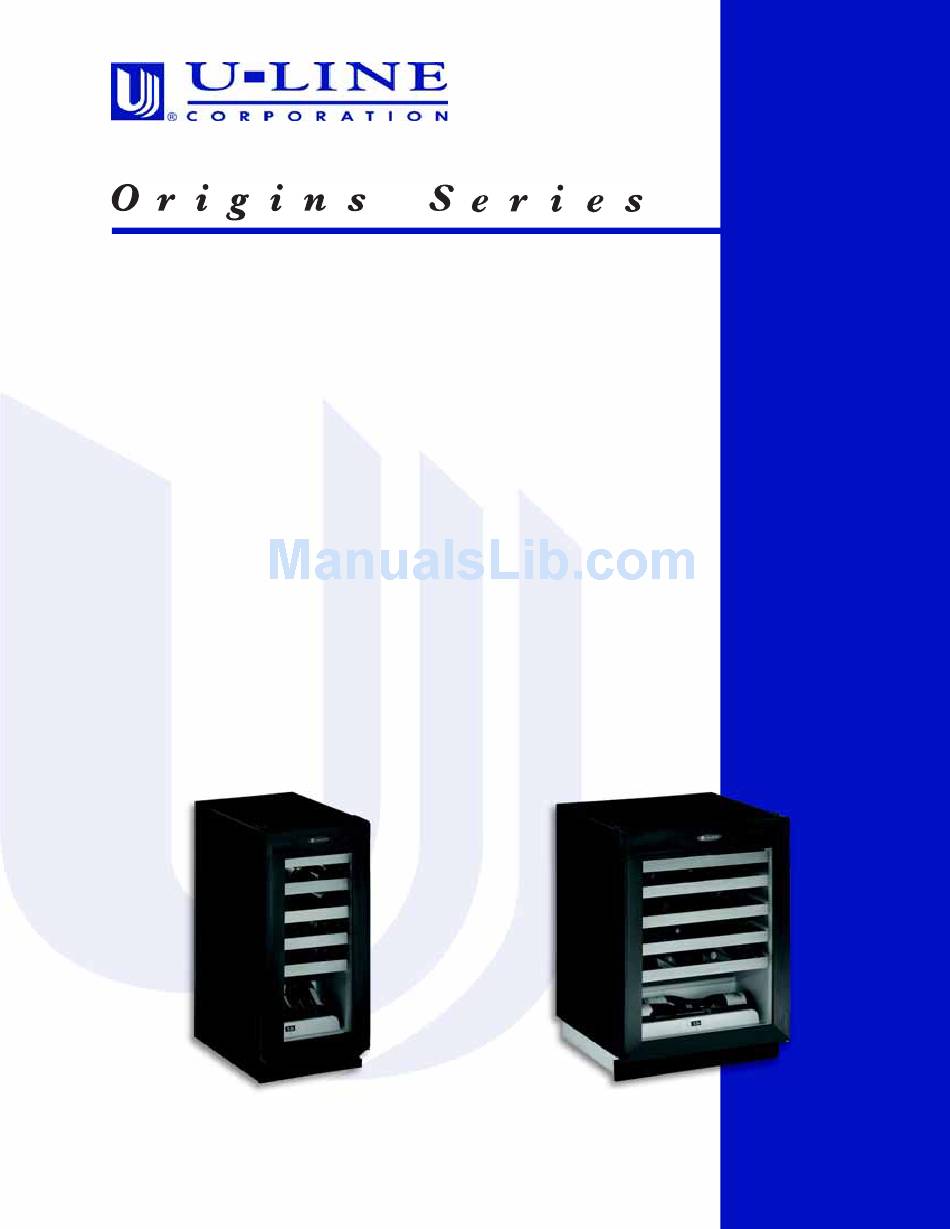

  • Page 1 Use and Care Guide ® Wine Captain Models: 1115WC, 1175WC 1115WC 1175WC...

  • Page 2: Introduction

    If your product registration is not on file and a request for warranty coverage is received, the date of sale to the U-Line Selling Dealer or Distributor will be established as the first date of warranty coverage for your product.

  • Page 3: Table Of Contents

    Safety Precautions ...5 Safety Alert Definitions ...5 General Precautions ...5 Product Features ...6 ® Origins Wine Captain Models 1115WC, 1175WC ...6 Operation ...7 Initial Startup ...7 Interior Lighting ...7 Electronic Control Panel ...8 Normal Operating Sounds ...9 Wine Stocking Recommendations ...9 Storage, Vacation, Moving ...10...
  • Page 4 This page intentionally left blank 1115WC, 1175WC...

  • Page 5: Safety Precautions

    An INSTALLATION GUIDE for your unit, providing complete installation information is available from U-Line Corporation directly, and must be consulted before any installation is begun. U-Line contact information appears on the rear cover of this guide.

  • Page 6: Product Features

    The corks remain moist, which keeps air from entering the bottles. Model 1115WC will accommodate up to 24 bottles (750 mL size) and Model 1175WC will accommodate up to 48 bottles (750 mL size).

  • Page 7: Operation

    A grille, located in the base of the unit, must not be blocked at any time, or your unit will not perform as expected. Initial Startup All U-Line units are shipped with controls that are preset. No initial adjustments are required. IMPORTANT IMPORTANT U-Line recommends the unit be allowed to run overnight prior to loading with product.

  • Page 8: Electronic Control Panel

    3. To return to the previous mode, repeat Step 1. Temperature Display Selection U-Line products supplied for 110 VAC operation have temperatures displayed in a default Fahrenheit (°F) configuration (Figure 5, 3). Models supplied for 220 VAC operation have temperatures displayed in a default Celsius (°C) configuration.

  • Page 9: Normal Operating Sounds

    Stagger the bottles as shown (Figure 8). 2. Repeat Step 1 to stock the next higher rack, and continue until all racks are filled. NOTE: After stocking, allow unit to run 24 hours to stabilize product temperatures. 1115WC, 1175WC ULIN_0019_A Figure 8...

  • Page 10: Storage, Vacation, Moving

    But there is so much more to true wine appreciation. Many secrets are simply too good to keep bottled up. The U-Line Corporation is proud to present Spilling Wine Secrets online at www.U-Line.com/resources/wine_secrets. Take a...

  • Page 11: Suggestions For Matching Food And Wine

    Common Food and Wine Matches Table 2 Foods Wines Fish, Shell Fish, Crab, Oysters Dry White Wines, Light Sparkling or Extra Dry Champagne Beef, Venison Full-Bodied Red Wines Pork, Veal, Lamb and Poultry Light-Bodied Red Wines Fruit Sweet White and Sparkling Wines 1115WC, 1175WC...

  • Page 12: Guide To Common Styles Of Wine

    French French Italian California French California French French Germany Frency Hungary California Germany Germany 1115WC, 1175WC Zinfandel, Cabernet Rhone, Chateauneuf-du-Pape Barbaresco, Barolo Pinot Noir Bordeaux, Burgundy Beaujolais Chianti, Bardolino Chardonnay Montrachet, Meursault Puligny-Montrachet Sauvignon-Blanc Pouilly-Fuisse, Sancerre, Vouvray, Graves Chablis, Muscadet, Pouilly-Fume...

  • Page 13: Cleaning And Maintenance

    Maintenance Proper maintenance of your U-Line product will ensure efficiency, top performance and long life. The maintenance intervals listed are based on normal conditions. You may want to shorten the intervals if you have pets or other special considerations.
  • Page 14 IMPORTANT IMPORTANT DO NOT use any type of cleaner on the condenser unit. Model 1115WC 1. Disconnect power to the unit. Figure 10 2. Loosen the two screws (Figure 10, 1) completely. NOTE: Screws are held in the grille by o-ring retainers, and will not come free of the grille.
  • Page 15 2. Align door squarely with cabinet. ULIN_0183_A 3. Make sure gasket is firmly in contact with cabinet all the way around the door (no gaps). 4. Tighten bottom hinge screws. 5. Tighten top hinge screws. 1115WC, 1175WC ULIN_0042_A Figure 16 IMPORTANT IMPORTANT ULIN_0143_A...
  • Page 16 Door Reversal Black model doors may be left- or right-hand opening. Stainless steel units are not field reversible. Model 1115WC To reverse the door, perform the following: 1. Remove the grille and grille cap (two screws). Figure 18 2. Remove top hinge from cabinet (three screws) (Figure 18).
  • Page 17 26). Hold door to keep it from falling. 3. Lift the door off the bottom hinge. 4. Remove four plastic plugs (Figure 27) in hinge holes, top of cabinet, opposite side. Be careful not to scratch cabinet. 1115WC, 1175WC ULIN Figure 26 ULIN_0105_A Figure 27...
  • Page 18 12. Replace four plastic plugs removed in Step 4 into holes on top of unit. Replace screws in holes in bottom of unit on opposite side. 13. Replace the grille. ULIN_0160_A 1115WC, 1175WC ULIN_0109_A Figure 31 ULIN_0110_A Figure 32...
  • Page 19 3. Replace the bulb only with a genuine U-Line P/N 31317 replacement. 4. Replace the lens by first inserting the tab side back into the housing at a slight angle.
  • Page 20 Wood Trim Finishing Interior components of your U-Line unit are equipped with a natural wood trim for appearance and durability. Although this wood trim has been coated with a clear sealer at the factory, it is recommended that the trim be stained (if desired), and receive a final finish coating prior to the unit going into full-time service.

  • Page 21: Service

    8 Service Before Calling for Service If your U-Line product appears to be malfunctioning, read through the OPERATION section of this guide to ensure that the function of all controls are clearly understood. If the malfunction persists, the TROUBLESHOOTING GUIDE...

  • Page 22: Troubleshooting Guide

    The set-point temperature should now be displayed. Repeatedly touch the WARMER button to advance any number shown to 99 and touch and release the LIGHT button. The set-point temperature should now be displayed. Record the error code(s) displayed and call for service. 1115WC, 1175WC...

  • Page 23: Electronic Control Quick Guide

    Touch to change temperature Release when °F flashes. COOLER COOLER COOLER Display (and cabinet light) will not operate in Blackout Mode. IMPORTANT 1115WC, 1175WC Display Comment °F flashes after first touch, set-point saved after 5 seconds of inactivity and °F stops flashing.
  • Page 24 This page intentionally left blank 1115WC, 1175WC...
  • Page 25 This page intentionally left blank 1115WC, 1175WC...
  • Page 26 This page intentionally left blank 1115WC, 1175WC...

  • Page 27: U-Line Corporation Limited Warranty

    During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Lines option, repair any product or replace any part of a product that breaches this warranty;...
  • Page 28 When you need replacement parts, always request genuine U-Line replacements be used. Visit www.U-Line.com to locate a parts distributor in your area. U-Line Corporation, located in Milwaukee, WI, is a family operated manufacturer of built-in undercounter ice makers, Combo ice maker/refrigerators, Wine Captain ®...
