Input and Reference Cabling
From Router Key Video Out
From Router Preview Out
PS2
ETHERNET
From Router Program Out
Note:
This illustrates cabling for one MC1-MK card and one MUX-8258 card in an OG3-FR
series frame. Your setup requirements may differ than what is presented here. The MUX-8258 is
optional.
Specifications
SDI Output Formats Default Values
480i 59.94Hz Ethernet Method DHCP
720p 59.94Hz Reference Input Frame 1
1080i 59.94Hz Output 1 Program
576i 50Hz Output 2 Program
720p 50Hz Output 3 Preview
1080i 50Hz Output 4 Clean Feed 1
Remote Control
Serial Disabled
Ethernet Disabled
Embedded Audio All groups enabled
Edit Permission Unlocked
Having a problem? Call our free, 24-hour technical support hotline to speak with a live
product specialist located right here in our facility.
Tel: (+1) 613 • 652 • 4886
Email: techsupport@rossvideo.com

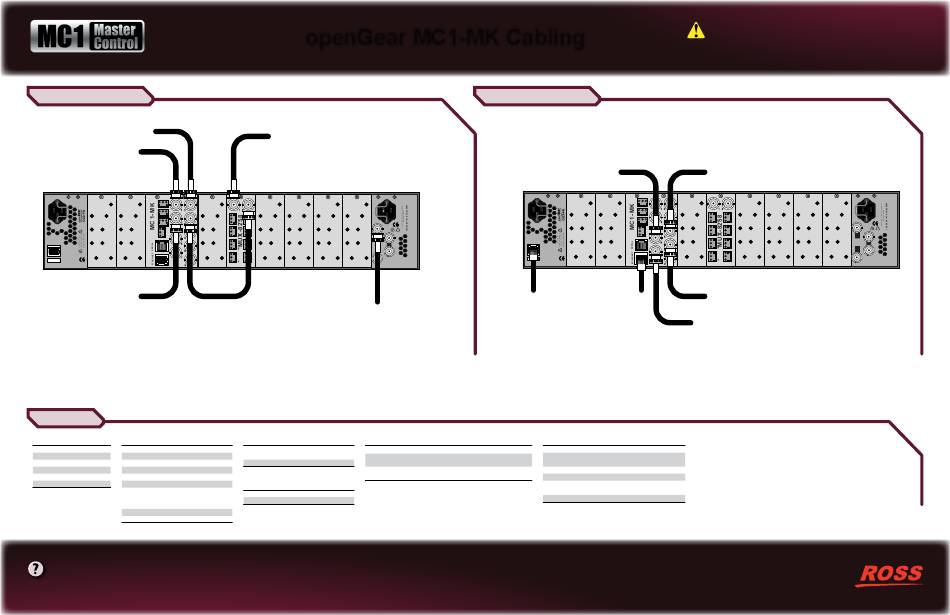

openGear MC1-MK Cabling
From Router Key Alpha Out
PS1
!
REF 1
LOOP
REF 2
LOOP
To Reference Source
Maximum Power Consumption Video Input Specifications
OG3-FR Frame Sum of both PSU not Impedance
to exceed 375W Return Loss
MC1-MK 22W
Equalization
(using Belden 1694A cable)
Temperature
Operating: 0 - 40°C (32 - 104°F)
Storage: -20 - 85°C (-4 - 185°F)
Output and Ethernet Cabling
Output 1
PS2
ETHERNET
To Ethernet Network To Ethernet Network
Video Output Specifications
75ohms Impedance 75ohms
SDI IN 1: 15dB to 1.5GHz Return Loss SDI OUT 1: 15dB to 1.5GHz
SDI IN 2-4: >15dB to 1.5GHz SDI OUT 2-4: >15dB to 1.5GHz
SD: 120m Signal Level 800mV +/- 10%
HD: 100m DC Offset 0+/-50mV
Rise and Fall Time SD: 900ps typical
HD: 150ps typical
Overshoot 75ohm
Before you set up and operate your MC1-MK card, refer to the "Important
Regulatory and Safety Notices to Service Personnel" document that was
included with your card. It is also recommended to refer to the MC1-MK
CAUTION
Installation Manual which is available for download from our website.
Output 2
Output 4
Output 3
PS1
!
REF 1
LOOP
REF 2
LOOP
