Bernafon Nano RITE Fittings Manual

Behind-the-ear hearing instruments
Hide thumbs Also See for Nano RITE:
Table of Contents

Advertisement

Quick Links

Download this manual
Fitting Guide
BEHIND-THE-EAR
HEARING INSTRUMENTS
Nano RITE
Hearing Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nano RITE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bernafon Nano RITE

Summary of Contents for Bernafon Nano RITE

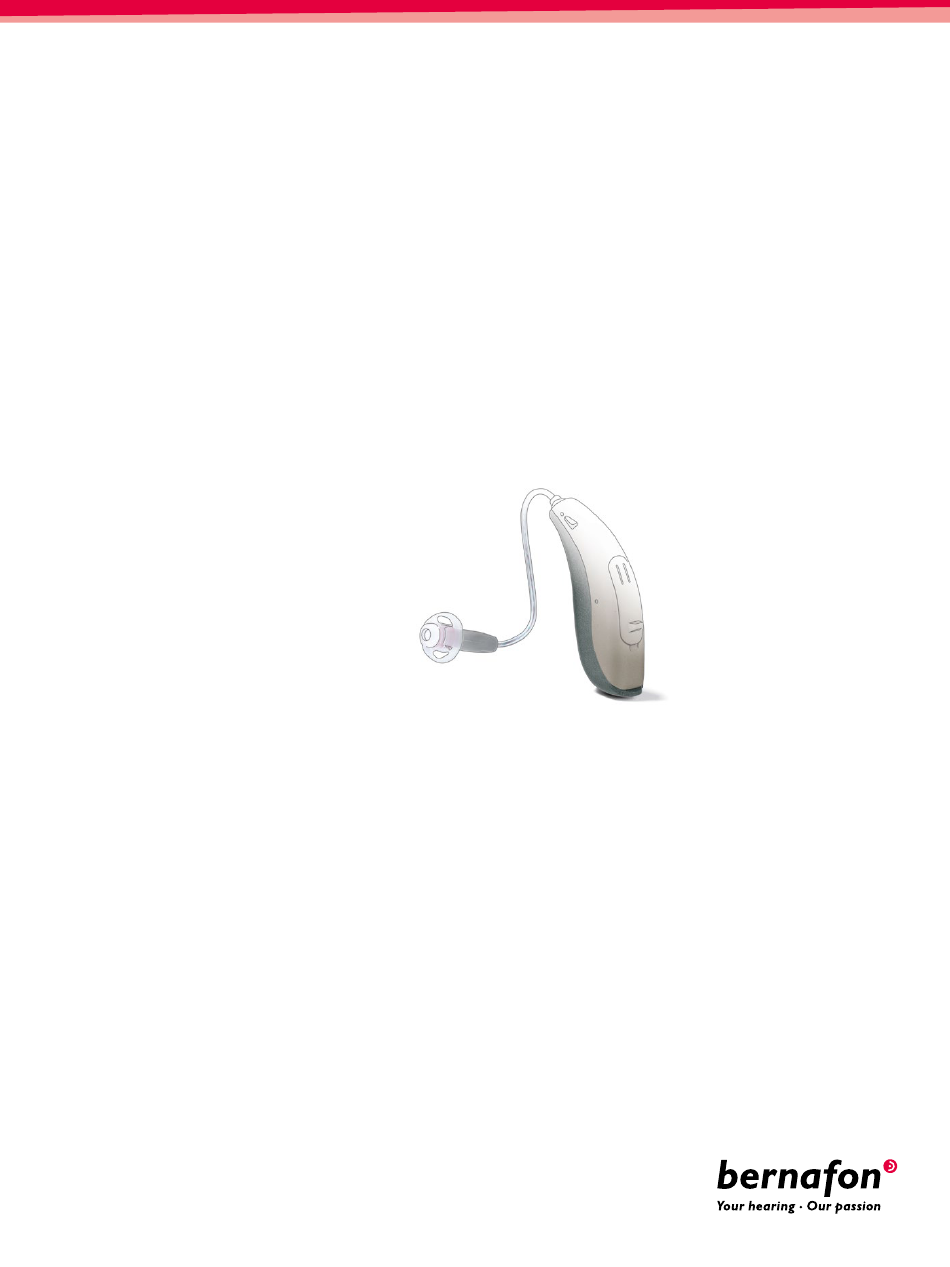

  • Page 1 Fitting Guide BEHIND-THE-EAR HEARING INSTRUMENTS Nano RITE Hearing Systems...

  • Page 3: Table Of Contents

    Nano RITE Hearing Systems – Overview Selection Chart for Acoustic Options Fitting Ranges Selecting the Speaker Unit Length Attaching the Speaker Unit to a Nano RITE Hearing System Detaching the Speaker Unit from a Nano RITE Hearing System M-Speaker Unit...

  • Page 5: Nano Rite Hearing Systems - Overview

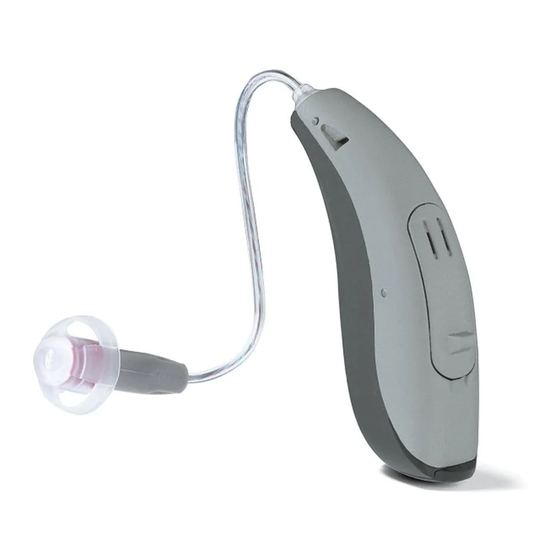

    NANO RITE HEARING SYSTEMS Nano RITE Hearing Systems – Overview The Nano RITE receiver-in-the-ear hearing instrument is easy to handle and comfortable to wear. Its unique design in combination with advanced technology delivers tangible end user benefits. This guide is designed to help you fit and manage Nano RITE hearing systems.

  • Page 6: Selection Chart For Acoustic Options

    Selection Chart for Acoustic Options Fitting Speaker Unit Protection Ear Pieces Protection Type Speaker Unit Custom Mold M-Speaker Instant ProWax Open Domes Tulip Dome Power Domes (6, 8, 10) (6, 8, 10, 12) Custom Micro Mold Canal Mold Canal Lock Skeleton WaxStop Lite Tip...

  • Page 7: Fitting Ranges

    NANO RITE HEARING SYSTEMS Fitting Ranges Nano RITE hearing systems offer two speaker units: the M-Speaker, which is appropriate for mild to moderately severe losses, while the P-Speaker provides additional power for severe hearing losses. Expected fitting ranges with different ear pieces are shown below.

  • Page 8: Selecting The Speaker Unit Length

    Four receiver lengths are available for both the M-Speaker and the P-Speaker. No. 1 is the shortest while no. 4 is the longest. Before fitting Nano RITE hearing instruments, it is necessary to determine the correct speaker unit length. The measurement procedure is the same for both the M-Speaker and the P-Speaker.

  • Page 9: Attaching The Speaker Unit To A Nano Rite Hearing System

    NANO RITE HEARING SYSTEMS Attaching the Speaker Unit to a Nano RITE Hearing System 1 – 2 Correct speaker unit attachment is imperative. 1 Slide the connector plug into the connector socket of the instrument. Take care to align the pins in the connector plug with the socket.

  • Page 10: Detaching The Speaker Unit From A Nano Rite Hearing System

    Detaching the Speaker Unit from a Nano RITE Hearing System 1 Use the pointed end of the disassembly tool to push the lock pin free. 2 Hold the instrument firmly with one hand and with the other hand hold the edge of the connector plug between your thumb and forefinger.

  • Page 11: M-Speaker Unit

    NANO RITE HEARING SYSTEMS M-Speaker Unit The M-Speaker unit is suitable for mild to moderately severe losses and comes in four lengths. It can be used for both instant and custom fittings. 1 To obtain a more secure hold in the ear canal, an ear grip should be used.

  • Page 12: Custom Molds For The M-Speaker

    Custom Molds for the M-Speaker For custom fittings two different types of molds can be attached to the M-Speaker. The Micro Mold and the Lite Tip come with an adapter already inserted, colored red (right) or blue (left) to indicate which ear.

  • Page 13: Attaching The Lite Tip And The Micro Mold To The M-Speaker Unit

    NANO RITE HEARING SYSTEMS Attaching the Lite Tip and the Micro Mold to the M-Speaker Unit Use the cup pin of the Lite Tip tool for curved receivers. Place the receiver into the tool and push the wire into the groove to obtain a stable attachment.

  • Page 14: Detaching The Micro Mold From The M-Speaker

    Detaching the Micro Mold from the M-Speaker 1 Remove the WaxStop from the Micro Mold (see page 18). 2 Insert the disassembly tool into the Micro Mold adapter, making sure to align with the cross as illustrated. 3 Push the disassembly tool into the Micro Mold. The Micro Mold will disengage with a click.

  • Page 15: P-Speaker Unit For Power Fittings

    NANO RITE HEARING SYSTEMS P-Speaker Unit for Power Fittings The P-Speaker unit contains a high performance receiver which requires ample room in the ear canal. To determine if your client’s ear canal can accommodate this receiver, please use the measurement gauge supplied.

  • Page 16: Custom Fit With Power Mold

    Custom Fit with Power Mold Power Molds are made from an impression similar to one needed for an in-the-canal hearing instrument. It is possible to include a vent up to a maximum of 2.4 mm if specified at the time of order. Attaching and Detaching Power Mold to and from P-Speaker Unit 1 Hold the P-Speaker unit in one hand and the...

  • Page 17: P-Speaker Unit

    NANO RITE HEARING SYSTEMS Changing from a Power Dome to a Power Mold 1 Remove the transparent cover on the dome adapter by gently prying it off with a screwdriver. 2 Use the screwdriver to unlock the locking plate by turning it approx. 45° counter-clockwise.

  • Page 18: Changing The Prowax Filter And The Waxstop

    Changing the ProWax Filter and the WaxStop WaxStop System The WaxStop system is applicable for the following acoustic setups: · M-Speaker coupled with a Micro Mold · P-Speaker coupled with any ear piece (instant and custom solutions) The WaxStop should be changed as needed, to ensure efficient wax protection, and to prolong the life of the speaker unit.

  • Page 19: Fitting A Nano Rite With Oasis

    NANO RITE HEARING SYSTEMS Fitting a Nano RITE with Oasis Nano RITE hearing systems are programmed with Oasis using new standard (no. 2) programming cables. Please always insert a fresh battery prior to programming. For your convenience, wireless Nano RITE hearing instruments are compatible with the nEARcom wireless programming system (depends on hearing instrument product family).

  • Page 20: Ordering Information

    Ordering Information 1 SPEAKER UNITS 1.1 M-SPEAKER UNITS Part Number Designation Comments 113645 Speaker unit M, 1L 113646 Speaker unit M, 2L 113647 Speaker unit M, 3L 113648 Speaker unit M, 4L Suitable for both custom and instant fit 113611 Speaker unit M, 1R 113630 Speaker unit M, 2R...
  • Page 21 NANO RITE HEARING SYSTEMS 1.3 P-SPEAKER UNIT ASSEMBLIES Part Number Designation Comments 118667 Speaker assembly P, 1L 118668 Speaker assembly P, 2L 118669 Speaker assembly P, 3L 118670 Speaker assembly P, 4L For custom fit 118662 Speaker assembly P, 1R...
  • Page 22 Bushing WaxStop Power Mold 5 TOOLS Part Number Designation Comments 890-22-270-00 Disassembly tool for lock pin Nano RITE 119089 Measurement tool for speaker units To be used for M-Speaker 825-01-211-00 Micro Mold / speaker unit disassembly tool with Micro Mold CN_ILLU_NRCostumMoldPspeakerDetaching_BW_HI...
  • Page 23 NANO RITE HEARING SYSTEMS 6 SPEAKER PARTS Part Number Designation Comments For instant fit 654-01-570-00 Dome adapter, transparent with P-Speaker 506-24-030-00 Locking plate With P-Speaker 543-11-770-00 Cover, beige 543-11-771-00 Cover, medium brown 543-11-772-00 Cover, pink With P-Speaker 543-11-773-00 Cover, dark brown...
  • Page 24 Our aim is to provide extra value to our partners every day. Bernafon representatives and employees in over 70 countries fulfi ll our vision to help people with impaired hearing communicate again without limitation.
