Summary of Contents for ATEN VS0201

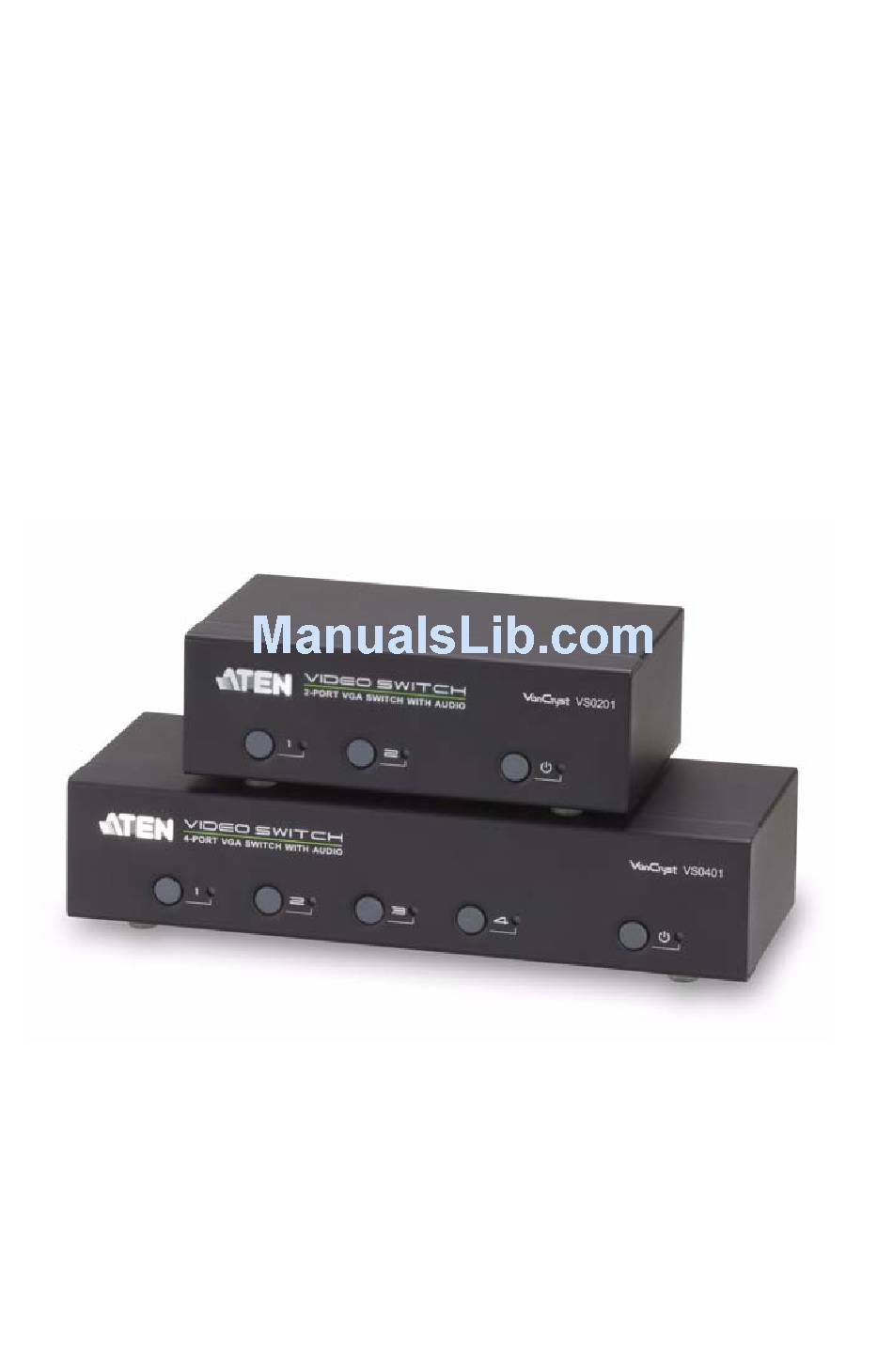

- Page 1 2/4-Port VGA Switch with Audio VS0201 / VS0401 User Manual www.aten.com...
-
Page 2: Fcc Information
VS0201 / VS0401 User Manual FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: User Information
VS0201 / VS0401 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America http://www.aten-usa.com/product_registration Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea... -
Page 4: Package Contents
© Copyright 2012 ATEN® International Co., Ltd. Manual Part No. PAPE-0360-AT1G Manual Date: 2012-09-19 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. -
Page 5: Table Of Contents
VS0201 Front View ........ - Page 6 VS0201 / VS0401 User Manual Dynamic DDC Commands ....... . . 15 Pushbutton Lock Commands .
-
Page 7: About This Manual
Chapter 1, Introduction, introduces you to the VS0201 / VS0401 system. Its purpose, features and benefits are presented, and its front and back panel components are described. Chapter 2, Hardware Setup, describes how to set up your VS0201 / VS0401 installation. Chapter 3, Operation, explains the fundamental concepts involved in operating the VS0201 / VS0401. -
Page 8: Conventions
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
PC. The ability to use high-end serial control devices to initiate RS-232 commands allows the VS0201 / VS0401 to be controlled by a secondary system to utilize advanced switch functions such as port switching, auto switching, front panel pushbutton lock, and Power on Detection. -
Page 10: Features
RS-232 functions RS-232 Functions: Power On Detection – if one VGA source is powered off, the VS0201 / VS0401 will automatically switch to the next powered-on source Auto Switching – sets the priority for auto switching to a connected port Pushbutton Lock –... -
Page 11: Requirements
Chapter 1. Introduction Requirements Source Device The following equipment must be installed on the source device or computer that acts as a source of VGA/Audio content: VGA video card with HDB-15 connector Audio source with stereo output Display Device A VGA, SVGA, UXGA, WUXGA or multisync monitor or multimedia projector with an HDB-15 connector Stereo and/or balanced audio speakers Cables... -
Page 12: Components
VS0201 / VS0401 User Manual Components VS0201 Front View VS0401 Front View Component Function Port Selection Pressing a port selection pushbutton routes the Pushbuttons VGA/Audio source from the corresponding input port to the output port for display. Port LEDs There is one port LED next to each port selection pushbutton. -
Page 13: Vs0201 Rear View
Chapter 1. Introduction VS0201 Rear View VS0401 Rear View Component Function Grounding Terminal The grounding wire used to ground the unit attaches here. RS-232 Serial Port This is the serial remote port for input source selection and high-end system control. - Page 14 VS0201 / VS0401 User Manual This Page Intentionally Left Blank...
-
Page 15: Hardware Setup
Keyboard Power On function. Installation Installation of the VS0201 / VS0401 is simply a matter of plugging in the appropriate cables. To install the switch, refer to the installation diagram on page 8 as you perform the following steps: 1. -
Page 16: Installation Diagram
In order to use the RS-232 serial interface to attach a high-end controller (such as a PC) to the VS0201 / VS0401, use a RS-232 serial cable. The end connecting to the VS0201 / VS0401 should have a 9-pin male connector. Refer to step 5 on the diagram above. -
Page 17: Operation
Note: The Port LED (green) light indicates which port is currently selected. Remote Control Source Selection First plug the External IR Receiver into the rear of the VS0201 / VS0401, place the receiver where the IR signal can be reached, and aim the remote at the External IR receiver. -
Page 18: Power On Detection
Automatically switches to the next port with a powered on source device connected, when the current active port device is powered off. When the VS0201 / VS0401 is turned on, the port last connected when the device was turned off will be selected. -
Page 19: Rs-232 Serial Interface
Chapter 3. Operation RS-232 Serial Interface The VS0201 / VS0401’s built-in bi-directional RS-232 serial interface allows system control through a high-end controller, PC, and/or home automation / home theater software package. Configuring the Serial Port The controller’s serial port should be configured as follows:... -
Page 20: Switch Port Commands
VS0201 / VS0401 User Manual Switch Port Commands The formulas for Switch Port commands are as follows: 1. Switch Command + Input Command + Port Number [Enter] For example, to switch the input port to port 02, type the following: sw i02 [Enter] 2. -
Page 21: Auto Switch Commands
The Auto Switch command places priority on a port so that when a source is connected to that port the VS0201 / VS0401 automatically switches to it, and the port can not be changed until the source is unplugged or auto switching is disabled. -
Page 22: Power On Detection Commands
VS0201 / VS0401 User Manual Power On Detection Commands The Power On Detection feature switches ports when the connected device is powered off (See Power On Detection, page 10, for details). The formula for the Power On Detection command is as follows:... -
Page 23: Dynamic Ddc Commands
Chapter 3. Operation Dynamic DDC Commands The Dynamic DDC feature is used to monitor the connected display and provide the correct updated EDID information to the source device so that the display is optimized. With Dynamic DDC off, source devices do not receive updated EDID data which can cause display issues. -
Page 24: Pushbutton Lock Commands
VS0201 / VS0401 User Manual Pushbutton Lock Commands The Pushbutton Lock feature allows you to secure your device by locking use of the front panel push-buttons. The formula for the Pushbutton Lock command is as follows: Button + Control Command [Enter]... -
Page 25: Read Firmware Command
Chapter 3. Operation Read Firmware Command The Read Firmware feature allows you to read the firmware information of the VS0201 / VS0401. The formula for the Read Firmware command is as follows: Read + Control Command [Enter] For example, to display the firmware information of the device, input the... -
Page 26: Reset Device Command
VS0201 / VS0401 User Manual Reset Device Command The Reset feature resets the VS0201 / VS0401 back to the factory default settings. The formula for the Rest commands is as follows: Command [Enter] For example, to reset back to the factory default settings, input the following:... -
Page 27: Appendix
Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water. - Page 28 VS0201 / VS0401 User Manual If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.
-
Page 29: Technical Support
Appendix Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, Telephone Support, page iii North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase. -
Page 30: Specifications
VS0201 / VS0401 User Manual Specifications Function VS0201 VS0401 Display Connections Connectors Input Video 2 x HDB-15 Male (Blue) 4 x HDB-15 Male (Blue) Audio 2 x Mini Stereo Jack 4 x Mini Stereo Jack Female (Green) Female (Green) Output... -
Page 31: Limited Warranty
Appendix Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
