Summary of Contents for D+H DYER ZA 35-K-BSY+

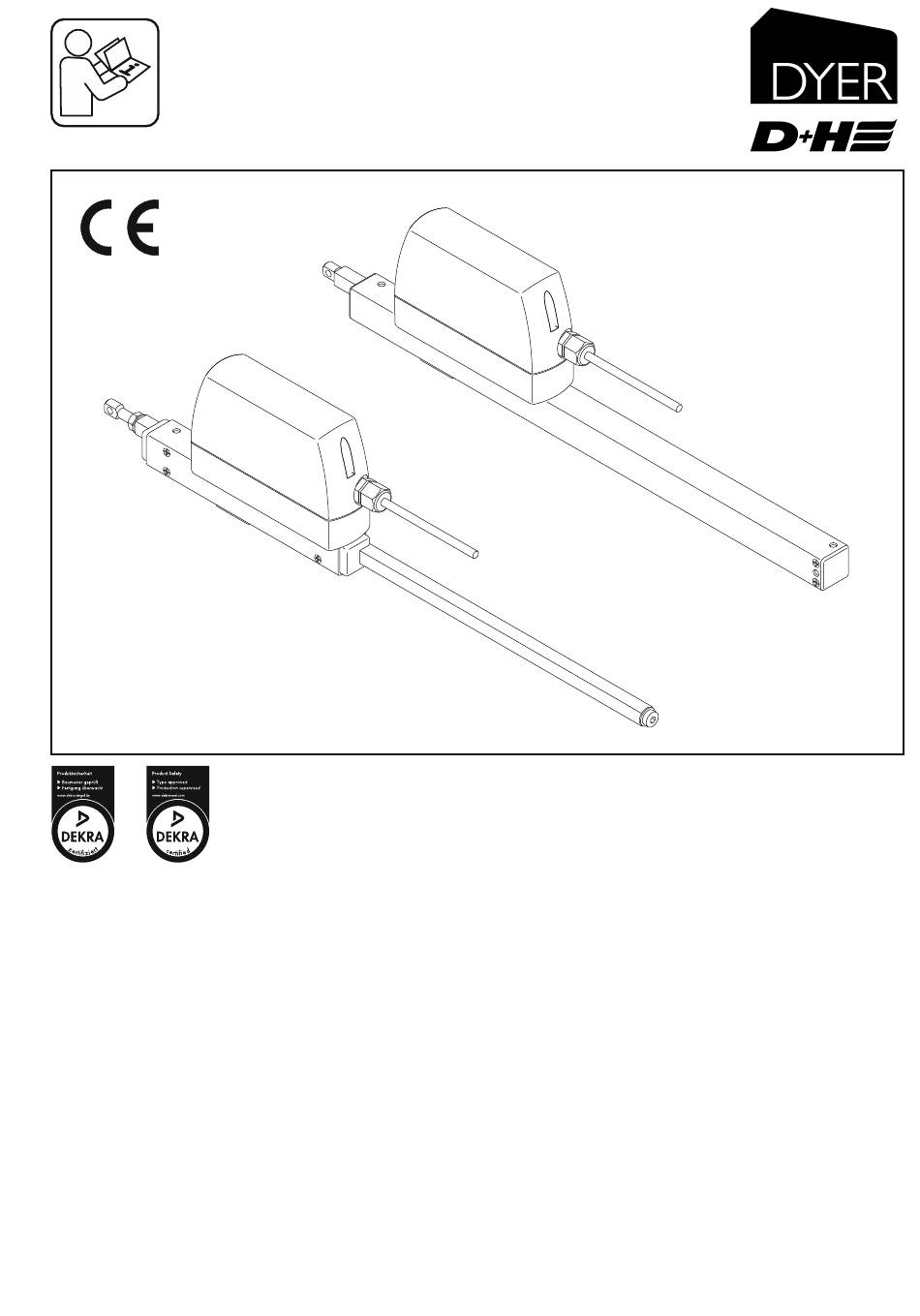

- Page 1 ZA 35/85/105/155-K-BSY+(-HS) instructions Standard version Version without tube (option "-OT") Please order bracket sets separately...
- Page 2 - Operating voltage 230 V AC Save all warnings and instructions for future - Up to 4 drives possible reference. - Useable for smoke extraction, D+H Euro-SHEV in accordance with DIN EN 12101-2 as well as daily ventilation - Suitable for indoor mounting only...
-
Page 3: Technical Data
Technical data Type ZA 35-K-BSY+(-HS) ZA 85-K-BSY+(-HS) ZA 105-K-BSY+(-HS) ZA 155-K-BSY+(-HS) Supply 230 V AC, +10 % / -15 %, 50 Hz Active power 20 W (35 W) 30W (50 W) 35 W (60 W) 45 W (75 W) Apparent output 30 VA (45 VA) 45 VA (75 VA) 55 VA (85 VA) -
Page 4: Mounting Examples
Mounting examples Uncritical load distribution Critical load distribution triangular pyramid * domelight pyramid * weighty wing * Guiding device required by customer in case of complete lift-off of pyramid/domelight, because of possible lateral load due to wind pressure! Pin Assignment Standard Option -SZ-SA Option -SGI... -
Page 5: Troubleshooting
D+H maintenance notes. Only original from date of verified handing over of the system up to D+H spare parts may be used. Repair is to be carried maximal 3 years after date of delivery, when out exclusively by D+H. - Page 6 Connection unction box ZA-K-BSY+ Data b (GN) Protect against short circuit Data a (YE) (YE/GN) (BU) (BN) (BK) Master 1 * fast-mode SHEV High-Speed Normal operation High-Speed 230 V AC / 50 Hz * Programmable via SCS software and BI-BT 2. Plug in the BI-BT 2 only under tempered conditions.
- Page 7 Connection Junction box ZA-K-BSY+ Data b (GN) Data a (YE) (YE/GN) (BU) (BN) (BK) Slave 1* ZA-K-BSY+ Data b (GN) Data a (YE) (YE/GN) (BU) (BN) (BK) Master 2* 230 V AC / 50 Hz (GN) green (YE) yellow (BU) blue (BN) brown...
- Page 8 Dimensions Stroke ≥ 165 mm Stroke 82 mm, 100 mm t r o t r o Version without tube (option "-OT") / Dyer Environmental Controls Ltd Unit 10 Lawnhurst Trading Estate, Cheadle Heath, Stockport SK3 0SD Tel: +44 (0)161 491 4840 E-Mail: enquiry@dyerenvironmental.co.uk www.dyerenvironmental.co.uk...
