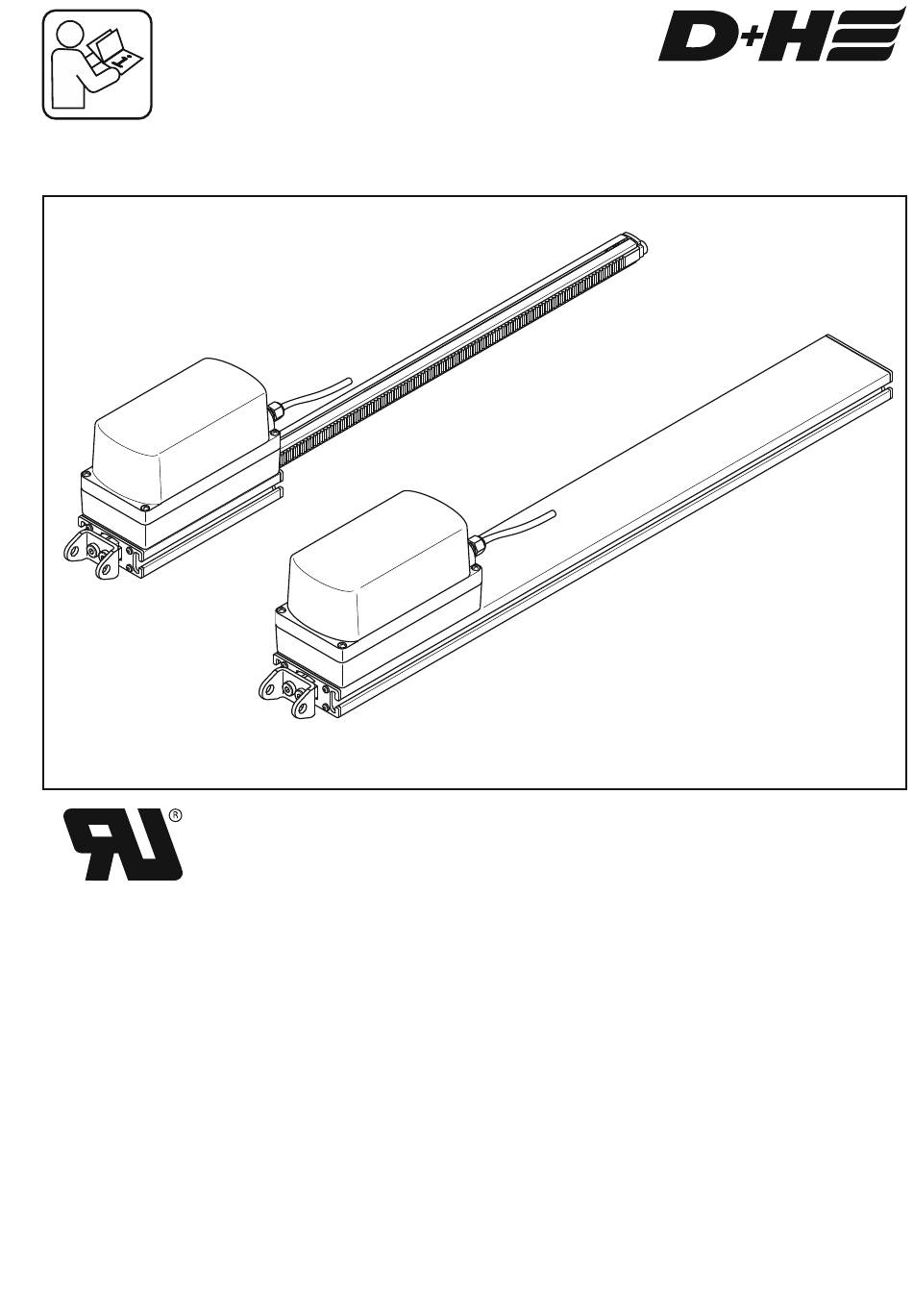

DXD 150-BSY+ (-HS)
DXD 300-BSY+ (-HS)
Standard version without tube
Version with tube
Please order bracket sets separately
C
US
E 222052
en Original instructions . . . . . . . . . . . . . . . . . . . . . . . Page . . . . . . . 2
99.831.05 1.1/10/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 150-BSY+ and is the answer not in the manual?

Questions and answers

Related Manuals for D+H 150-BSY+

Summary of Contents for D+H 150-BSY+

  • Page 1 DXD 150-BSY+ (-HS) DXD 300-BSY+ (-HS) Standard version without tube Version with tube Please order bracket sets separately E 222052 en Original instructions ..... . . Page ..2 99.831.05 1.1/10/15...

  • Page 2: Intended Use

    Stroke (mm / Inch) ! IMPORTANT ! Safety Notes 1. Mounting of the drive should be carried out by a D+H distributor, whose qualification and experience is ensured by regular in-house training. 2. All wiring must be installed by a qualified electrican according to National Electrical Codes, NFPA 70.

  • Page 3: Mounting Informations

    Mounting informations Scope of supply - Swivel radius of the drive must go free over entire Drive unit with 2,5 m (97.5") silicone cable. range of stroke. Otherwise, the toothed rack and Dependent on the type of window, different bracket the suspension can be damaged sets are available separately.
  • Page 4 Stroke shortening Shift slotted pins and magnets into desired position, using a suitable tool e.g. a screw driver for stroke shortening. Observe minimum distances (60 mm and 5 mm / 2.4" and 0.2")! After shifting of the “CLOSED-magnet” let the drive run closed.

  • Page 5: Troubleshooting

    D+H maintenance notes. Only original from date of verified handing over of the system up to D+H spare parts may be used. Repair is to be carried maximal 3 years after date of delivery, when out exclusively by D+H.

  • Page 6: Pin Assignment

    Connection Junction box EM 47 K * DXD-BSY+ Data b (GN) Data a (YE) Mot. b (BN) Mot. a (WH) (OR) Master 1 to control panel **** N– A E/X Group Pin Assignment Standard Option -BRV Option -SGI/-SKS Option -SA-SZ WH (Mot.
  • Page 7 Not in case of : GVL 8x0x-K/ -M/ -E Protect against short circuit *** In case of connection to D+H SHEV control panels with E/HS line monitoring **** Cable acc. to D+H table for layout of cables (see instructions for use of control panel) 99.831.05 1.1/10/15 English...
  • Page 8 : +49 40-605 65 11 / 0.4" : +49 40-605 65 254 84 / 3.3" E-Mail: info@dh-partner.com www.dh-partner.com All sizes in millimetre (inches)! © 2012 D+H Mechatronic AG, Ammersbek Rights to technical modifications reserved 100 % Recycled paper 99.831.05 1.1/10/15...

This manual is also suitable for:

300-bsy+150-bsy+ hs300-bsy+ hs
