Standard Line Automated Operation
WARNING
FOR YOUR SAFETY: This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment
by the jurisdiction in which the product will be installed where such state or local requirements exists. In the event no such state or
local requirement exists, the installer or maintainer must be a professional with sufficient experience in pool equipment installation
and maintenance so that all of the instructions in this manual can be followed exactly. Before installing this product, read and follow all
warning notices and instructions that accompany this product. Failure to follow warning notices and instructions may result in property
damage, personal injury, or death. Improper installation and/or operation can create carbon monoxide gas and flue gases which can
cause serious injury, property damage, or death. For installations in the vicinity of occupied/living spaces, as an additional measure
of safety, Zodiac Pool Systems LLC strongly recommends installation of suitable carbon monoxide detectors in the vicinity of this
appliance and in any adjacent occupied spaces. Improper installation and/or operation may void the warranty.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Immediately switch off main gas supply.
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
MAINTENANCE MANUAL
Grand Effects
24" - 30" Fire Pits Inserts
IF THESE INSTRUCTIONS ARE NOT FOLLOWED
EXACTLY, A FIRE OR EXPLOSION MAY RESULT,
CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR DEATH.
OPERATION AND
®
Advertisement
Table of Contents
Related Manuals for GRAND EFFECTS FPIAUT24
Summary of Contents for GRAND EFFECTS FPIAUT24
- Page 1 OPERATION AND MAINTENANCE MANUAL Grand Effects ® 24” - 30” Fire Pits Inserts Standard Line Automated Operation IF THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT, WARNING CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH. FOR YOUR SAFETY: This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exists.
-
Page 2: Table Of Contents
Section 1. Important Safety Instructions ..3 Section 2. General Description ...... 4 Product Overview ............4 Product Contents............4 Section 3. Installing the Grand Effects ® 24” - 30” Fire Pit Inserts ....5 Preparing the Fire Pit Inserts for Installation ....5 Gas and Electric Requirements........6... -
Page 3: Section 1. Important Safety Instructions
Visit www.zodiacpoolsystems.com for additional free copies of these instructions or call Zodiac Technical Support at 800.822.7933 (U.S.) or Grand Effects at 949.697.5270 ATTENTION INSTALLER This manual contains important information about the installation, operation and safe use of this product. -
Page 4: Section 2. General Description

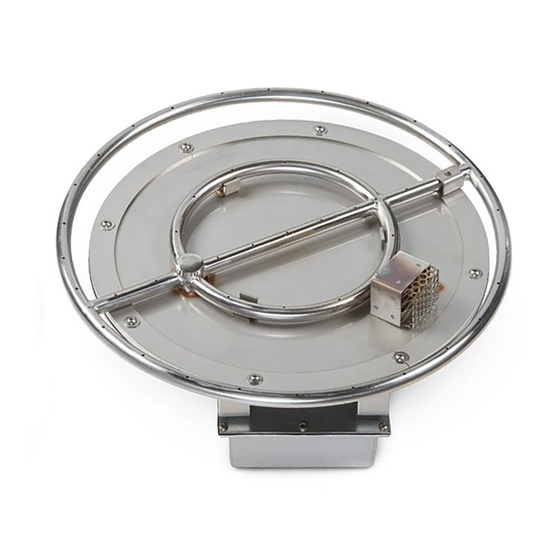

24” - 30” Fire Pit Inserts. ® CAUTION The Grand Effects Fire Pit Inserts are not serviceable and therefore contain no serviceable parts. In order to prevent risk of property damage and/or injury, no service should be attempted to the bowl in the event of a malfunction. -
Page 5: Section 3. Installing The Grand Effects ® 24" - 30" Fire Pit Inserts
24” - 30” Fire Pit Inserts Page 5 Standard Line Automated Operation Section 3. Installing the Grand Effects ® 24” - 30” Fire Pit Inserts WARNING Risk of Electrical Shock or Electrocution. This fire pit must be installed by a licensed or certified electrician or a qualified pool... - Page 6 24” - 30” Fire Pit Inserts Page 6 Standard Line Automated Operation Additionally, Zodiac Pool Systems LLC, requires that as required by Article 680 of the NEC, the appliance be properly connected to an equipotential bonding grid/loop that includes all electrical equipment in the system and on the equipment pad.
-
Page 7: Gas And Electric Requirements
24” - 30” Fire Pit Inserts Page 7 Standard Line Automated Operation Gas and Electric Requirements 120 VAC / 60 Hz to Grand Effects ® Input Voltage Control Panel Gas Type Natural Propane Gas Pressure (Nominal) 7” wc 11” wc 24”... - Page 8 GAS INLET (PROPANE) 24 VAC 120 VAC 60HZ INPUT PROPANE ADDER OUTLET TO CONTROL PANEL SUPPLIED BY GRAND EFFECTS ® INSTALLED AS CLOSE AS POSSIBLE TO FIRE PIT 24 VAC OUTPUT & CONDUIT (UNDERGROUND) 1” NPT GAS PIPING (UNDERGROUND) Figure 3.
- Page 9 *SUPPLIED BY OTHERS 120 VAC 60HZ INPUT COMMERCIAL SAFETY PIPE TRAIN TO CONTROL PANEL OUTLET SUPPLIED BY GRAND EFFECTS 24 VAC 60 HZ INPUT DETAILS (INSTALL AS CLOSE AS POSSIBLE TO FIRE PIT) 24 VAC OUTPUT & CONDUIT (UNDERGROUND) 1” NPT GAS PIPING (UNDERGROUND) Figure 4.
- Page 10 120v source, including auxiliary relay from the pool controller or home system. Typically, the pool controller is the device that turns the unit on and off. If a pool controller is not available, Grand Effects can provide a hand held remote system or an electrician can wire a decorative switch for on/off control up stream of the Grand Effects control panel.
- Page 11 On commercial installations, it is recommended to install a keyed switch and kill switch located in close proximity and in visible sight of feature or features. The keyed and kill switches must be electrically wired into the 110v upstream of the Grand Effects Control Panel. ®...
- Page 12 24” - 30” Fire Pit Inserts Page 12 Standard Line Automated Operation 10. Install the Sub-panel at the bottom of Fire pit as shown in Figures 9, 10, 11 and 12. It is important to have good drainage as warranty is void if Sub-panel becomes submerged with water.
- Page 13 24” - 30” Fire Pit Inserts Page 13 Standard Line Automated Operation 39” MINIMUM FOR 24” BURNER 43” MINIMUM FOR 30” BURNER BURNER ASSEMBLY 2” FIRE PIT WALL MAIN PILOT GAS BURNER SPARK 18” 2.5 D (4) BURNER GROUND MIN. MULTIPLE VENTS REQUIRED...
-
Page 14: Section 4. Burner Setup And Adjustment
24” - 30” Fire Pit Inserts Page 14 Standard Line Automated Operation Section 4. Burner Setup and Adjustment Burner Setup At the control panel, turn the manual gas valve to the “Off” position. With 120VAC coming into the Control Panel, turn the switch located in the panel to the “On”... -
Page 15: Burner Adjustment
To avoid the risk of property damage and serious injury, including death, when purging air from a propane system, be sure to disconnect wires going to the burner assemblies (terminals X1/X2) located in Grand Effects control panel. There should be no power at the burner ®... -
Page 16: Section 5. Maintenance
Important: Gas must be securely shut off when not in use. Note: If any problems are present, consult a licensed heating specialist or call Grand Effects ®... -
Page 17: Section 6. Operation
• Before any inspection of the unit, always turn off power and gas supply at the control panel. • If you experience problems with this unit, call Grand Effects or a licensed heating professional. All work on this unit must be performed by a licensed heating professional. -
Page 18: Section 7. Troubleshooting
Troubleshooting WARNING To avoid the risk of property damage and serious injury, including death, call Grand Effects or a licensed heating professional if you experience ® problems with this unit. All work on this unit must be performed by a licensed heating professional. - Page 19 24” - 30” Fire Pit Inserts Page 19 Standard Line Automated Operation WARNING Standard Fire Box Burner In order to avoid the risk of property damage, serious injury, including death, turn OFF power and gas at the control panel prior to initiating troubleshooting steps.
- Page 20 24” - 30” Fire Pit Inserts Page 20 Standard Line Automated Operation Section 8. Control Module Diagram GRAND EFFECTS ® GE1020 CONTROL MODULE 1.45 5.25 THIS CONTROL IS TO BE Fire and Water Features www.grandeffects.com USED WITH OUTDOOR 12VAC 50/60Hz APPLIANCES ONLY 1 = .3A...
-
Page 21: Section 8. Control Module Diagram
24” - 30” Fire Pit Inserts Page 21 Standard Line Automated Operation Section 9. Wiring Diagram CONTROL PANEL BURNER 120V BLACK BLACK X1 BLACK 120V WHITE WHITE GREEN GREEN X2 ORANGE GROUND X2 ORANGE X1 BLACK... - Page 22 24” - 30” Fire Pit Inserts Page 22 Standard Line Automated Operation NOTES...
- Page 23 24” - 30” Fire Pit Inserts Page 23 Standard Line Automated Operation NOTES...
- Page 24 Grand Effects 23121 Arroyo Vista, Suite B, Rancho Santa Margarita, CA 92688 1.949.697.5270 | www.GrandEffects.com Zodiac Pool Systems LLC 2882 Whiptail Loop #100, Carlsbad, CA 92010 1.800.822.7933 | www.ZodiacPoolSystems.com ©2020 Zodiac Pool Systems LLC. All rights reserved. ZODIAC® is a registered trademark of Zodiac International, S.A.S.U., used under license.
