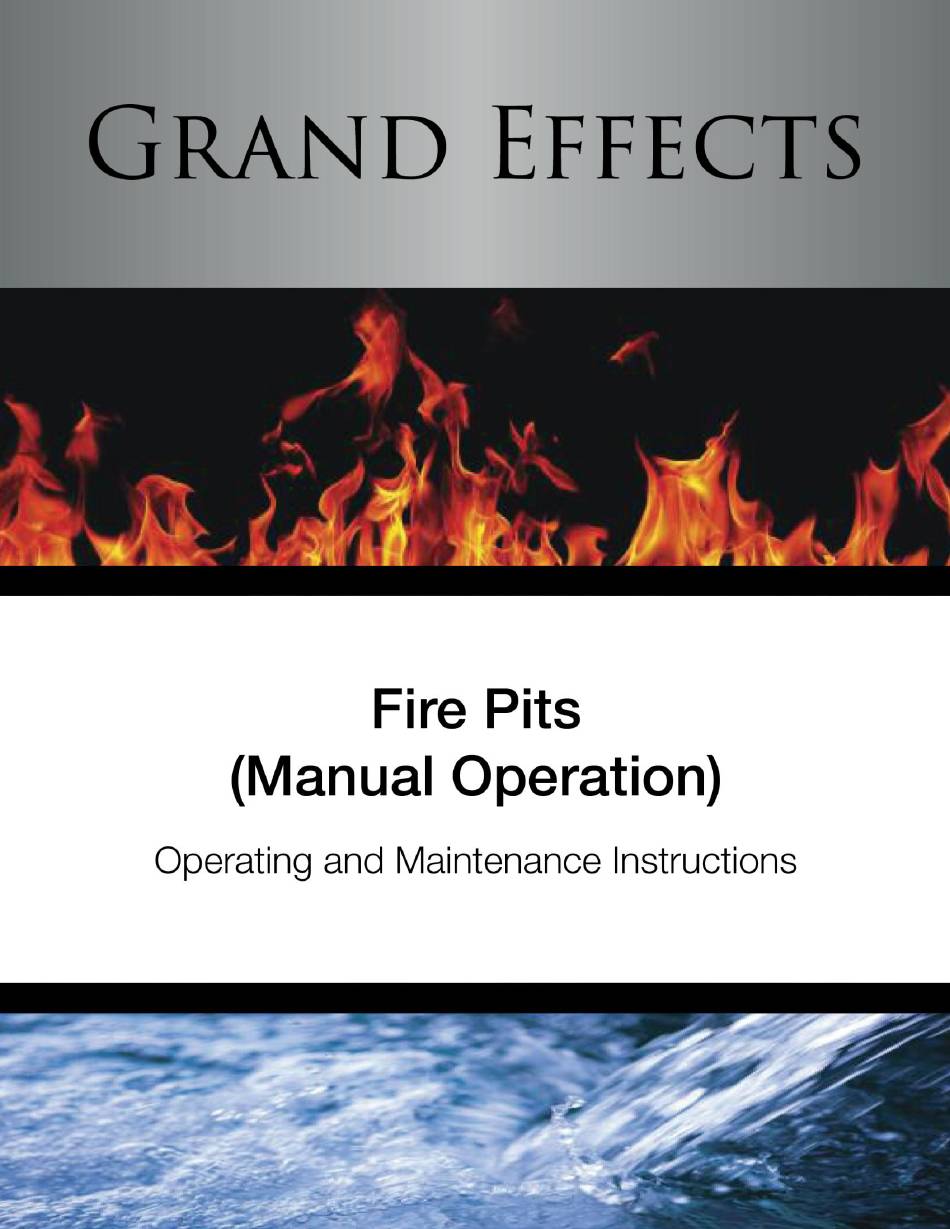

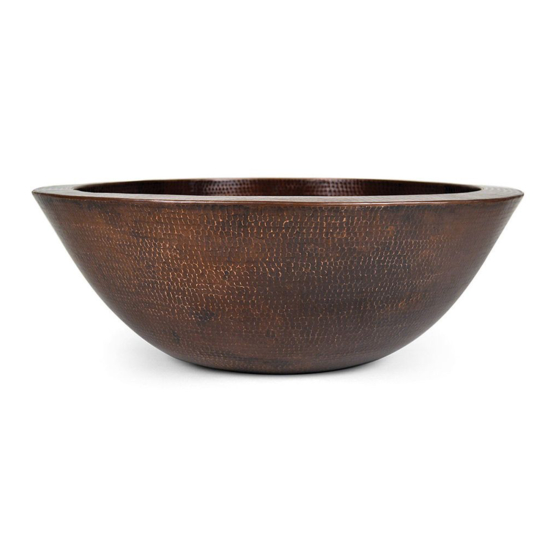

- Page 1 Grand Effects Fire Pits (Manual Operation) Operating and Maintenance Instructions...
-
Page 2: Table Of Contents
Section 4: Maintenance ....................6 Section 5: Operation......................7 Operating Instructions....................7 Grand Effects Warranty (1 Year Residential; 6 Months Commercial) ......8 WARNING! If you smell gas, immediately take the following actions: 1. Shut off the gas to the appliance. -
Page 3: Section 1: Gas Requirements
Grand Effects Fire Pits (Manual Operation) Operating and Maintenance Instructions Section 1: Gas Requirements Gas Type Natural Propane Gas Pressure (Nominal) 7″ wc 11″ wc Gas Flow 1 Burner System: 80,000 btu/hr Note: Check with your gas supplier to verify gas flows and pressures available at the location of your installation. -
Page 4: Section 2: Installation
The approved gas valve must be located where they can be easily accessible so that the gas can be shut off quickly in case of an emergency. 1. Install the following Grand Effects Fire Pit (42”- 60”Biltmore) as shown in Figure 1 or Figure 2. - Page 5 Grand Effects Fire Pits (Manual Operation) Operating and Maintenance Instructions Figure 2: Fire Pit with Internal Key Valve Figure 3: Fire Pit with Mounting Bracket 5. The piping must be reduced to 1/2″ NPT or larger at each bowl, as shown in Figure 2.
- Page 6 Grand Effects Fire Pits (Manual Operation) Operating and Maintenance Instructions Important: The mounting bracket must be installed for proper cooling of the burner assembly. Mounting brackets must be installed on the 48” Essex/45”Cielo/42” Legacy. Warranty is voided if the mounting bracket is not installed.
-
Page 7: Section 3: Burner Setup And Adjustment
Grand Effects Fire Pits (Manual Operation) Operating and Maintenance Instructions Section 3: Burner Setup and Adjustment Note: Each burner should have a flame height of approximately 12″ – 15″ from the top of the bowl. 1. The height of the flame can be adjusted at each burner by opening or closing the 1/2″... -
Page 8: Section 4: Maintenance
Grand Effects Fire Pits (Manual Operation) Operating and Maintenance Instructions Section 4: Maintenance Periodically clean the burner assembly and bowl with a wet cloth or cleaning solution to remove carbon build-up. Frequency of the cleaning will depend on usage. Frequently inspect the gap between the base of the bowl and the mounting bracket. It should be kept free of dirt and debris that may restrict cooling air and drainage (see Figure 2). -
Page 9: Section 5: Operation
Operating Instructions With the gas valve in the closed position, check the Grand Effects Unit for any gas smell or indication of a gas leak. If you smell gas or see evidence of a gas leak, do not operate the Unit. -
Page 10: Grand Effects Warranty (1 Year Residential; 6 Months Commercial)
Grand Effects Warranty (1 Year Residential; 6 Months Commercial) Grand Effects will attempt to repair, at its expense, any unit, which in normal use, has proven to be defective in workmanship or material, provided that the Buyer provides or arranges for the return of the product prepaid to Grand Effects with proof of product... - Page 11 Contact us at: 23121 Arroyo Vista Suite B Rancho Santa Margarita, CA 92688 Office: (949) 697-5270 Fax: (949) 625-8027 E-mail: info@grandeffectsinc.com...
