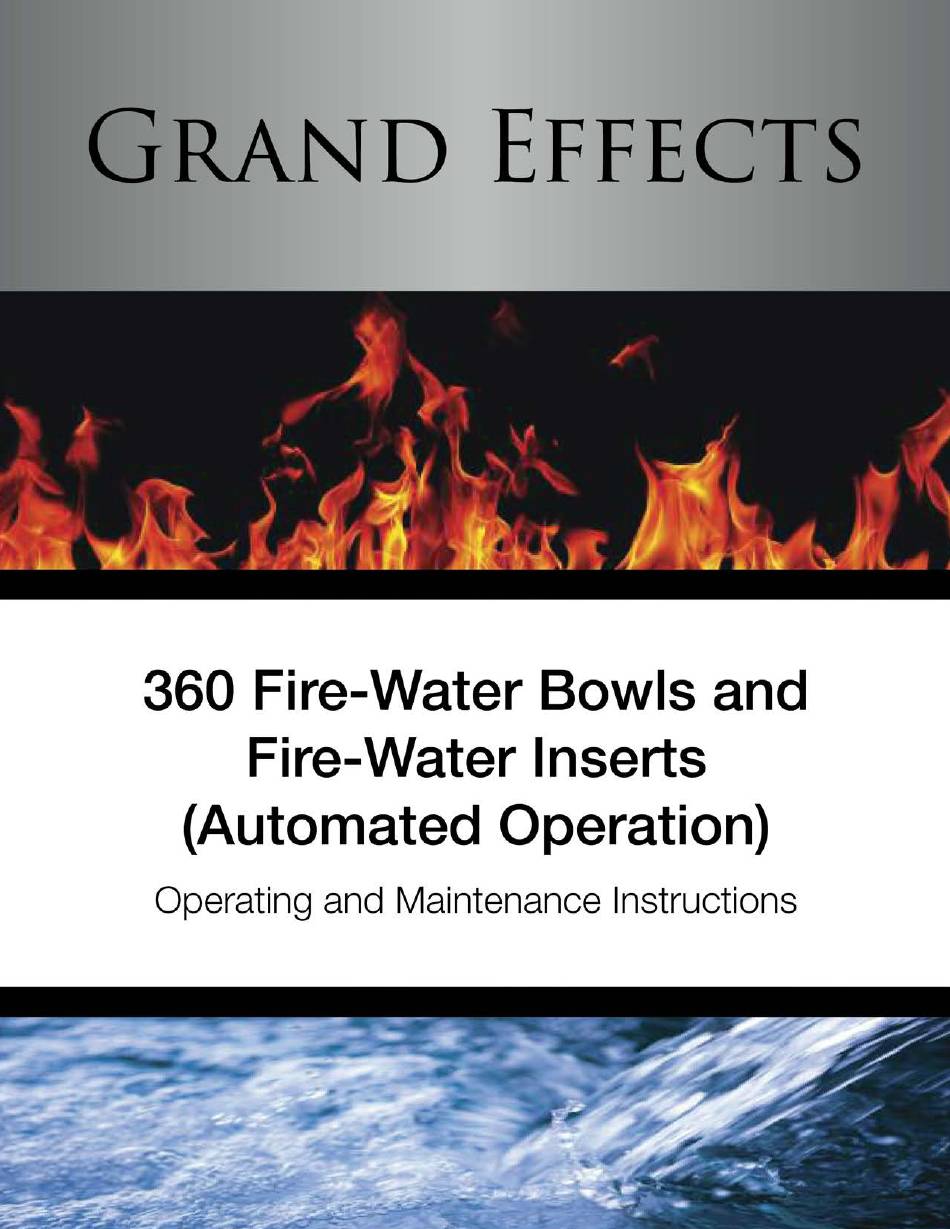

- Page 1 Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions...
-
Page 2: Table Of Contents
Section 6: Troubleshooting .................... 12 Control Module Diagram ....................13 Wiring Diagram ......................14 Grand Effects Warranty (1 Year Residential; 6 Months Commercial) ......15 WARNING! If you smell gas, immediately take the following actions: 1. Shut off the gas to the appliance. -
Page 3: Section 1: Gas And Electric Requirements
Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions Section 1: Gas and Electric Requirements Input Voltage 120 Vac / 60 Hz to Grand Effects Control Panel Gas Type Natural Propane Gas Pressure (Nominal) 7” wc 11”... -
Page 4: Section 2: Installation
Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions Section 2: Installation WARNING! This unit is for outdoor use only. Recommended CSA/AGA Clearances: Sides 4 ft / Top 6 ft Do not install near any combustibles, such as wood structures, fuels, clothing, fabrics, or dry vegetation. - Page 5 3. Install low voltage wiring (14 or the 16 ga. 12VAC) underground between the control panel and the 360 fire-water bowl. Wire per Grand Effects wiring diagram. 120v source into the control panel can come from any 120v source, including auxiliary relay from the pool controller or home system.
- Page 6 6. On commercial installations, it is recommended to install a keyed switch and kill switch located in close proximity and in visible sight of feature or features. The keyed and kill switches are supplied by Grand Effects. 7. Gas, electrical, and drain connections must be located to fit in a 6” sleeve. Make the area around connections water tight as shown in Figure 4.
- Page 7 Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions 10. With all gas connections tight, position the burner assembly so that it sits level in the aluminum bowl. Rotate as required so that the gas hose rests in a compact position.
- Page 8 Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions Figure 7: 42” Biltmore, 48” Essex, 42” Legacy, or Customer-Supplied Bowl 12. Make sure drain hoses are not kinked. 13. Check drain by filling water bowl with water from hose. Water should drain quickly.
- Page 9 Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions 15. Install wire nuts on wires from the control panel and the burner assembly. Wrap wire nuts with electrical tape or some means to prevent moisture from getting in.
-
Page 10: Section 3: Burner Setup And Adjustment
CAUTION! When purging air from a propane system, disconnect wires going to the burner assemblies (terminals X1/X2) located in Grand Effects control panel. There should be no power at the burner assemblies when purging propane. The propane adder valve should remain wired and energized when purging. - Page 11 Do not cover the burner assembly and support plate. Fire glass requires a glass pilot hood, which is different than a standard pilot hood used with lava rock. Please consult the Grand Effects Glass Install Manual. If you use 1/4” pieces of lava, it should be treated as a glass installation.) Note: Both sides of the pilot hood need to be clear of rock for proper ventilation.
-
Page 12: Section 4: Maintenance
Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions Section 4: Maintenance Periodically clean the burner assembly and bowl with a wet cloth or cleaning solution to remove carbon build-up. Frequency of the cleaning will depend on usage. -
Page 13: Section 5: Operation
• Before any inspection of the unit, always turn off power and gas supply at the control panel. • If you experience problems with this unit, call Grand Effects or a licensed heating professional. All work on this unit must be performed by a licensed heating professional. -
Page 14: Section 6: Troubleshooting
Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions Section 6: Troubleshooting Model 100 Burner Assembly Main burner does 1. Remove rock/glass away from pilot area. not light 2. Remove pilot hood. Look for small pieces obstructing pilot. -
Page 15: Control Module Diagram
Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions Control Module Diagram info@grandeffectsinc.com www.grandeffectsinc.com 949-697-5270... -
Page 16: Wiring Diagram
Grand Effects 360 Fire-Water Bowls and Fire-Water Inserts (Automated Operation) Operating and Maintenance Instructions Wiring Diagram info@grandeffectsinc.com www.grandeffectsinc.com 949-697-5270... -
Page 17: Grand Effects Warranty (1 Year Residential; 6 Months Commercial)
Grand Effects Warranty (1 Year Residential; 6 Months Commercial) Grand Effects will attempt to repair, at its expense, any unit, which in normal use, has proven to be defective in workmanship or material, provided that the Buyer provides or arranges for the return of the product prepaid to Grand Effects with proof of product... - Page 18 Contact us at: GRAND EFFECTS 23121 Arroyo Vista Suite B Rancho Santa Margarita, CA 92688 Office: (949) 697-5270 Fax: (949) 625-8027 E-mail: info@grandeffectsinc.com...
