Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
Installation Instructions

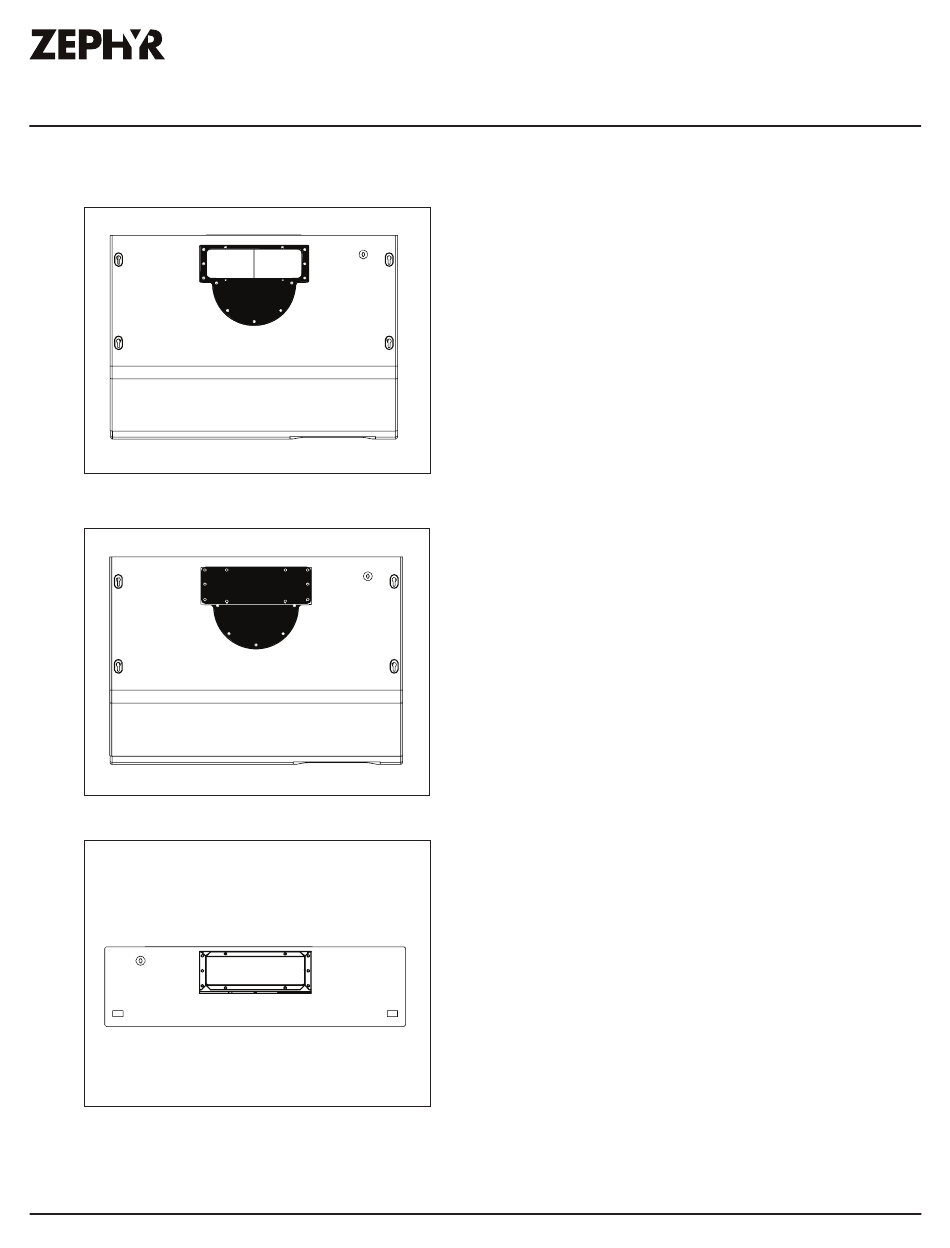

4. Replace round vertical transition
adapter with rectangular transition
adapter. Do not secure to hood body
yet.
5. Place 3-1/4"x10" rectangular cover
plate over the rectangular opening
on top of hood from step 4. Secure
rectangular transition adapter and
cover plate to hood body using the
previously removed screws from step 1.
6. Place 3-1/4"x10" rectangular collar
on back of hood and secure using the
screws that previously secured the
rectangular cover plate.
