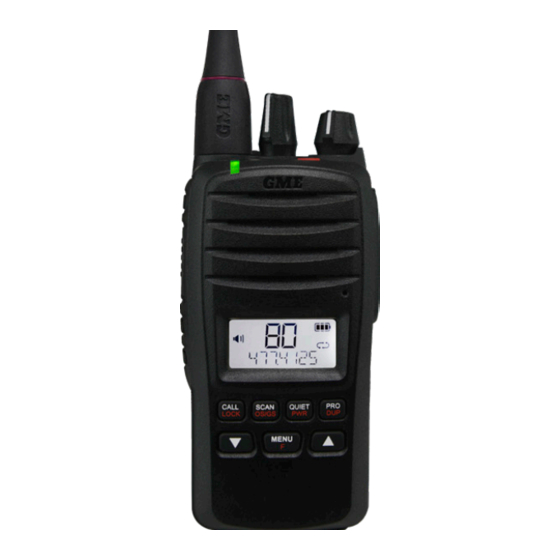

GME TX6600PRO Instruction Manual

5 watt ip67 uhf pro cb handheld radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

TX6600PRO
5 WATT IP67 UHF PRO CB HANDHELD RADIO
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX6600PRO and is the answer not in the manual?

Questions and answers

Related Manuals for GME TX6600PRO

Summary of Contents for GME TX6600PRO

  • Page 1 TX6600PRO 5 WATT IP67 UHF PRO CB HANDHELD RADIO INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    EMERGENCY CHANNELS ............2 TELEMETRY CHANNELS ............. 2 IMPORTANT ADVICE ..............3 INTRODUCTION .................4 ACCESSORIES SUPPLIED ............4 TX6600PRO ................. 4 FEATURES .................5 TRANSMIT (TX) ................5 RECEIVE (RX) ................5 SCANNING AND MEMORY FUNCTIONS ........5 PRIVACY FUNCTIONS ..............6 PHYSICAL PROPERTIES .............
  • Page 3 ROGER BEEP ................24 MICROPHONE GAIN ..............25 VOICE SCRAMBLER ..............25 NARROW BAND FILTER ............26 SILENT SQUELCH TAIL .............. 27 DYNAMIC VOLUME CONTROL ..........27 LCD BACKLIGHT ................ 28 BEEPS ..................29 CHANNEL ANNOUNCE .............. 29 TX6600PRO INSTRUCTION MANUAL...
  • Page 4 GROUP CALLING ..............55 CONSERVING YOUR BATTERY POWER ........56 MENU ..................57 PRIVATE AND RECEIVE-ONLY CHANNELS .........58 PROGRAMMABLE KEYS ............67 MENU OPTIONS ..............82 CTCSS TONE FREQUENCIES .............83 DCS CODES ................84 UHF CB OPERATING FREQUENCIES ..........85 SPECIFICATIONS ..............86 WARRANTY ................88 TX6600PRO INSTRUCTION MANUAL...

  • Page 5: Preface

    PREFACE COPYRIGHT NOTICE GME Pty Ltd reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. © 2020 GME Pty Ltd, Sydney, Australia SAFETY INFORMATION The TX6600PRO is a radio transmitting device.

  • Page 6: Emergency Channels

    In the event that additional telemetry/telecommand channels are approved by the ACMA, these channels shall be added to those currently listed where voice transmission is inhibited. Currently, transmissions on channels 61, 62 and 63 are also inhibited and these channels are reserved for future allocation. TX6600PRO INSTRUCTION MANUAL...

  • Page 7: Important Advice

    • Always switch off your radio where notices restrict the use of two-way radio or mobile telephones. • Use only GME approved rechargeable battery packs with the supplied charger. • Avoid storing or charging your radio in direct sunlight. •...

  • Page 8: Introduction

    Your GME TX6600PRO 80 channel radio is Australian designed and manufactured and is the most advanced UHF Citizen Band radio available. GME has an extensive range of Handheld UHF CB Radios to meet a variety of needs. From 4WDing to construction sites, GME has a handheld to suit.

  • Page 9: Features

    RECEIVE (RX) • CB Channels: 80* channels 477 MHz UHF CB • Advanced Power Saving Feature: Allows the TX6600PRO to ‘sleep’ during periods of inactivity to conserve battery power. • Digital Signal Strength Meter: Displays the incoming signal strength in digital format.

  • Page 10: Privacy Functions

    SIGNAL PROCESSING • Digital Signal Processing (DSP): Measures, filters and compresses standard analogue audio signals and converts them to digital format. Allows advanced digital audio processing techniques to be applied to maximise the radio’s performance. TX6600PRO INSTRUCTION MANUAL...
  • Page 11 • Dynamic Volume Control: Automatically compensates for variations in received audio level resulting in a constant audio output level to the speaker. † Refer to the preface above for important information concerning the UHF CB radio. TX6600PRO INSTRUCTION MANUAL...

  • Page 12: Controls

    MENU Up / Down Buttons Lanyard Point Belt Clip Accessory Port Note: For details on programmable keys that can be configured using the Dealer Programmer see the Charger Port PROGRAMMABLE KEYS at the end of this manual. TX6600PRO INSTRUCTION MANUAL...

  • Page 13: Display

    Information Display GETTING STARTED Your TX6600PRO is supplied with a 7.4 Volt 2600 mAh Li-ion rechargeable battery pack. You should fully charge the battery before using it for the first time. If left unused your radio’s battery pack may slowly discharge over time. If you have not used your TX6600PRO for some time, you should recharge the battery pack before use.

  • Page 14: Charging The Battery

    Plug the lead from the PS005 into the charging socket on the rear of the BCD022 charging cradle. Place the TX6600PRO with battery attached into the charging slot. The charger indicator LED will light Red. Once the battery is charged, the charger indicator LED will change to Green.

  • Page 15: Battery Low Alert

    You should recharge the battery as soon as possible. If you continue using your radio when the battery indicator is flashing it will operate with Ultra-Low transmit power until the battery is depleted. Full Medium Recharge TX6600PRO INSTRUCTION MANUAL...

  • Page 16: Belt Clip

    To access the secondary functions printed in Red you need to first press the MENU key. ‘F’ will be displayed to indicate you are in Function mode. While ‘F’ is displayed, press the desired Red key within 10 seconds to activate that function. TX6600PRO INSTRUCTION MANUAL...

  • Page 17: On/Off And Volume

    The microphone is quite sensitive so it is not necessary to raise your voice or shout. Release the PTT key when you have finished talking. When transmitting, the status LED lights Red and the icon appears on the LCD. TX6600PRO INSTRUCTION MANUAL...

  • Page 18: Receiving

    RECEIVING When there are no incoming signals, the TX6600PRO will remain in standby mode with the receiver muted. If the battery save function has been enabled it will also sleep for short periods of time to conserve battery power. When a signal is received, the squelch will open and the signal will be heard in the speaker.

  • Page 19: Squelch

    SQUELCH The Squelch is used to eliminate any annoying background noise when there are no signals present. The TX6600PRO features a preset Squelch system. The Squelch level has been preset to provide optimum performance in most situations but can be adjusted through the menu.

  • Page 20: Squelch Level

    SQUELCH LEVEL The Squelch level sets the sensitivity of the Squelch to incoming signals. The level can be set to suit your operating environment. The TX6600PRO has nine preset Squelch sensitivity settings from 1-9. •...

  • Page 21: Priority Channel

    To recall the Priority Channel Briefly press the desired Priority Channel key. The TX6600PRO will immediately switch to the selected Priority Channel and PRI1 or PRI2 will be displayed briefly to indicate the Priority Channel memory you have selected.

  • Page 22: Dual Watch

    Triple Watch allows you to scan between the selected channel, Priority Channel 1 and Priority Channel 2. Before using Triple Watch you will need to program channels into both the Priority Channel 1 and Priority Channel 2 memories (see Priority Channel description above). TX6600PRO INSTRUCTION MANUAL...

  • Page 23: Scan Groups

    NOTE: Network scan (NETWK) is disabled by default and if required will need to be enabled through the radio’s menu. It will not appear under the OS/GS key until it has been enabled (see NETWORK SCAN later in this manual). TX6600PRO INSTRUCTION MANUAL...

  • Page 24: Duplex

    1 – 8 and 41 – 48. When Duplex is enabled on one of these channels, the TX6600PRO will receive on the selected channel but will transmit 30 channels higher. i.e. if channel 1 is selected the TX6600PRO will receive on channel 1 but transmit on channel 31.

  • Page 25: Pro Key

    When the desired function is displayed, press the key to exit the menu or wait a few seconds for the menu to time-out. A full description of the operation of each of these functions is included elsewhere in this manual. TX6600PRO INSTRUCTION MANUAL...

  • Page 26: Pro Key Assignments

    The LOCK key is used to lock the keypad to prevent unintentional key presses from altering your radio settings. When the keys are locked, only PTT, LOCK, F and the On/Off Volume control will continue to function. If any other key is pressed, ‘LOCKED’ is displayed. TX6600PRO INSTRUCTION MANUAL...

  • Page 27: Transmit Power

    If you get a Busy Lockout alarm when you press the PTT key, release the PTT key and look for the icon on the display as an indicator that the channel is in use. If so, simply wait until the channel is clear and press the PTT key again. TX6600PRO INSTRUCTION MANUAL...

  • Page 28: Time-Out Timer

    TIME-OUT TIMER The TX6600PRO has a built-in time-out timer that automatically limits transmissions to a maximum of 3 minutes of continuous operation. This feature is required by the ACMA to prevent accidental blocking of the frequency should your PTT key become jammed or be otherwise pressed accidentally.

  • Page 29: Microphone Gain

    VOICE SCRAMBLER Your TX6600PRO incorporates a simple voice scrambler using band inversion technology. The scrambler is compatible with other GME radios and with most scramblers used by other manufacturers, allowing you to enjoy scrambled communications with owners of both GME and non-GME radios.

  • Page 30: Narrow Band Filter

    1 - 40. This feature provides additional compatibility with older 40-channel radios. Switching the filter Off increases the tolerance of the TX6600PRO receiver to older wideband 40 channel radios or to signals that might be slightly off frequency. Switching the filter On increases the selectivity of the receiver on channels 1 - 40 which can help reduce interference from strong interfering signals on adjacent channels.

  • Page 31: Silent Squelch Tail

    1 - 40. Generally users have compensated for these differences by adjusting the volume control for each incoming signal. The TX6600PRO has a unique GME feature called Dynamic Volume Control (DVC) that automatically compensates for these variations in received audio level. When activated, this feature automatically adjusts the received audio level resulting in a constant audio output level to the speaker.

  • Page 32: Lcd Backlight

    AUT: The backlight will switch on when a key is pressed but will switch off automatically after 5 seconds. MENU When the desired setting is displayed, press the key to exit the menu or wait a few seconds for the menu to time-out. TX6600PRO INSTRUCTION MANUAL...

  • Page 33: Beeps

    BEEPS The TX6600PRO uses Beeps to provide audible feedback whenever a key is pressed or to notify you of various alarms and timers. The beep setting can be adjusted in the menu. To adjust the Beep setting: MENU Hold the key to access the menu.

  • Page 34: Display Options

    CHNAME: Displays the name associated with the selected channel. • RXFREQ: Displays the selected channel’s receiver frequency. • TXFREQ: Displays the selected channel’s transmitter frequency. • FREQ: Displays the selected channel’s receiver frequency when receiving and the transmitter frequency when transmitting. TX6600PRO INSTRUCTION MANUAL...

  • Page 35: Message Text

    If you intend to use your TX6600S for long periods of time between charges you should consider using the power saving mode. The Power Save option is switched off by default. TX6600PRO INSTRUCTION MANUAL...

  • Page 36: Power Save

    The Power Save function is designed to conserve power and extend the battery life by letting the radio sleep during periods of inactivity. If you intend to use your TX6600PRO for long periods of time between charges you should consider using the power saving mode.

  • Page 37: Factory Reset

    OWNID: Displays your radio’s own SelCall Ident. FACTORY RESET TX6600PRO has a factory reset option that allows you to restore the radio back to its out-of-the-box settings. Activating the factory reset will delete any changes you have made to the radio including any receive-only channels, scan memories and CTCSS/DCS settings and will reset all the menu settings to their defaults.

  • Page 38: Scanning

    45 channels per second. When a signal is found, scanning will pause to allow the signal to be heard and will resume scanning when the channel is clear again. Scan Groups The TX6600PRO features four scan groups – Open Scan1, Open Scan2, Group Scan and Network Scan. SCAN...

  • Page 39: Adding And Removing Scan Channels

    The ‘nuisance’ channel will be completely removed from the scan group for the duration of that scan session. To restore the channel, simply stop and restart the scan session using the key. Turning the radio Off then On SCAN OS/GS again will also restore the channel. TX6600PRO INSTRUCTION MANUAL...

  • Page 40: Open Scan Mode

    5 seconds, the scan will resume automatically. e.g. Scanning channels 1 – 8 in Open Scan. The TX6600PRO has two separate Open Scan memories labelled OPEN1 and OPEN2. Their operation is identical but each can be independently programmed with a range of different channels.

  • Page 41: Group Scan Mode

    In addition, if you press the PTT key at any time, the radio will always transmit on the Priority Channel. e.g. Scanning channels 1 – 8 with Priority Channel 20 in Group Scan TX6600PRO INSTRUCTION MANUAL...
  • Page 42 OS/GS Operating in the Group Scan mode In Group Scan mode, the TX6600PRO scans all the channels programmed into the Group Scan memory with the selected Priority Channel being scanned every fifth channel. If a signal is heard on a scan channel, the scan will pause on that channel and remain there while the channel is busy and for 5 seconds after it has become clear, as long as there are no signals on the selected Priority Channel.

  • Page 43: Network Scan Mode

    To enable Network Scan and select a CTCSS/DCS Tone MENU Hold the key to access the menu. The last selected menu item will be displayed. Rotate the Channel knob or press the buttons until NETSCN is displayed. TX6600PRO INSTRUCTION MANUAL...
  • Page 44 IMPORTANT: If adding channels to your Network Scan, please consider the following: The transmitter on your radio is inhibited on channels 22, 23 and channels 61, 62, 63 as required by the ACMA. These channels are therefore unsuitable for use as Network Scan channels. TX6600PRO INSTRUCTION MANUAL...
  • Page 45 The other radios scanning in the group will then locate the new channel, allowing the conversation to continue seamlessly without any input from the user. TX6600PRO INSTRUCTION MANUAL...

  • Page 46: Ctcss And Dcs

    CTCSS Tone Set Compatibility The GME CTCSS tone set comprises a table of 50 tones made up of the standard CCIR-38 Tone Set plus an additional 12 tones added to the end. If communicating with other brands of radios that only use the CCIR-38 tone set, you should select from one of the first 38 tones to ensure compatibility with these models.
  • Page 47 2. Hold the Squelch key (top-side key above the PTT key). SILENT ON will appear briefly and (CTCSS) or (DCS) icon will appear to indicate whether CTCSS or DCS is being used. Use the Channel knob or press the keys to select the desired channel. TX6600PRO INSTRUCTION MANUAL...
  • Page 48 Identifying another station’s CTCSS or DCS code To identify a CTCSS code being used by another station operating on your channel, use the following procedure: Enable CTCSS/DCS on the selected channel by holding the SQUELCH key. will appear on the display. TX6600PRO INSTRUCTION MANUAL...

  • Page 49: Selcall

    Ident allowing it to be called either individually or as part of a group. If your TX6600PRO’s Ident is called by another radio, your radio will alert you to the call. If you are unavailable when the call is received, the callers Ident will be displayed on your radio allowing you to call them back on your return.

  • Page 50: Call Menu

    QUIET mode is not enabled. SelCall Contacts Your TX6600PRO supports up to 48 SelCall contacts. Contacts can be saved and recalled using the contact list or alternatively you can manually enter and dial a SelCall Ident directly through the CALL menu.
  • Page 51 If the edit field is blank and the left-hand character is flashing, the radio is in Alpha mode. Rotate the Channel knob or press the keys to select the desired number or character in the flashing position. TX6600PRO INSTRUCTION MANUAL...
  • Page 52 One of the MENU flashing position. characters will flash. 6. Press to advance to the next character position. TX6600PRO INSTRUCTION MANUAL 7. Repeat steps 5 & 6 as necessary to edit the field, then hold to save. The field will flash...
  • Page 53 Alpha mode. If the selected caller is in your contact list, the Alpha Name should be viewable. If the caller is not in your contacts, only the Ident will be displayed. CALL To respond to the caller, hold the key. The radio will transmit the LOCK selected SelCall. TX6600PRO INSTRUCTION MANUAL...
  • Page 54 This will confirm to you that the radio you called is now alerting its user to your signal. If the call-acknowledge is not received the other radio may be out of range or on a different channel. TX6600PRO INSTRUCTION MANUAL...

  • Page 55: Receiving A Selcall

    PRO key. However the PRO key is user programmable and can be changed. If so, the HOLD function on your PRO key may have a different operation. In this case follow the steps below to TX6600PRO INSTRUCTION MANUAL switch between the Alpha and Ident modes.
  • Page 56 ‘– – – – – ’ will be displayed. Quiet Mode The QUIET mode mutes the TX6600PRO’s receiver to prevent any incoming signals from being heard in the speaker until your SelCall Ident is received. This allows you to monitor a busy channel for personal calls without being disturbed by unwanted signals.
  • Page 57 Scanning while in the Quiet mode allows you to monitor a group of Quiet channels or a heard in the usual way. TX6600PRO INSTRUCTION MANUAL combination of Quiet and Open channels. If a signal containing your SelCall Ident is received on any channel – Open or QUIET – the QUIET...

  • Page 58: Scanning In Quiet Mode

    Quiet), the scan and QUIET modes will be cancelled and the receiver will stay on the busy channel. The alarm will then beep to alert you to the call and the caller’s Ident or Alpha Name will be displayed. The channel will now be open for normal communications. TX6600PRO INSTRUCTION MANUAL...

  • Page 59: Group Calling

    Receiving a Group call is identical to receiving a normal SelCall except that the alarm sound is a double beep instead of the normal single beep. The caller’s Ident or Alpha Name appears on the display in the usual way. TX6600PRO INSTRUCTION MANUAL...

  • Page 60: Conserving Your Battery Power

    5 seconds of inactivity (i.e. no transmission or reception). As soon as a signal is received or any keys are pressed, the TX6600PRO will wake up again. This sleep function is automatic and by itself can greatly extend the battery life in standby mode by many hours.

  • Page 61: Menu

    This will draw much more power from the battery pack. If you are expecting to receive a SelCall on a busy channel, program that channel for ‘Quiet’ operation and select the Quiet mode. The TX6600PRO will then stay ‘muted’ until your SelCall Ident is received.

  • Page 62: Private And Receive-Only Channels

    PRIVATE AND RECEIVE-ONLY CHANNELS The TX6600PRO supports up to 119 private channels. These may be transmit channels in the frequency range 450 – 520 MHz or receive-only channels in the frequency range 403 – 520 MHz. When enabled these additional channels are located directly above CB channel 80 (81 –...
  • Page 63 On CB channels - displays GLOBAL to indicate that the main menu’s CTCSS tone settings apply to all receive channels, or if the channel is not in Silent memory displays CTCSOF to indicate the channel does not use a subtone. TX6600PRO INSTRUCTION MANUAL...
  • Page 64 ADD is displayed. MENU Press to select. The TX6600PRO will respond with ADD? and the next available receive-only channel number will be flashing. To cancel and exit without adding a receive-only channel: MENU Briefly press .
  • Page 65 If the channel is a new receive-only channel, 403.000 is displayed otherwise the last entered frequency is displayed. NOTE: 403.000 MHz is the lowest frequency you can program into the TX6600PRO. MENU Hold the key to edit the frequency. The cursor will flash in the 10 MHz digit position.
  • Page 66 Repeat the process to enter up to 6 characters for the desired name. MENU When the desired name is displayed, hold to save. The name will flash as it is saved. Press MENU to exit the menu. TX6600PRO INSTRUCTION MANUAL...
  • Page 67 If the channel is a CB channel CB is displayed. If the channel is a Receive-only channel RXONLY is displayed. iii. If the channel is a Private channel PRIVATE is displayed. MENU Press to exit the menu. TX6600PRO INSTRUCTION MANUAL...
  • Page 68 If the channel is a CB or Receive-only channel and no tone is enabled under CTCSS/DCS in the main menu, CTCSOF is displayed. Otherwise, GLOBAL is displayed to indicate the channel is using the CTCSS/DCS tone defined under CTCSS/DCS in the main menu. TX6600PRO INSTRUCTION MANUAL...
  • Page 69 Busy Lockout is enabled or is configured to follow the user configurable global setting. iii. If the channel is a Receive-only channel, OFF is displayed since the radio is unable to transmit on a Receive-only channel. MENU Press to exit the menu. TX6600PRO INSTRUCTION MANUAL...
  • Page 70 (Open1, Open2 or Group), select the Receive-only or Private SCAN channel then press and hold the key until the radio beeps. will be OS/GS displayed on that channel. For more details on scanning, see the section on ‘Scanning’ in this manual. TX6600PRO INSTRUCTION MANUAL...

  • Page 71: Programmable Keys

    PROGRAMMABLE KEYS The TX6600PRO has 6 programmable keys that can be configured as shortcuts to frequently used features. The keys are programmed using the Dealer Programmer. The following diagram shows the keys that are available for programming. Knob Side-Top Button...
  • Page 72 ON: The radio will beep whenever a key is pressed or when an alert is required. OFF: All Beeps are inhibited • • ALT: The radio will only beep when an alert is required. Key beeps are inhibited. TX6600PRO INSTRUCTION MANUAL...
  • Page 73 Rotate the Channel knob or the keys to navigate the Channel menu options. MENU Press to select an option. For full Channel Menu editing instructions, please see the Private and Receive-only Channels section of this User Manual. TX6600PRO INSTRUCTION MANUAL...
  • Page 74 EMERGENCY. The emergency SelCall transmissions will continue until cancelled by the Exit Emergency key. Other radios in your group that receive the Emergency signal will also sound an alarm and ALARM will be displayed on the LCD. TX6600PRO INSTRUCTION MANUAL...
  • Page 75 Press the programmed Monitor Menu key to access the Monitor menu. Rotate the Channel knob or press the keys to select ON or OFF. MENU Press the key to exit or wait a few seconds for the menu to time-out. TX6600PRO INSTRUCTION MANUAL...
  • Page 76 The radio will conserve the most amount of power but may not be as responsive to incoming signals. MENU Press the key to exit or wait a few seconds for the menu to time- out. TX6600PRO INSTRUCTION MANUAL...
  • Page 77 The radio is now watching both the selected TX6600PRO User Manual V1.0 channel and the last selected priority channel. NOTE: If the selected channel and the priority channel are the same, Dual Watch will not start and SCAN ERROR will be displayed.
  • Page 78 Press the programmed Quiet key to enable or disable the QUIET mode. • Select ON to enable the QUIET mode. changes to on the selected channel • Select OFF to disable the QUIET mode. changes to on the selected channel. TX6600PRO INSTRUCTION MANUAL...
  • Page 79 Roger Beep Toggle Press the programmed Roger Beep Toggle key to toggle the Roger Beep function ON or OFF. • Select ON to enable the Roger Beep feature. • Select OFF to disable the Roger Beep feature. TX6600PRO INSTRUCTION MANUAL...
  • Page 80 This function can also be duplicated by rotating the Channel knob or pressing Scan Remove Press the programmed Scan Remove key while scanning has paused on a busy channel to remove the channel from the scan. TX6600PRO INSTRUCTION MANUAL...
  • Page 81 Press the programmed Silent OFF key to disable Silent Mode on that channel. The (CTCSS) or (DCS) icon will no longer appear on that channel. Repeat steps 1 & 2 to select Silent OFF on other channels. TX6600PRO INSTRUCTION MANUAL...
  • Page 82 DCS tones 001 to 104. • To disable CTCSS or DCS, select OFF MENU Press the key to exit or wait a few seconds for the menu to time-out. CTCSS/DCS is OFF CTCSS Tone 05 Selected DCS Code 103 Selected TX6600PRO INSTRUCTION MANUAL...
  • Page 83 Squelch closes at the end of a transmission. Press the programmed Silent Squelch Tail Toggle key to toggle the Silent Squelch Tail function ON or OFF. SST ON or SST OFF will be displayed. TX6600PRO INSTRUCTION MANUAL...
  • Page 84 Rotate the Channel knob or press the key to adjust the Squelch level from a minimum of 1 to a maximum of 9. MENU Press the key to exit or wait a few seconds for the menu to time-out. TX6600PRO INSTRUCTION MANUAL...
  • Page 85 Rotate the Channel knob or press the key to cycle the Transmitter Power. The radio will display 5W, 1W or 100MW. MENU Press the key to exit or wait a few seconds for the menu to time-out. TX6600PRO INSTRUCTION MANUAL...

  • Page 86: Menu Options

    Specify Type of Channel NAME Name an RX-only Channel View the name of a CB Channel RXFRQ Receive Frequency CHAN Channel TXFRQ Transmit Frequency RXTONE Receive Tone TXTONE Transmit Tone TXPWR Transmit Power BSYLK Busy Lockout SELCALL SelCall TX6600PRO INSTRUCTION MANUAL...

  • Page 87: Ctcss Tone Frequencies

    118.8 186.2 177.3 79.7 123.0 192.8 183.5 82.5 127.3 203.5 189.9 85.4 131.8 210.7 196.6 88.5 136.5 218.1 199.5 91.5 141.3 225.7 206.5 94.8 146.2 233.6 229.1 97.4 151.4 241.8 254.1 100.0 156.7 250.3 103.5 162.2 69.4 TX6600PRO INSTRUCTION MANUAL...

  • Page 88: Dcs Codes

    DCS CODES DCS CODE DCS CODE DCS CODE DCS CODE DCS CODE DCS CODE 10 1 10 2 1 14 1 15 TX6600PRO INSTRUCTION MANUAL...

  • Page 89: Uhf Cb Operating Frequencies

    Telemetry I SelCall use only. Voice transmission is inhibited as required by AS/NZS4 365.2011 Guard band channel. Transmission is inhibited as required by AS/NZ 4365.2011 Repeater input channesl (Duplex) Repeater output channels (Duplex) Officially designated call channel Road channel Caravan and motorhome 4WD I Offroad TX6600PRO INSTRUCTION MANUAL...

  • Page 90: Specifications

    Low: 1 W Ultra-Low: 100 mW Frequency Stability: ± 2.5 PPM Modulation: Spurious Emission: < -34 dBm Adjacent Channel < -67 dBm Power: Maximum Deviation: ± 2.5 kHz Audio Harmonic 0.4% @ 1kHz / 1.5kHz Deviation Distortion: TX6600PRO INSTRUCTION MANUAL...
  • Page 91 -20° C to +60° C Ingress Protection: IP67 (dust tight and waterproof) Accessory Connector: GME 3.5 mm / 2.5 mm stereo jack NOTE: All values are typical unless otherwise stated and are subject to change without notice or obligation. MIL-STD 810G...

  • Page 92: Warranty

    GME CONTRACT WARRANTY AGAINST DEFECTS Consumer guarantees Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
  • Page 93 If we determine that your goods are defective, we will pay for the cost of returning the repaired or replaced goods to you, and reimburse you for your reasonable expenses of sending your warranty claim to us. TX6600PRO INSTRUCTION MANUAL...
  • Page 94 Goods where the serial number has been removed or made illegal. Warranty period: We provide the following warranty on GME and Kingray products. No repair or replacement during the warranty period will renew or extend the warranty period past the period from original date of purchase.
