Omi6715A Dimensions - Maple Systems OMI6700 Series Operation Manual

OMI Operations Manual: OMI6700 Series

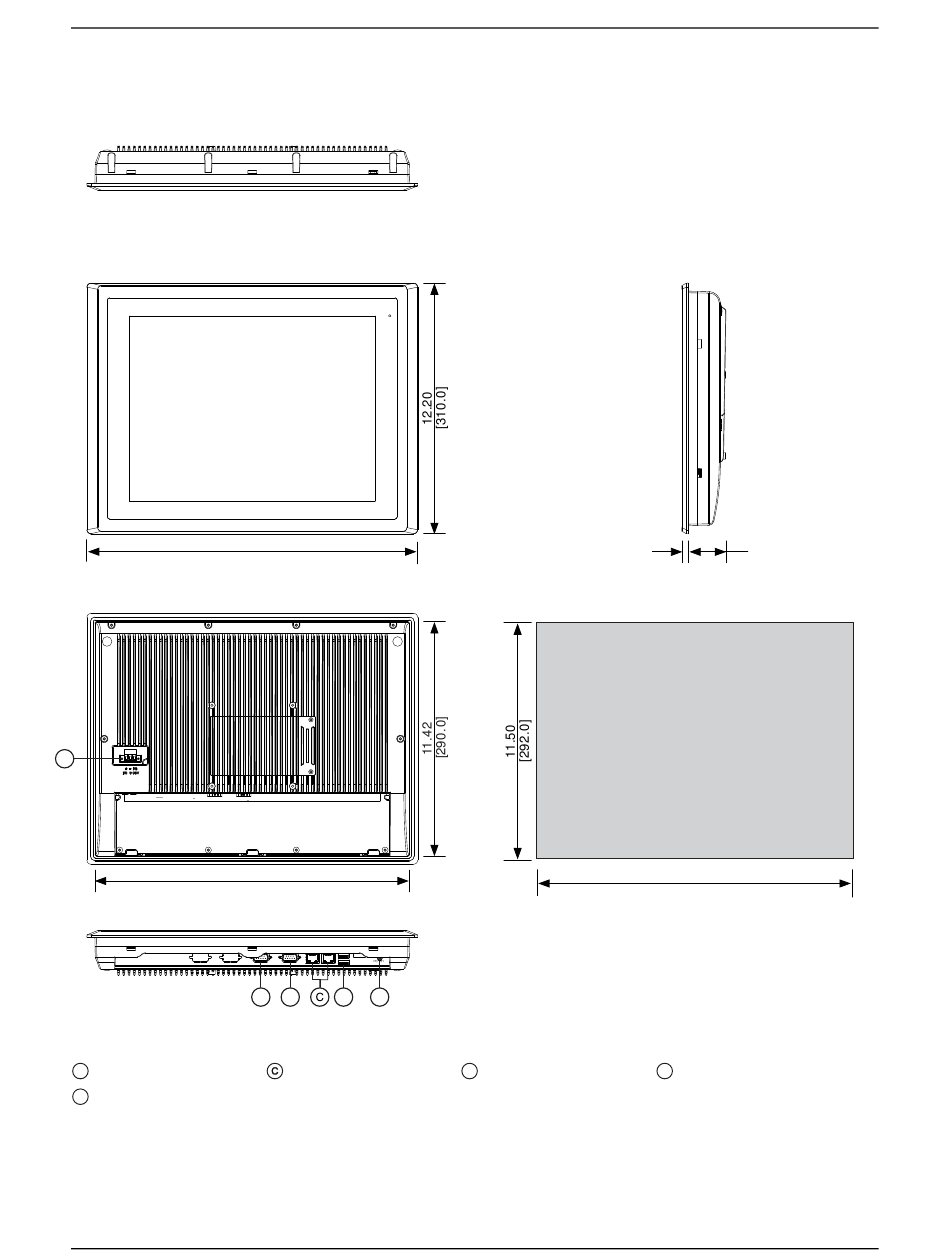

OMI6715A Dimensions

Top View
Front View
16.14
[410.0]
Rear View
A
U SB
LAN 1 LAN 2
C O M 1 C O M 2
15.36
[390.0]
Bottom View
Power Connector
A
Com Port DE9P
B
OMI Operations Manual: OMI6700 Series
B B D E
Ethernet Ports
0.33
[8.4]
Cutout Dimensions
IMPORTANT
Dimensions shown are
estimates, and may not work
with your mounting scheme. We
recommend measuring your
actual cutout dimensions for a
Dimensions are in inches [mm]
USB 2.0 Ports
D
Side View
1.82
[46.3]
proper fit.
15.43
[392.0]
Line out
E
12
12
