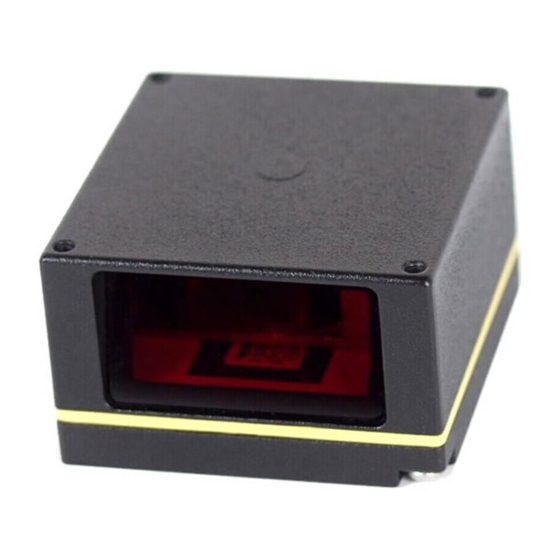

Symbol LS 1220 Product Reference Manual
  1. Manuals
  2. Brands
  3. Symbol Manuals
  4. Barcode Reader
  5. LS 1220
  6. Product reference manual

Symbol LS 1220 Product Reference Manual

Hide thumbs Also See for LS 1220:
Table of Contents

Advertisement

Quick Links

sales@artisantg.com
artisantg.com
(217) 352-9330 |
|
Click HERE
Find the Motorola / Symbol LS-1220-I300A at our website:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS 1220 and is the answer not in the manual?

Questions and answers

Related Manuals for Symbol LS 1220

Summary of Contents for Symbol LS 1220

  • Page 1 (217) 352-9330 | Click HERE Find the Motorola / Symbol LS-1220-I300A at our website:...
  • Page 2 LS 1220 Product Reference Guide...
  • Page 4 LS 1220 Product Reference Guide 70-12072-03 Revision A January 2003...
  • Page 5 Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is...

  • Page 6: Table Of Contents

    Using the LS 1220 as an Embedded Scanner ....... . .
  • Page 7 LS 1220-I300A Standard Range Decode Zone ........
  • Page 8 Contents Chapter 7. Maintenance & Troubleshooting Overview ..............7-1 Maintenance .
  • Page 9 LS 1220 Product Reference Guide Chapter 9. Parameter Menus Overview ..............9-1 Set Defaults .

  • Page 10: About This Guide

    About This Guide Overview The LS 1220 Product Reference Guide provides general instructions for setup, operation, troubleshooting, maintenance, and programming. Note: This guide provides general instructions for the installation of the scanner into a customer’s application. It is recommended that an opto-mechanical engineer perform a opto-mechanical analysis prior to integration.

  • Page 11: Notational Conventions

    • Chapter 6, Scanning, provides information on scanning, the various triggering options, and aiming hints. • Chapter 7, Maintenance & Troubleshooting, provides the LS 1220 Troubleshooting procedures. • Chapter 8, Programming, provides the programming bar code menus, and the the RS-232 port programming options.

  • Page 12: Service Information

    About This Guide Service Information If you have a problem with the equipment, contact the Symbol Support Center for your region. See page xi for contact information. Before calling, have the model number, serial number, and several of your bar code symbols at hand.
  • Page 13 LS 1220 Product Reference Guide Australia Austria Symbol Technologies Pty. Ltd. Symbol Technologies Austria GmbH 432 St. Kilda Road Prinz-Eugen Strasse 70 Melbourne, Victoria 3004 Suite 3 1-800-672-906 (Inside Australia) 2.Haus, 5.Stock +61-3-9866-6044 (Outside Australia) 1040 Vienna, Austria 1-505-5794 (Inside Austria)
  • Page 14 11-4405668 (Inside South Africa) +27-11-4405668 (Outside South Africa) Sweden Symbol Technologies AB Albygatan 109D Solna Sweden 84452900 (Inside Sweden) +46 84452900 (Outside Sweden) If the Symbol product was purchased from a Symbol Business Partner, contact that Business Partner for service. xiii...

  • Page 15: Warranty

    LS 1220 Product Reference Guide Warranty (A) Seller’s hardware Products are warranted against defects in workmanship and materials for a period of twelve (12) months from the date of shipment, provided the Product remains unmodified and is operated under normal and proper conditions. Warranty provisions and durations on software, integrated installed systems, Product modified or designed to meet specific customer specifications ("Custom Products"), remanufactured products, and reconditioned or upgraded products, shall be as...

  • Page 16: Chapter 1. Introduction

    Chapter 1 Introduction ARNING Per FDA and IEC standards, the scan engines described in this guide are not given a laser classification. However, the following precautions should be observed. This laser component emits FDA/IEC Class 2 laser light at the exit port. Do not stare into beam.

  • Page 17: Overview

    5-5. These scanners read bar codes printed on all substrates. Typical Applications The LS 1220 Wide Angle Scan Engine features a broad 60° scan angle to accommodate larger bar codes within extremely close range. The LS1220WA is ideal for high-volume, near-contact scanning such as Kiosks, ATM, Lottery Machines and other applications that require superior scanning performance in a complete package.

  • Page 18: Theory Of Operation

    Introduction Figure 1-1. LS 1220 Theory of Operation A laser diode produces a single beam of coherent light which is deflected off of an oscillating mirror to create the laser scan beam. When the laser light strikes a bar code, the dark bars absorb the laser light and the light spaces reflects it.

  • Page 19: Block Diagram

    LS 1220 Product Reference Guide Block Diagram The LS 1220 Scan Engine Block Diagram (Figure 1-2 on page 1-4) provides the functional relationship of the LS 1220 components. A detailed functional description of each of the components in the block diagram is also provided.
  • Page 20 Introduction Decoder The Decoder contains a micro-controller that provides the capability for bar code decoding, host I/O interface protocol, and other decoder functions. The micro-controller contains a watchdog timer. The enabling/disabling and maintenance of this watchdog are totally internal to the decoder; the host can not configure the watchdog. The Decoder’s reset circuitry holds the micro-controller in reset after power up to allow sufficient time for hardware initialization.
  • Page 21 LS 1220 Product Reference Guide Motor Driver The Motor Driver is an electromagnetic and electronic circuit that provides feedback control of the mylar motor scan element. The circuit regulates the scan amplitude of the motor/ mirror assembly. The scan frequency is determined by the resonance characteristics of the mechanical design.

  • Page 22: Electrical Interface

    Introduction Electrical Interface Table 1-1 lists the pin functions of the LS 1220 interface. Table 1-1. Electrical Interface Pin Name Type Function Trigger* This pin is normally pulled high. When this pin is grounded, the scan module begins scanning. Serial data transmit output. It drives the serial data receive input on the device communicating with the scanner.
  • Page 23 LS 1220 Product Reference Guide Figure 1-3. LS 1220 Connector...

  • Page 24: Chapter 2. Installation

    Unpacking Remove the LS 1220 from its packing and inspect the scanner for evidence of physical damage. If the scanner was damaged in transit, call the Symbol Support Center at the telephone number listed on page xi.
  • Page 25 LS 1220 Product Reference Guide 1.936 ± 0.003 M 3x0.5 - 6H 0.32 Max Deep 4 Pl 1.886 ± 0.003 Bottom Figure 2-1. LS 1220 Mounting Dimensions...

  • Page 26: Connecting The Ls 1220

    6. Program the LS 1220 according to your specific requirements. Consult Chapter 8, Programming, for more information. Note: If the LS 1220 came without a host cable, see Figure 4-2 on page 4- 5 and Table 4-2 on page 4-6 for configuration and pin-outs.

  • Page 27: Housing Design

    In these applications LS 1220 positioning (with respect to the symbol) is critical. Failure to properly position the LS 1220 with respect to the symbol may lead to degraded or unsatisfactory reading performance.
  • Page 28 Installation Calculating The Usable Scan Length Method Usable scan length is calculated as follows (see Figure 2-3 on page 2-5): L = 1.8 x (D+d) x Tan (A/2) Where: D = Distance (in inches) from the front edge of the housing to the bar code. d = The housing’s internal optical path from the edge of the housing to the front of the scanner.
  • Page 29 LS 1220 Product Reference Guide Testing The Usable Scan Length Method Due to the large variety of symbol sizes, densities, print quality, etc., there is no simple way to calculate the optimum symbol distance. To ensure optimum performance use the Testing The Usable Scan Length positioning method to maximize performance.

  • Page 30: Conveyor Applications

    Conveyor applications require that the conveyor velocity be set to optimize the scanner’s ability to read symbols. The orientation of the symbol with respect to the conveyor direction is another consideration. Figure 2-4 on page 2-7 illustrates the relationship of the conveyor...
  • Page 31 LS 1220 Product Reference Guide Symbol is Parallel to Conveyor Movement With the symbol parallel to the conveyor belt direction (Ladder presentation) the relationship is: V = (R x H) / N Where: V = Velocity of the Conveyor (inches/second)

  • Page 32: Accessories

    Installation Accessories Required Accessories LS 1220 scanners are sent as a package with required accessories listed in the Product Ordering Guide. Optional Accessories Optional accessories, listed in the Product Reference Guide, include various stands and holders, which are supplied at extra cost. Additional units of standard accessories listed above may also be purchased at extra cost.
  • Page 33 LS 1220 Product Reference Guide 2-10...

  • Page 34: Chapter 3. Ls 1220-I300A Standard Version

    Chapter 3 LS 1220-I300A Standard Version Overview This chapter provides the technical specifications for the LS 1220-I300A (Standard Version) scan engine. Chapter 1, provides the detailed Theory of Operation, including a discussion of the functional components and the electrical inputs.
  • Page 35 LS 1220 Product Reference Guide Table 3-1. LS 1220-I300A Standard Version Technical Specifications @ 23°C Item Description Power Requirements Input Voltage 5.0 VDC ± 10% Input Current 60 mA typical @ 5V; 85 mA max Standby Current 47 mA max...
  • Page 36 LS 1220-I300A Standard Version Table 3-1. LS 1220-I300A Standard Version Technical Specifications @ 23°C (Con- Item Description Shock 1500 G applied via any mounting surface Vibration Withstands a sinusoidal vibration of 1 G along each of the 3 mutually perpendicular axes for a period of 1 hr. per axis, over...
  • Page 37 LS 1220 Product Reference Guide Skew Pitch Pitch + 65° from normal + 55° from normal Angle Skew Angle Scan Beam Scan Beam Roll Roll + 20° from normal Angle Note: Tolerances will be reduced at extreme ends of the working range.

  • Page 38: Decode Zone (Vcc = 5V)

    The minimum element width (or “symbol density”) is the width in mils of the narrowest element (bar or space) in the symbol. The maximum usable length of a symbol at any given range is shown below. Calculating The Usable Scan Length...

  • Page 39: Usable Scan Length

    4. Reflective Symbol. Usable Scan Length The decode zone is a function of various symbol characteristics including density, print contrast, wide-to-narrow ratio, and edge acuity. Width of decode zone at any given distance must be considered when designing a system. Calculating The Usable Scan Length Method on page 2-5, provides a detailed description of how to calculate the usable scan length.

  • Page 40: Chapter 4. Ls 1220Wa-I300A Wide Angle

    Chapter 4 LS 1220WA-I300A Wide Angle Overview This chapter provides the technical specifications for the LS 1220WA-I300A (Wide Angle) scan engine. Chapter 1, provides the detailed Theory of Operation, including a discussion of the functional components and the electrical inputs. Chapter 2, provides the detailed Installation Procedures, including mounting, positioning, minimum window dimensions and application discussions.
  • Page 41 LS 1220 Product Reference Guide Table 4-1. LS 1220WA-I300A Technical Specifications @ 23°C Item Description Power Requirements Input Voltage 5.0 VDC ± 10% Input Current 60 mA typical @ 5V; 85 mA max Standby Current 47 mA max Noise Level...
  • Page 42 LS 1220WA-I300A Wide Angle Table 4-1. LS 1220WA-I300A Technical Specifications @ 23°C (Continued) Item Description Drop 3 ft. to concrete Shock 1500 G applied via any mounting surface Vibration Withstands a sinusoidal vibration of 1 G along each of the 3 mutually perpendicular axes for a period of 1 hr.
  • Page 43 LS 1220 Product Reference Guide Skew Pitch Pitch + 49° from normal + 55° from normal Angle Skew Angle Scan Beam Scan Beam Roll Roll + 20° from normal Angle Note: Tolerances will be reduced at extreme ends of the working range.

  • Page 44: Ls 1220 Wide Angle Decode Zone (Vcc = 5V)

    LS 1220 Wide Angle Decode Zone (V = 5V) The LS 1220 Wide Angle decodes the symbols as shown in Figure 4-2.. The figures shown are typical values. Table 4-2 on page 4-6 lists the typical and guaranteed distances for selected bar code densities.

  • Page 45: Usable Scan Length

    3. Working range specifications at ambient temperature (23 °C). Usable Scan Length The decode zone is a function of various symbol characteristics including density, print contrast, wide-to-narrow ratio, and edge acuity. Width of decode zone at any given distance must be considered when designing a system. Calculating The Usable Scan Length Method on page 2-5, provides a detailed description of how to calculate the usable scan length.

  • Page 46: Chapter 5. Ls 1220Vhd-I300A Very High Density

    Chapter 5 LS 1220VHD-I300A Very High Density Overview This chapter provides the technical specifications for the LS 1220VHD-I300A (Very High Density) scan engine. Chapter 1, provides the detailed Theory of Operation, including a discussion of the functional components and the electrical inputs. Chapter 2, provides the detailed Installation Procedures, including mounting, positioning, minimum window dimensions and application discussions.
  • Page 47 LS 1220 Product Reference Guide Table 5-1. Technical Specifications @ 23°C Item Description Power Requirements Input Voltage 5.0 VDC ± 10% Input Current 60 mA typical @ 5V; 85 mA max Standby Current 47 mA max Noise Level 50 mV p to p typical, 200 mV p to p max Scan Repetition Rate 35 (±...
  • Page 48 LS 1220VHD-I300A Very High Density Table 5-1. Technical Specifications @ 23°C (Continued) Item Description Shock 1500 G applied via any mounting surface Vibration Withstands a sinusoidal vibration of 1 G along each of the 3 mutually perpendicular axes for a period of 1 hr. per axis, over a frequency range of 5 Hz to 2000 Hz Laser Classification CDRH/IEC Class II/2...
  • Page 49 LS 1220 Product Reference Guide Skew Pitch Pitch + 49° from normal + 55° from normal Angle Skew Angle Scan Beam Scan Beam Roll Roll + 20° from normal Angle Note: Tolerances will be reduced at extreme ends of the working range.

  • Page 50: Ls 1220Vhd Decode Zone (Vcc = 5V)

    Table 5-2 on page 5-6 lists the typical and guaranteed distances for selected bar code densities. The minimum element width (or “symbol density”) is the width in mils of the narrowest element (bar or space) in the symbol. The maximum usable length of a symbol at any given range is shown below.

  • Page 51: Usable Scan Length

    3. Working range specifications at ambient temperature (23 °C). Usable Scan Length The decode zone is a function of various symbol characteristics including density, print contrast, wide-to-narrow ratio, and edge acuity. Width of decode zone at any given distance must be considered when designing a system. Calculating The Usable Scan Length Method on page 2-5, provides a detailed description of how to calculate the usable scan length.

  • Page 52: Chapter 6. Scanning

    Overview This chapter provides information on scanning, the various triggering options, and aiming hints. See Chapter 3, LS 1220-I300A Standard Version, Chapter 4, LS 1220WA-I300A Wide Angle, and Chapter 5, LS 1220VHD-I300A Very High Density for decode zones. Ready, Test, Scan 1.

  • Page 53: Triggering

    The symbol is successfully decoded when the green DECODE LED lights. Triggering The LS 1220 can be energized using any one of seven different methods. Host download is not permitted with the scanner activated. To download, send the Laser Off command first.

  • Page 54: Pulse Trigger

    If the scanner is triggered by any option other than Constant Scan and Report or Next New Code, and fails to decode a symbol before the laser turns off, the scanner transmits a No Decode Message to the host (if that option is selected).

  • Page 55: Aiming

    LS 1220 Product Reference Guide Aiming Scan the Entire Symbol • The scan beam must cross every bar and space on the symbol. • The larger the symbol, the farther away the scanner should be positiond. • Position the scanner closer for symbols with bars that are close together.

  • Page 56: Chapter 7. Maintenance & Troubleshooting

    Chapter 7 Maintenance & Troubleshooting Overview The chapter provides information on maintenance, accessories and troubleshooting. Maintenance Cleaning the exit window is the only maintenance required. • Do not allow any abrasive material to touch the window. • Remove any dirt particles with a damp cloth. •...

  • Page 57: Troubleshooting

    Indications on page 8-18 for Beeper sequence. indication descriptions. Note: If after performing these checks the symbol still does not scan, contact your distributor or call the Symbol Support Center. See page xi for the telephone number.

  • Page 58: Chapter 8. Programming

    Chapter 8 Programming Overview The LS 1220 can be programmed by either a series of bar code menus, or by the host via the RS-232 port. Select decode options and RS-232C parameters that are compatible with your host system requirements.

  • Page 59: Errors While Scanning

    LS 1220 Product Reference Guide Errors While Scanning If an error occurs during a scanning sequence simply reenter the correct parameter. Table 8-1. Parameter Description Location Parameter Page Set Defaults Code Types Code Lengths Code 39 Full ASCII Decode Options...

  • Page 60: Parameter Descriptions

    Programming Parameter Descriptions The following paragraphs provide a description of each parameter. Set Parameter Defaults Scanning the SET DEFAULTS bar code returns all parameters to the values listed in Table 8-2. Table 8-2. Default Table Parameter Options Default Code Types & Lengths Code 39 Enabled, Disabled Enabled...
  • Page 61 LS 1220 Product Reference Guide Table 8-2. Default Table (Continued) Parameter Options Default Decode Options Xmit UPC-A Check Digit Enabled, Disabled Enabled Xmit UPC-E Check Digit Enabled, Disabled Enabled Convert UPC-E to UPC-A Enabled, Disabled Disabled EAN Zero Extend Enabled, Disabled...
  • Page 62 2 Stop Bit ASCII Format 7 Bits, 8 Bits 7 Bits Intercharacter Delay 00-99 msec (in 1 msec increments) 10 msec Code ID Character None, Symbol ID, Aim ID None *Only valid if Trigger Mode is set to Constant Scan and Report.

  • Page 63: Code Types

    Code 39 Full ASCII interprets the bar code control character ($ + % /) preceding a Code 39 symbol and assigns an ASCII character value. For example, when Code 39 Full ASCII is enabled and a +B is scanned, it is interpreted as b, %J as ?, and $H emulates the keystroke BACKSPACE.

  • Page 64: Decode Options

    This parameter adds five leading zeros to decoded EAN-8 symbols to make them compatible in format to EAN-13 symbols. Xmit “No Decode” Message This feature sets the scanner to transmit “NR” when a symbol does not decode. If Prefixes and suffixes are enabled, they are appended around this message. Decode UPC/EAN Supplemental Select whether UPC/EAN is decoded with or without supplemental characters.

  • Page 65: Decode Upc Only

    LS 1220 Product Reference Guide Decode UPC Only This option limits the LS 1220 UPC/EAN decode capability to UPC versions only. It disables EAN decode capability. MSI Plessey Check Digit This option appends one or two digits at the end of the bar code to check the integrity of the data.

  • Page 66: Upc-A And E Preamble

    • no preamble The system character is the digit printed to the extreme left of a UPC symbol. The country code for UPC is always zero, and it cannot be transmitted without the system character. Prefix/Suffix Values One prefix and up to two suffixes may be appended to scan data for use in data editing as shown below.

  • Page 67: Security Options

    Security Options UPC/EAN Security Level The LS 1220 offers two levels of decode security for UPC/EAN bar codes. Increasing levels of security are provided for decreasing levels of bar code quality. There is an inverse relationship between security and scanner aggressiveness, so be sure to choose only that level of security necessary for any given application.

  • Page 68: Laser Control

    Constant Scan & Report - Laser is always on and decoding. This option is not recommended when programming the scanner with bar code menus. • Next New Code - The LS 1220 decodes and transmit information, then waits until a new code is detected before transmitting again. •...

  • Page 69: Rs-232C Options

    LS 1220 Product Reference Guide RS-232C Options Baud Rate Baud rate is the number of bits of data transmitted per second. The scanner’s baud rate setting must match the baud rate setting of the host device. If not, data may not reach the host device or may reach it in distorted form.

  • Page 70: Hardware Handshaking

    (Note that the DTR signal is hard wired active): 1. The scanner (LS 1220) reads the CTS line for activity. If CTS is asserted, the scanner waits up to 2 seconds for the host to negate the CTS line. If, after 2 seconds the CTS line is still asserted, the scanner sounds a transmit error (if equipped with optional beeper), and any scanned data is lost.
  • Page 71 LS 1220 Product Reference Guide Figure 8-1. Hardware Handshaking 8-14...

  • Page 72: Software Handshaking

    Programming Software Handshaking This parameter controls the data transmission process. It may be used in conjunction with Hardware Handshaking. However, Hardware Handshaking takes precedence. That is, it takes place before, and ends after Software Handshaking. All references to beepers presuppose a beeper is present. The scanner provides four Software Handshaking options;...
  • Page 73 LS 1220 Product Reference Guide SYMBOL IS DECODED END SWITCHED ON? WAIT FOR END CHARACTER TO BE RECEIVED FROM HOST NO RESPONSE AFTER 2 SECONDS THE UNIT BEEPS 4 TIMES TO INDICATE A TRANSMISSION ERROR DATA IS TRANSMITTED ACK/NAK SWITCH ON?

  • Page 74: Intercharacter Delay

    There are three options: • Symbol ID - The identifier is sent as a one character prefix. Symbol Code ID characters are: A = UPC-A, UPC-E, EAN-13, or EAN-8; B - Code 39; C = Codabar; D = Code 128; F = Interleaved 2 of 5; G = Discrete 2 of 5.

  • Page 75: Optional Beeper Indications

    LS 1220 Product Reference Guide Optional Beeper Indications Table 8-3 lists the beeper tones used by the LS 1220 when the optional beeper is configured. Table 8-3. Beeper Indications Standard Use Beeper Sequence Indication 1 Beep - short high tone A bar code symbol is decoded successfully (if decode beeper is enabled).

  • Page 76: Code 39 Buffering

    To disable Code 39 buffering, first force the buffer transmission (see Transmit Buffer) or clear the buffer. Buffer Data To buffer data, Code 39 buffering must be enabled, and a symbol must be read with a space immediately following the start pattern. •...

  • Page 77: Transmit Buffer

    No transmission occurs. Data in buffer is not affected. Attempt to Transmit an Empty Buffer If the symbol just read was the transmit buffer symbol and the Code 39 buffer is empty: • A short lo/hi/lo beep signals that the buffer is empty.

  • Page 78: Programming Protocol

    Programming Programming Protocol This section discusses programming via the host computer. Refer to Parameter Descriptions on page 8-3 for an explanation of the parameters. Regardless of whether or not ACK/NAK is enabled, the ACK/NAK protocol is used for the programming sequences that occur between the host and the scanner. Except for the turn laser off command, all commands have the following format: STX S T I [x] <Data>...
  • Page 79 LS 1220 Product Reference Guide For all commands that require a response, the response format is: STX [x] <Data> ETX LRC where: STX = (Start of Transmission) [x] = character: Identify software Upload all parameters <Data> = 30h + upper nibble of parameter 30h + lower nibble of parameter...
  • Page 80 Programming For downloading specific parameters, <Data> takes the following format: <Parameter number> <Parameter value> where: <Parameter number> = number of the parameter to be changed. See Table 8-4 on page 8-24 for assignments. <Parameter value> = value assigned to a specific parameter. See Table 8-4 on page 8-24 for valid values.

  • Page 81: Programming Examples

    LS 1220 Product Reference Guide Programming Examples To put the LS 1220 into Host Triggering mode, the following string is sent to the unit (All values are in hexadecimal format): 02 53 54 49 48 31 36 30 35 03 07...
  • Page 82 Programming Table 8-4. Programming Protocol (Continued) Parameter # Definition Value Bit 0 Enable/Disable Code 128 Bit 1 Enable/Disable Code 93 Bit 2 Reserved Bit 3 Enable/Disable EAN 128 Bit 4 Enable/Disable MSI/Plessey Bit 5 Reserved Bit 6 Reserved Bit 7 Reserved Bit 0 Enable/Disable Convert UPC E to UPC A Bit 1 Enable/Disable EAN Zero extend...
  • Page 83 LS 1220 Product Reference Guide Table 8-4. Programming Protocol (Continued) Parameter # Definition Value Bit 0 Enable/Disable Send No Decode Bit 1 Enable/Disable Code 39 Full ASCII Bit 2 1 or 2 MSI/Plessey check digits Bit 3 Reserved Bit 4...
  • Page 84 Programming Table 8-4. Programming Protocol (Continued) Parameter # Definition Value Bit 0 Reserved Bit 1 Reserved Bit 2 Enable/Disable Bi-Directional Redundancy Bit 3 Reserved Bit 4 Reserved Bit 5 Reserved Bit 6 Reserved Bit 7 Reserved Bit 0 Enable/Disable Polling Bit 1 Enable/Disable Decode UPC Only Bit 2 Enable/Disable UPC Supplementals Autodiscriminate...
  • Page 85 LS 1220 Product Reference Guide Table 8-4. Programming Protocol (Continued) Parameter # Definition Value UPC Security Zone 02-10 Baud Rate 300 Baud 600 Baud 1200 Baud 2400 Baud 4800 Baud 9600 Baud 19,200 Baud Parity Even Mark Space None Stop Bits...
  • Page 86 Programming Table 8-4. Programming Protocol (Continued) Parameter # Definition Value Hardware Handshaking Disabled Enabled Software Handshaking None ACK-NAK ACK-NAK with ENQ ENQ Only Triggering Options Level Trigger Continuous Trigger Pulse Trigger Continuous Pulse Constant Scan & Report Host Triggering Next New Code Laser On Time-Out 0.5 Seconds 1.0 Seconds...
  • Page 87 LS 1220 Product Reference Guide Table 8-4. Programming Protocol (Continued) Parameter # Definition Value Laser Off Time-Out 0.0 Seconds 0.5 Seconds 1.0 Seconds 1.5 Seconds 2.0 Seconds 2.5 Seconds 3.0 Seconds 3.5 Seconds Intercharacter Delay 00-99 milliseconds 00-99 UPC-E Preamble...
  • Page 88 Programming Table 8-4. Programming Protocol (Continued) Parameter # Definition Value I 2 of 5, Length 1 01-31 I 2 of 5, Length 2 00-31 D 2 of 5, Length 1 01-31 D 2 of 5, Length 1 00-31 Prefix, 8 Bit ASCII Value (Hexadecimal) 00-7F, 80=Disabled Suffix 1, 8 Bit ASCII Value (Hexadecimal)

  • Page 89: Ascii Character Set

    LS 1220 Product Reference Guide ASCII Character Set Table 8-5. ASCII Table Character Hexadecimal Decimal Character Hexadecimal Decimal 00 0 00 1 00 2 00 3 00 4 00 5 00 6 00 7 ’ 00 8 00 9 8-32...
  • Page 90 Programming Table 8-5. ASCII Table (Continued) Character Hexadecimal Decimal Character Hexadecimal Decimal < > ‘ 8-33...
  • Page 91 LS 1220 Product Reference Guide Table 8-5. ASCII Table (Continued) Character Hexadecimal Decimal Character Hexadecimal Decimal 8-34...

  • Page 92: Overview

    Chapter 9 Parameter Menus Overview This chapter provides the necessary bar codes to program the LS 1220. Specific parameters are found on the pages indicated in Table 9-1. Table 9-1. Parameter Menus Index Parameter Page Set Defaults Code Types Code Lengths...

  • Page 93: Set Defaults

    LS 1220 Product Reference Guide Set Defaults Scan this bar code to set the LS 1220 to the defaults listed in Table 8-2 on page 8-3. SET DEFAULTS Code Type Enable or disable specific code types by scanning the appropriate bar code(s).
  • Page 94 Parameter Menus Code Type (cont’d) ENABLE CODE 39 DISABLE CODE 39 ENABLE CODE 39 DISABLE CODE 39 FULL ASCII* FULL ASCII* ENABLE UPC/EAN DISABLE UPC/EAN ENABLE CODE 128 DISABLE CODE 128 ENABLE EAN 128 DISABLE EAN 128 *Enabling or disabling Code 39 Full ASCII only has an affect when Code 39 has been enabled.
  • Page 95 LS 1220 Product Reference Guide Code Type (cont’d) DISABLE D 2 of 5 ENABLE D 2 of 5 DISABLE I 2 of 5 ENABLE I 2 of 5 ENABLE CODABAR DISABLE CODABAR DISABLE CODE 93 ENABLE CODE 93 ENABLE MSI Plessey...

  • Page 96: Code Lengths

    Parameter Menus Code Lengths To select one or two lengths for each code type: 1. Scan the desired option. 2. Scan two bar codes on the following page for each desired length. For example, for a length of “12,” scan “1” then “2.” For a length of “3,” scan “0,” then “3.” Always scan two bar codes for each length.

  • Page 97: Code Lengths

    LS 1220 Product Reference Guide Code Lengths (cont’d) CANCEL...

  • Page 98: Decode Options

    Parameter Menus Decode Options Enable or disable a specific decode option by scanning the appropriate bar code. TRANSMIT UPC-A DO NOT TRANSMIT CHECK DIGIT UPC-A CHECK DIGIT DO NOT TRANSMIT TRANSMIT UPC-E UPC-E CHECK DIGIT CHECK DIGIT CONVERT UPC-E TO DO NOT CONVERT UPC-E TO UPC-A UPC-A...
  • Page 99 LS 1220 Product Reference Guide Decode Options (cont’d) TRANSMIT “NO DECODE” DO NOT TRANSMIT “NO MESSAGE DECODE” MESSAGE DECODE UPC WITH 2 DISABLE DECODE UPC SUPPLEMENTALS WITH 2 SUPPLEMENTALS DECODE UPC WITH 5 DISABLE DECODE UPC WITH SUPPLEMENTALS 5 SUPPLEMENTALS...
  • Page 100 Parameter Menus Decode Options (cont’d) ENABLE DECODE DISABLE DECODE UPC ONLY UPC ONLY ENABLE 1 MSI Plessey ENABLE 2 MSI Plessey CHECK DIGIT CHECK DIGITS MSI 2 CHECK DIGITS MSI 2 CHECK DIGITS MOD 11 - MOD 10 MOD 10 - MOD 10 DO NOT VERIFY CODE VERIFY CODE 39 39 CHECK DIGIT...
  • Page 101 LS 1220 Product Reference Guide Decode Options (cont’d) BUFFER CODE 39 DO NOT BUFFER CODE 39 BEEP AFTER GOOD DO NOT BEEP AFTER DECODE GOOD DECODE ENABLE CLSI EDITING DISABLE CLSI EDITING ENABLE NOTIS EDITING DISABLE NOTIS EDITING 9-10...

  • Page 102: Upc-A Preamble

    Parameter Menus UPC-A Preamble Select one option for UPC-A preamble by scanning the appropriate bar code. NONE SYSTEM CHARACTER SYSTEM CHARACTER & COUNTRY CODE 9-11...

  • Page 103: Upc-E Preamble

    LS 1220 Product Reference Guide UPC-E Preamble Select one option for UPC-E preamble by scanning the appropriate bar code. NONE SYSTEM CHARACTER SYSTEM CHARACTER & COUNTRY CODE 9-12...

  • Page 104: Prefix/Suffix Values

    Parameter Menus Prefix/Suffix Values To set a PREFIX/SUFFIX value: 1. Scan the option bar code to be set. 2. Scan three bar codes on the next page which correspond to the decimal value or keystroke to be assigned. 3. To change a selection, scan CANCEL. PREFIX SUFFIX 1 SUFFIX 2...
  • Page 105 LS 1220 Product Reference Guide Prefix/Suffix Values (cont’d) CANCEL 9-14...

  • Page 106: Security Options

    Parameter Menus Security Options UPC Security Level Select the desired security level option by scanning one of the bar codes below. NONE CHECK AMBIGUOUS CHARACTER CHECK ALL CHARACTERS 9-15...

  • Page 107: Upc Security Zone

    LS 1220 Product Reference Guide UPC Security Zone To set a UPC Security Zone value: 1. Scan the bar code below. 2. Scan two bar codes on the following page which correspond to the desired option. Single digit options (0-9) must be preceded by a leading zero.
  • Page 108 Parameter Menus UPC Security Zone (cont’d) CANCEL 9-17...

  • Page 109: Bi-Directional Redundancy

    LS 1220 Product Reference Guide Bi-Directional Redundancy Scan the appropriate bar code below to enable or disable bi-directional redundancy. BI-DIRECTIONAL REDUNDANCY ENABLED BI-DIRECITONAL REDUNDANCY DISABLED 9-18...

  • Page 110: Laser Control

    Parameter Menus Laser Control Trigger Modes Select a TRIGGER MODE from below. LEVEL PULSE HOST NEXT NEW CODE CONSTANT SCAN & CONTINUOUS REPORT LEVEL CONTINUOUS PULSE 9-19...

  • Page 111: Laser On Time-Out

    LS 1220 Product Reference Guide Laser On Time-out Scan a bar code below which corresponds to the desired laser on time-out. 0.5 SEC 1.0 SEC 1.5 SEC 2.0 SEC 2.5 SEC 3.0 SEC 3.5 SEC 4.0 SEC 9-20...

  • Page 112: Laser Off Time-Out

    Parameter Menus Laser Off Time-out Scan a bar code below which corresponds to the desired laser off time-out. 0.0 SEC 0.5 SEC 1.0 SEC 1.5 SEC 2.0 SEC 2.5 SEC 3.0 SEC 3.5 SEC 9-21...

  • Page 113: Rs-232C Options

    LS 1220 Product Reference Guide RS-232C Options Baud Rate Set the baud rate for RS-232C transmission. 1200 2400 4800 9600 19200 9-22...

  • Page 114: Parity

    Parameter Menus Parity Set the type of parity for RS-232C transmission. EVEN MARK SPACE NONE 9-23...

  • Page 115: Hardware Handshaking

    LS 1220 Product Reference Guide Hardware Handshaking Select the type of RS-232C Hardware Handshaking protocol. NONE RTS/CTS 9-24...

  • Page 116: Software Handshaking

    Parameter Menus Software Handshaking Select the type of RS-232C Software Handshaking protocol. NONE ACK/NAK ACK/NAK with ENQ ENQ ONLY 9-25...

  • Page 117: Stop Bit Select

    LS 1220 Product Reference Guide Stop Bit Select Select the desired number of stop bits for RS-232C communications. 1 STOP BIT 2 STOP BITS 9-26...

  • Page 118: Ascii Data Format

    Parameter Menus ASCII Data Format Select either 7-bit or 8-bit ASCII format for RS-232C communications. 7-BIT 8-BIT 9-27...

  • Page 119: Intercharacter Delay

    LS 1220 Product Reference Guide Intercharacter Delay To set a host communications intercharacter delay: 1. Scan the INTERCHARACTER DELAY bar code below. 2. Scan two bar codes on the next page which represent the desired delay. Delays less than 10 msec require a leading zero. Two bar codes must always be scanned.
  • Page 120 Parameter Menus Intercharacter Delay (cont’d) CANCEL 9-29...

  • Page 121: Code Id Character

    LS 1220 Product Reference Guide Code ID Character Select the desired option from the bar codes below. NO CODE ID SYMBOL CODE ID AIM CODE ID 9-30...

  • Page 122: Glossary

    Bar Height The dimension of a bar measured perpendicular to the bar width. Bar Width Thickness of a bar measured from the edge closest to the symbol start character to the trailing edge of the same bar. Baud Rate A measure of the data flow or number of signaling events occurring per second.
  • Page 123 Those characters available for encodation in a particular bar code symbology. Check Digit A digit used to verify a correct symbol decode. The scanner inserts the decoded data into an arithmetic formula and checks that the resulting number matches the encoded check digit. Check digits are required for UPC but are optional for other symbologies.
  • Page 124 Continuous Code A bar code or symbol in which all spaces within the symbol are parts of characters. There are no intercharacter gaps in a continuous code. The absence of gaps allows for greater information density.
  • Page 125 A condition which occurs when the data output of a reader or interface (Misdecode) controller does not agree with the data encoded within a bar code symbol. MSI Plessey A numeric-only bar code type. It can accept a variable number of digits up to 13.
  • Page 126 Print Contrast Measurement of the contrast (brightness difference) between the bars and Signal (PCS) spaces of a symbol. A minimum PCS value is needed for a bar code symbol to be scannable. PCS = (R ) / R , where R...
  • Page 127 The distance between the outside edges of the quiet zones of the first row and the last row. Symbol Length Length of symbol measured from the beginning of the quiet zone (margin) adjacent to the start character to the end of the quiet zone (margin) adjacent to a stop character.

  • Page 128: Index

    LS 1220 ....2-3 connector LS 1220-I300A ....3-3 LS 1220VHD-I300A ....5-3 bar codes LS 1220WA-I300A .
  • Page 129 LS 1220-I300A ....3-2 LS 1220-I300A ....3-2 LS 1220VHD-I300A .
  • Page 130 ..8-8 LS 1220-I300A ....3-2 CLSI editing ....8-9 LS 1220VHD-I300A .
  • Page 131 LS 1220WA-I300A ....4-3 LS 1220-I300A ....3-3 symbol support center .
  • Page 132 We’d like to know what you think about this Manual. Please take a moment to fill out this questionnaire and fax this form to: (631) 738-3318, or mail to: Symbol Technologies, Inc. One Symbol Plaza M/S B-4 Holtsville, NY 11742-1300 Attention: Technical Publications Manager IMPORTANT: If you need product support, please call the appropriate customer support number provided.
  • Page 135 LS 1220 Product Reference Guide 70-12072-03 Revision A — January 2003 Symbol Technologies, Inc. One Symbol Plaza, Holtsville N.Y. 11742-1300 http://www.symbol.com/manuals...
