Modbus (Serial) Access - KE2 Local Area Overview, Installation, And Setup Instructions

KE2 Local AreaDashboard & Alarms
Overview, Installation, and Setup Instructions
The user's web browser will
4
launch a new tab, and open
the controllers MasterView, giv-
ing immediate access to view
the controller, as well as make
changes.
To return to the dashboard, ei-
5
ther click on the Dashboard tab,
or close the current tab.
Similar to the controllers them-
selves, the KE2 LDA can also be
viewed online, using either port
forwarding or through a Virtual
Private Network (VPN).

ModBus (Serial) Access:

1 For the ModBus (serial) devices
you can access the web page
for the controller by clicking
on the IP Address from either
the Management Console or
the Dashboard for published
devices.

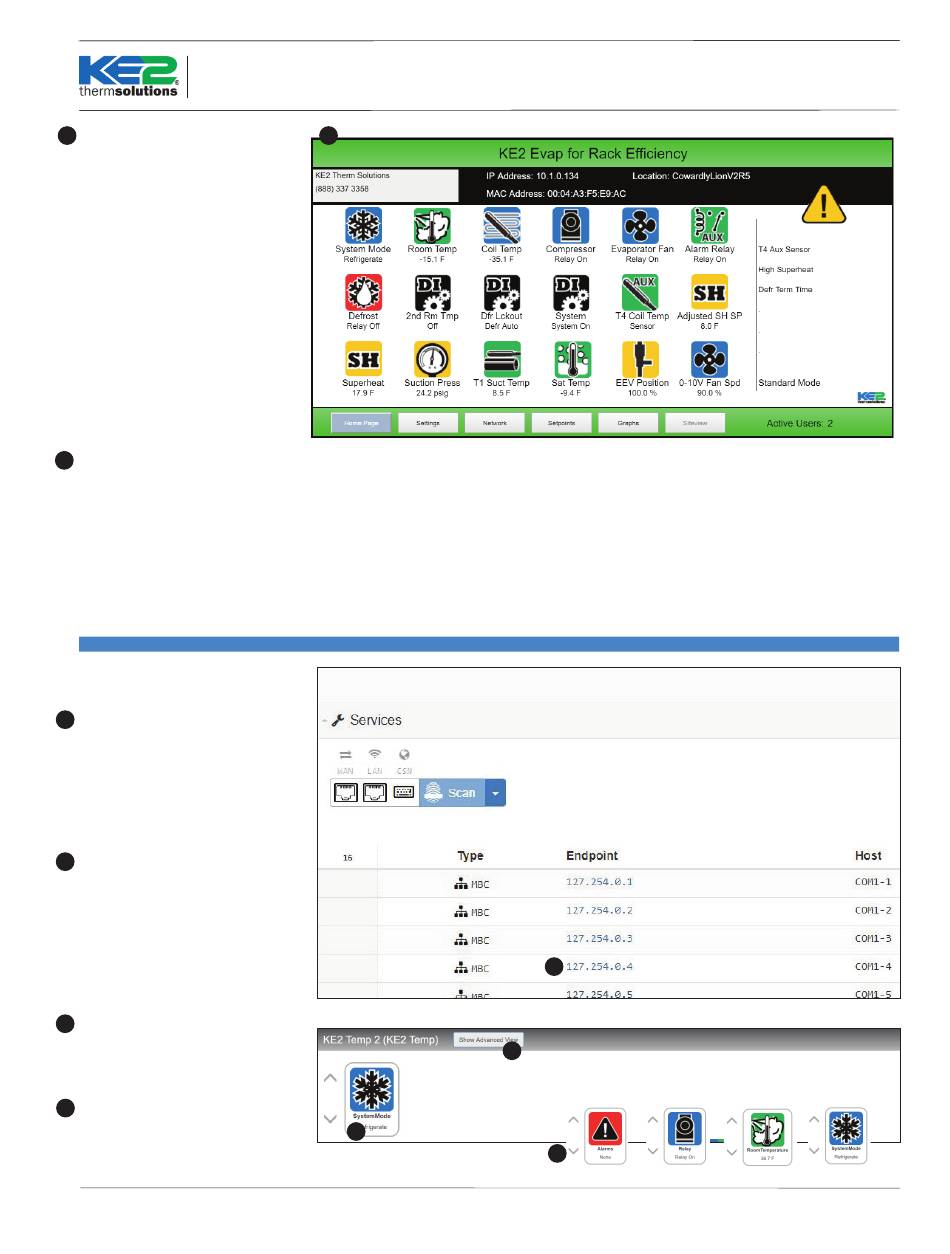

When you open the IP Address
2
you will see the web page in ei-
ther Simple or Advanced View
In Simple View you will see the
3
System State as individual icons.
This is the current state of the
device.
To access Advanced View click on
4
the Show Advanced View
