KE2 Local AreaDashboard & Alarms
Overview, Installation, and Setup Instructions
Appendix A

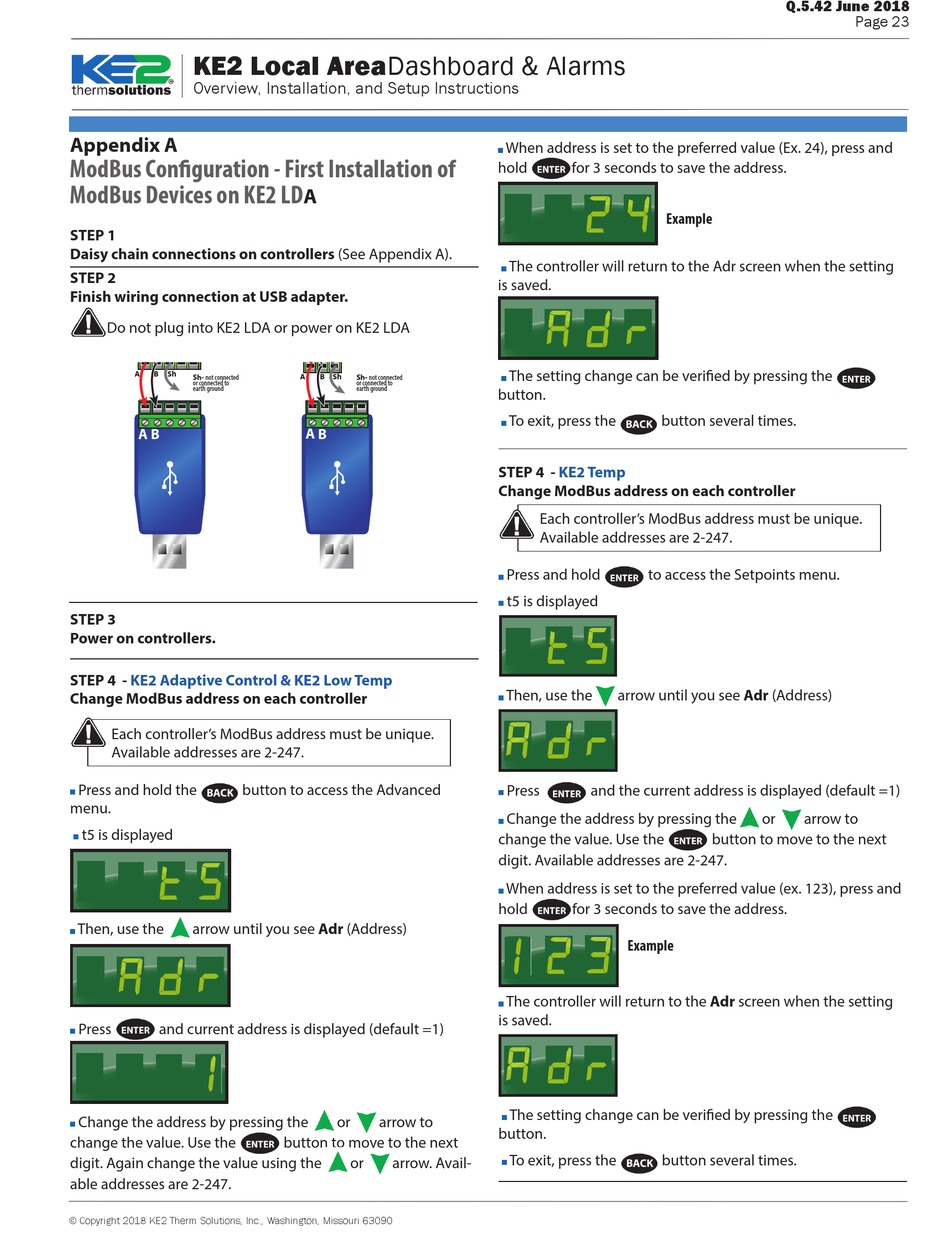

ModBus Configuration - First Installation of
ModBus Devices on KE2 LD
STEP 1
Daisy chain connections on controllers (See Appendix A).
STEP 2
Finish wiring connection at USB adapter.
Do not plug into KE2 LDA or power on KE2 LDA
A B Sh
Sh- not connected
or connected to
earth ground
A B
STEP 3
Power on controllers.
STEP 4 - KE2 Adaptive Control & KE2 Low Temp
Change ModBus address on each controller
Each controller's ModBus address must be unique.
Available addresses are 2-247.
Press and hold the button to access the Advanced
menu.
t5 is displayed
t 5
Then, use the arrow until you see Adr (Address)
A d r
Press and current address is displayed (default =1)
1
Change the address by pressing the
change the value. Use the
digit. Again change the value using the
able addresses are 2-247.
© Copyright 2018 KE2 Therm Solutions, Inc., Washington, Missouri 63090
A
A B Sh
A B Sh
A B Sh
A B Sh
A B Sh
Sh- not connected
or connected to
earth ground
A B
or arrow to
button to move to the next
or arrow. Avail-
When address is set to the preferred value (Ex. 24), press and
hold for 3 seconds to save the address.
2 4
Example
The controller will return to the Adr screen when the setting
is saved.
A d r
The setting change can be verified by pressing the
button.
To exit, press the button several times.
STEP 4 - KE2 Temp
Change ModBus address on each controller
Each controller's ModBus address must be unique.
Available addresses are 2-247.
Press and hold to access the Setpoints menu.
t5 is displayed
t 5
arrow until you see Adr (Address)
Then, use the
A d r
Press and the current address is displayed (default =1)
Change the address by pressing the
change the value. Use the
digit. Available addresses are 2-247.
When address is set to the preferred value (ex. 123), press and
hold for 3 seconds to save the address.
1 2 3 Example
The controller will return to the Adr screen when the setting
is saved.
A d r
The setting change can be verified by pressing the
button.
To exit, press the button several times.
Q.5.42 June 2018
Page 23
or arrow to
button to move to the next
