Using Ke2 Flash Drive -Data Logging The Ke2 Lda - KE2 Local Area Overview, Installation, And Setup Instructions

KE2 Local AreaDashboard & Alarms
Overview, Installation, and Setup Instructions
Installing the KE2 LDA: Option 6
Wirelessly Tether to Customer WiFi
EACH DEVICE MUST HAVE A SEPARATE/
UNIQUE MODBUS ADDRESS
(See Appendix B for instructions)
Serial-Modbus Controllers:
KE2 Temp, KE2 Low Temp, KE2 Adaptive Control
Using the KE2 Flash Drive for Data Logging
the KE2 LDA
(See bulletin Q.5.48 for more on the KE2 Flash Drive)

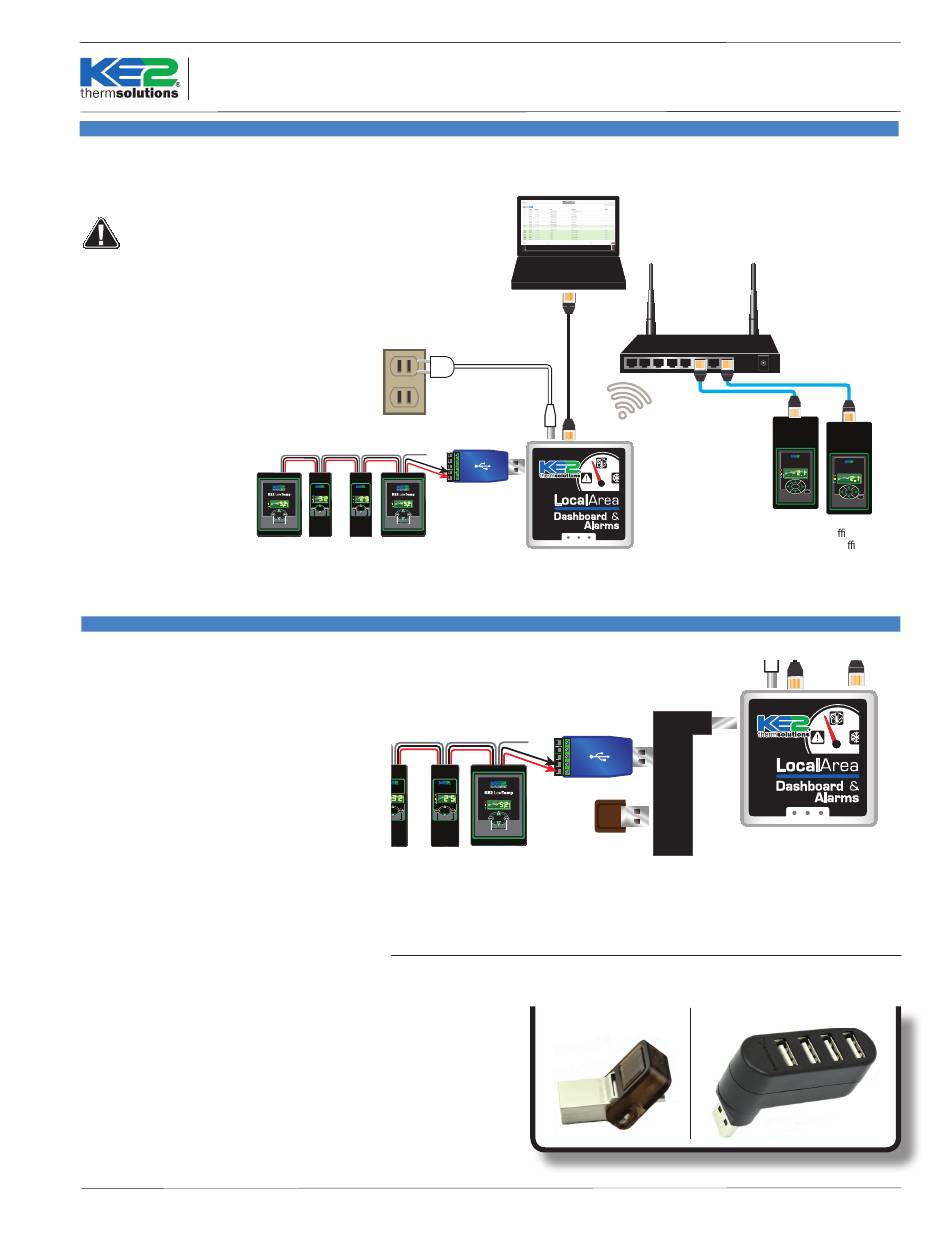

Regardless of how the KE2 LDA is connect-
ed to the network (as illustrated in Options
1 through 5), if the KE2 Flash Drive is used
for data logging, the USB Hub is connect-
ed first. Then the KE2 Flash Drive, and the
daisy-chained Serial-ModBus controllers,
are connected to the ports in the USB Hub.
