Summary of Contents for Adaptec XHub4

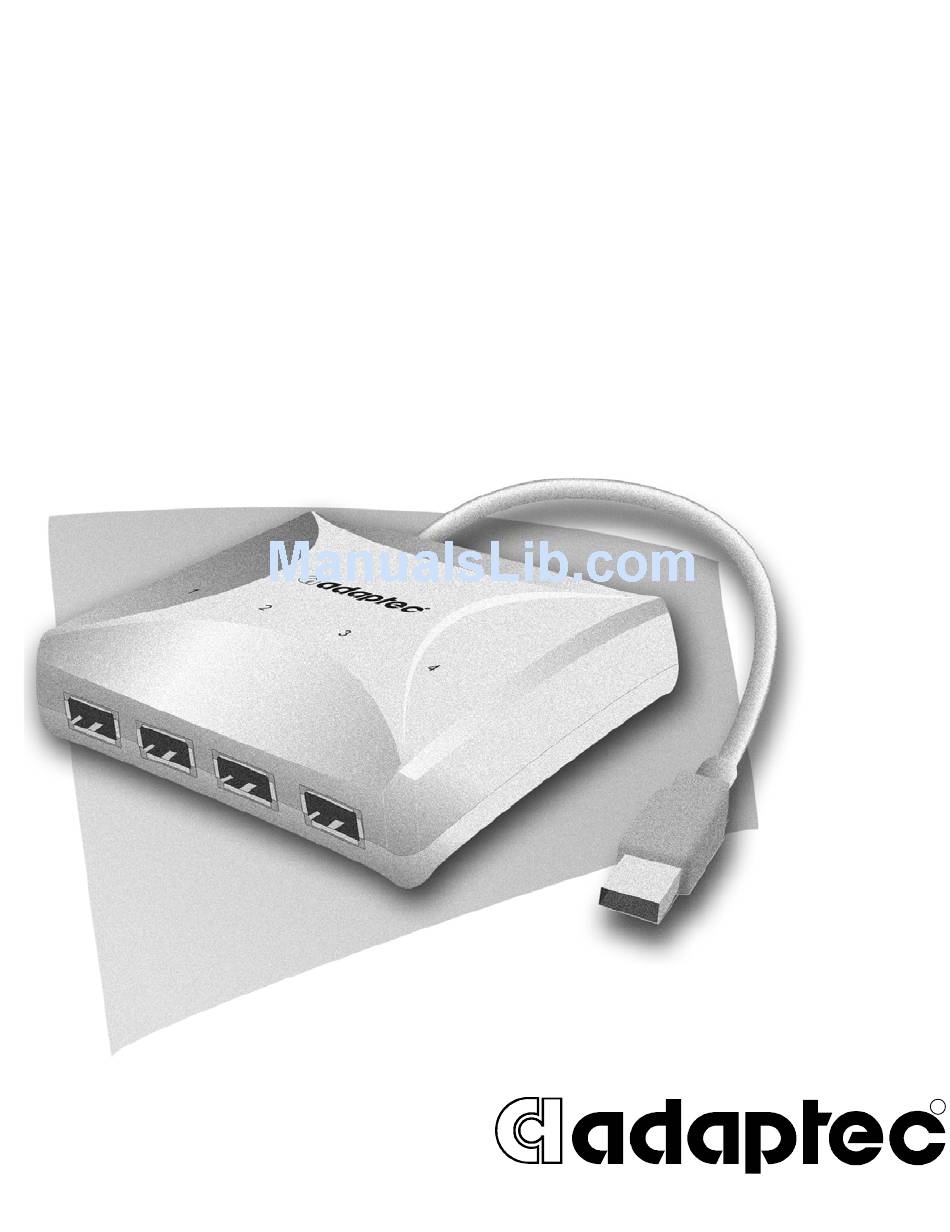

- Page 1 Adaptec XHub4 Quick Start Guide...
-
Page 2: Before You Begin
The power adapter included in your XHub4 package About USB 2.0 Performance For your XHub4 and USB 2.0 devices to operate at USB 2.0 speeds, the XHub4 must be connected to a USB 2.0 port, and USB 2.0 drivers with hub support must be installed on your computer. -
Page 3: Plugging In Your Xhub
Plugging in Your XHub4 Follow the picture to connect your XHub4. You don’t have to power off your computer before connecting the hub. Step 1: Plug the XHub into the USB port on your laptop or desktop computer. (The location of your available USB port may differ from what’s shown in this... -
Page 4: Installing Device Drivers
Windows XP and Windows 2000 If you are using Windows XP or Windows 2000, you do not need to install any device drivers. Your XHub4 is ready for use when it’s properly connected and your computer is powered on. -
Page 5: Plugging In Your Devices
Plugging in Your Devices Follow this picture to connect your USB 1.1 and 2.0 devices to your XHub4. You can use any USB port on the hub. USB device cable You can buy additional USB cables on the Adaptec Web site, at www.adaptec.com/buy-cables... - Page 6 1 Connect the first XHub4 to your computer and to a power source. (See page 2.) 2 Use a USB cable to connect the next XHub4 to one of the USB ports on the first XHub4. Last XHub4 in chain 3 Repeat until all your XHub4 hubs are connected.
-
Page 7: Troubleshooting
Troubleshooting If you have problems using your XHub4 or USB devices, work through this list of troubleshooting suggestions: Ensure that all cables are properly and fully connected. Ensure that the XHub4 is connected to a power source, and that the power source is turned on. - Page 8 Copyright ©2003 Adaptec, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.
- Page 9 Adaptec Customer Support If you have questions about installing or using your Adaptec product, check this document first—you will find answers to most of your questions here. If you need further assistance, use the support options listed below. Technical Support Identification (TSID) Number Before contacting Technical Support, you need your unique 12-digit TSID number.
- Page 10 German and English: Search the Adaptec Support Knowledgebase (ASK) at troubleshooting tips, and frequently asked questions for your product. For support via e-mail, submit your question to Adaptec's Technical Support Specialists at French: Search the Adaptec Support Knowledgebase (ASK) at ask-fr.adaptec.com frequently asked questions for your product.
- Page 11 Limited 2-Year Hardware Warranty 1. Adaptec, Inc. (“Adaptec”) warrants to the purchaser of this product that it will be free from defects in material and workmanship for a period of two (2) years from the date of purchase. If the product should become defective within the warranty period, Adaptec, at its option, will repair or replace the product, or refund the purchaser’s purchase...
- Page 12 INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION LOSS OF DATA, ARISING FROM BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ARE NOT THE RESPONSIBILITY OF ADAPTEC AND, TO THE EXTENT PERMITTED BY LAW, ARE HEREBY EXCLUDED BOTH FOR PROPERTY DAMAGE, AND TO THE EXTENT NOT UNCONSCIONABLE, FOR PERSONAL INJURY DAMAGE.
- Page 13 Regulatory Compliance Statements Federal Communications Commission Radio Frequency Interference Statement WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
- Page 14 Adaptec, Inc. Tested to Comply With FCC Standards FOR HOME OR OFFICE USE European Union Compliance Statement This Information Technology Equipment has been tested and found to comply with EMC Directive 89/336/EEC, as amended by 92/31/EEC and 93/68/EEC, in accordance with:...
- Page 15 Canadian Compliance Statement This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Japanese Compliance (Voluntary Control Council Initiative) This equipment complies to class B Information Technology equipment based on VCCI (Voluntary Control Council for Interface).
- Page 16 Adaptec, Inc. 691 South Milpitas Boulevard Milpitas, CA 95035 USA ©2003 Adaptec, Inc. All rights reserved. Adaptec and the Adaptec logo are trademarks of Adaptec, Inc. which may be registered in some jurisdictions. Part Number: 513637-06, Ver. AA LB 07/03...
