Summary of Contents for Adaptec XHub2

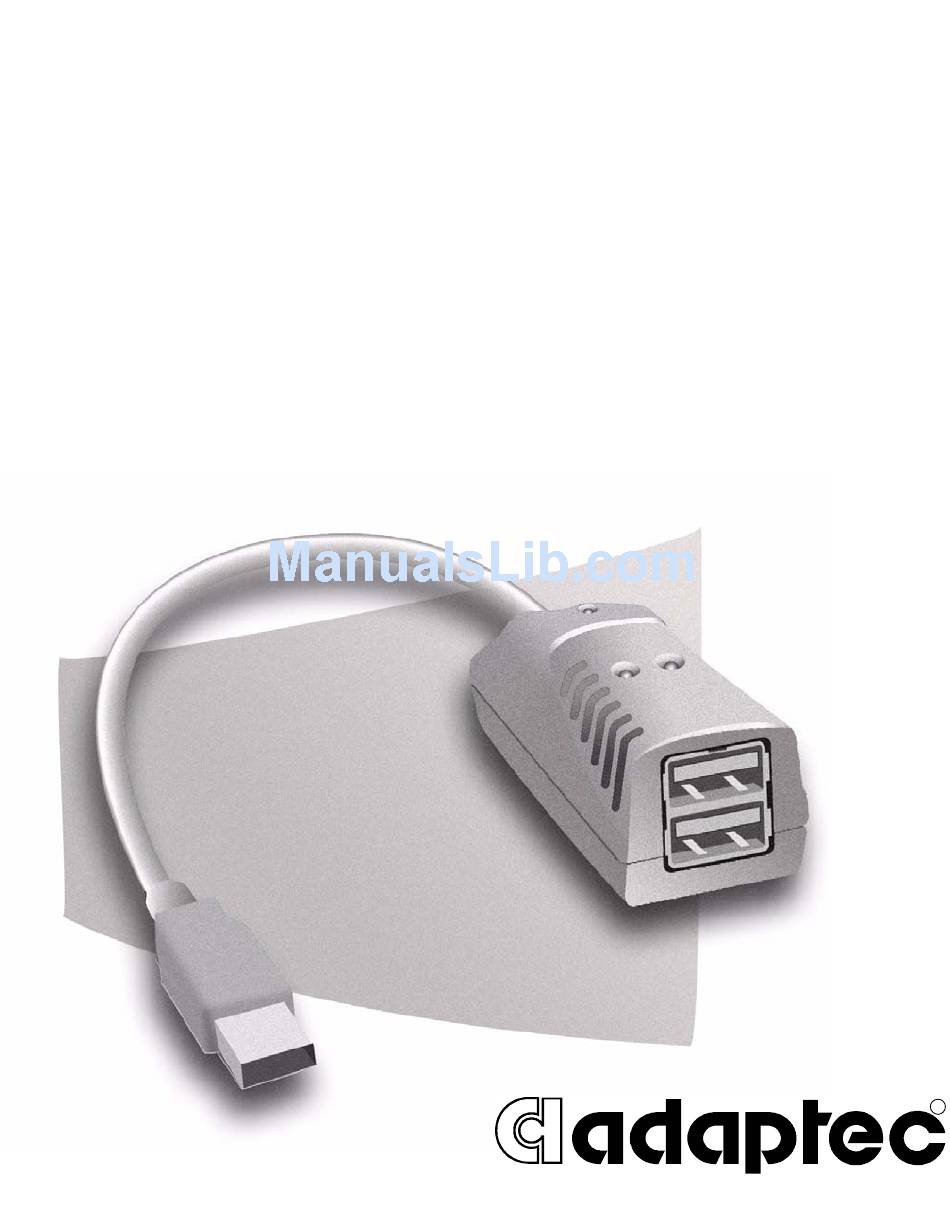

  • Page 1 Adaptec XHub2 Quick Start Guide...
  • Page 2: Before You Begin

    About USB 2.0 Performance For your XHub2 and USB 2.0 devices to operate at USB 2.0 speeds, the XHub2 must be connected to a USB 2.0 port, and USB 2.0 drivers with hub support must be installed on your computer.
  • Page 3: Plugging In Your Xhub

    Plugging in Your XHub2 Follow the picture to connect your XHub2. You don’t have to power off your computer before connecting the hub. USB Device LED 1 and 2: When a Device LED is illuminated, a device is connected to the corresponding USB port.
  • Page 4: Plugging In Your Devices

    Plugging in Your Devices Follow this picture to connect your USB 1.1 and 2.0 devices to your XHub2. You can use either USB port on your hub. Note: USB 1.1 devices won’t operate at USB 2.0 speeds, even if they’re connected to a USB 2.0 hub or adapter.
  • Page 5 Copyright ©2003 Adaptec, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.
  • Page 6 Adaptec Customer Support If you have questions about installing or using your Adaptec product, check this document first—you will find answers to most of your questions here. If you need further assistance, use the support options listed below. Technical Support Identification (TSID) Number Before contacting Technical Support, you need your unique 12- digit TSID number.
  • Page 7 For support via Email, submit your question to Adaptec's Technical Support Specialists at To order Adaptec products, including accessories and cables, call +1 408-957-7274. Or, you can order cables online at www.adaptec.com/buy-cables Europe Visit our Web site at German and English: Search the Adaptec Support...
  • Page 8 Limited 2-Year Hardware Warranty 1. Adaptec, Inc. (“Adaptec”) warrants to the purchaser of this product that it will be free from defects in material and workmanship for a period of two (2) years from the date of purchase. If the product should become defective within the warranty period, Adaptec, at its option, will repair or replace the product, or refund the purchaser’s purchase...
  • Page 9 INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION LOSS OF DATA, ARISING FROM BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ARE NOT THE RESPONSIBILITY OF ADAPTEC AND, TO THE EXTENT PERMITTED BY LAW, ARE HEREBY EXCLUDED BOTH FOR PROPERTY DAMAGE, AND TO THE EXTENT NOT UNCONSCIONABLE, FOR PERSONAL INJURY DAMAGE.
  • Page 10 Regulatory Compliance Statements Federal Communications Commission Radio Frequency Interference Statement WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
  • Page 11 Adaptec, Inc. Tested to Comply With FCC Standards FOR HOME OR OFFICE USE European Union Compliance Statement This Information Technology Equipment has been tested and found to comply with EMC Directive 89/336/EEC, as amended by 92/31/EEC and 93/68/EEC, in accordance with:...
  • Page 12 Canadian Compliance Statement This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Japanese Compliance (Voluntary Control Council Initiative) This equipment complies to class B Information Technology equipment based on VCCI (Voluntary Control Council for Interface).
  • Page 13 Adaptec, Inc. 691 South Milpitas Boulevard Milpitas, CA 95035 USA ©2003 Adaptec, Inc. All rights reserved. Adaptec and the Adaptec logo are trademarks of Adaptec, Inc. which may be registered in some jurisdictions. Part Number: 513633-06, Ver. AB LB 07/03...
