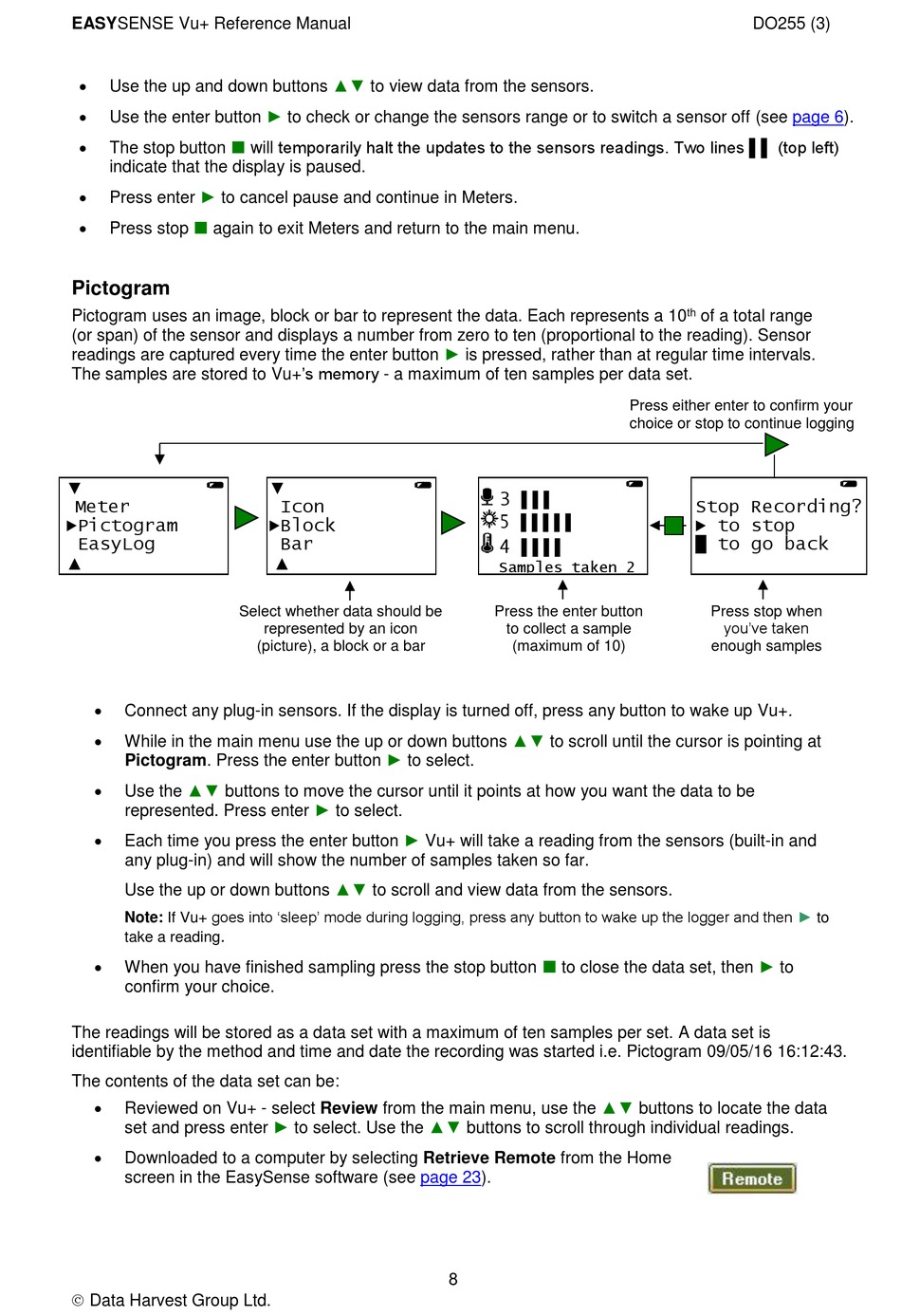

EASYSENSE Vu+ Reference Manual
Use the up and down buttons
Use the enter button
The stop button
indicate that the display is paused.
►
Press enter
to cancel pause and continue in Meters.
Press stop
again to exit Meters and return to the main menu.
Pictogram
Pictogram uses an image, block or bar to represent the data. Each represents a 10
(or span) of the sensor and displays a number from zero to ten (proportional to the reading). Sensor
readings are captured every time the enter button
The samples are stored to Vu+'s memory - a maximum of ten samples per data set.
▼
Meter
►Pictogram
EasyLog
▲
Connect any plug-in sensors. If the display is turned off, press any button to wake up Vu+.
While in the main menu use the up or down buttons
Pictogram. Press the enter button
▲▼
Use the
buttons to move the cursor until it points at how you want the data to be
represented. Press enter
Each time you press the enter button
any plug-in) and will show the number of samples taken so far.
Use the up or down buttons
Note: If Vu+ goes into 'sleep' mode during logging, press any button to wake up the logger and then
.
take a reading
When you have finished sampling press the stop button
confirm your choice.
The readings will be stored as a data set with a maximum of ten samples per set. A data set is
identifiable by the method and time and date the recording was started i.e. Pictogram 09/05/16 16:12:43.
The contents of the data set can be:
Reviewed on Vu+ - select Review from the main menu, use the
set and press enter
Downloaded to a computer by selecting Retrieve Remote from the Home
screen in the EasySense software (see
