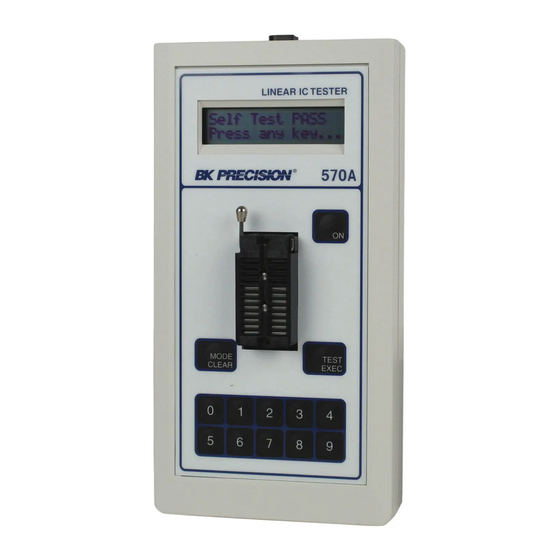

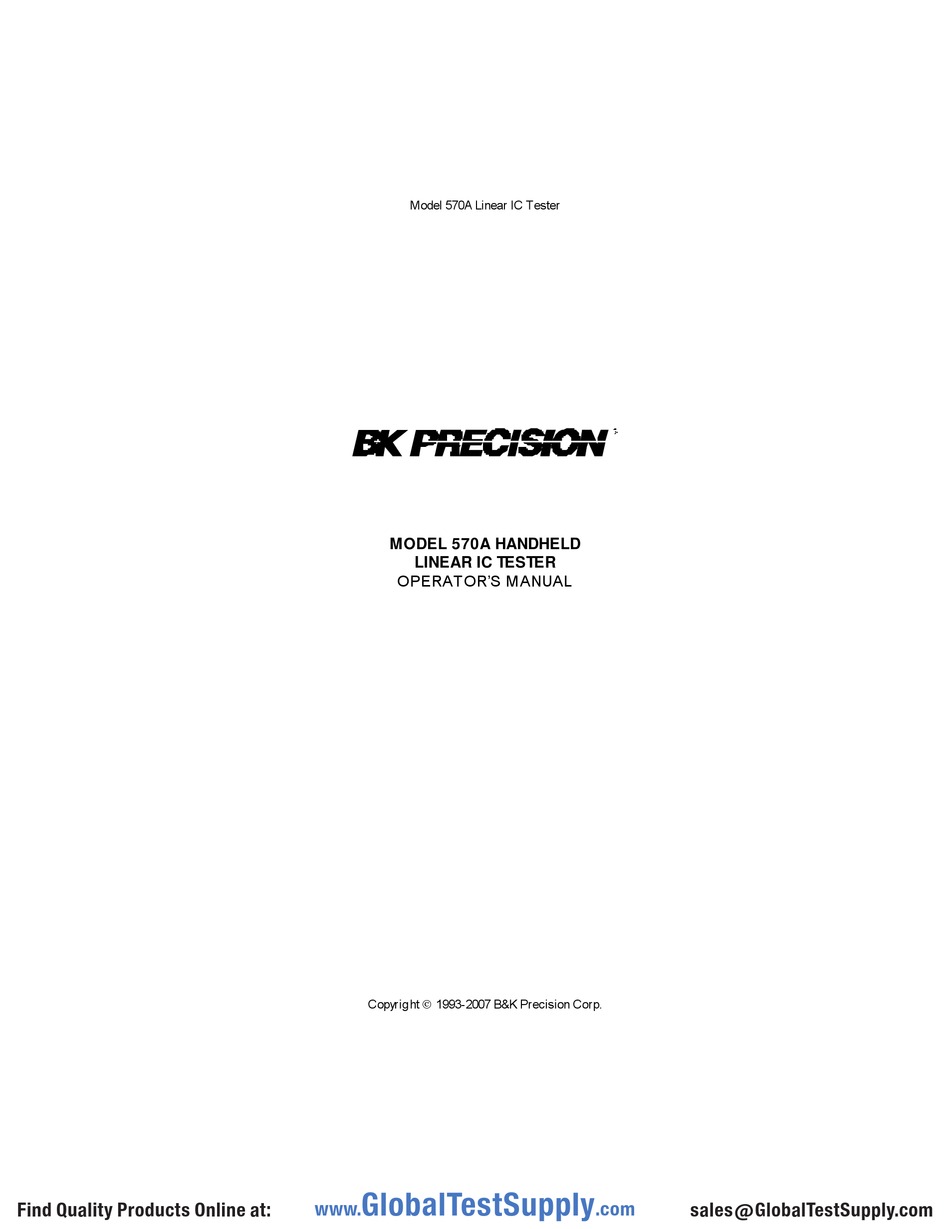

- Page 1 Model 570A Linear IC Tester MODEL 570A HANDHELD LINEAR IC TESTER OPERATOR’S MANUAL Copyright 1993-2007 B&K Precision Corp. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Model 570A Linear IC Tester CONTENTS introduction ................2 DC input ................... 2 battery eliminator ..............3 switching on................3 operating modes............... 4 entering test numbers............... 4 testing the IC ................5 test results................. 6 testing further ICs..............8 continuous testing ..............8 search mode................ -
Page 3: Introduction
2. DC input The B & K Model 570A is powered by four AA batteries or by the use of the battery eliminator input at the rear of the case. To insert the batteries, turn the unit upside down and remove the battery Copyright ... -
Page 4: Battery Eliminator
3. battery eliminator An external battery eliminator is available for prolonged use of the B & K Model 570A. Some ICs consume a significant amount of current when powered up, and battery life can be conserved by using the eliminator. There is no need to remove the batteries prior to inserting the battery eliminator. -
Page 5: Operating Modes
Model 570A Linear IC Tester When this initial display is obtained the B & K Model 570A is ready for use. If, however, the message SELF-TEST FAIL: is displayed along with a fault message, this indicates that a self-test diagnostic fault has been detected. -
Page 6: Testing The Ic
IC type - if this happens a warning message will be displayed. A complete list of all ICs supported by the B & K Model 570A is contained in the IC SUPPORT LIST at the end of this manual together with notes on any special requirements for certain ICs. -
Page 7: Test Results
Model 570A Linear IC Tester making good contact. Press the TEST/EXEC key to activate the test sequence for the IC. If an invalid IC type number was entered, or if the IC you have requested is not supported the message "Unknown"... - Page 8 ICs in the library which have the same numerical part number even though the IC functions are different. In these cases the B & K Model 570A will automatically determine the IC type prior to the test, provided that the IC is functional.
-
Page 9: Testing Further Ics
F Loop - execute a test repeatedly, provided the result was FAIL. The B & K Model 570A is configured into one of the loop modes using the MODE/CLEAR key as described earlier. Insert the IC and press TEST/EXEC in the usual way to start the continuous test process. -
Page 10: Search Mode
This feature allows the type number of an unknown IC to be determined, provided the IC is actually contained in the B & K Model 570A library, and it is a correctly functioning IC. This facility is useful when the IC type number is illegible or has been removed. -
Page 11: Self Test Mode
CompactLink mode The B & K Model 570A is provided with an RS-232 interface to connect to a PC with a serial COM port or using a USB to RS-232 converter. A companion software package CompactLink is available... -
Page 12: Specifications
Model 570A Linear IC Tester on for ever. We recommend using a battery eliminator when using CompactLink mode to develop test programs. specifications SPECIFICATIONS Batteries: 4 X AA size DC input: 6V, 850mA max, center positive, regulated. Power consumption: Power off 10... -
Page 13: Ic Support List
15.1. This section is a complete list of the ICs supported by the B & K Model 570A. If there are any special requirements necessary for a particular IC, this will be indicated in the comments column in the table. - Page 14 Model 570A Linear IC Tester LF157 LF255 LF256 LF257 LF347 LF351 LF353 LF355 LF356 LF357 LF411 LF412 LM101 LM107 LM108 LM11 LM118 Add 47nF capacitor between IC pins 1 and 6 LM124 LM148 LM158 LM201 LM207 LM208 LM218 Add 47nF capacitor between IC pins 1 and 6...
- Page 15 Model 570A Linear IC Tester LT1013 1013 LT1014 1014 MAX407 MAX427 MC3303 3303 MC33171 33171 MC33172 33172 MC33174 33174 MC3403 3403 NE531 NE5532 5532 NE5534 5534 OP-07 OP200 OP-27 OP-282 OP290 OP-37 OP-42 OP482 OP490 OP-77 OP-90 OP-97 OPA121 OPA606...
-
Page 16: Comparators
Model 570A Linear IC Tester TLC279 TLC2872 2872 TLE2061 2061 TLE2062 2062 TLE2064 2064 TLE2071 2071 TLE2072 2072 TLE2074 2074 TLE2081 2081 TLE2082 2082 TLE2084 2084 TLE2161 2161 UA709-14 UA709-8 UA741-14 UA741-8 UA747 UA748 15.3. comparators Number Comments CMP04 LM111... -
Page 17: Switches And Multiplexers
Model 570A Linear IC Tester LP339 LP365 LT1016 1016 TLC339 TLC3702 3702 TLC3704 3704 TLC372 TLC393 15.4. switches and multiplexers Number Comments 4016 4016 4051 4051 4052 4052 4066 4066 4529 4529 DG201 DG202 DG211 DG212 DG308 DG309 DG411 DG412... -
Page 18: Opto Couplers And Isolators
Model 570A Linear IC Tester LM7905 7905 May need 10uF between IC pins 2 (-) and 3 (+) MAX667 May need 10uF between IC pins 4 (-) and 2 (+) MAX872 MAX874 REF02 REF03 REF05 REF43 TLE2425 2425 TLE2426 2426 15.6. -
Page 19: Miscellaneous
Model 570A Linear IC Tester MCT2200 2200 MCT2201 2201 MCT2202 2202 MCT271 MOC8030 8030 MOC8050 8050 TIL197 TIL198 TIL199 TLP250 TLP521 TLP521-2 5212 TLP521-4 5214 TLP559 TLP621 TLP621-2 6212 TLP621-4 6214 15.7. miscellaneous Number Comment AD7524 7524 DAC08 NE555 NE556... -
Page 20: Service Information
Model 570A Linear IC Tester Service Information Contact B&K Precision to receive a repair Return Authorization tracking number. This number must be clearly written on the exterior of the shipping carton and will assist us with the processing of your return. Return all merchandise to B&K Precision Corp. with pre-paid shipping. -
Page 21: Limited One-Year Warranty
Model 570A Linear IC Tester Limited One-Year Warranty B&K Precision Corp. warrants to the original purchaser that its product and the component parts thereof, will be free from defects in workmanship and materials for a period of one year from the date of purchase.
