EnergyPak Plus
INSTALLATION & USER MANUAL
I.
IX.

1. CONTENTS

Due to UN transportation regulations, the EnergyPak Plus battery (A) is packaged separately from the EnergyPak
Plus mounting kit (B). Both packages (A+B) are necessary to mount and use the EnergyPak Plus on a compatible
Giant/Liv E-Bike.
The complete set of battery and mounting kit includes the following items:
A - EnergyPak Plus Package:
I.

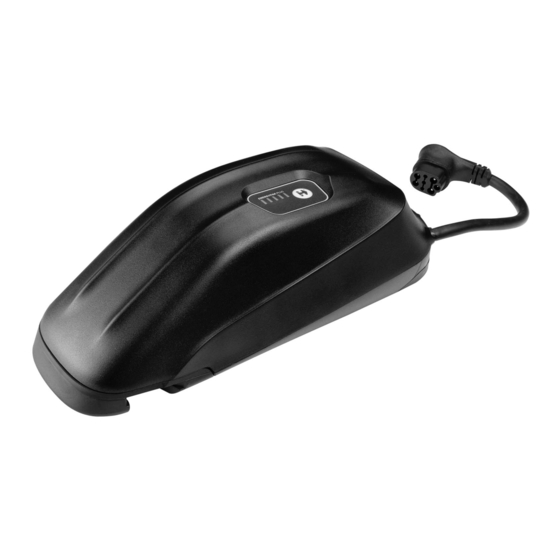

1x EnergyPak Plus Battery
II. 1x Travel bag (not pictured)
IV.
V.
B - Mounting Kit Package:
III. 1x Base plate
IV. 2x Base plate bolts
V. 2x Base plate nuts
VI. 1x Bottle cage adapter plate
VII. 1x Charger adapter cable
VIII. 1x Cable strap
IX. 1x Front mount attachment (incl. 1x screw)
X. 1x Rear mount attachment (incl. 1x screw)
IV.
III.
V.
X.
VI.
VII.
VIII.
IV.
1 / 8
