Acnodes RM 6170 Specifications

» Specifications
Material:
Heavy-duty steel
LCD Panel:
Size: 17"
Resolution: 1280 x1024
Brightness (cd/m^): 300nit
Contrast ration: 500:1
Viewing Angle:
140° Horizontal and 120° Vertical
Pixel Pitch:
0.264mm (H) x 0.264mm (V)
Colors: 16.7M colors
MTBF: 35,000 Hours
Touch Scheen:
Touch screen: resistive-type touch screen,
Video input: S-video / Composite type
On Screen Control:
Auto-Adjustment for contrast,
balance,
H-position
V-position
phase
brightness
Front Panel Controls:
Power on/off switch
OSD (on screen control)
Cable:
1 x 6' 15-pins D-sub VGA cable
Connectors:
1 x D-Sub 15 pin (female) for VGA
Power supply:
110/220VAC power adapter, Optional for –48VDC input power
adapter
20947 Currier Road Suite #H
Walnut, CA 91789
tel: 909.598.7388, fax: 909.598.0218

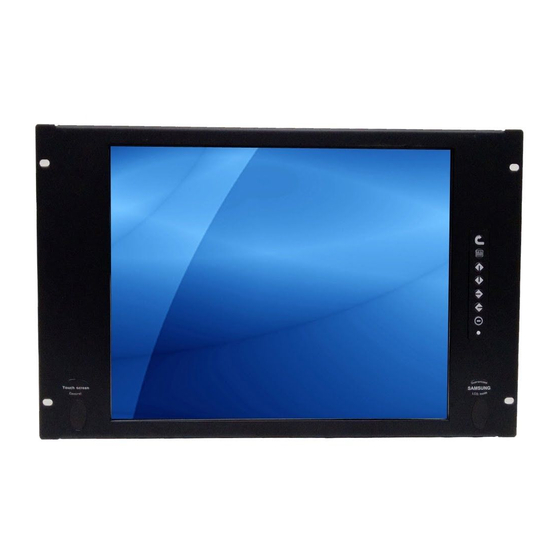

RM 6170
17" 1280 x 1024 TFT LCD
7U rackmount LCD monitor
» Features
» 7U compact design, only 2.56" depth
» High brightness 15" 1024 x 768 TFT LCD display
» OSD (On Screen Display) function
» Optional for resistive-type touch screen
» External AC power adapter
Color:
Black
Operation Temperature:
0°C to 50°C
Storage Temperature:
-20°C to 60°C
Gross Weight:
35lb
Dimension:
19"(W) x 2.56"(D) x 12.25"(H)
» Options
CB-15: 15 feet VGA cable
CB-25: 25 feet VGA cable
» Ordering Guide
RM 6170:
17" 1280 x 1024 7U rackmount monitor
RM 6170T:
17" 1280 x 1024 7U rackmount monitor with touch screen
