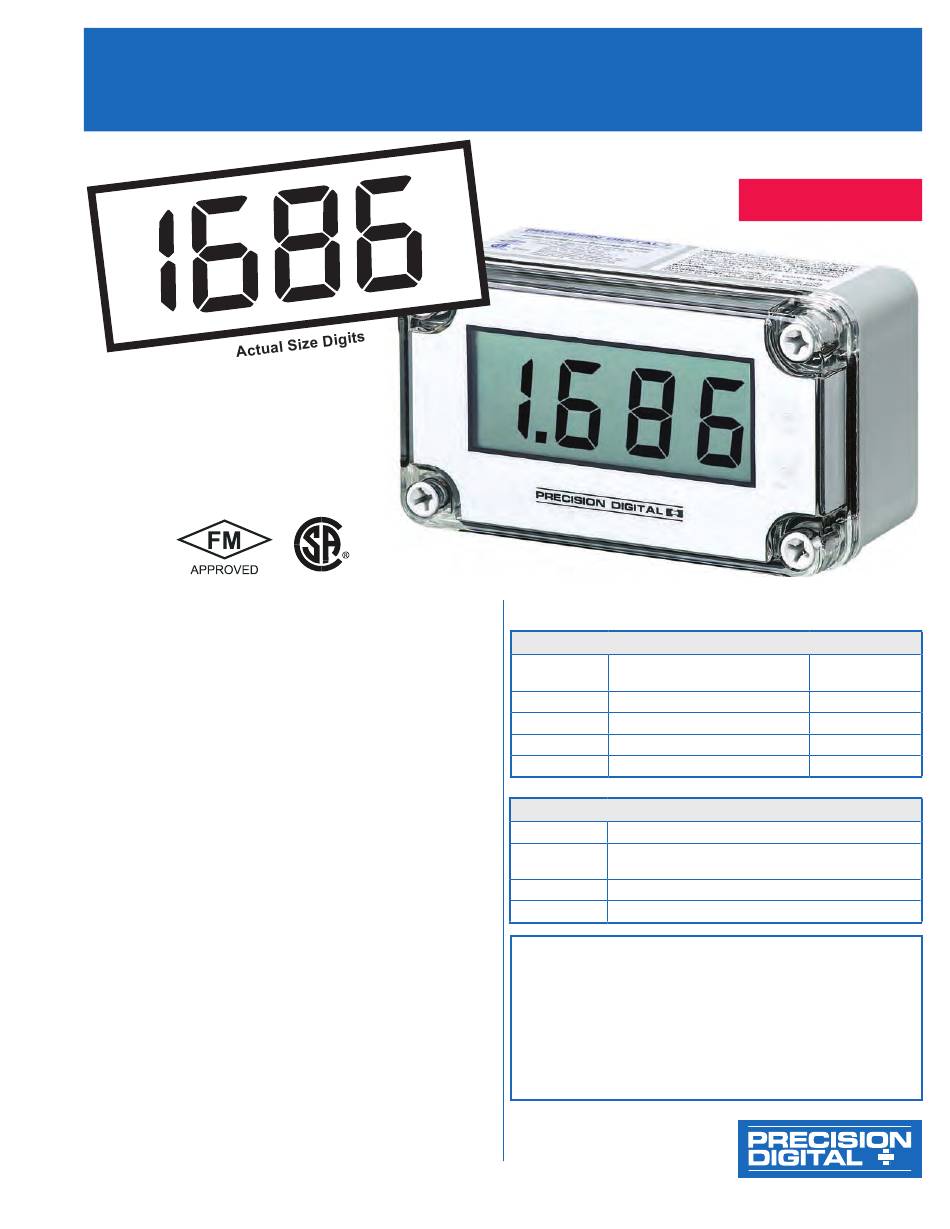

Precision Digital Corporation PD686 Quick Start Manual

Model Pd686 3½ digit NeMA 4X
• 1 V drop
• 1" High display
• operates From
-40 to 85°C

SPeCiFiCAtioNS

Except where noted all specifications apply to operation at +25°C.
Input: 4-20 mA @ 30 VDC maximum
Display: 1.0" (25.4 mm) LCD, 31⁄2 digits; 1999
Accuracy: ±0.1% FS ±1 count
Approvals: FM Approved & CSA Certified as intrinsically safe with
entity, for use in Class I, II, III, Division 1, Groups A, B, C, D, E, F,
& G; T-code = T4; hazardous locations. Non-incendive for use in
Class I, II, III, Division 2, Groups A, B, C, D, F, & G.
Entity Parameters: V
C = 0 µF, L = 0 µH, P
i i
FM Approved: Intrinsically Safe, Class I Zone 0
See Control Drawing LIM686-2 for complete installation instructions.
Decimal Point: User selectable
Calibration: Two-step; non-interacting zero and span
Calibration Range: 4 mA input: -1000 to +1000;
20 mA input: between 20 and 2000 counts > 4 mA display
Display Update Rate: 2.5/second
Maximum Input Current: 30 mA
Maximum Voltage Drop: 1 V @ 20 mA
Operating Temperature: PD686: -40 to 85°C
for Canadian installations -40 to 40°C.
Storage Temperature: -40 to 85°C
Relative Humidity: 0 to 90% non-condensing
Enclosure: Impact-resistant glass filled polycarbonate body, color:
gray; impact-resistant clear polycarbonate cover; NEMA 4X, IP67
Connections: Removable screw terminals accept 12 to 26 AWG
Conduit Hole: One 1⁄2" conduit hole provided; refer to Ordering
Information to specify conduit hole location; request models with
rear conduit hole (-X) for panel mounting applications.
Weight: 12 oz (340 g)
Warranty: 2 years parts & labor
Precision Digital corPoration
Find Quality Products Online at:
looP-PoWeRed MeteR
= 30 V, I = 175 mA,
max max
= 1.3 W
i
GlobalTestSupply
www.
oRdeRiNg iNFoRMAtioN
PD686 NEMA 4X Loop-Powered Meter
Model Description
PD686* FM Approved & CSA Certified
PD686-X FM Approved & CSA Certified
PD686-Y FM Approved & CSA Certified
PD686-Z FM Approved & CSA Certified
* Quick Shipment Product, shipped within 2 working days

Accessories

Model Description
Panel Mount Kit
PDA6844
(does not provide NEMA 4X seal to panel)
PDA6845 2" Pipe Mounting Kit (zinc plated steel)
PDA6845-SS 2" Pipe Mounting Kit (stainless steel)
Your Local Distributor is:
.com
Model Pd686
1⁄2" Conduit
Hole Location
Bottom
Rear
Top
None
