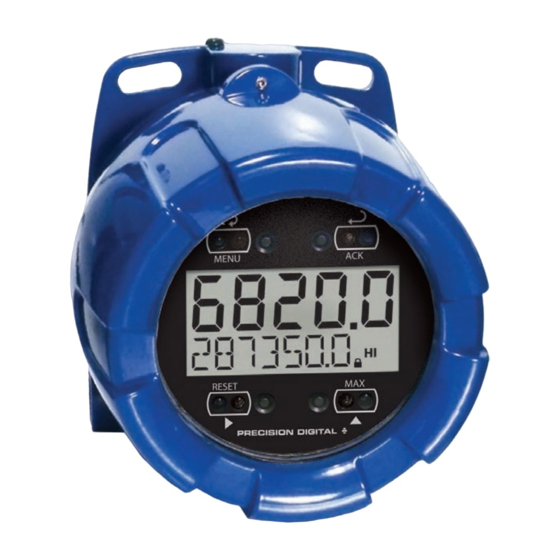

5-DIGIT DUAL-LINE EXPLOSION-PROOF
LOOP-POWERED RATE/TOTALIZER
OUCH
Through-Glass
Button Programming
4-20 mA Input Loop-Powered
•
5-Digit, 0.7" (17.8 mm) Upper Display
•
7 Alphanumeric Character, 0.4" (10.2 mm) Lower Display
•
7-Digit Totalizer
•
Loop or External DC-Powered Backlight Standard
•
SafeTouch™ Through-Glass Button Programming
•
Password Protection
•
HART
•
3.0 V Drop without Backlight
•
Explosion-Proof, IP68, NEMA 4X Enclosure
•
Flanges for Wall or Pipe Mounting
•
32-Point , Square Root, or Exponential Linearization
•
Rate in Units per Second, Minute, Hour, or Day
•
Open Collector Pulse or Alarm Output
•
Operates from -40 to 75°C
•
PRECISION DIGITAL CORPORATION
TM
®
Protocol Transparent
TM
RT
ProtEX-RT • Model PD6820
www.predig.com
Advertisement
Related Manuals for Precision Digital Corporation ProtEX-RT PD6820
Summary of Contents for Precision Digital Corporation ProtEX-RT PD6820
- Page 1 Flanges for Wall or Pipe Mounting • 32-Point , Square Root, or Exponential Linearization • Rate in Units per Second, Minute, Hour, or Day • Open Collector Pulse or Alarm Output • Operates from -40 to 75°C • www.predig.com PRECISION DIGITAL CORPORATION...
- Page 2 OVERVIEW Exceptional Enclosure The copper-free (0.3%), smooth die-cast aluminum NEMA 4X The ProtEX-RT PD6820 is a rugged, explosion-proof loop-powered enclosure is finished with a corrosion resistant epoxy coating. This rate/totalizer fully featured for demanding applications in hazardous provides a durable finish, and helps make it an attractive looking areas or in the harshest environmental conditions.
- Page 3 ProtEX ™ PD6820 LOOP-POWERED RATE/TOTALIZER INSTALLATION Totalizer Pulse Output The totalizer pulse output function requires use of the OC output. Installation Flexibility It will output a pulse at a user adjustable pulse rate, and can be The PD6820’s rotatable display/meter module along with two scaled with a K-factor of between 0.0001 and 99999.
- Page 4 fi tness for a particular purpose. Pulse Output K-Factor: K-factor programmable from 0.0001 to 99999. ©2011 Precision Digital Corporation. All rights reserved. Pulse Output Frequency: 2, 4, 8, 16, 32, 64, 128 Hz. Minimum pulse...
