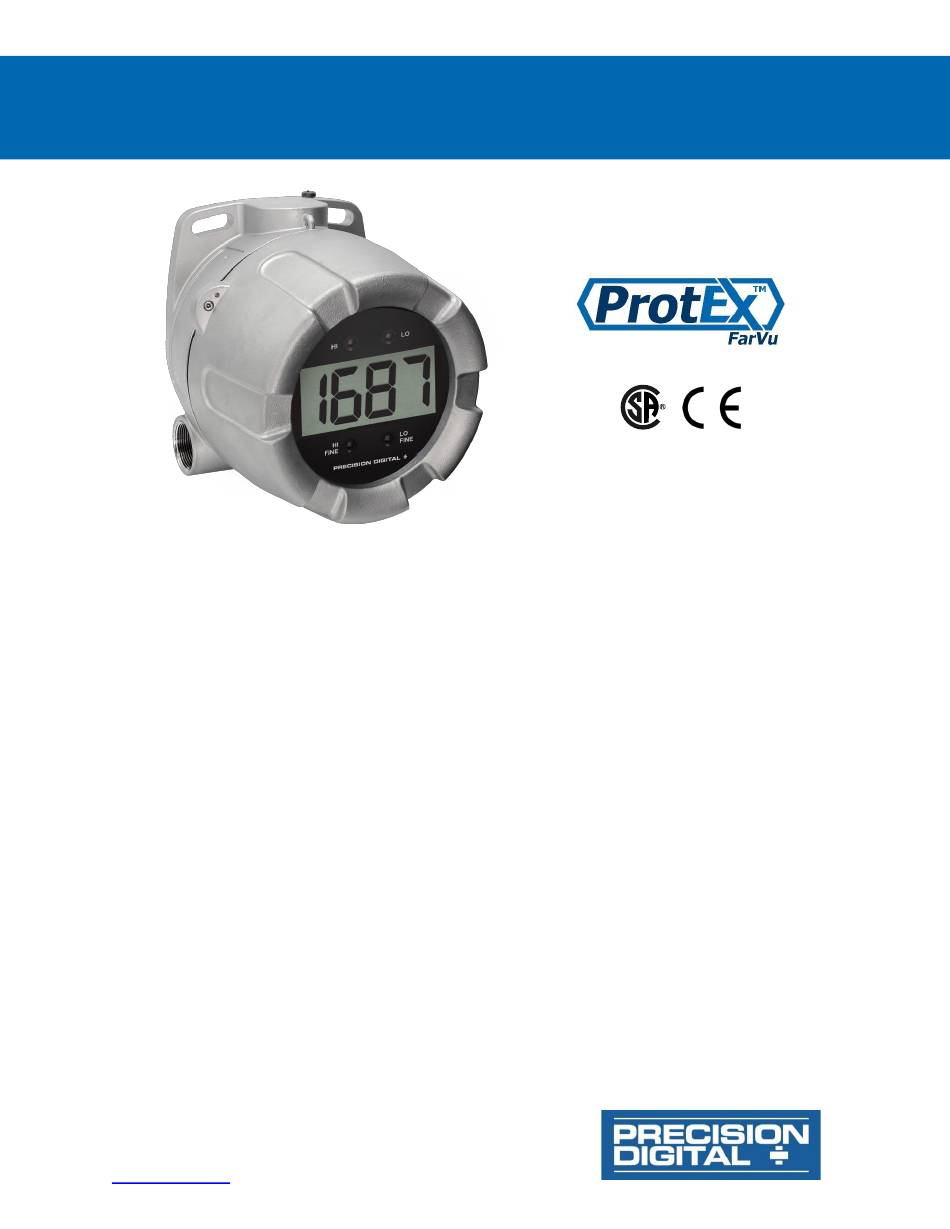

PD6870-SS Explosion-Proof Loop-Powered Process Meter
Instruction Manual
•
Fully-Approved Stainless Steel Explosion-Proof Loop-Powered Process Meter
•
4-20 mA Input
•
1 Volt Drop (4 Volt Drop with Backlight)
•
1.0" (25.4 mm) 3½ Digits LCD Display; -1000 to 1999
•
Display Mountable at 0°, 90°, 180°, & 270°
•
HART® Protocol Transparent
•
Loop-Powered Backlight
•
Operating Temperature Range: -40 to 75°C (-40 to 167°F)
•
Installation Temperature Range: -55 to 75°C (-67 to 167°F)
•
Zero & Span Potentiometer Adjustments for Easy Field Scaling
•
Conformal Coated PCBs for Dust and Humidity Protection
•
CSA Certified as Explosion-Proof / Dust-Ignition Proof / Flame-Proof
•
Wide Viewing Angle
•
Flanges for Wall or Pipe Mounting
•
Explosion-Proof, IP68, NEMA 4X 316 Stainless Steel Enclosure
•
Two 3/4" NPT or M20 Conduit Openings
•
2" U-Bolt Kit Available
•
Stainless Steel Tag Available
•
3-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
Advertisement
Table of Contents
Related Manuals for Precision Digital Corporation ProtEx PD6870-SS
Summary of Contents for Precision Digital Corporation ProtEx PD6870-SS
- Page 1 • Two 3/4" NPT or M20 Conduit Openings • 2" U-Bolt Kit Available • Stainless Steel Tag Available • 3-Year Warranty PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990 www.predig.com...
-
Page 2: Table Of Contents
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Table of Contents Introduction ......................3 Ordering Information ..................4 Physical Features ....................5 Great for Cold Temperatures ................ 5 Wide Viewing Angle ..................5 Easy Pipe Mounting ..................6 Rotatable Display Module ................6 Tamper-Proof Capability ................ -
Page 3: Introduction
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov Limited Warranty Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit. -
Page 4: Ordering Information
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Ordering Information Model Description Stainless Steel Explosion- Proof Loop-Powered PD6870-0K0-SS Process Meter with Backlight and Two 3/4" Conduit Openings Stainless Steel Explosion- Proof Loop-Powered PD6870-0K0-SS-M20 Process Meter with Backlight and Two M20 Conduit Openings Accessories Model Description... -
Page 5: Physical Features

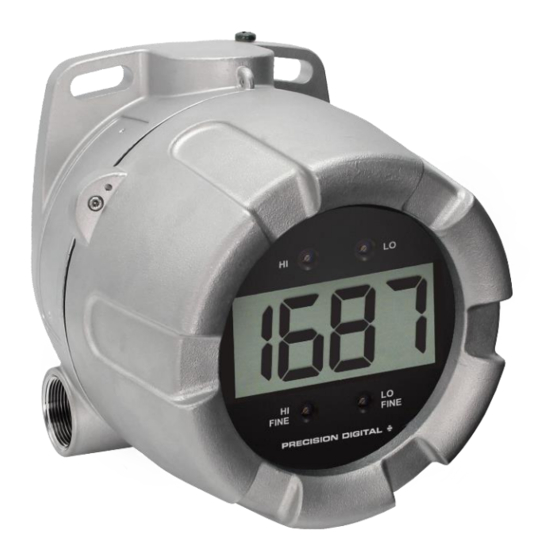

PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Physical Features The ProtEX-FarVu PD6870-0K0-SS comes with two ¾" NPT conduit openings and the PD6870-0K0-SS-M20 comes with two M20 conduit openings. Great for Cold Temperatures Wide Viewing Angle The ProtEX-FarVu PD6870-SS will operate over a The window and display module have been optimized temperature range of -40 to 75°C (-40 to 167°F). -
Page 6: Easy Pipe Mounting
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Easy Pipe Mounting Tamper-Proof Capability The ProtEX-FarVu comes with cast-in mounting The instrument can be made tamper-proof by insert- flanges. These allow easy mounting to walls or pipes ing a wire through the cast-in loop on the base of the using the PDA6846-SS Stainless Steel 2"... -
Page 7: Accessories
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Accessories Useful Tools PD9501 Multi-Function Calibrator PDA1024-01 24 VDC Power Supply PDA1024-01 is a DIN rail mounted 1.5 A, 24 VDC power supply that can be used to power the 4-20 mA transmitter. PDA6846-SS 2"... -
Page 8: Specifications
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Specifications Input Except where noted all specifications apply to operation at +25°C. Input 4-20 mA General Accuracy ±0.1% of full span ±1 count Maximum Without With Loop-Powered Display 3½ digit LCD Voltage Drop & Backlight Backlight 1"... -
Page 9: Product Ratings And Approvals
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Product Ratings and Approvals EU Declaration of Conformity For shipments to the EU and UK, a Declaration of Explosion-proof for use in: Conformity was printed and included with the product. Class I, Division 1, Groups B, C and D For reference, a Declaration of Conformity is also Dust-ignition proof for use in: available on our website www.predig.com/docs. -
Page 10: Installation
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Installation For Installation in USA: The PD6870-SS must be installed in accordance with the National Electrical Code (NEC) NFPA 70. For Installation in Canada: The PD6870-SS must be installed in accordance with the Canadian Electrical Code CSA 22.1. -
Page 11: Cover Jam Screw
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Cover Jam Screw The cover jam screw should be properly installed once the meter has been wired and tested in a safe environment. The cover jam screw is intended to prevent the removal of the meter cover in a flame- proof environment without the use of tools. -
Page 12: Setup
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Setup Setting Up the Meter Overview Setting the Decimal Point Setting the 4-20 mA input for the desired display is A decimal point may be set using a three-position done using a calibrated 4-20 mA signal source and jumper array located on the rear of the display the four potentiometers located on the front of the module. -
Page 13: Factory Default & User Settings
PD6870-SS Explosion-Proof Loop-Powered Process Meter Instruction Manual Factory Default & User Settings Troubleshooting The rugged design and the user-friendly interface of The following table shows the factory setting for most the meter should make it unusual for the installer or of the programmable parameters on the meter. - Page 14 Fax: (508) 655-8990 Email: sales@predig.com Place Orders Email: orders@predig.com For the latest version of this manual please visit www.predig.com PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990 www.predig.com LIM6870-SS_A 10/22...
