RANGER
SAT SPECTRUM ANALYZER
1 2
7
8

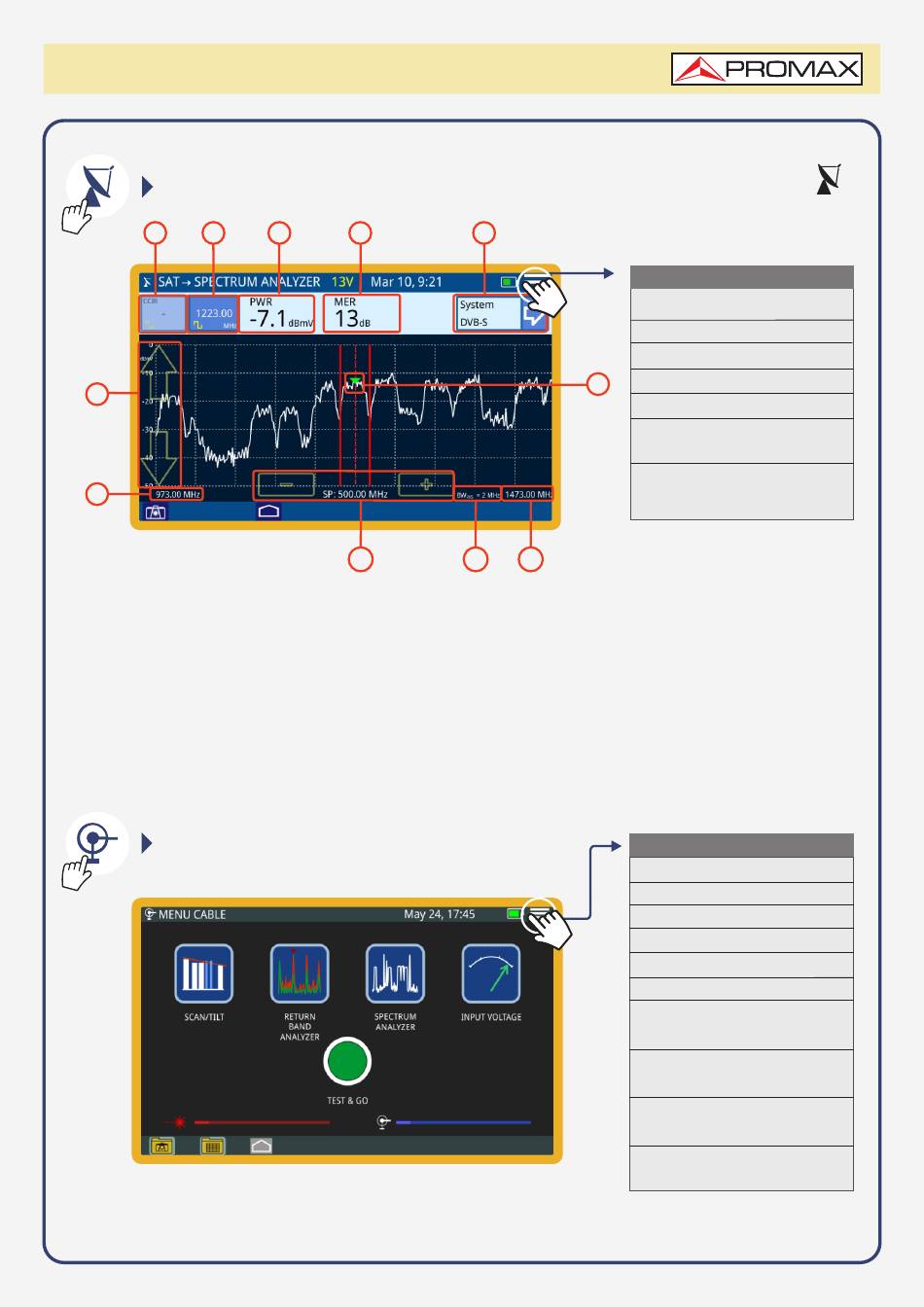

1 Selected channel. When pressing on, it deploys a list of available channels.
2 Frequency selected. When pressing on, it pops up a virtual numeric keypad
to edit frequency.
3 Channel bandwidth power or frequency.
4 Measurement of the MER value for each one of the carriers.
5 Signal type. Access to measurements and constellation.
6 Marker for the selected Channel / Frequency signal.
CABLE
mini
QUICK REFERENCE GUIDE
3 4
9
5
6
10 11
7 Arrows to change the reference level.
8 Lower frequency range of span.
9 markers to increase / decrease span
Current span.
10 Bandwidth resolution.
11 Upper frequency range of span.
SETTINGS MENU
Edit channel plan
Units
Reference line
Trace
Frequency step
Frequency
tuning
LNB
SETTINGS MENU
Language
Date
Time
Audio
Auto power off
Display
Equipment
information
Ethernet
configuration
Test & Go
configuration
Web Server
5
