2.0 SAFETY

WARNING
WARNING
WARNING
WARNING
CAUTION
NOTICE

3.0 GENERAL INFORMATION

Task Force Tips ER Bubble Cup nozzles have a clean far reaching dual fl ow straight and fog pattern that is designed exclusively for
use with the EF1 monitor. The nozzle stream is adjustable from off (closed), to low fl ow straight stream, high fl ow straight stream,
and fog. The off position may eliminate the need for a downstream valve. The rugged construction is compatible with the use of fresh
water as well as fi re fi ghting foam solutions. The nozzles are constructed of hard anodized aluminum, stainless steel, rubber, and
engineering grade polymers. The ER Bubble Cup nozzles provide reach and adjustable foam aspiration when the aspirating sleeve
is extended.

3.1 COMMON MODEL AND TERMS

POWER AND
COMMUNICATION CABLE
PRODUCT LABEL
F2060BCER
TASK FORCE TIPS TASK FORCE TIPS
20 & 60 GPM @ 100 PSI
MADE IN USA
75 & 230 LPM @ 7 BAR tft.com
©Copyright Task Force Tips LLC 2002 - 2019
This equipment is intended for use by trained personnel for fi refi ghting. Their use for other
purposes may involve hazards not addressed by this manual. Seek appropriate guidance and
training to reduce risk of injury.
Injury can occur from an inadequately supported nozzle. The mounting must be capable of
supporting the nozzle reaction force which can be in excess of 60 LBS (100 GPM at 110 PSI).
Some volatile liquids can be ignited by static discharge. Static build-up can occur from:
• Electrochemical separation of charge as water drains through low conductivity, refi ned
products.
• Applying foam over a low conductivity liquid of suffi cient depth to retain the charge created as
the foam blanket drains.
• Streaming currents as water or foam is introduced into the storage tank.
Water is a conductor of electricity. Application of water solutions on high voltage equipment can
cause injury or death by electrocution. The amount of current that may be carried back to the
nozzle will depend on the following factors:
• Voltage of the line or equipment
• Distance from the nozzle to the line or equipment
• Size of the stream
• Whether the stream is solid or broken
2
• Purity of the water
The nozzle may become damaged if allowed to freeze while containing water. Always drain after
use to avoid damage and possible loss of use.
To prevent mechanical damage, do not drop or throw equipment.
1 Electrostatic Hazards of Foam Blanketing Operations by Peter Howels. Industrial Fire Safety July/August 1993
2 The Fire Fighter and Electrical Equipment, The University of Michigan Extension Service, Fourth Printing 1983. Page 47.
MOTOR
HOUSING
INLET
COUPLING
ER B
FOAM FOAM
STREAM STREAM
FOG FOG
FL83

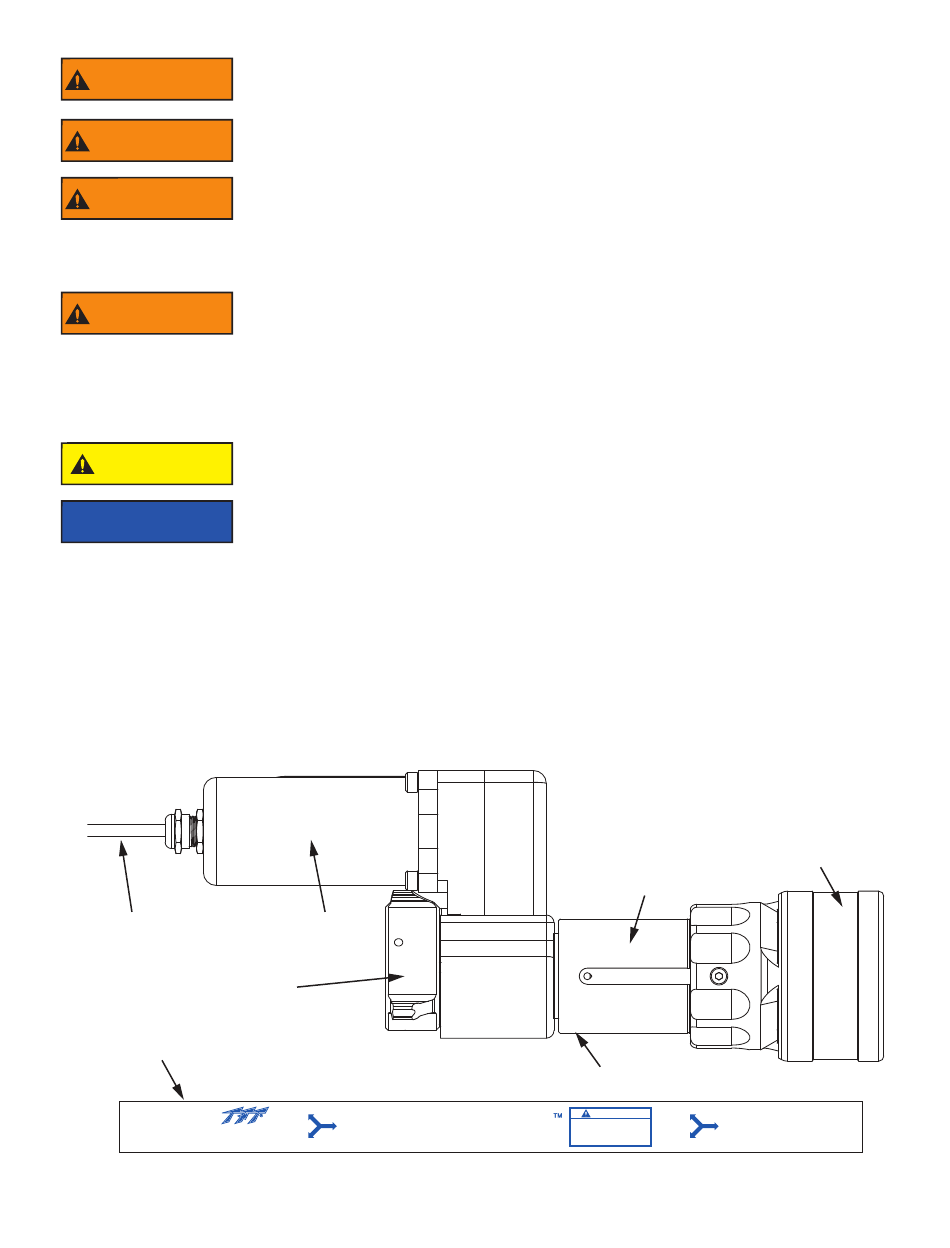

FIGURE .3.1 COMMON MODEL AND TERMS
SERIAL NUMBER
C
WARNING
UBBLE UP
Understand manual before use.
Obtain safety information at
tft.com/serial-number
3
1
ASPIRATING SLEEVE
SHAPER
F2095BCER
FOAM FOAM
STREAM STREAM
20 & 95 GPM @ 100 PSI
FOG FOG
Patent: 4,944,460
75 & 360 LPM @ 7 BAR
LKB-200 July 29, 2018 Rev01
