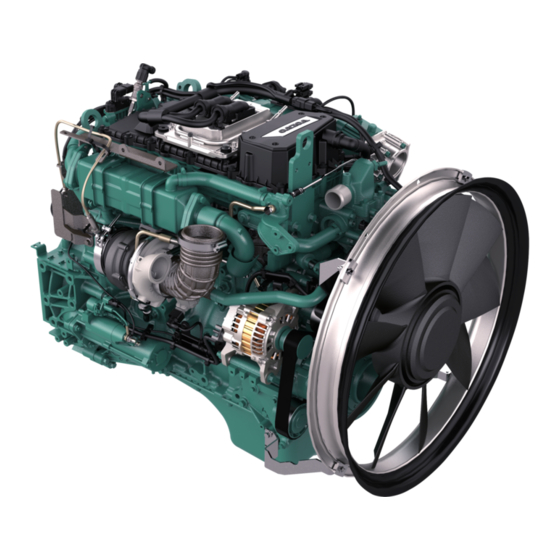

TAD570VE, TAD571VE, TAD572VE
TAD870VE, TAD871VE, TAD872VE, TAD873VE
(Combined EPA/CARB & EU)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TAD570VE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volvo Penta TAD570VE

Summary of Contents for Volvo Penta TAD570VE

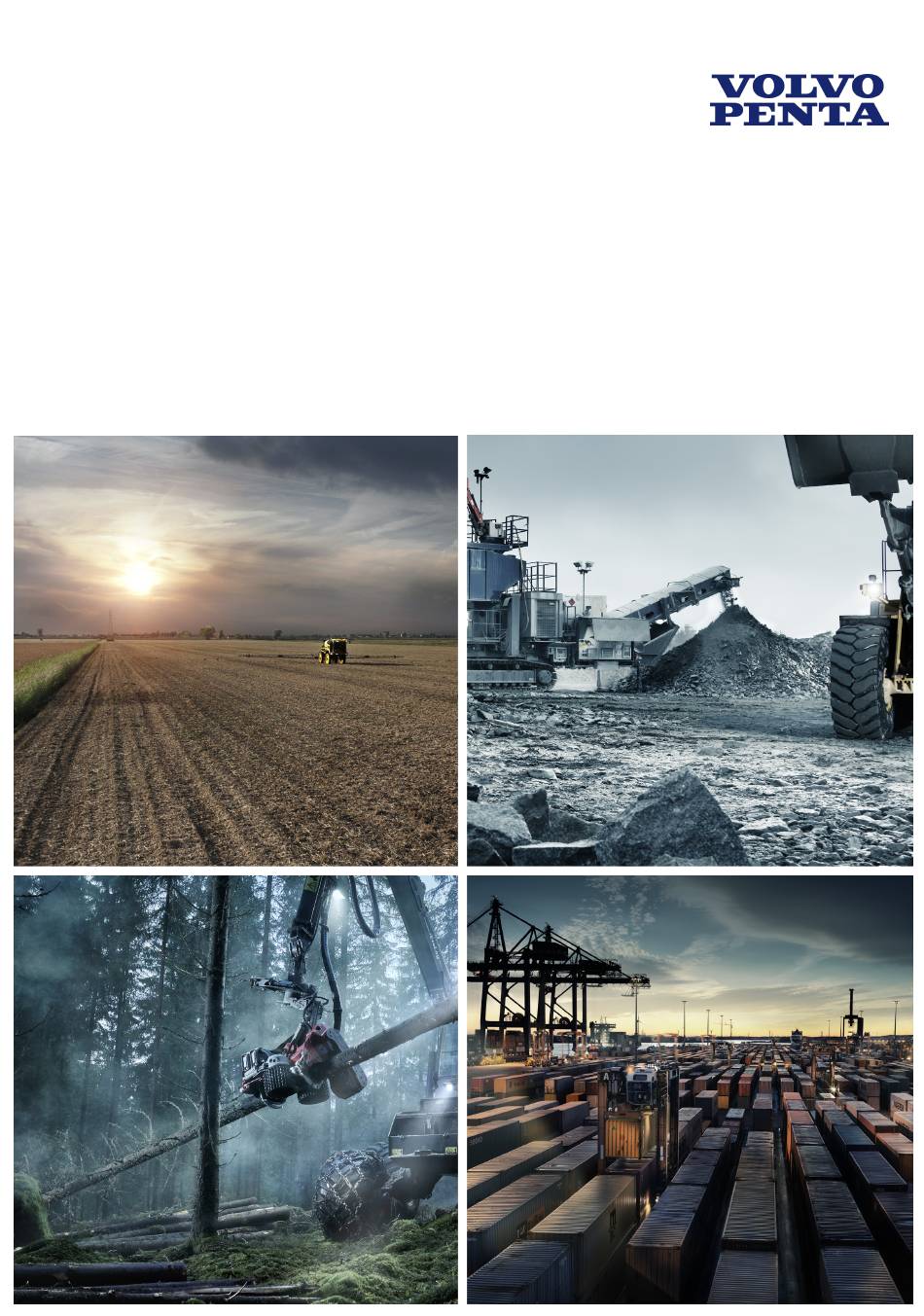

  • Page 1 Operator’s manual TAD570VE, TAD571VE, TAD572VE TAD870VE, TAD871VE, TAD872VE, TAD873VE (Combined EPA/CARB & EU)
  • Page 2 WARNING! Operating, servicing and maintaining an engine can expose you chemi- cals including engine exhaust, carbon monoxide, phthalates, and lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. Breathing diesel engine exhaust exposes you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

  • Page 3: Table Of Contents

    Maintenance and replacement parts ............16 Excessive strain on a product and components ........16 Environmental care ................. 17 Emission Aftertreatment System ............. 19 Volvo Penta Dealer Network ..............19 Volvo Penta Action Service ..............20 Presentation ....................21 Engines ....................21 EMS (Engine Management System) ............
  • Page 4 Viscosity ....................83 Fuel System ................... 84 Cooling System ..................86 Coolant, Mixing ..................86 Water Quality ..................87 Inlet and Exhaust System ..............88 Electrical System .................. 88 Identification Numbers ................. 89 Index ......................91 47711083 09-2018 © AB VOLVO PENTA...

  • Page 5: Foreword

    Pay careful attention to the safety instructions included in the manual. As the owner of a Volvo Penta engine, you become part of a worldwide network of dealers and service workshop that assist you with technical advice, service requirements and replacement parts.

  • Page 6: Safety Information

    This chapter describes how safety precautions are If anything remains unclear or if you are unsure of presented in the manual and on the product. Read the something, contact your Volvo Penta dealer for chapter through very carefully before you start the assistance.
  • Page 7 WARNING! Ensure that all machine guards and safety devices are in place and are functional. P0024482 CAUTION! Never use tools or products that show signs of damage. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 8 Ensure that the workplace is well ventilated and take the necessary precautions before welding or grinding begins. Always ensure that there is a fire extinguisher close at hand in the work area. P0024470 47711083 09-2018 © AB VOLVO PENTA...
  • Page 9 Spare parts — safety WARNING! Always use spare parts with the same quality as genuine Volvo Penta parts to minimize the risk of an explosion or fire. Components in fuel systems and electrical systems on Volvo Penta engines are designed and manufactured to minimize the risk of explosions and fire, in accordance with applicable legal requirements.
  • Page 10 Prohibition on use of start spray WARNING! Never use start spray or similar agents to start an engine. This may cause an explosion in the inlet manifold. Risk of personal injury. P0024483 47711083 09-2018 © AB VOLVO PENTA...
  • Page 11 The alternator and electronics could be damaged. Avoid damage to the engine control module and other electronics IMPORTANT: Switch off the main switch before connecting or disconnecting a connector. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 12 There is a risk that hot oil can spray out. Refueling WARNING! There is always a risk of fire and explosion during refueling. Smoking is forbidden and the engine must be stopped. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 13 Safety Information Proper fuel quality IMPORTANT: Always use the fuel recommended by Volvo Penta. See Technical Data in Operator’s Manual. Other fuel can damage the engine. Wrong fuel quality can also lead to higher service costs. P0024477 WARNING! Risk of personal injury.
  • Page 14 Layout of the battery compartment IMPORTANT: Make sure the battery compartment is designed according to current safety standards. Cleaning the engine and components IMPORTANT: Never use a high pressure washer for cleaning of engine or engine components. P0024486 47711083 09-2018 © AB VOLVO PENTA...
  • Page 15 Cleanliness for sensitive components IMPORTANT: Observe meticulous cleanliness when handling system components. Even minimal amounts of dirt could cause a breakdown. Adjustment of the clutch CAUTION! Clutch adjustments must be carried out with the engine stopped. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 16: Introduction

    Warranty Your new Volvo Penta engine is covered by a limited warranty, subject to the conditions compiled in the Warranty Information. Note that AB Volvo Penta’s liability is limited to the specification in the Warranty Information (included CD) and Emission Control System Warranty Statement.

  • Page 17: Fuel, Oils And Coolant

    Make sure to always use suitable and correctly mixed coolant. Future warranty claims related to engine and accessories may be denied if an unsuitable coolant has been used, or if the instructions for coolant mixture have not been followed. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 18: Maintenance And Replacement Parts

    These qualities will be maintained through regular servicing and the use of spare parts with the same quality as genuine Volvo Penta parts. If reliable and purpose-built parts are not used, your safety, health, and the machine’s function may be compromised.

  • Page 19: Environmental Care

    Introduction Environmental care Environmental care is a core value at Volvo Penta. Energy efficiency and low emissions are among the most important product related aspects and priority focus areas for Volvo Penta business. Several of the global challenges the world faces are directly or indirectly related to power industries and transports.
  • Page 20 NOTICE! Neglects or failure to follow the points listed here may invalidate the engine emission certificate. This means AB Volvo Penta can no longer guarantee engine conformity with the certified model. Volvo Penta is not responsible for damages or costs arising as a result of this.

  • Page 21: Emission Aftertreatment System

    The Volvo Penta global network of authorized dealers is at your service. We strongly recommend that you take your product to an authorized Volvo Penta dealer for service and repair. They are specialists in Volvo Penta products and have the accessories, genuine...

  • Page 22: Volvo Penta Action Service

    Introduction Volvo Penta Action Service Our global dealer network, your first line of contact, is backed up by Volvo Penta Action Service, a phone based breakdown and support service providing assistance 24 hours a day, every day of the year.

  • Page 23: Presentation

    Presentation Engines This Operator’s Manual covers the following industrial diesel engines: TAD570VE, TAD571VE, TAD572VE, in-line, direct injected, 4-cylinder engines. TAD870VE, TAD871VE, TAD872VE, TAD873VE, in-line, direct injected, 6-cylinder engines. The engines are all equipped with electronic management (EMS), turbocharger, charge air cooler, thermostatically controlled cooling systems and electronic speed control.

  • Page 24: Ems (Engine Management System)

    EMS is an electronic system with CAN communication (Controller Area Network) for diesel engine control. The system has been developed by Volvo Penta and includes fuel regulation and diagnostic functions. The system consists of a control unit, injectors, a number of sensors that supply the control unit with information, and connectors for diagnostics and functional checks.

  • Page 25: Eats (Exhaust Aftertreatment System)

    Should the system detect deviations, the maximum engine torque and engine speed will be reduced and a fault code stored in the control unit. For further information refer to EATS Inducements, page 48. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 26 CAUTION! The EATS system needs time to for automatically drainage and depressurizing. Wait at least two minutes after the engine been turned off before removing the AdBlue/DEF hoses. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 27: Overview

    9 EATS Catalyst and Muffler 10 Control unit (ACM), continuously monitors the EAT System. Activates the solenoid valve (3) at low temperature in the tank. 11 NOx sensor, measures level of NOx after the catalyst/muffler. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 28 EATS system, as the remaining solution will circulate and cool the system. However, emissions from the engine will increase as the injection valve is closed and no exhaust aftertreatment will take place. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 29: Operation

    Do not try to clean with water or compressed air. AdBlue®/DEF is not a combustible product. When exposed to high temperatures it will convert to ammonia and carbon dioxide. However, do not allow 47711083 09-2018 © AB VOLVO PENTA...
  • Page 30 IMPORTANT: AdBlue®/DEF spillages may not be washed into drains. If a spill should occur, the solution must be absorbed using dry sand or other non-flammable material and handled according to local and national regulations. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 31 — flush with copious amounts of water and remove contaminated clothing. • eye contact — flush thoroughly for several minutes; contact physician as necessary. • inhalation — breathe fresh air and contact physician as necessary. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 32: Instruments And Controls

    Instruments and Controls DCU II (Display Control Unit) The Volvo Penta DCU II instrument panel communicates with the engines control unit and has a number of functions as control, monitoring and diagnostics. NOTICE! Settings and the type of engine data presented on the display may vary depending on the installation and engine model.
  • Page 33 . • VARNING (WARNING), yellow text, the system has detected a fault — Volvo Penta recommends to contact a qualified workshop as soon as possible. • MEDDELANDE (MESSAGE), blue text, non-critical engine message for the operator.
  • Page 34 Brightness). Sets backlighting in the display instrument. • Change background color (Change background color). Select background color, gray or white. Language (Language) Sets the display language; chooses between English, French, German, Spanish and Chinese. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 35 NOTICE! The settings in the following menus do not normally need to be changed; should a change be necessary it must be carried out by an authorized Volvo Penta technician. Refer to the installation manual for further engine information. Authorized Volvo Penta dealer or OEM only •...

  • Page 36: Starting

    Never break the circuit with the main switch while the engine is running. Alternator and electronics could be damaged. • Move the engine speed control to idle, and open the disengageable clutch/gearbox if installed. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 37: Starting The Engine

    Make sure the cooling system is filled with a glycol mixture. Refer to Maintenance, page 65. • The batteries must be in good condition. Cold weather reduces battery capacity. Increased battery capacity may be necessary. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 38: Never Use Start Spray

    Risk of arcing. Do not bend over any of the batteries either. 4 Remove the cables in the reverse order. IMPORTANT: The ordinary cables to the standard batteries must not under any circumstances be loosened. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 39: Operation

    The consequences can be carbon build-up on valves, piston crowns and the exhaust turbine, which could affect engine performance. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 40 • If visible slobber has occurred, it can be burned off by running the engine on at least 30% load for about 40-60 minutes. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 41: Engine Shutdown

    Stop the Engine 1 Disengage the clutch, if possible. 2 Press the STOP button to turn off the engine. 3 Press the button to turn off the ignition. START STOP P0018811 47711083 09-2018 © AB VOLVO PENTA...

  • Page 42: Auxiliary Stop

    If there is a risk of freezing, the coolant in the cooling system must have adequate antifreeze protection. Refer to Maintenance, page 65. IMPORTANT: A poorly charged battery can freeze and burst. Refer to Battery, Charging. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 43: Fault Handling

    The operator is warned that there is a malfunction via the instruments. Depending on the instrumentation in use, the fault message is shown in various ways. Fault codes can also be read out by the Volvo Penta diagnostic tool. Depending on the severity of the fault, the diagnostic function will take various actions to protect the engine and limit emissions (e.g.

  • Page 44: Erasing Fault Codes

    If a malfunction has not been corrected it will be registered once again and has to be acknowledged again. The Volvo Penta diagnostic tool VODIA must be used to erase a fault code. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 46: Fault Tracing

    A number of symptoms and possible causes of engine malfunctions are described in the table below. Always contact your Volvo Penta dealer if any problems occur which you cannot solve by yourself. NOTICE! Read through the safety advice for care and maintenance work in the chapter Safety precautions for maintenance and service operations before you start work.
  • Page 47 18 Faulty circulating pump 19 Defective thermostat 20 Blocked charge air cooler 21 Oil level too high 22 Alternator drive belt slips 23 High back pressure in the exhaust system 24 Break in ”Pot+” cable to throttle 47711083 09-2018 © AB VOLVO PENTA...

  • Page 48: Eats Warnings And Inducements

    EATS Inducements, page 48. NOTICE! Warning messages and symbols may vary depending on the installation; shown here are those seen on panels sold by Volvo Penta. Warning Symbols Stimulus for power reduction warning. A fault has been detected in the EATS system.

  • Page 49: Quality Shortcomings And Component Defects

    • that the EGR valve is not stuck. If the fault can not be remedied with any of the above, refer to EATS Inducements, page 48. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 50: Eats Inducements

    75% power. Each 10-minute period requires a manual activation. 7 If an additional fault recurs within 40 hours after the first fault was remedied, available running time will be reduced to 30 minutes from the moment the fault is detected. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 51: Fault Code Register

    Program Memory 7, 8, 9 CAM Speed sensor 2, 8, 9 Crank Speed sensor J1939 Network #1 Primary Vehicle Network 0, 2, 3, 5, 6, 11, VGT Actuator 3, 4, 5 Engine Fan Driver 47711083 09-2018 © AB VOLVO PENTA...
  • Page 52 3, 4, 5 Aftertreatment Reagent Tank Temperature 3520 4, 5, 12 Aftertreatment Reagent Quality 3521 Aftertreatment Reagent Quality 3532 4, 5, 12 Aftertreatment Reagent Tank Level 3597 3, 4 ACM Actuator Supply Voltage #1 47711083 09-2018 © AB VOLVO PENTA...
  • Page 53 Aftertreatment Exhaust Temperature - Dry 520691 Torque Speed Control 1 Received With Errors (Counter or Checksum) 520692 3, 4, 5 Intake Supercharger Sense 520750 Fuel High-Pressure Leakage 520751 Fuel High-Pressure Leakage 520752 3, 4, 5 Fuel High-Pressure Leakage 47711083 09-2018 © AB VOLVO PENTA...

  • Page 54: Maintenance Schedule

    Maintenance Schedule Your Volvo Penta engine and its equipment are designed for high reliability and long life. The engines are built to have the smallest possible environmental impact. If given preventive maintenance, according to the maintenance schedule, these qualities will be retained and unnecessary malfunctions will be avoided. In order for the warranty to be valid, the owner must make sure that the services in the service intervals are performed.

  • Page 55: Maintenance

    Make it impossible to start the engine by removing the start key and cutting the system voltage with the main switches. When ordering service or spare parts, always specify the engine and transmission identification number. Refer to Technical Data, page 89. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 56: Orientation

    4 Auxiliary stop 5 Oil filler cap 6 Oil filter 7 Fuel pre-filter 1 Coolant filler cap 2 Oil filter 3 Auxiliary stop 4 Fuses 5 Oil filler cap, engine 6 Oil dipstick 7 Fuel pre-filter 47711083 09-2018 © AB VOLVO PENTA...

  • Page 57: Engine, General

    Inspect the condition of the charge air hoses, hose unions and clamps for cracks and other damage. Change as necessary. Check for leaks in the exhaust system. Leaks between the turbo and the muffler represent a risk for leakage of AdBlue/DEF. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 58: Drive Belt, Check And Replace

    Replacement 1 Remove the right belt guard. P0019257 2 Undo the belt tensioner and restrain it with a mandrel. Remove the old drive belt. P0019255 47711083 09-2018 © AB VOLVO PENTA...
  • Page 59 5 Re-install the belt guards. 6 Check that the belts are correctly aligned in their grooves and are correctly tensioned. It should be possible to depress the drive belt about 3-4 mm (0.12–0.16") between the pulleys. P0019256 47711083 09-2018 © AB VOLVO PENTA...

  • Page 60: Lubrication System

    The oil change interval may under certain conditions be increased. To see if the engine complies Volvo Penta oil analysis needs to be performed. Contact your Volvo Penta dealer for further information. NOTICE! Oil change intervals must never exceed a period of 12 months.
  • Page 61 5 Start the engine and check that there is no oil leakage from the oil filter or drain nipple. 6 Switch the engine off and check the oil level after a few minutes. Top up with oil as necessary. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 62: Engine Oil, Change

    7 Stop the engine. Check that there is no oil leakage around the filters. Check the oil level and top up with oil as necessary. Refer to Oil level, checking and topping up, page 58. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 63: Fuel System

    NOTICE! Do not drain the water separator completely. 5 Tighten the drain nipple and open the fuel tap. 6 Start the engine and check there is no fuel leakage from water separator. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 64: Fuel Filter, Replace

    Tighten the cover to: 25 Nm (18.4 lbf. ft.) 5 Bleed the fuel system according to Fuel Pre-filter, Bleeding, page 64. 6 Start and warm up the engine. Check that no leakage occurs. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 65: Fuel Pre-Filter, Replace

    Then tighten a further 1/2–2/3 turns. 4 Connect the cable from the water trap sensor. 5 Open fuel taps and purge the system, refer to Fuel system, bleeding. 6 Start the engine and check that no leakage occurs. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 66: Fuel Pre-Filter, Bleeding

    2 Remove the plug (1) and place a nipple. NOTICE! There is a special nipple for the filter housing, order through your Volvo Penta dealer. 3 Connect a transparent hose to the nipple. 4 Operate the hand pump (2) by pumping it until fuel flows without air bubbles.

  • Page 67: Cooling System

    - in the worst case - can cause engine breakdown. Volvo Penta strongly recommend the use of our own coolants, ”Volvo Penta Coolant VCS Ready Mixed” or the concentrate ”Volvo Penta Coolant VCS”, which...

  • Page 68: Coolant Level, Checking And Topping Up

    Coolant filling must be preformed with the engine stopped. Check the coolant level daily before starting. IMPORTANT: Only use coolant recommended by Volvo Penta. Top up with the same type of coolant as already used in the system. Different types of coolant must not be mixed.
  • Page 69 6 Start the engine and run it until it reaches operating temperature (thermostat open). Check the coolant level again, top up as necessary. 7 Carry out a follow-up check of the coolant level after approx 1 hour's operation. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 70: Coolant, Draining

    2 Clean with high pressure wash or compressed air. Be careful not to damage the radiator fins. If detergent is used, make sure that it is not corrosive to aluminum. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 71: Cooling System, Cleaning

    1 Empty the cooling system. Refer to Coolant, Draining, page 68. 2 Put a hose into the expansion tank filling hole and flush with clean water, as specified by Volvo Penta– refer to section Water quality in Technical Data, page 86 until the water draining out is completely clear.
  • Page 72 Maintenance 9 Fill up with Volvo Penta recommended coolant, following the instructions in the chapters entitled Maintenance, page 65 and Coolant Level, Checking and Topping Up, page 66. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 73: Inlet And Exhaust System

    AdBlue®/DEF has been added to the tank. IMPORTANT: The use of solution that do not fulfill the ISO 22241 standard will compromise the aftertreatment system P0024301 performance, increase emissions. Any warranty claims will be rejected. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 74 Damage and costs arising from a failure to meet these requirements are not covered by Volvo Penta warranty obligations. ® If AdBlue /DEF is filled from a can or pump that lacks...
  • Page 75 • Injectors may be damaged • The engine will no longer fulfill emission level requirements • Corrosion in the exhaust system between the turbocharger and aftertreatment system • Expensive repairs • Expensive repairs 47711083 09-2018 © AB VOLVO PENTA...

  • Page 76: Adblue/Def-Pump Filter, Change

    ® emptying of the AdBlue /DEF hoses. Disconnect the battery negative terminal. P0019364 Place a collection vessel under the filter cover. NOTICE! Use approved safety equipment and collection vessel. Undo the filter cover P0019389 47711083 09-2018 © AB VOLVO PENTA...
  • Page 77 Pull out the filter. P0019390 Install the new filter (1). Install the rubber gasket (2). Screw on the filter cover (3). P0019391 47711083 09-2018 © AB VOLVO PENTA...
  • Page 78 Tightening torque: 20 (+5) Nm (14.8 +3.68 Ibf. ft.) P0019392 Reconnect the battery negative terminal. Start the engine. Check for leaks; check function. Delete any fault codes. P0019365 NOTICE! Care for equipment and the remaining AdBlue®/DEF. p0013225 47711083 09-2018 © AB VOLVO PENTA...

  • Page 79: Electrical System

    There is one is for the engine (15 A) and one for the ETAS system (25 A). The engine stops if the fuse trips. If the fuse trips frequently, Volvo Penta recommends that a qualified workshop should be contacted to investigate the cause of the overload.

  • Page 80: Battery

    • Charge the battery regularly. A battery that is kept fully loaded has a maximum service life. The easiest way to check if a battery needs charging is to use a voltmeter. 47711083 09-2018 © AB VOLVO PENTA...
  • Page 81 1 Connect the + cable (red) to the + pole on the battery and tighten the nut. 2 Connect the – cable (black) to the – pole on the battery and tighten the nut. NOTICE! Hand in the old battery to a re-cycling station. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 82: Storage

    It is of utmost importance that the conservation is performed correctly, therefore we have compiled a checklist covering the most important points. Before taking the engine out of service for long periods, Volvo Penta recommends that the engine is checked by a qualified workshop for possible need for overhaul or repair.
  • Page 83 2/3 diesel fuel. • Drain the conservation oil from the engine. • Bleed the fuel system. • Follow the other instructions on the previous page. * Conservation oils are sold by oil companies. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 84: Technical Data

    No. of cylinders Bore 110 mm (4.33 inch) Stroke 135 mm (5.31 inch) Displacement 7.7 dm (470 in Weight, wet (engine only) 775 kg (1709 lb) Firing order 1-4-2-6-3-5 Compression ratio 17.5:1 Idling speed 47711083 09-2018 © AB VOLVO PENTA...

  • Page 85: Lubrication System

    500 hours or 12 months VDS = Volvo Drain Specification Viscosity Select the viscosity according to the table. The temperature values refer to stable ambient temperatures. * SAE 5W/30 refers to synthetic or semi-synthetic oils. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 86: Fuel System

    Sufficient fuel lubricity is essential to protect the fuel injection system against excessive wear. Restrictions for other diesel fuels Volvo Penta also approves the use of other diesel fuels as long as the here specified restrictions are followed. However Volvo Penta does not guarantee compliance with emission legislation or fulfillment of expected lifetime with these other diesel fuels.
  • Page 87 Volvo Penta also approves the use of fuel blends between these paraffinic fuels and diesel fuels that comply with the quality requirements. Service requirements •...

  • Page 88: Cooling System

    Follow the mixing recommendation on the product. The coolant should be mixed with distilled, deionized water. For Volvo Penta specified water requirements; refer to Water Quality, page 87. NOTICE! Always use “Ready Mixed” coolant if water quality cannot be determined or if it does not fulfill ASTM D4985.

  • Page 89: Water Quality

    5.5–9 Silica (acc. ASTM D859) <20 mg SiO Iron (acc. ASTM D1068) <0.10 ppm Manganese (acc. ASTM D858) <0.05 ppm Conductivity (acc. ASTM D1125) <500 µS/cm Organic content, COD (acc. <15 mg KMnO ISO8467) 47711083 09-2018 © AB VOLVO PENTA...

  • Page 90: Inlet And Exhaust System

    Starter motor, output 5.5 kW (7.4 hp) Battery electrolyte specific gravity at +25 °C: Fully charged battery 1.28 g/cm (1.24 g/cm Battery recharged at 1.20 g/cm (1.20 g/cm Note! * Applies to batteries with tropical acid. 47711083 09-2018 © AB VOLVO PENTA...

  • Page 91: Identification Numbers

    19329 A. Label part number B. EPA Engine family C. Power Category D. Date of manufacturing E. Model Year F. >560KW Generator G. Constant Speed H. Exhaust Emission Control System Country of manufacture. P0020083 47711083 09-2018 © AB VOLVO PENTA...
  • Page 92 Applied standards: EN 61000–6–1, EN 6100–6–2, EN 61000–6–3, EN 61000–6–4, EN 12895, EN-ISO 14982 and EN 13309. For engines equipped with the Volvo Penta Start/Stop System the responsibility for the functional safety of the system lies with the machine manufacturer performing the integration.

  • Page 93: Index

    Identification Numbers..........89 Inlet and Exhaust System........71, 88 Main switch..............77 Maintenance and replacement parts......16 Maneuvering..............37 Never Use Start Spray..........36 Oil Filter, Replace............58 Oil level, checking and topping up......58 Oil recommendations..........83 Operation.............27, 37 47711083 09-2018 © AB VOLVO PENTA...
