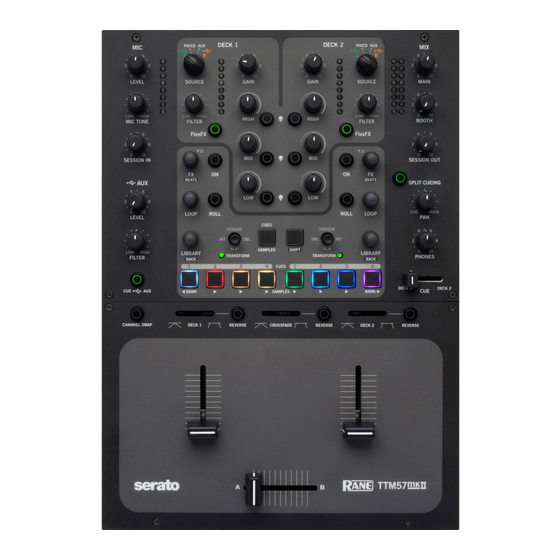

Rane TTM57mkll Manual
  1. Manuals
  2. Brands
  3. Rane Manuals
  4. Music Mixer
  5. TTM57mkll
  6. Manual

Rane TTM57mkll Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
RANE
TTM57mkII
MIXER
MANUAL
TTM57mkII

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TTM57mkll and is the answer not in the manual?

Questions and answers

Related Manuals for Rane TTM57mkll

Summary of Contents for Rane TTM57mkll

  • Page 1 OWNER’S MANUAL RANE TTM57mkII MIXER MANUAL TTM57mkII...

  • Page 2: Important Safety Instructions

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Rane Corporation could void the user's authority to operate the equipment. CAN ICES-3 (B)/NMB-3(B)
  • Page 3 • Consulter un revendeur ou un technicien radio / TV expérimenté. ATTENTION: Les changements ou modifications non expressément approuvés par Rane Corporation peuvent annuler l'autorité de l'utilisateur à manipuler cet équipement et rendre ainsi nulles toutes les conditions de garantie.

  • Page 4: Copyright Notices

    OWNER’S MANUAL Copyright Notices ©2015 Rane Corporation. All rights reserved. Serato DJ and Scratch Live are trademarks of Serato. Trademarked in the United States and other countries. This software is based in part on the work of the Independent JPEG Group, and uses libpng code, copyright © 2000-2002 Glenn Randers-Pehrson. The Serato NoiseMap ™...

  • Page 5: Table Of Contents

    7 Quick Start: Software 18 DJ Changeover 8 Quick Start: Hardware 19 Class Compliant USB Ports 9 Quick Start: Operation 19 Rane Control Panel 19 Settings 10 Audio Connections 19 Firmware 20 Deck Inputs 1-2 Control Panel 11 Two USB Ports...

  • Page 6: Ttm57Mkii Overview

    • LIBRARY knob scrolls songs or crates, press to load. The three Crossfader and • Hold SHIFT to tab between channel faders are Rane's song and crate selection. famous and dependable • TRANSFORM joystick: no-noise, no-bleed, no-contact • Press for Transform on/off.

  • Page 7: Quick Start: Software

    OWNER’S MANUAL Quick Start: Software Before using your mixer, at least read this short section for the basics. Read the complete manual to get the best investment from your new TTM57mkII. This section will help get you started with one computer. Class Compliant Audio and MIDI The USB ports are 100% class compliant, allowing hook-up to any Mac OSX computer without the need for an additional driver.

  • Page 8: Quick Start: Hardware

    “Main” output if a different cable type is required to your speaker amplifiers. Rane recommends balanced wiring (3-conductor) for the strongest signal and rejection of hum and noise. If your cable to the destination is less than 10 feet (3 meters), you can often get away with an unbalanced cable.

  • Page 9: Quick Start: Operation

    OWNER’S MANUAL Quick Start: Operation Calibrating Serato DJ for Control Vinyl or CD Since Serato DJ is controlled by an analog signal, there is no guarantee of what state that signal will be in by the time the software gets to interpret it. Therefore, Serato DJ needs to be able to handle a wide range of signals, and be configurable to use them optimally.

  • Page 10: Audio Connections

    “Main” output if a different cable type is required for system connection. Rane recommends balanced wiring for the strongest signal and rejection of hum and noise. If your cable to the destination is less than 10 feet (3 meters), you can often get away with an unbalanced cable.

  • Page 11: Two Usb Ports

    DJs to play together and supports uninterrupted transitions from one DJ to another. Rane class-compliant audio compatibility and a Windows ASIO driver allows the TTM57mkII to act as a 10-record 10-playback USB sound card for use with Serato DJ and most DJ and DAW programs. Multiple applications on one or two computers can share the mixer at the same time.

  • Page 12: Deck Input Channels

    OWNER’S MANUAL Deck Input Channels DECK 1 DECK 2 PH/CD AUX PH/CD AUX Source The SOURCE selector for DECK 1 selects one of four sources: SOURCE GAIN GAIN SOURCE • Left Virtual Deck (USB stereo playback pair 1-2) from USB A. •...

  • Page 13: Filter

    OWNER’S MANUAL Filter The Filter sweeps from Low-Pass to High-Pass. Set it to 12 o’clock for a flat “no-filter” response. Moving the Filter toward the LOW position progressively reduces high frequencies. Moving the Filter toward the HIGH position progressively reduces low frequencies. The Resonance or Q of each of these Filters can be adjusted in the "Deck Inputs 1-2 Control Panel"...

  • Page 14: Main And Booth

    The Main Mix section has a quasi-peak stereo meter with peak hold. The Main Mix can be set to Stereo or Mono in the Rane Control Panel. Booth and Session Outputs are always in stereo. See the "General Control Panel" on page 21.

  • Page 15: Software Controls

    OWNER’S MANUAL Software Controls The TTM57mkII Mixer has dedicated Serato DJ software controls. Virtual Deck and associated controls are assigned to BEATS BEATS using the DECK 1 and DECK 2 SOURCE selectors. This allows completely independent software control for each port. LOOP ROLL ROLL...

  • Page 16: Library Encoder And Shift Button

    OWNER’S MANUAL Library encoder and Shift button • When in the Crates folder, rotate the LIBRARY encoder to highlight the desired crate and press the encoder to select. BEATS BEATS • When in the Songs folder, rotate the LIBRARY encoder to highlight the desired song and press the encoder to load it.

  • Page 17: Footswitch Jack

    OWNER’S MANUAL In Samples mode, the CUES / SAMPLES CUES CENSOR CENSOR button is green, the two Bank buttons are blue and the six Sample buttons are lit SLIP SLIP SAMPLES SHIFT LIBRARY LIBRARY TRANSFORM TRANSFORM purple if they have an assigned sample. BACK BACK CUES...

  • Page 18: Dj Changeover

    OWNER’S MANUAL DJ Changeover The TTM57mkII allows two computers to connect to the mixer simultaneously. This allows two DJs to play at the same time and for easy DJ set changeover, even if they run different software. Connect both computers to the two USB ports on the TTM57mkII.

  • Page 19: Class Compliant Usb Ports

    The TTM57mkII Firmware Version currently installed in the mixer is shown in the active Rane Control Panel. The Downloads link on the TTM57mkII page at dj.rane.com is a place to check if there is a control panel / firmware update. Newer versions of Serato DJ may also contain firmware updates.

  • Page 20: Deck Inputs 1-2 Control Panel

    OWNER’S MANUAL Deck Inputs 1-2 Control Panel Analog Input Source: The analog input for each channel is set for CD (Line level) or Phono level (PH) using a switch on the rear of the mixer. The control panel shows the input mode selected on the mixer for each of the four inputs.

  • Page 21: General Control Panel

    The Buffer Size control allows the USB buffer to be increased or decreased. This only appears in the Rane Control Panel for ASIO in Windows. In Mac systems, the buffer control is in the DAW or DJ audio preferences screen and does not appear here. The Rane driver is designed to run at latencies as low as 5 milliseconds round-trip.

  • Page 22: Midi Mapping

    OWNER’S MANUAL MIDI Mapping When using Serato DJ software, the mixer is plug-and-play with all required MIDI mapping done for you. For advanced users or with third-party DAWs, it is possible to custom MIDI-map most mixer controls on the TTM57mkII and control the lighting and color of buttons in the Serato DJ Cues and Samples strip.
  • Page 23 OWNER’S MANUAL Control Description Control Status MIDI Control Control Data Comment Type Channel # Dec. # Hex SDJ Deck 1 Loops Loop Length Adjust Encoder 3F decr, Roll and Auto Loop 41 incr Loop On Encoder Note Auto Loop switch Loop Roll Roll Note...
  • Page 24 OWNER’S MANUAL Control Description Control Status MIDI Control Control Data Comment Type Channel # Dec. # Hex SDJ Deck 1 Cues Pad 1 Cue 1 Moment. Note Cues Mode switch Pad 2 Cue 2 Moment. Note Cues Mode switch Pad 3 Cue 3 Moment.
  • Page 25 OWNER’S MANUAL Control Description Control Status MIDI Control Control Data Comment Type Channel # Dec. # Hex SDJ Library Encoder Deck 1 Library Scroll Encoder 3F decr, 41 incr Library Scroll Fast Encoder 3F decr, Shift Modifier 41 incr Library Backward + Expand Encoder Note Shift Modifier...
  • Page 26 OWNER’S MANUAL Control Description Control Status MIDI Control Control Data Comment Type Channel # Dec. # Hex Deck 2 Joystick Joystick Mode Press Note Press Encoder to Toggle Between SDJ and Transform Modes, LED On in switch Transform Mode Internal Mode Note Send in SDJ Mode Only Right...
  • Page 27 OWNER’S MANUAL Control Description Control Status MIDI Control Control Data Comment Type Channel # Dec. # Hex Mixer Deck 2 Input Mode (PH/CD) Slide 0-7F Phono (0-3F), CD (40-7F) switch Input Mode (PH/CD) Control 0-7F Phono (0-3F), CD (40-7F) Panel RIAA Sensitivity Control 2.5 (00), 3 (01), 3.5 (02), 4 (03), 4.5 (04), 5...

  • Page 28: Rgb & Red-Green Leds

    OWNER’S MANUAL Control Description Control Status MIDI Control Control Data Comment Type Channel # Dec. # Hex Mixer General Main Level 0-7F Booth Level 0-7F Session IN Level 0-7F Session Out Level 0-7F Cue/Main Pan 0-7F Deck 1/Deck 2 Cue Pan Slider 0-7F Split Cue Note (Off)

  • Page 29: Rgb Midi Velocity Values

    OWNER’S MANUAL RGB MIDI Velocity Values Note: The Green-Red LEDs in the CUES/SAMPLES and SHIFT buttons only support colors 0-7. RGB Colors MIDI Note Velocity (Decimal) Color Bright On Bright Blink Dim On Dim Blink 32 (LED off) 96 (LED off) 0 (LED off) 64 (LED off) RGB Colors...

  • Page 30: Magnetic Fader Maintenance

    OWNER’S MANUAL Magnetic Fader Maintenance The faders and crossfader in the TTM57mkII are designed with materials highly resistant to corrosion and most chemicals. While they will handle millions of operations, they may become dirty over time. Bad things may be spilled into a fader, but in many instances the fader may not be damaged and the sound quality thus unaffected.

  • Page 31: Fader Calibration

    You probably won't need to replace a magnetic fader, as cleaning usually solves the problem. If you really need a spare, they are available for US customers at the Rane Factory Store at rane.com. They are also available through Rane's international distributors, found through dj.rane.com. Please order the Magnetic Fader V2.

  • Page 32: Technical Specifications

    OWNER’S MANUAL Technical Specifications All specifications typical unless otherwise stated Analog Inputs 4 Stereo unbalanced RCA jacks …...Phono or Line level input Rear panel switches for each input …...Phono Response RIAA ±1 dB, Gain: 31 dB at 1 kHz …..Rumble filter Butterworth 3rd-order Infrasonic …...Max Phono Input 126 mV...

  • Page 33: Limited Warranties

    1) arising out of material or workmanship not provided or furnished by Rane, or 2) resulting from abnormal use of the product or use in violation of instructions, or 3) in products repaired or serviced by other than the Rane Factory, or 4) in products with removed or defaced serial numbers, or 5) in components or parts or products expressly warranted by another manufacturer.
  • Page 34 LOCATED IN THE COUNTRY WHERE THE UNIT WAS PURCHASED, OR (if product was purchased in the U.S.) AT THE RANE FACTORY IN THE U.S.. If the product is being sent to Rane for repair, please call the factory for a Return Authorization number. We recommend advance notice be given to the repair facility to avoid possible needless shipment in case the problem can be solved over the phone.

  • Page 35: Declaration Of Conformity

    LV directive and the EMC directive in the event that the equipment is modified without written consent of the manufacturer. This declaration of conformity is issued under the sole responsibility of Rane Corporation. Type of Equipment: Professional Audio Signal Processing...
  • Page 36 OWNER’S MANUAL PART 22122 TTM57mkII...
