  • Page 1 OWNER’S MANUAL RANE TTM57mkII MIXER MANUAL TTM57mkII...

  • Page 2: Important Safety Instructions

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Rane Corporation could void the user's authority to operate the equipment. CAN ICES-3 (B)/NMB-3(B)
  • Page 3 • Consulter un revendeur ou un technicien radio / TV expérimenté. ATTENTION: Les changements ou modifications non expressément approuvés par Rane Corporation peuvent annuler l'autorité de l'utilisateur à manipuler cet équipement et rendre ainsi nulles toutes les conditions de garantie.

  • Page 4: Copyright Notices

    • IEC C5 line cord. • Serato DJ Software Manual. • This TTM57mkII Mixer Manual. Wear Parts The TTM57mkII Mixer contains no wear parts. The control vinyl records and CDs are wear parts as described in "Limited Warranties" on page 33. TTM57mkII...

  • Page 5: Table Of Contents

    15 Loop encoder and Roll button 16 Library encoder and Shift button 16 Transform Joystick 4 Check List 16 Cues / Samples control 6 TTM57mkII Overview 17 Footswitch Jack 7 Quick Start: Software 18 DJ Changeover 8 Quick Start: Hardware...

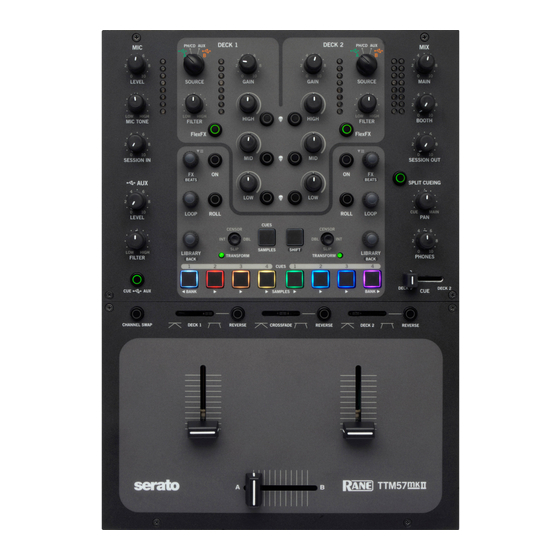

  • Page 6: Ttm57Mkii Overview

    • LIBRARY knob scrolls songs or crates, press to load. • Hold SHIFT to tab between The Crossfader and channel song and crate selection. faders are Rane's famous and • TRANSFORM joystick: dependable no-noise, no-bleed, • Press for Transform on/off. no-contact magnetic faders.

  • Page 7: Quick Start: Software

    NOTE: A shortcut will be also be created on your desktop. When you first connect your TTM57mkII Mixer via USB in Windows, you may see a request to install drivers. Accept the request and allow the driver installation to proceed. After drivers are installed, a TTM57mkII control panel will be available, and your software will recognize the mixer.

  • Page 8: Quick Start: Hardware

    “Main” output if a different cable type is required to your speaker amplifiers. Rane recommends balanced wiring (3-conductor) for the strongest signal and rejection of hum and noise. If your cable to the destination is less than 10 feet (3 meters), you can often get away with an unbalanced cable.

  • Page 9: Quick Start: Operation

    – this number should be close to 85% when your system is calibrated properly. For complete software operating instructions, see the Serato DJ Manual. TTM57mkII...

  • Page 10: Audio Connections

    “Main” output if a different cable type is required for system connection. Rane recommends balanced wiring for the strongest signal and rejection of hum and noise. If your cable to the destination is less than 10 feet (3 meters), you can often get away with an unbalanced cable.

  • Page 11: Two Usb Ports

    Each of the two USB ports are completely independent. It is possible to run Serato DJ on one computer while running third-party software on the other, Mac or PC. See how to easily share the TTM57mkII in "DJ Changeover" on page 18.

  • Page 12: Deck Input Channels

    Pressing the kill button again removes the kill, unlocking the tone to where its control is set. • Crossover points for Low/Mid and Mid/High default at 300 Hz between Low and Mid, 3 kHz between Mid and High. This can be changed for each Deck. See "Deck Inputs 1-2 Control Panel" on page 20 TTM57mkII...

  • Page 13: Filter

    SP-6 Output as “A.” AUX input has it’s own LEVEL, FILTER and CUE. The Filter behaves This the same as those on the Deck inputs. The Resonance for the Aux Filter can be adjusted in the "General Control Panel" on page 21. TTM57mkII...

  • Page 14: Main And Booth

    The Main Mix section has a quasi-peak stereo meter with peak hold. The Main Mix can be set to Stereo or Mono in the Rane Control Panel. Booth and Session Outputs are always in stereo. See the "General Control Panel" on page 21.

  • Page 15: Software Controls

    OWNER’S MANUAL Software Controls The TTM57mkII Mixer has dedicated Serato DJ software controls. Virtual Deck and associated controls are assigned to BEATS BEATS using the DECK 1 and DECK 2 SOURCE selectors. This allows completely independent software control for each port.

  • Page 16: Library Encoder And Shift Button

    SHIFT and CUES to access Cues 5-8 (the Cues button lights yellow). Press SHIFT and CUES again to return to Cues 1-4 (the Cues button lights red). The button colors tell if the Cues are in 1-4 or 5-8. TTM57mkII...

  • Page 17: Footswitch Jack

    SP-6 off on one of the ports. Footswitch Jack The TTM57mkII has a 1/4" TRS jack to connect an optional footswitch. Footswitch controls are not mapped to any function, but can be learned. MIDI commands can be generated from: •...

  • Page 18: Dj Changeover

    Swapping between two DJs is now easier than ever! With a computer already connected to the TTM57mkII and playing, do the following: 1. Connect the second computer to the unused USB port on the TTM57mkII. 2. Switch the DECK SOURCE on the non-playing mixer channel to the USB source of the second computer.

  • Page 19: Class Compliant Usb Ports

    The TTM57mkII Firmware Version currently installed in the mixer is shown in the active Rane Control Panel. The Downloads link on the TTM57mkII page at dj.rane.com is a place to check if there is a control panel / firmware update. Newer versions of Serato DJ may also contain firmware updates.

  • Page 20: Deck Inputs 1-2 Control Panel

    DJ and DAW programs. • Deck 1 FX Send is in USB slots 7-8 Deck 1 FX Return is in USB slots 7-8. • Deck 2 FX Send is in USB slots 9-10 Deck 2 FX Return is in USB slots 9-10. TTM57mkII...

  • Page 21: General Control Panel

    The Buffer Size control allows the USB buffer to be increased or decreased. This only appears in the Rane Control Panel for ASIO in Windows. In Mac systems, the buffer control is in the DAW or DJ audio preferences screen and does not appear here. The Rane driver is designed to run at latencies as low as 5 milliseconds round-trip.

  • Page 22: Midi Mapping

    When using Serato DJ software, the mixer is plug-and-play with all required MIDI mapping done for you. For advanced users or with third-party DAWs, it is possible to custom MIDI-map most mixer controls on the TTM57mkII and control the lighting and color of buttons in the Serato DJ Cues and Samples strip.
  • Page 23 Shift Modifier, Force Stop Sample 4 switch Deck 2 Pad 2 + Shift, Stop Moment. Note Shift Modifier, Force Stop Sample 5 switch Deck 2 Pad 3 + Shift, Stop Moment. Note Shift Modifier, Force Stop Sample 6 switch TTM57mkII...
  • Page 24 Cues Mode, Shift Modifier switch Pad 2+Shift, Delete Cue 2 Moment. Note Cues Mode, Shift Modifier switch Pad 3+Shift, Delete Cue 3 Moment. Note Cues Mode, Shift Modifier switch Pad 2+Shift, Delete Cue 4 Moment. Note Cues Mode, Shift Modifier switch TTM57mkII...
  • Page 25 Shift + Internal Mode, Safety Note Send in SDJ Mode Only Mode Right Censor Joy Up Note Send in SDJ Mode Only Slip Note Send in SDJ Mode Only, Toggle On/Off, Down Flash Transform LED When Active Instant Doubles Joy Left Note TTM57mkII...
  • Page 26 8 (0B), 8.5 (0C), 9 (0D), 9.5 (0E), 10 (0F) Input Selector 1 of 4 0-7F USB A (0-1F) , PH/CD (20-3F), AUX (40- switch 5F), USB B (60-7F) USB A / USB B Selected Logical 0-7F USB A (0-3F), USB B (20-7F) Gain 0-7F TTM57mkII...
  • Page 27 0-7F Cue/Main Pan 0-7F Deck 1/Deck 2 Cue Pan Slider 0-7F Split Cue Note (Off) Moment. Note switch Crossfader Slider Crossfader Contour Slider Crossfader Reverse Moment. Note switch Channel switch Moment. Note switch Mic Level 0-7F Mic Tone 0-7F TTM57mkII...

  • Page 28: Rgb & Red-Green Leds

    RGB and Red-Green LEDs The 8 performance pads on the TTM57mkII are backlit by RGB (Red-Green-Blue) LEDs that may be controlled using MIDI messages. In addition, the CUES/SAMPLES and SHIFT switches are backlit by Red-Green LEDs that may also be controlled using MIDI messages.
  • Page 29 OWNER’S MANUAL RGB Colors MIDI Note Velocity (HEX) Color Bright On Bright Blink Dim On Dim Blink 20 (LED off) 60 (LED off) 00 (LED off) 40 (LED off) TTM57mkII...

  • Page 30: Magnetic Fader Maintenance

    OWNER’S MANUAL Magnetic Fader Maintenance The faders and crossfader in the TTM57mkII are designed with materials highly resistant to corrosion and most chemicals. While they will handle millions of operations, they may become dirty over time. Bad things may be spilled into a fader, but in many instances the fader may not be damaged and the sound quality thus unaffected.

  • Page 31: Fader Calibration

    You probably won't need to replace a magnetic fader, as cleaning usually solves the problem. If you really need a spare, they are available for US customers at the Rane Factory Store at rane.com. They are also available through Rane's international distributors, found through dj.rane.com. Please order the Magnetic Fader V2.

  • Page 32: Technical Specifications

    8 lb (3.7 kg) Shipping Size 7.75˝ H x 15˝ W x 19.25˝ D (19.7 x 38.1 x 49 cm) ..Weight 12 lb (5.5 kg) 8.2 cm 1.8 cm 3.22 in 0.70 in 25.4 cm 10.6 cm 10.00 in 4.17 in TTM57mkII...

  • Page 33: Limited Warranties

    1) arising out of material or workmanship not provided or furnished by Rane, or 2) resulting from abnormal use of the product or use in violation of instructions, or 3) in products repaired or serviced by other than the Rane Factory, or 4) in products with removed or defaced serial numbers, or 5) in components or parts or products expressly warranted by another manufacturer.
  • Page 34 LOCATED IN THE COUNTRY WHERE THE UNIT WAS PURCHASED, OR (if product was purchased in the U.S.) AT THE RANE FACTORY IN THE U.S.. If the product is being sent to Rane for repair, please call the factory for a Return Authorization number. We recommend advance notice be given to the repair facility to avoid possible needless shipment in case the problem can be solved over the phone.

  • Page 35: Declaration Of Conformity

    LV directive and the EMC directive in the event that the equipment is modified without written consent of the manufacturer. This declaration of conformity is issued under the sole responsibility of Rane Corporation. Type of Equipment: Professional Audio Signal Processing...
  • Page 36 OWNER’S MANUAL PART 22122 TTM57mkII...
