3.2.2
Keys
The module provides one face plate reset key.

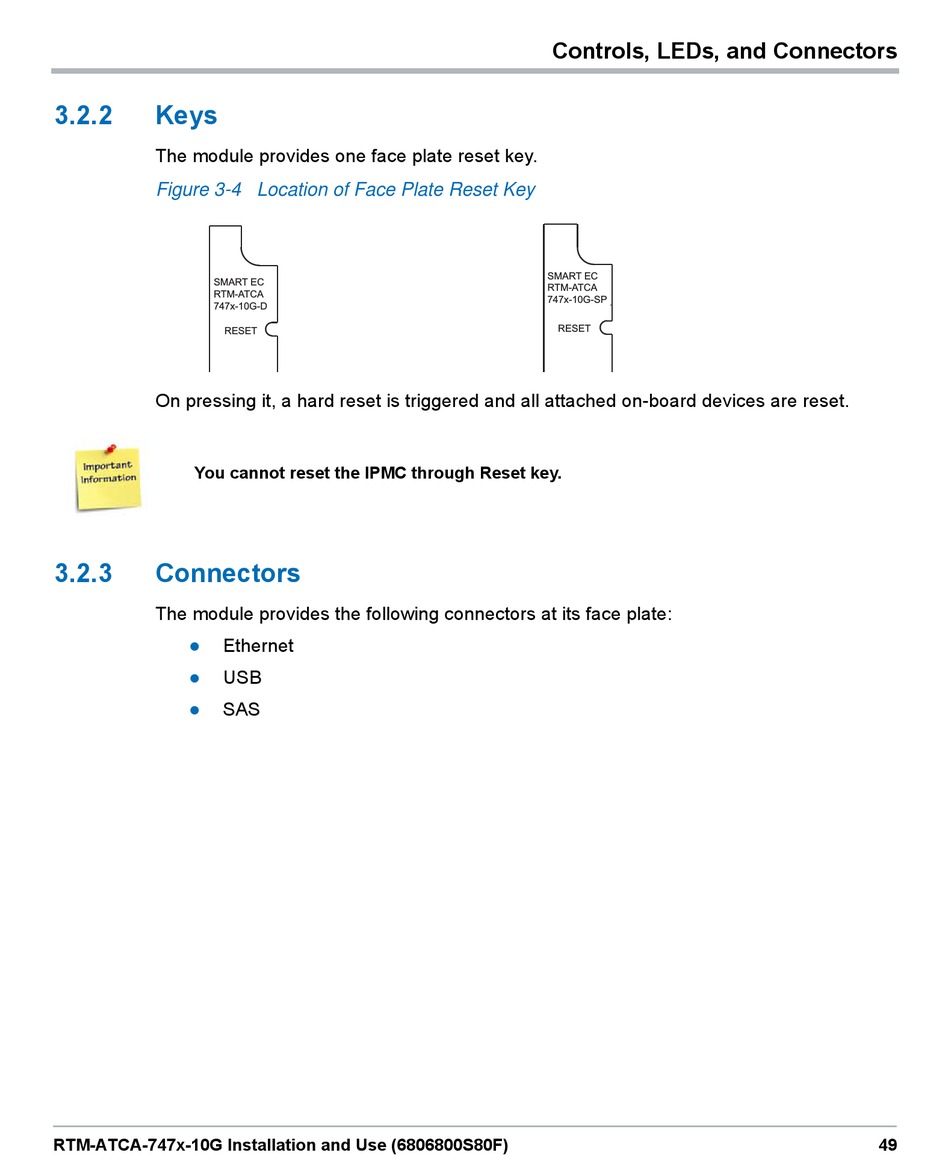

Figure 3-4 Location of Face Plate Reset Key
SMART EC
RTM-ATCA
747x-10G-D
RESET
On pressing it, a hard reset is triggered and all attached on-board devices are reset.
You cannot reset the IPMC through Reset key.
3.2.3
Connectors
The module provides the following connectors at its face plate:
Ethernet
USB
SAS
RTM-ATCA-747x-10G Installation and Use (6806800S80F)
Controls, LEDs, and Connectors
SMART EC
RTM-ATCA
747x-10G-SP
RESET
49
