Controls, LEDs, and Connectors
Controls, LEDs, and Connectors
The pinout of the serial interface connector is shown below.

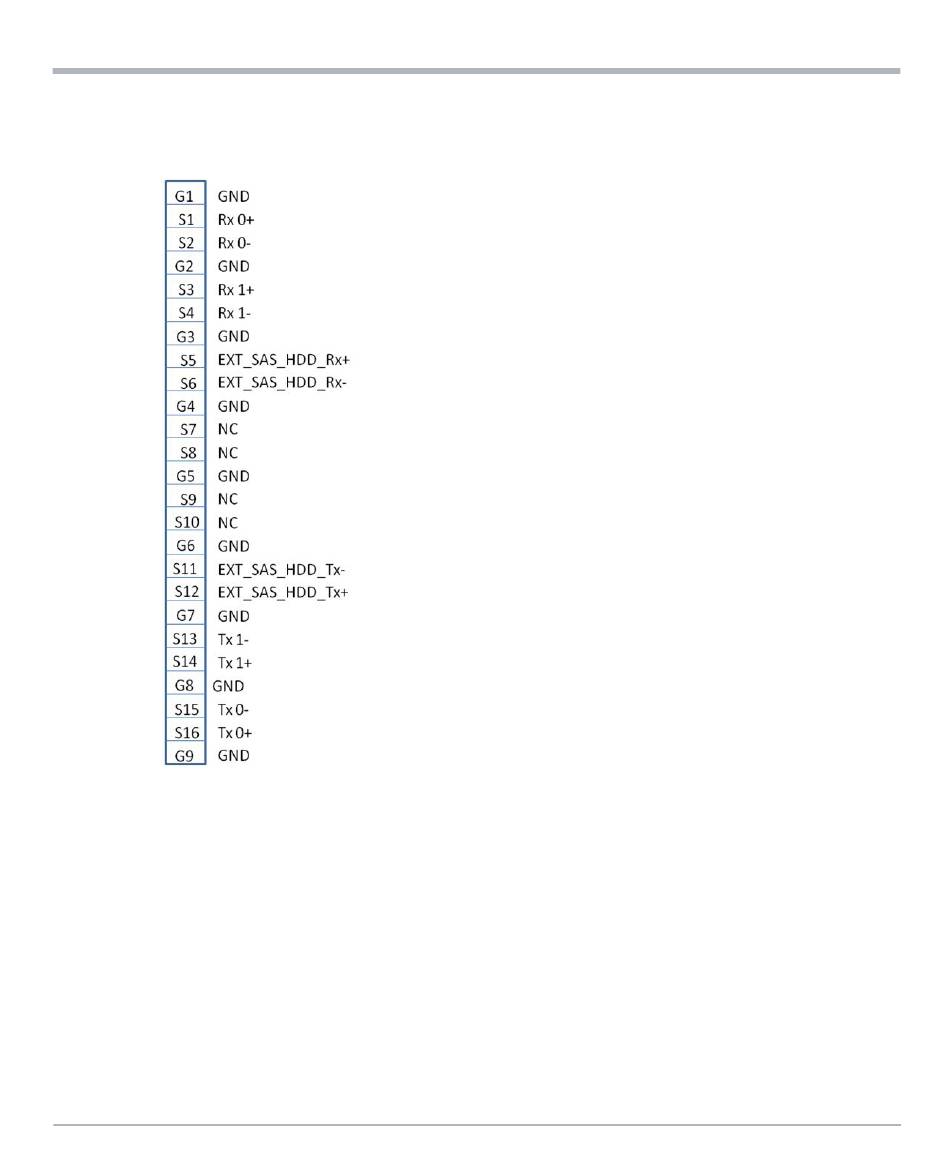

Figure 3-7 SAS Connector Pinout

52
RTM-ATCA-747x-10G Installation and Use (6806800S80F)
