Controls, LEDs, and Connectors
3.2.3.1
Ethernet Connectors
The RTM provides 4x10G (for RTM-ATCA-747x-10G-D) or 6x10G (for RTM-ATCA-747x-
10G-SP) interface connectors and 4x1G Ethernet 10/100/1000Base-T interface
connectors at its face plate. The location of the Ethernet connectors is shown in the
following figure.

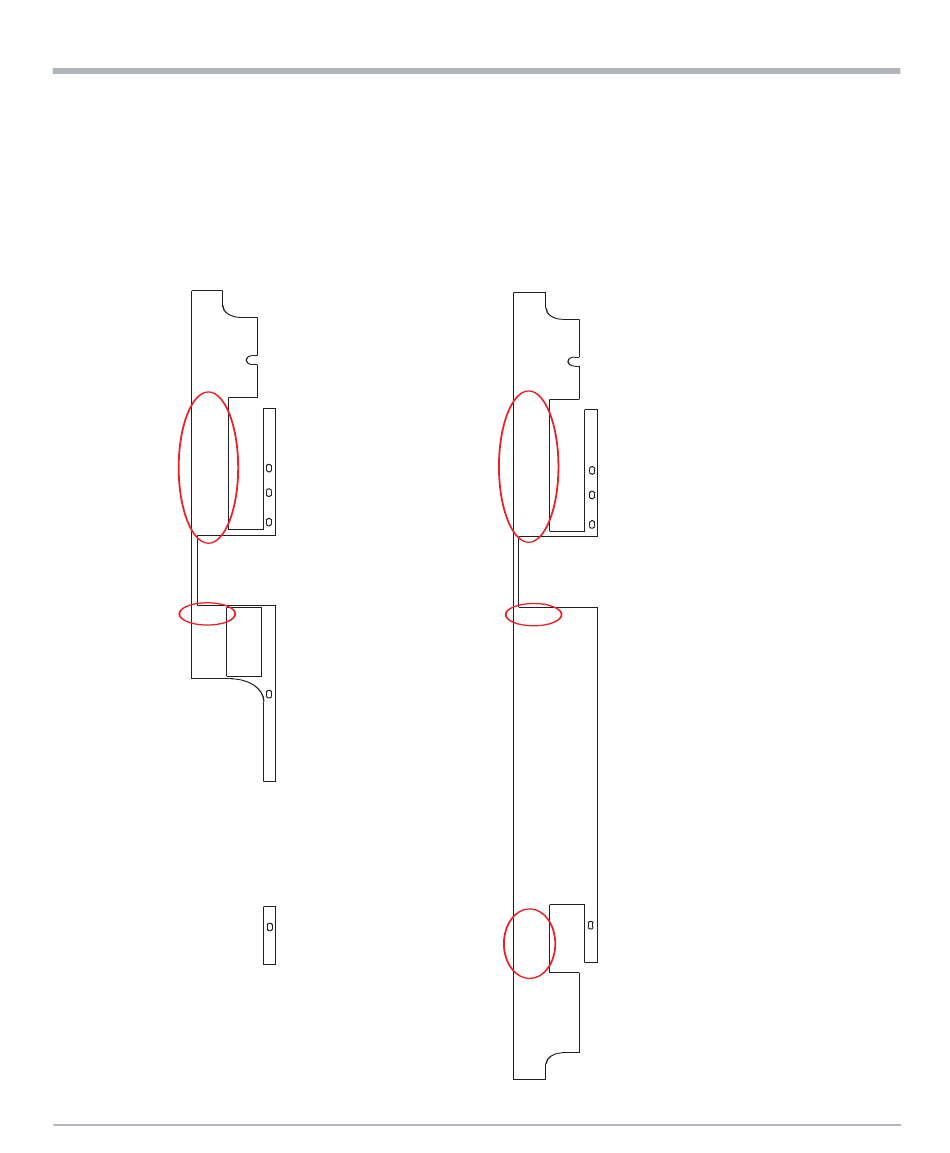

Figure 3-5 Location of Ethernet Connector
SMART EC
RTM-ATCA
747x-10G-D
RESET
ETH1
1G/10G
ETH2
1G/10G
ETH3
1G/10G
ETH4
1G/10G
ETH5|6
1G
ETH7|8
1G
S
A
S
50
O
O
S
I
S
A
T
N
H
D
D
H
/
S
RTM-ATCA-747x-10G Installation and Use (6806800S80F)
Controls, LEDs, and Connectors
SMART EC
RTM-ATCA
747x-10G-SP
RESET
ETH1
1G/10G
ETH2
O
1G/10G
O
S
ETH3
I
1G/10G
S
A
ETH4
T
1G/10G
N
ETH5|6
1G
ETH7|8
1G
ETH9
1G/10G
H
/
S
ETH10
1G/10G
