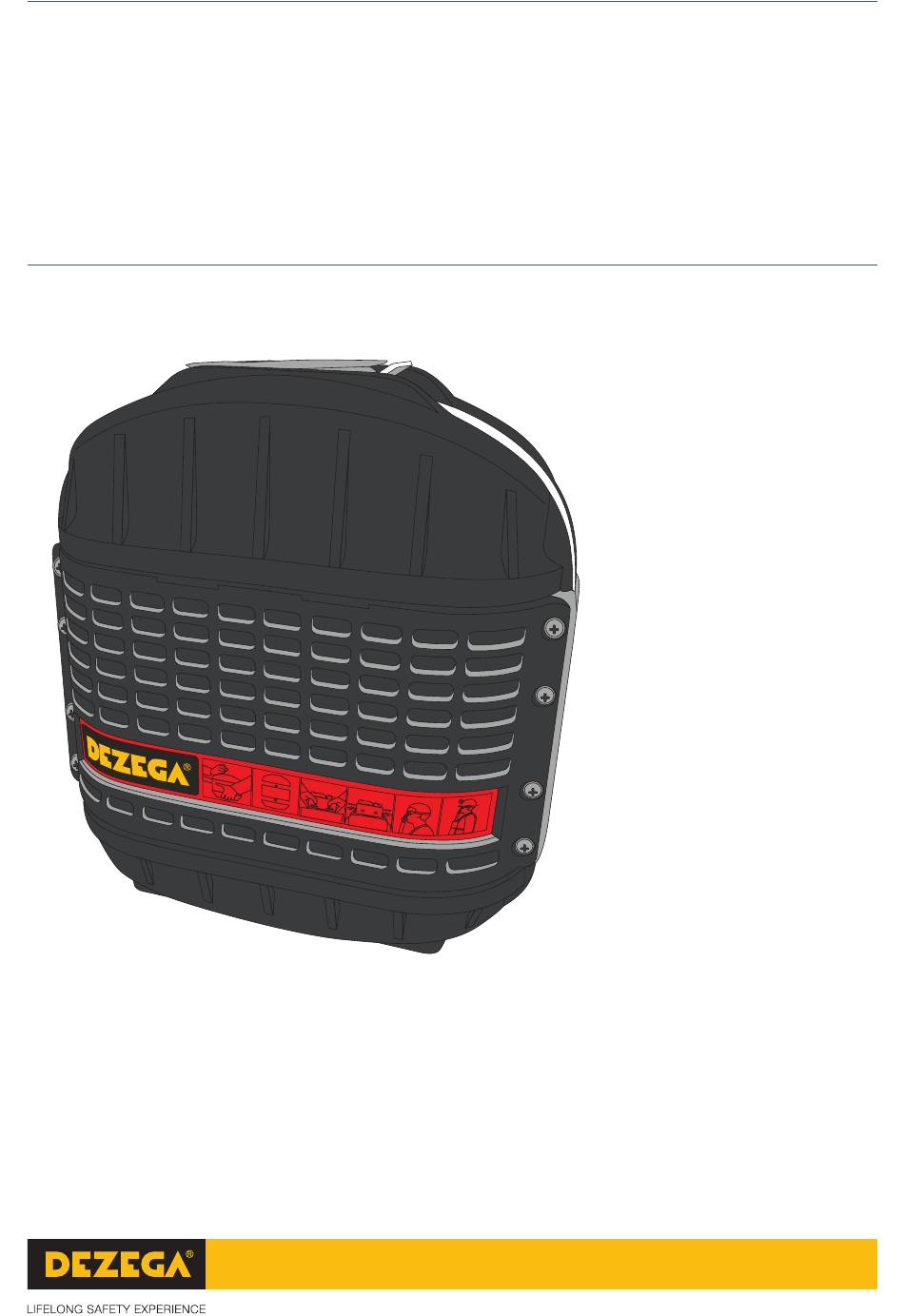

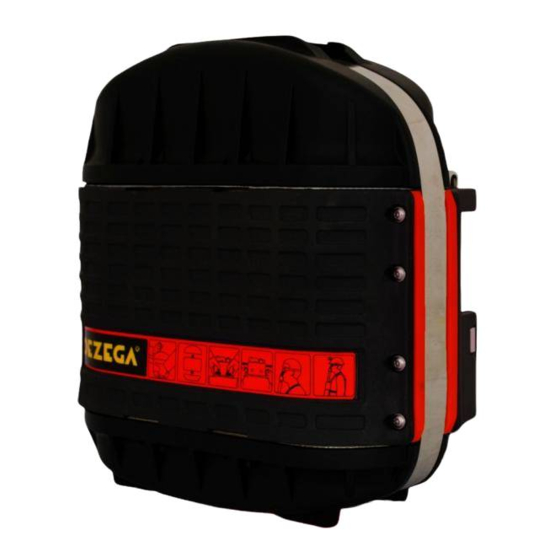

- Page 1 USER manual CARBO-T TRAINING SELF-RESCUER SKTB.02.СК5Т.00.00.000 РЭ-01 T-0MP0-I(N)SG-EUENEU Red.04.11.2020_V1...
-
Page 3: Table Of Contents
5. OPERATING PRINCIPLE ............... 8 6. MARKING ....................9 7. PACKAGING AND WRAPPING .............. 9 8. PREPARATION OF THE CARBO-T TRAINING SELF-RESCUER TO THE NEXT PRACTICE EXERCISE ..........10 9. RULES FOR USE OF THE TRAINING SELF-RESCUER ...... 15 10. DISASSEMBLY, DISINFECTION AND ASSEMBLY OF THE TRAINING SELF-RESCUER ........... -
Page 4: Designation
CARBO-T DEZEGA DESIGNATION A number of symbols are used throughout the user manual to pay the user’s attention to the peculiarities, problems and hazardous situations that may happen when using the training self-rescuer. CAUTION! Indicates that a hazardous situation could appear which, if not eliminated, could damage the training self-rescuer. -
Page 5: Introduction
+5 up to +40 °С and humidity up to 100%. Designation training self-rescuer when ordering: «CARBO-T T-0MP0-I(N)SG-EUENEU». DANGER! The use of the CARBO-T training self-rescuer for respiratory protection in case of accidents is strictly PROHIBITED. Fig. 1. Carrying methods of the CARBO-T training self-rescuer... -
Page 6: Technical Data
HME-imitator), pc. User manual, copy Label, copy * Supply per one pack of training self-rescuers The list of nodes and assembly components of the training self-rescuer CARBO-T, supplied at the customer’s request, is indicated in ANNEX B. -
Page 7: Design
DEZEGA CARBO-T 4. DESIGN General view and design of the CARBO-T training self-rescuer is shown in Fig. 2. 17 18 Fig. 2. General view and design of the CARBO-T training self-rescuer Bottom lid 13. Top lid Quick release buckle 14. Lock lever Chest strap 15. -
Page 8: Operating Principle
CARBO-60 self-rescuer. Due to this, the user trains the carrying skills; • the force of opening the lock of the training self-rescuer CARBO-T corresponds to the same parameters of the self-rescuer CARBO-60, due to this fact, the user trains donning skills;... -
Page 9: Marking
DEZEGA CARBO-T 6. MARKING The marking of the CARBO-T training self-rescuer is indicated on a coupling strap, the front bumper, the rear bumper, top and bottom lids, the protective cover and contains the following inscriptions. • On the coupling strap: «CARBO-Т»... -
Page 10: Preparation Of The Carbo-T Training Self-Rescuer To The Next Practice Exercise
CARBO-T DEZEGA 8. PREPARATION OF THE CARBO-T TRAINING SELF-RESCUER TO THE NEXT PRACTICE EXERCISE 8.1 Replacement of the HME-imitator • disconnect HME-imitator from breathing tube; • connect the new HME-imitator to the breathing tube. 8.2 Laying the air system and installing the lids when using an imitating cartridge: •... - Page 11 DEZEGA CARBO-T • move the buckles of the chest and neck straps to the end position, lengthen the straps, while the quick release buckle of the neck strap must be in the closed position; • fold the free end of the chest strap (which is longer) and fix it with a ring;...
- Page 12 CARBO-T DEZEGA • fold the goggles tightly by connecting the eyepieces and place them in the protective case on the neck strap; • place the neck strap in the free space between the breathing tube and HME; • install the lid, holding the packing;...
- Page 13 DEZEGA CARBO-T • straighten breathing horizontally, enroll both long sides of the breathing bag twice down and tuck the space between the nozzle and the bottom side; • enroll the part of the breathing bag with the relief valve 3 times so that there is a distance of 20 mm between the last turn-up and the round flange of the bag;...
- Page 14 CARBO-T DEZEGA • place the quick release buckle of the short end of the chest strap on the breathing bag from the side opposite to the relief valve; • position the rim along the side of the bottom so that the notches of the rim are on the rounded part of the bottom, the ends of the chest strap should be inside the rim;...
-
Page 15: Rules For Use Of The Training Self-Rescuer
DEZEGA CARBO-T 9. RULES FOR USE OF THE TRAINING SELF-RESCUE The donning procedure of the CARBO-T self-rescuer is as follows: STEP 1 • Take off the safety helmet with cap lamp. • In case of waist-worn: move the training self-rescuer on waist belt in front of you. - Page 16 CARBO-T DEZEGA STEP 3 • Put on the neck strap of the self-rescuer on the neck. STEP 4 • Press the fixators in the direction from the center aside against the stop with both thumbs, pick them up with your fingers on the other side, remove and throw to the floor.
- Page 17 DEZEGA CARBO-T STEP 5 • Lift the self-rescuer case with your left hand by the side, placing it on your chest, and pull the free end of the neck strap up with your right hand to avoid tension of the breathing tube.
- Page 18 CARBO-T DEZEGA STEP 6 • If necessary, remove the goggles from the case on the neck strap and put them on. • Put on the safety helmet with cap lamp. • Adjust the neck strap to place the self-rescuer in a comfortable position: •...
-
Page 19: Disassembly, Disinfection And Assembly Of The Training Self-Rescuer
The disassembly, disinfection and assembly of training self-rescuers is performed by a specially trained person appointed by the mine order, who completed training and annual accreditation from DEZEGA and it is confirmed by an appropriate certificate. The HME-imitator is a subject to disinfection. -
Page 20: Inspection Ofthe Technical Condition Of The Training Self-Rescuer
In case of transportation at subzero temperatures, it is necessary to hold the CARBO-T training self-rescuers in the premise with a room temperature for 24 hours before their intended use. -
Page 21: Disposal
The self-rescuer does not contain hazardous materials to health. 14. MANUFACTURER’S WARRANTY The manufacturer guarantees appropriates performance characteristics of the CARBO-T self-rescuers while meeting of transportation, storage and operation rules described in this USER MANUAL. The warranty period of the self-rescuer is indicated in the Data Sheet supplied with each training self-rescue. - Page 22 Tel.: +7 (353-62) 4-70-42 Fax: +7 (353-62) 4-19-95 www.dezega.ru info@dezega.ru 2. DEZEGA SP GÜVENLİK ÜRÜNLERİ SANAYİ VE TİCARET ANONİM ŞİRKETİ EGE SERBEST BÖLGESİ ZAFER SB MAH. NİLÜFER SK.NO:30 GAZİEMİR, İZMİR Tel.: +90 232 251 0 394 Fax: +90 232 252 0 394 www.dezega.com...
-
Page 23: Annex А
DEZEGA CARBO-T ANNEX A Preparation disinfectant solutions disinfection HME-imitator. It is recommended to use chlorhexidine in order to prepare the disinfectant solution. The product is stored at normal temperature conditions. For disinfection use a 0,5% solution, which is prepared as follows: 10 l of boiled water at a room temperature and 0,25 l of a 20% chlorhexidine solution are mixed into a vessel (glass, enamel). -
Page 24: Annex B
CARBO-T DEZEGA ANNEX B The recommended form of the log for practice exercises and disinfection Mark about practice exercises Mark about disinfection Assembly date Surname, first of the training Date name and self-rescuer for Item number Date of disinfection signature of the... -
Page 25: Annex C
DEZEGA CARBO-T ANNEX C The list of nodes and parts of the CARBO-T training self-rescuer, supplied on consumer’s request Designation Name Set of belt loops for waist and shoulder SKTB.02.CK5.00.00.004 carrying Fixators: SKTB.02.CK5.00.00.005 right SKTB.02.CK5.00.00.005-01 left SKTB.02.KPP.00.00.000 DEZEGA SHOULDER BELT...
