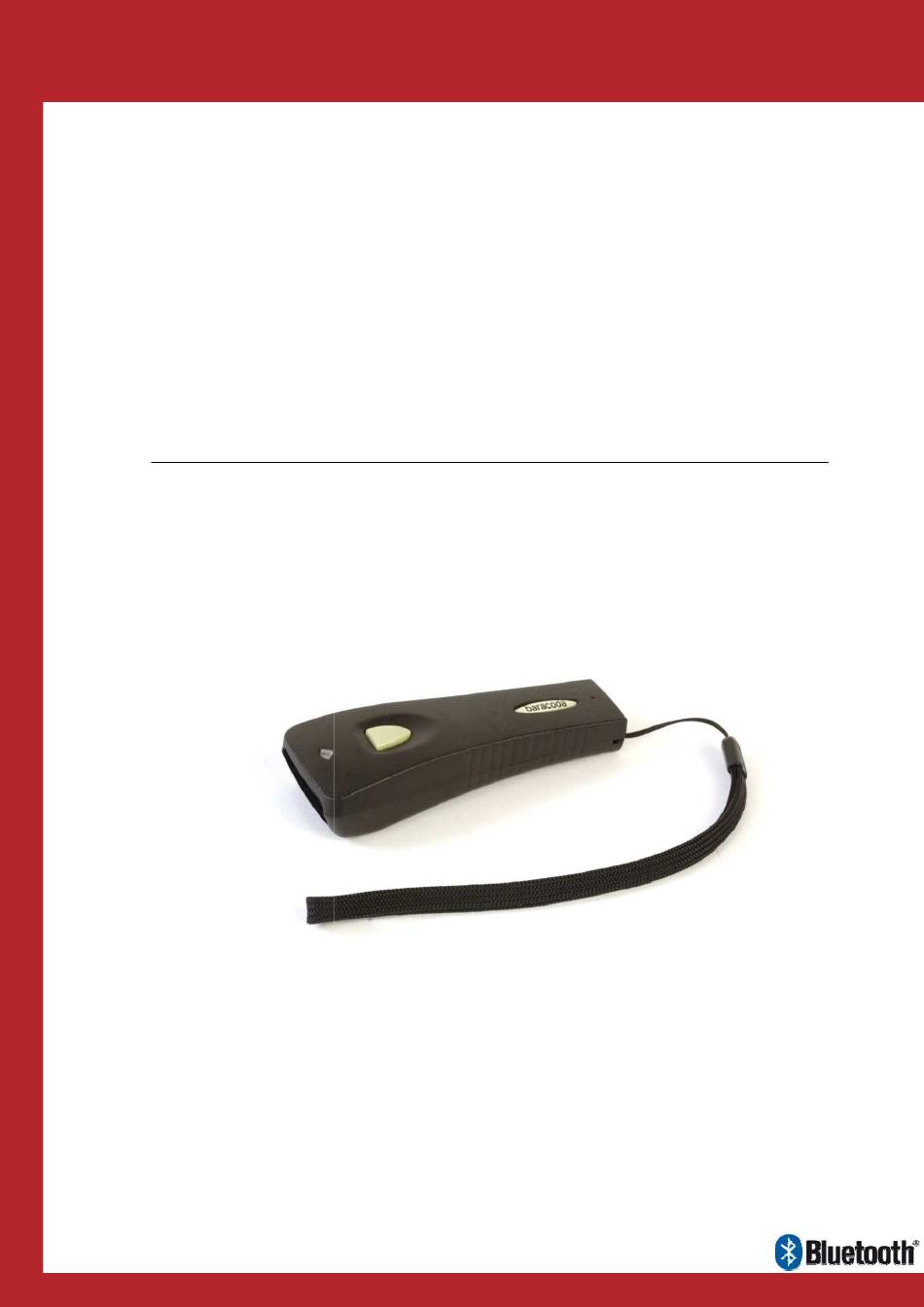

- Page 1 Data Capture for Workforce in Motion D-Fly Fly - Programming Guide Programming Guide ©Baracoda Baracoda – December 2009...
-
Page 2: Table Of Contents
ENGTH FOR 2.8............25 SETTINGS 2.8.1. 39 ............25 NABLE ISABLE 2.8.2. 39 F ASCII ..........25 NABLE ISABLE 2.8.3. 39 S ..........25 TART STOP CHARACTERS 2.8.4............ 26 CCEPTED CHARACTERS D-Fly – Programming Guide v1.5 - 2 -... - Page 3 RANSMISSION 2.16.4. GS1 D ID T ........38 IMITED PPLICATION RANSMISSION APPENDIX 1: ASCII TABLE (A-Z, A-Z, 0-9, PUNCTUATION, CONTROL CHARACTERS) .............. 39 APPENDIX 2 – AIM SYMBOLOGY IDENTIFIERS STRUCTURE ..... 44 D-Fly – Programming Guide v1.5 - 3 -...
-
Page 4: Revision History
Add : paragraphs 1.2.3 ‘Turn OFF’ ; add feature Buzzer ON/OFF (par. 1.6) ; Modify paragraph 1.8 ; add 2.8.7 “Italian Pharmacode settings” ; Add 2.14.8 “ISSN/ISBN settings” ; Add 2.15 “GS1 Databar 14 settings ; Add 2.16 “GS1 Databar Limited settings D-Fly – Programming Guide v1.5 - 4 -... -
Page 5: Introduction
Workforce in Motion Introduction The D-Fly barcode scanner can be programmed by scanning barcode labels which contain commands for the 1D decoder. Programming labels must be Code128, with specific starting and ending characters. These labels will always be read, even if Code128 symbology is disabled. -
Page 6: General Configuration
1.1. General default settings The reading of the "Reset to factory settings” label turns all the parameters of the scanner back to default settings and switches it off Reset to factory settings D-Fly – Programming Guide v1.5 - 6 -... -
Page 7: Baracoda Advanced Features
When connected timer = 20 minutes Not connected timer = 10 minutes Set shutdown timers to defaults 1.2.3. Turn scanner OFF Supported from version v1.46. To turn off the scanner, read the following barcode: Turn off scanner D-Fly – Programming Guide v1.5 - 7 -... -
Page 8: No Data Loss Mode And Baracoda Header
1.2.4. No data loss mode and Baracoda Header Baracoda header: It is a proprietary data encapsulation. It is necessary to activate it to use the Baracoda keyboard emulation (Kemul) and Terminal. The Baracoda header is enabled in default settings No data loss mode: Baracoda has developed a proprietary communication protocol in order to enhance the security of the Bluetooth transmission. - Page 9 « no duplicate scans » enabled + no decoding If the same barcode is trying to be scanned, it won’t be. The laser beam will still be enlightening. D-Fly – Programming Guide v1.5 - 9 -...
-
Page 10: Operating Mode
Forces the scanner in Real Time mode (with data acknowledgement); Erases all captured data stored in memory. The scanner should have been previously set in the “No data loss mode” ON (So scan the “Enable Real Time with No Data Loss mode” barcode before). Enable ACK beep D-Fly – Programming Guide v1.5 - 10 -... -
Page 11: No Data Loss Mode - Disable "Ack" Beep
\ VT \ VT Z \ NUL \ ST X\ NUL \ SOH\ F F \ F F The configuration of the Host Bluetooth address (BDA) is made by scanning the 0-9, a-f, A-F labels (Appendix 1) as on a calculator; following the timestamp format shown above. D-Fly – Programming Guide v1.5 - 11 -... -
Page 12: Buzzer And Led Settings
Buzzer and Led Settings You can use these options to enable or disable the buzzer and / or the Led. LED ON (*) LED OFF Good read beep on (*) Good read beep off D-Fly – Programming Guide v1.5 - 12 -... - Page 13 Data Capture for Workforce in Motion ACK beep on (*) ACK beep off Beep level volume = HIGH (*) Beep level Volume = LOW BUZZER ON (*) BUZZER OFF D-Fly – Programming Guide v1.5 - 13 -...
-
Page 14: Bluetooth Settings
1.7.1. Bluetooth name You can change the scanner Bluetooth name; name that you see during a search of Bluetooth peripheral. Programming procedure for “Set Bluetooth Name” Set BT Name End of config D-Fly – Programming Guide v1.5 - 14 -... -
Page 15: Sniff Period Settings
Change the Sniff period. If the higher is the latency and the smaller is the power consumption. Default value is 150ms. Sniff period = 150ms (*) Sniff period = 100ms Sniff period = 200ms Sniff period = 300ms Sniff period = 500ms D-Fly – Programming Guide v1.5 - 15 -... -
Page 16: Security (Code Pin) Settings
Motion 1.7.3. Security (code PIN) settings Some Bluetooth device will not accept connections with devices that do not have a security code. Disable BT security code Enable BT security code (*) D-Fly – Programming Guide v1.5 - 16 -... -
Page 17: Data Format
You can add a barcode prefix and/or suffix (strings of more than 32 characters will not be accepted) to every barcode sent to the host device. There is no barcode prefix or suffix in default settings. Enable barcode prefix Disable barcode prefix (*) Enable barcode suffix Disable barcode suffix (*) D-Fly – Programming Guide v1.5 - 17 -... -
Page 18: Aim Symbology Identifier
AIM Identifier will be transmitted at the beginning of the barcode. More information about the AIM Identifier is available in Appendix2. AIM Symbology identifier - not transmitted (*) AIM Symbology identifier - transmitted D-Fly – Programming Guide v1.5 - 18 -... -
Page 19: Decoder Parameters
Enable all symbologies (*) 2.3. Set decoder barcode length You can set a fixed length for the barcode decoding. The scanner will only decode barcodes of this length, regardless the barcode symbology decoded. D-Fly – Programming Guide v1.5 - 19 -... -
Page 20: Voting
Standard voting set is two (2). This means that a barcode is considered read by the decoder if the same data is decoded twice. Changing this parameter will enable a stronger security on the decoding of the barcode. Voting = 2 (*) Voting = 3 Voting = 4 D-Fly – Programming Guide v1.5 - 20 -... -
Page 21: Min/Max Length Per Symbology
Start – set min length Start – Set Max length End of config D-Fly – Programming Guide v1.5 - 21 -... -
Page 22: Symbology Table
Standard 2 of 5 (industrial 2 of 5) Code 11 Only the variable length symbologies appear. 2.6. Codabar settings 2.6.1. Enable/Disable Codabar To enable or disable Codabar, scan the appropriate barcode below. Disable Enable (*) D-Fly – Programming Guide v1.5 - 22 -... -
Page 23: Codabar Start/Stop Characters
Not transmitted (*) Transmitted 2.6.3. Codabar Check Digit Verification (AIM recommendation) Not used (*) Checked and transmitted Checked but not transmitted 2.6.4. Set Lengths for Codabar Any length Barcode length Min=6 (*) D-Fly – Programming Guide v1.5 - 23 -... -
Page 24: Code 11 Settings
2.7.4. Set Length for Code 11 This features check the length of the barcode. Code 11 - barcode length - any length Code 11 – barcode length – Min = 6 (*) D-Fly – Programming Guide v1.5 - 24 -... -
Page 25: Code 39 Settings
\ V T \ V T \ F N C 4 ~ \ N U L \ E O T E D \ S O H I \ F F \ F F D-Fly – Programming Guide v1.5 - 25 -... -
Page 26: Accepted Code 39 Characters
Code 39 - check digit - modulo 43 - checked but not transmitted 2.8.6. Set lengths for Code 39 Code 39 - barcode length - any length (*) Code 39 - barcode length - minimum length = 6 D-Fly – Programming Guide v1.5 - 26 -... -
Page 27: Italian Pharmacode Settings
Code 93 - not active Code 93 – active (*) 2.9.2. Set Lengths for Code 93 Code 93 - barcode length - any length Code 93 - barcode length - minimum length = 6 D-Fly – Programming Guide v1.5 - 27 -... -
Page 28: 2.10. Code 128 Settings
To enable or disable Code 128/EAN 128, scan the appropriate barcode below. Disable Enable (*) 2.10.2. Set lengths for Code 128/EAN 128 Code 128/EAN 128 - barcode length - any length (*) Code 128/EAN 128 - barcode length - minimum length = 6 D-Fly – Programming Guide v1.5 - 28 -... -
Page 29: Ean 128: Group Separator
There is also the possibility to replace this character by any other of the user’s choice: Define GS replacement character End of configuration The most common request to replace ‘GS’ by the | (pipe) can be done through the scan of: Define | as GS D-Fly – Programming Guide v1.5 - 29 -... -
Page 30: Enable /Disable Aim Id T
Interleaved 2 of 5 - check digit - not used (*) Interleaved 2 of 5 - check digit - mod 10 - checked and transmitted Interleaved 2 of 5 - check digit - mod 10 - checked but not transmitted D-Fly – Programming Guide v1.5 - 30 -... -
Page 31: Set Lengths For Interleaved
MSI Code - check digit - mod 10 - checked but not transmitted MSI Code - check digit - double mod 10 - checked and transmitted MSI Code - check digit - double mod 10 - checked but not transmitted D-Fly – Programming Guide v1.5 - 31 -... -
Page 32: Set Lengths For 2.13. Standard 2 Of 5 Settings
Standard 2 of 5 - check digit mod 10 - not used (*) Standard 2 of 5 - check digit mod 10 - checked and transmitted Standard 2 of 5 - check digit mod 10 - checked but not transmitted D-Fly – Programming Guide v1.5 - 32 -... -
Page 33: Set Lengths For Standard
UPC / EAN - active (*) UPC / EAN - not active UPC / EAN - UPC-A and EAN 13 deactivated UPC / EAN - UPC-E deactivated UPC / EAN - EAN-8 deactivated D-Fly – Programming Guide v1.5 - 33 -... -
Page 34: Transmit Ean13 Check
UPC / EAN - check digit - EAN-8 - not transmitted 2.14.5. Transmit UPC-A Check Digit UPC / EAN - UPC number system - UPC-A - transmitted (*) UPC / EAN - UPC number system - UPC-A - not transmitted D-Fly – Programming Guide v1.5 - 34 -... -
Page 35: Transmit Upc Number System For 2.14.7. Upc-A, Upc-E, Ean
UPC / EAN - re-encoding UPC-A, UPC-E, EAN-8 - UPC-E transmitted as UPC-A UPC / EAN - re-encoding UPC-A, UPC-E, EAN-8 - EAN-8 transmitted as EAN 8 (*) UPC / EAN - re-encoding UPC-A, UPC-E, EAN-8 - EAN-8 transmitted as EAN-13 D-Fly – Programming Guide v1.5 - 35 -... -
Page 36: Issn/Isbn Settings
UPC / EAN – Add Add-on digits – not required but transmitted if read not required but transmitted if read (*) UPC / EAN UPC / EAN – Add-on digits – required and transmitted D-Fly – Programming Guide v1.5 - 36 -... -
Page 37: Ettings
GS1 DataBar 14 Application ID Transmission GS1 DataBar 14 – Application ID - transmitted (*) \ VT\ VT\ FNC4~\ NUL\ EOTND\ SO Hk\ FF\ FF GS1 DataBar 14 - Application ID - not transmitted D-Fly – Programming Guide v1.5 - 37 -... -
Page 38: Imited Settings
GS1 DataBar Limited Application ID Transmission GS1 DataBar Limited – Application ID - transmitted (*) GS1 DataBar Limited - Application ID - not transmitted \ VT\ VT\ FNC4~\ NUL\ EOTO D\ SO Hl \ FF\ FF D-Fly – Programming Guide v1.5 - 38 -... -
Page 39: Appendix 1: Ascii Table (A-Z, A-Z, 0-9, Punctuation, Control Characters)
Data Capture for Workforce in Motion 3. APPENDIX 1: ASCII Table (A-Z, a-z, 0- 9, punctuation, Control characters) Capital letters (A-Z): Name Programming label Name Programming label D-Fly – Programming Guide v1.5 - 39 -... - Page 40 Data Capture for Workforce in Motion Small letters (a-z): Name Programming label Name Programming label D-Fly – Programming Guide v1.5 - 40 -...
- Page 41 Data Capture for Workforce in Motion Ponctuation: Name Programming label Name Programming label < Space " > & D-Fly – Programming Guide v1.5 - 41 -...
- Page 42 Data Capture for Workforce in Motion Decimal numbers (0-9): Name Programming label D-Fly – Programming Guide v1.5 - 42 -...
- Page 43 Data Capture for Workforce in Motion Control Characters: Name Programming label D-Fly – Programming Guide v1.5 - 43 -...
- Page 44 Full ASCII followed by double density numeric Code 128 Option Values Standard Function code 1 in first character position Function code 2 in second character position Concatenation according to ISBT specification has been performed, and concatenated data follows. D-Fly – Programming Guide v1.5 - 44 -...
