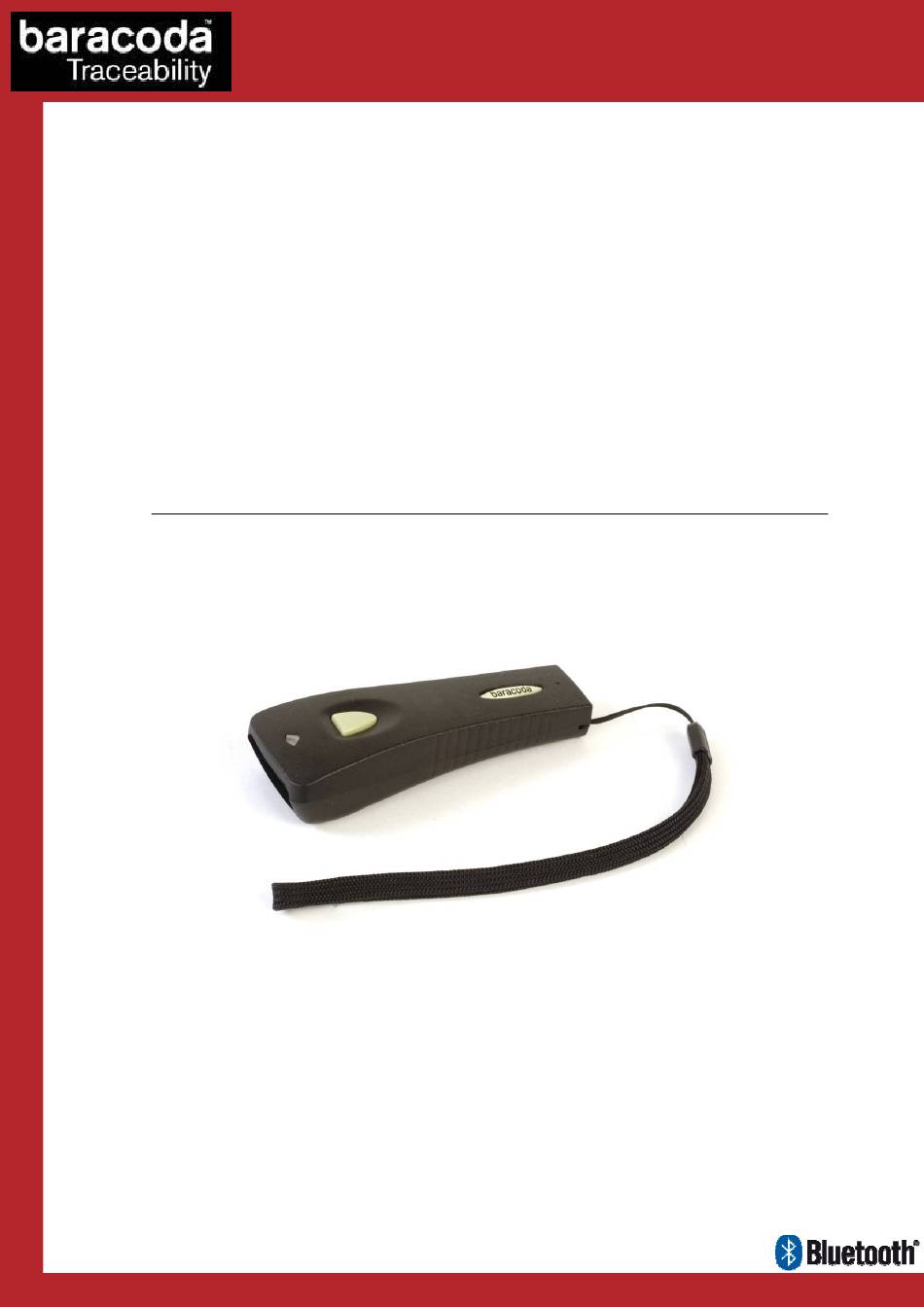

- Page 1 Data Capture for Workforce in Motion D-Fly & D-Fly2 User Guide ©Baracoda – Nov. 2011...
-
Page 2: Table Of Contents
HE DIFFERENT CONNECTION METHODS 4.4. HE DIFFERENT READING MODES 4.4.1. RIGGER MODE DEFAULT SETTING 4.4.2. IMING MODE STATUS DISPLAY SUMMARY THE DIFFERENT WAYS TO CONNECT D-FLY/D-FLY2 TO A HOST 6.1.1. &S OR USERS OMPLETE CAN HARDWARE SOLUTIONS 6.1.2. : LXE ‘E ’, P ‘... -
Page 3: Revision History
Paragraph 5 : add GUI for batch mode Rename ‘Psion Teklogix’ to ‘Psion’ 22 Sept 11 Add D-Fly2 model + Battery recharge temperature range 24 Nov 11 Add note on Safety/Regulatory about FCC Baracoda D-Fly & D-Fly2– User Guide v2.4 - 3 -... -
Page 4: Introduction
Introduction The D-Fly or D-Fly2 are easy to use. Just press the trigger button in order to switch on the scanner and simply press it again to scan a barcode. The colours of the LED and the frequency of the flashing LED indicate the status of the device. -
Page 5: Stylus
A full recharge (from completely drained batteries) takes approximately 1 hour. Make sure that the temperature is from 0°C to 35°C to recharge the battery When the original batteries wear out, please contact your Baracoda reseller for replacements. Switching on the reader Remember to fully charge the battery before first use. -
Page 6: Quick Start Up Guide
In order to switch on the scanner, please press the trigger button. Proper scanning position Position the scanner so the light beam fully overlaps and crosses the bar code. The scanner will emit a beep when the scan is successful. Baracoda D-Fly & D-Fly2– User Guide v2.4 - 6 -... -
Page 7: The Different Usage Modes
The scanner can be configured to automatically reconnect with the BaracodaManager software. Another connectivity parameters exists: Master mode (the scanner will create the connection to the Host). Baracoda D-Fly & D-Fly2– User Guide v2.4 - 7 -... -
Page 8: The Different Connection Methods
The configuration of Host address (on which the scanner will set up a connection to) can be done: Via BaracodaManager software (v3.35 min). Via scan of barcodes. All usage modes (Real Time, No Data Loss, Batch) are obviously available. Baracoda D-Fly & D-Fly2– User Guide v2.4 - 8 -... -
Page 9: The Different Reading Modes
Workforce in Motion 4.4. The different reading modes D-Fly/D-Fly2 has two (2) reading modes. These modes can be changed through both the BaracodaManager software and the Programming Guide. 4.4.1. Trigger mode (default setting) Simply press the trigger when you want to scan a barcode. -
Page 10: Status Display Summary
Data Capture for Workforce in Motion Status Display Summary The D-Fly/D-Fly2 has a LED to indicate all of the functions described below. Operating Mode Status Description Orange/green Flash In Charge Green Full Charge completed Battery Flash Battery Low One single long Flash... -
Page 11: The Different Ways To Connect D-Fly/D-Fly2 To A Host
For users: Complete Plug&Scan hardware solutions The easiest way to connect a Baracoda scanner with a host computer is to use the Baracoda Plug and Scan Bluetooth dongles. Baracoda offers the RS232 Plug&Scan Bluetooth serial dongle or the USB Plug&Scan Bluetooth dongle to get connected to a host computer. -
Page 12: For Users: Software Solutions
For developers: Baracoda Software Development Kit (SDK) The Baracoda SDKs are created for developers who want to integrate the barcode collection functions into their own program code, thus enabling end-users to run a single software program. This eliminates the need to run the Baracoda Manager software in addition to a third party application. - Page 13 Data Capture for Workforce in Motion Baracoda D-Fly & D-Fly2– User Guide v2.4 - 13 -...
-
Page 14: Configuring Your Scanner
The Security is enabling by default: default PIN code is 0000. 7.3. Symbology You can enable/disable any type of barcode decoders with both the BaracodaManager software or with the Programming Guide. Baracoda D-Fly & D-Fly2– User Guide v2.4 - 14 -... -
Page 15: Data Format
(*) : timestamp feature is implemented on D-Fly2 which has for P/N value “B401202xx” ; from firmware v1.54 7.4.1. Baracoda Header It is a proprietary data encapsulation. It is necessary to activate the Baracoda header in 2 cases: to use the Baracoda keyboard emulation (Kemul) and Terminal. •... -
Page 16: Barcode Identifier
Guide. 7.6. Power management Mutliple parameters exist to optimize the battery autonomy (“Sniff period”, “Shutdown timer”, etc…) D-Fly/D-Fly2 works at 10 dBm (Bluetooth Class.2). The BaracodaManager software can be used for multiple setting changes. 7.7. Low battery An alternation of red and green blinking on the LED indicates that the battery level is low. Recharge battery immediately. -
Page 17: Safety / Regulatory
Modification statement: The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Baracoda Wireless Technology, may void the user’s authority to operate the equipment. Wireless notice This product emits radio frequency energy, but the radiated output power of this device is far below the FCC radio frequency exposure limits. - Page 18 This equipment is intended to be commercialised in all the countries of the European Union and there is no commercialisation or operational restrictions in any of the countries. Hereby, Baracoda Wireless Technology declares that this Bluetooth barcode scanner is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
-
Page 19: Limited Warranty
User Guide or other misuse or abuse of the product. The warranty does not cover problems linked to batteries. Baracoda D-Fly & D-Fly2– User Guide v2.4 - 19 -...
