HANTZ + PARTNER
The Upgrade Company! www.hantz.com

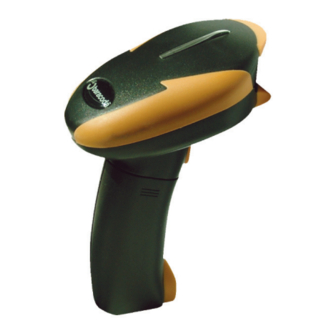

BCM 2604
This document is to be used with BCM 2604 L or BCM 2604 F
BCM 2604
User Guide
Package contents
Check that you have the following items.
Contact your reseller if any item is missing.
•
1 barcode scanner (BCM 2604 L or BCM 2604 F).
•
1 Cradle
•
1 CD Rom with documentation and software
•
1 AC charger
•
2 Batteries
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Baracoda BCM 2604
Summary of Contents for Baracoda BCM 2604
- Page 1 HANTZ + PARTNER The Upgrade Company! www.hantz.com User Guide BCM 2604 This document is to be used with BCM 2604 L or BCM 2604 F BCM 2604 Package contents Check that you have the following items. Contact your reseller if any item is missing.
-
Page 2: Table Of Contents
......................5 5.3.3 Baracoda Header ......................6 5.3.4 Barcode Identifier Beeps and LEDs ........................ 6 Other functions......................... 7 Power management......................7 Sniff period ........................7 Low battery........................7 Security ..........................7 Safety / Regulatory........................8 © Baracoda 2003 Page 1/8... -
Page 3: Introduction
2 Installing / replacing batteries Only use Baracoda approved rechargeable batteries. The use of any other batteries may damage the scanner and void the warranty. Please remove the batteries when you are storing the scanner for more than 30 days. -
Page 4: Quick Start Up Guide
1- Make sure that your host device (PC or PDA) is bluetooth enabled. If not, please contact your reseller. 2- Install the BaracodaManager. (update can be downloaded from http://www.baracoda.com/download. ) Make sure that your Bluetooth software is compatible with BaracodaManager. -
Page 5: Status Display Summary
The scanner is ready to be connected Double Blinks (e.g. **pause**pause**…) The scanner is connected Triple Blinks (e.g. ***pause***pause***…) Batteries are empty Beep Codes Single beep Connection created Double beep Disconnection Triple beep Shut down when batteries are empty © Baracoda 2003 Page 4/8... -
Page 6: Configuring Your Scanner
You can configure prefix/suffix through both BaracodaManager and programming guide. There is no prefix/suffix in default settings 5.3.3 Baracoda Header It is a proprietary data encapsulation. It is necessary to activate the Baracoda header in 2 cases: • to use the Baracoda keyboard emulation (Kemul) and Hyper terminal •... -
Page 7: Beeps And Leds
The barcode identifier is disabled in default settings 5.4 Beeps and LEDs You can customize types of Beeps / LED Lightening using both BaracodaManager and programming guide. Default settings are shown in Status Display Summary section of this guide. © Baracoda 2003 Page 6/8... -
Page 8: Power Management
When the scanner is fully charged, the LED will become a solid green. A full recharge (from completely drained batteries) takes approximately 5 hours. When the original batteries wear out, please contact your Baracoda reseller for replacements. 6.4 Security The Bluetooth connection is secured with a PIN code authentication. -
Page 9: Safety / Regulatory
User Guide or other misuse or abuse of the product. The warranty does not cover problems linked to batteries. © Baracoda 2003 Page 8/8 HANTZ + PARTNER...
