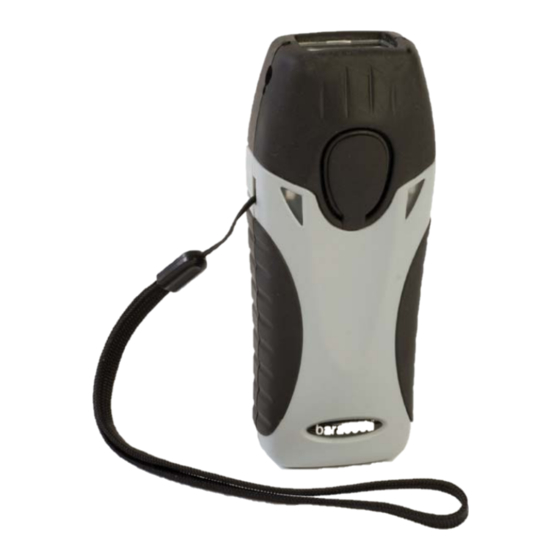

Roadrunners portable barcode scanner
Hide thumbs Also See for BRR-L:
Table of Contents

Advertisement

Quick Links

Nextel
RoadRunners Scanner
(BRR-L)
by Baracoda
Programming Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRR-L and is the answer not in the manual?

Questions and answers

Related Manuals for Baracoda BRR-L

Summary of Contents for Baracoda BRR-L

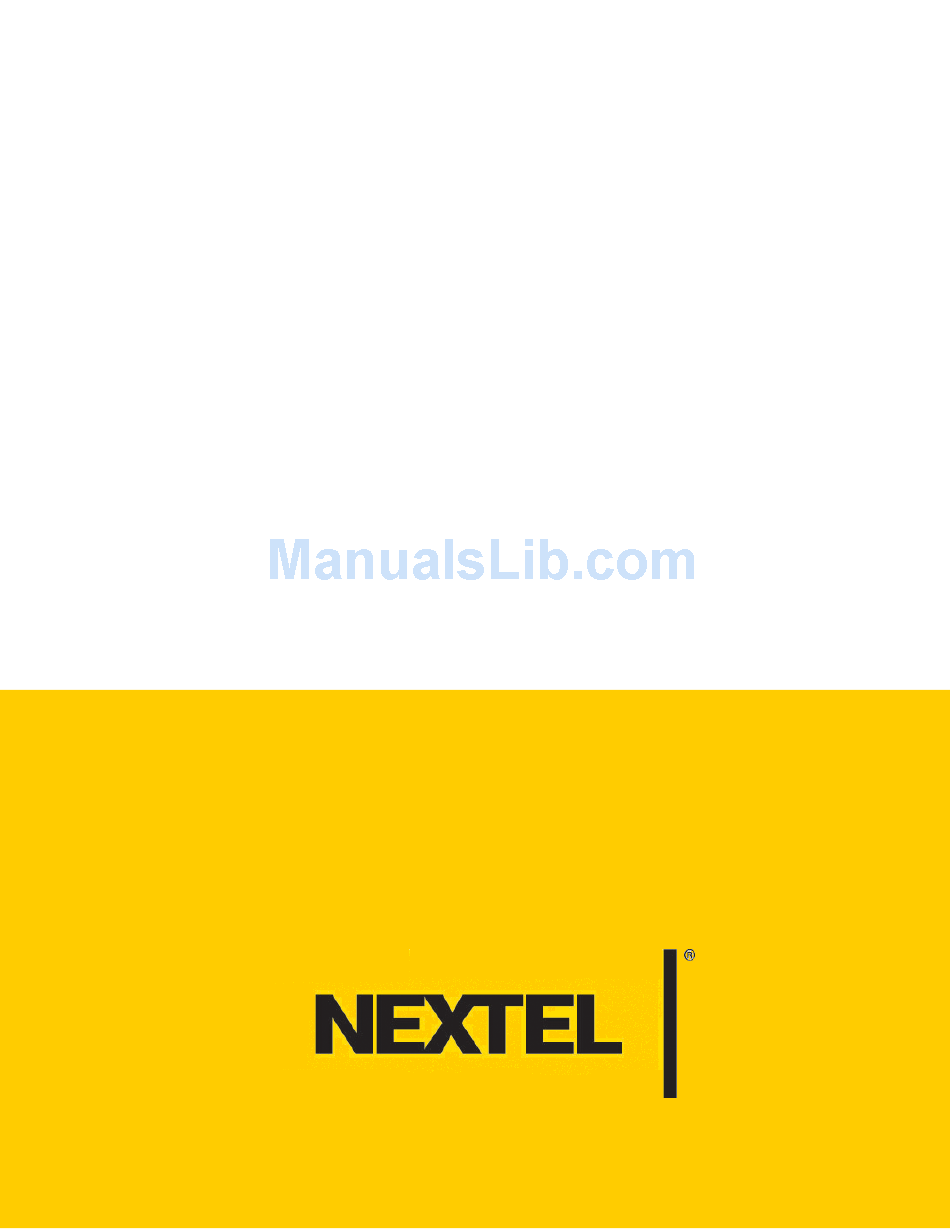

  • Page 1 Nextel RoadRunners Scanner (BRR-L) by Baracoda Programming Guide...

  • Page 3: Table Of Contents

    Nextel RoadRunners Scanner (BRR-L) Programming Guide Contents 1 Introduction...1 2 General Configuration...2 2.1 Reset Default Settings: ...2 2.2 Erase All Barcodes in Memory ...2 2.3 Advanced Features...2 Switch-on Delay...2 No Data Loss Mode ...3 Timestamp Option ...3 2.4 Reading Mode ...5 2.5 Usage Modes...5...

  • Page 5: Introduction

    1 Introduction This manual contains the necessary barcodes to configure the parameters of your scanner. You can either print out this document to scan its barcodes or in some cases you can even scan the barcodes right off your computer screen.

  • Page 6: General Configuration

    Nextel RoadRunners Scanner Programming Guide 2 General Configuration 2.1 Reset Default Settings: Reading the "Default settings” label resets all scanner parameters to the default factory settings and switches it off. CAUTION: SCANNING THIS BARCODE WILL RESET THE DEFAULT SETTINGS OF THE SCANNER AND MAY RESULT IN THE LOSS OF STORED DATA.

  • Page 7: No Data Loss Mode

    Switch on delay: 2 seconds s wi t ch on del ay : 2 s ecs \ V T \ V T z \ N U L \ S O H \ E T X \ F F \ F F No Data Loss Mode Baracoda has developed a proprietary communication protocol for enhanced Bluetooth Every barcode sent to the handset must be acknowledged by the handset (i.e.
  • Page 8 Nextel RoadRunners Scanner Programming Guide Programming procedure for “Set Timestamp” option Set Timestamp Set Ti m es t am p \ V T \ V T \ F N C 4 t \ N U L \ N U L \ L F \ L F Note: The timestamp must comply with the following specific format: {YY} {MM} {DD} {HH} {MM} {SS} Setting the timestamp is accomplished by scanning the 0-9 labels (see Appendix 2), in accordance with the...

  • Page 9: Reading Mode

    For example, to set the current time at May 16, 2007 3.25 P.M., the user will scan the following sequence: - “Set Timestamp” label, - “0” label, {YY} : 2007 - “7” label, - “0” label, {MM} : May - “5” label, - “1”...

  • Page 10: Batch Mode

    Nextel RoadRunners Scanner Programming Guide An important reminder: if an acknowledgement (ACK) beep or storage of codes in memory is needed, the scanner must first be set to “No data loss mode” (see section 2.3). CAUTION: SCANNING ANY OF THE FOLLOWING THREE BARCODES WILL ERASE ALL CODES IN MEMORY.

  • Page 11: Beep And Led Settings

    . Places the scanner in Batch mode. Batch mode CAUTION: SCANNING THIS BARCODE ERASES ALL CODES IN MEMORY. bat c h \ V T \ V T d \ N U L \ S O H \ S O H \ F F \ F F 2.6 Beep and LED Settings These options can be used to enable or disable the beep and/or the LED.

  • Page 12: Bluetooth Commands

    Nextel RoadRunners Scanner Programming Guide Beep Level Volume = LOW beep l ev el : l ow \ V T \ V T \ F N C 4 \ D C 4 \ N U L \ S O H \ F N C 4 @\ F F \ F F ®...

  • Page 13: Security (Pin Code) Settings

    Security (PIN code) Settings The initial PIN code can be disabled or enabled by scanning the following barcodes: Disable BT security code Di sabl e BT Secur i t y M ode V T \ V T ^ \ N U L \ S T X ! Prefix and Suffix You may add a prefix and/or a suffix (strings of more than 32 characters will not be accepted) to every barcode...
  • Page 14 Nextel RoadRunners Scanner Programming Guide Programming procedure for “set suffix (prefix)” option. START Read "Set Suffix (prefix)" label Read intermediary label Corresponding to the next character to set for the suffix (appendix 2 of this document) Finished *? Read "END of config" label *= Max suffix (prefix) length is 32 characters Set Timestamp “END of Config”...

  • Page 15: Symbology Settings

    Nextel RoadRunners Scanner Programming Guide 3 Symbology Settings 3.1 Symbology Default Settings Sets the default decoder settings for all the symbologies. Set Decoder Default Settings Set Dec oder Def aul t s \ V T \ V T \ F N C 4 ~ \ N U L \ E T X A C \ N U L \ F F \ F F Symbology Identifier The AIM Identifier (e.g.

  • Page 16: Disable All Symbologies

    Nextel RoadRunners Scanner Programming Guide 3.3 Disable All Symbologies Even if all symbologies are disabled, the RoadRunners scanner will still be able to read the programming barcodes included in this document. CAUTION: CARE SHOULD BE USED WHEN DISABLING ALL BARCODES AS IT MAY MAKE THE UNIT APPEAR TO BE MALFUNCTIONING SINCE NO SYMBOLOGY IS BEING READ.

  • Page 17: Codabar Settings

    3.4 Codabar Settings Codabar - not active Di s abl e CODABAR \ V T \ V T \ F N C 4 ~ \ N U L \ E O T F D \ S O H B \ F F \ F F Codabar - start/stop - not transmitted (*) \ V T \ V T \ F N C 4 ~ \ N U L \ E O T F D \ S O H J \ F F \ F F Codabar - check digit (AIM recommendation) -...

  • Page 18: Code 11 Settings

    Nextel RoadRunners Scanner Programming Guide 3.5 Code 11 Settings Code 11 - not active (*) Di s abl e CODE11 \ V T \ V T \ F N C 4 ~ \ N U L \ E O T J D \ S O H B \ F F \ F F Code 11 - active Enabl e CODE11 \ V T \ V T \ F N C 4 ~ \ N U L \ E O T J D \ S O H A \ F F \ F F...

  • Page 19: Code 39 Settings

    3.6 Code 39 settings Code 39 - active (*) Enabl e CODE39 \ V T \ V T \ F N C 4 ~ \ N U L \ E O T E D \ S O H A \ F F \ F F Code 39 - not active Di s abl e CODE39 \ V T \ V T \ F N C 4 ~ \ N U L \ E O T E D \ S O H B \ F F \ F F...

  • Page 20: Code 128 Settings

    Nextel RoadRunners Scanner Programming Guide 3.7 Code 128 Settings Code 128 / EAN 128 - not active Di s abl e CODE128 \ V T \ V T \ F N C 4 ~ \ N U L \ E O T C D \ S O H B \ F F \ F F Code 128 / EAN 128 –...

  • Page 21: Interleaved 2 Of 5 Settings

    3.9 Interleaved 2 of 5 Settings Interleaved 2 of 5 - not active Di s abl e I NTERLEAVED 2 of 5 \ V T \ V T \ F N C 4 ~ \ N U L \ E O T G D \ S O H B \ F F \ F F Interleaved 2 of 5 –...

  • Page 22: Msi Code Settings

    Nextel RoadRunners Scanner Programming Guide 3.10 MSI Code Settings MSI Code - not active (*) Di s abl e M SI \ V T \ V T \ F N C 4 ~ \ N U L \ E O T K D \ S O H B \ F F \ F F MSI Code –...

  • Page 23: Standard 2 Of 5 Settings

    3.11 Standard 2 of 5 Settings Standard 2 of 5 - not active Di s abl e STANDARD 2 of 5 \ V T \ V T \ F N C 4 ~ \ N U L \ E O T H D \ S O H B \ F F \ F F Standard 2 of 5 –...

  • Page 24: Upc/ Ean Settings

    Nextel RoadRunners Scanner Programming Guide 3.12 UPC/ EAN Settings UPC / EAN - active (*) Enabl e EAN/ UPC \ V T \ V T \ F N C 4 ~ \ N U L \ E O T D D \ S O H f \ F F \ F F UPC / EAN - UPC-A and EAN 13 deactivated EAN13/ UPCA des ac t i v at ed \ V T \ V T \ F N C 4 ~ \ N U L \ E O T D D \ S O H B \ F F \ F F...
  • Page 25 UPC / EAN - check digit - UPC-E - transmitted (*) Enabl e UPCE c hec k di gi t t r ans m i s s i on \ V T \ V T \ F N C 4 ~ \ N U L \ E O T L D \ S O H G \ F F \ F F UPC / EAN - UPC number system - UPC-A - transmitted (*) Enabl e UPCA Num ber Sy s t em t r ans m i s s i on...

  • Page 26: Set Min Or Max Length Option

    Nextel RoadRunners Scanner Programming Guide 3.13 Set Min or Max Length Option The procedure to be followed for each barcode is shown below: START Read "Start - Set min (Max) length" label Read intermediary label from the table below to select the desired symbology to configure Read intermediary label Corresponding to the next digit of the min (Max) length value to apply (as on a calculator).
  • Page 27 \ V T \ V T \ F N C 4 ~ \ N U L \ S T X \ L F \ L F \ V T \ V T \ F N C 4 ~ \ N U L \ E T X \ L F \ L F Last updated: 10/14/05 Nextel RoadRunners Scanner Programming Guide s et m i n l engt h...

  • Page 28: Appendix 1: Symbology Table

    Nextel RoadRunners Scanner Programming Guide APPENDIX 1: Symbology Table Header Selected Symbology SELECT ALL Code 93 Code 128 / EAN 128 EAN 13 / UPC A Code 39 Codabar Header Interleaved 2 of 5 Standard 2 of 5 (Industrial 2 of 5) Code 11 UPC E EAN 8...

  • Page 29: Appendix 2: Ascii Table (A-Z, A-Z, 0-9, Punctuation, Control Characters)

    APPENDIX 2: ASCII Table (A-Z, a-z, 0-9, Punctuation, Control Characters) Upper Case Letters (A-Z): Name Programming Bar Code Last updated: 10/14/05 Nextel RoadRunners Scanner Programming Guide Name © Baracoda 2005 Programming Bar Code...
  • Page 30 Nextel RoadRunners Scanner Programming Guide Lower Case Letters (a-z): Name Programming Bar Code Name © Baracoda 2005 Programming Bar Code Last updated: 10/14/05...
  • Page 31 Punctuation: Name Programming Bar Code Space " & Last updated: 10/14/05 Nextel RoadRunners Scanner Programming Guide Name SPACE " " & & © Baracoda 2005 Programming Bar Code < < < > > > ~ ( t i l de)
  • Page 32 Nextel RoadRunners Scanner Programming Guide Decimal Numbers (0-9): Number Programming Bar Code Control Characters: Name Programming Bar Code Number Name © Baracoda 2005 Programming Bar Code Programming Bar Code Last updated: 10/14/05...

  • Page 33: Appendix 3

    APPENDIX 3 For more information, see Symbology Settings => Symbology Identifier. The Symbology Identifier prefix is a two or three character string: ] c m where ]: SI indicator c: Symbology Identification m: Modifier characters (optional) Symbology Character Code 39 Telepen Code 128 Code One...
