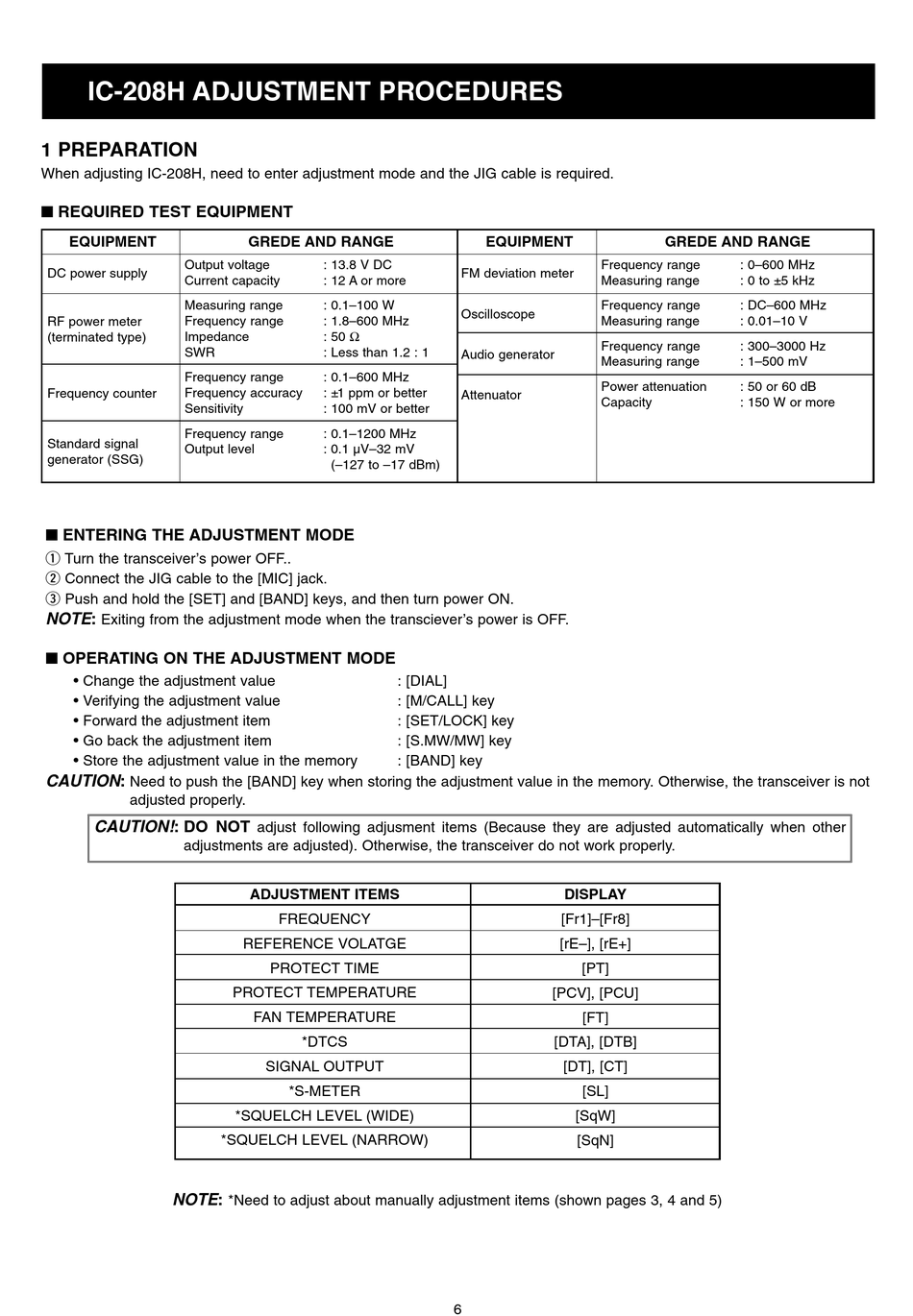

IC-208H ADJUSTMENT PROCEDURES
1 PREPARATION
When adjusting IC-208H, need to enter adjustment mode and the JIG cable is required.
I REQUIRED TEST EQUIPMENT
EQUIPMENT
Output voltage
DC power supply
Current capacity
Measuring range
RF power meter Frequency range
(terminated type) Impedance
SWR
Frequency range
Frequency accuracy
Frequency counter
Sensitivity
Frequency range
Standard signal
Output level
generator (SSG)
I ENTERING THE ADJUSTMENT MODE
q Turn the transceiver's power OFF..
w Connect the JIG cable to the [MIC] jack.
e Push and hold the [SET] and [BAND] keys, and then turn power ON.
NOTE:
Exiting from the adjustment mode when the transciever's power is OFF.
I OPERATING ON THE ADJUSTMENT MODE
• Change the adjustment value
• Verifying the adjustment value
• Forward the adjustment item
• Go back the adjustment item
• Store the adjustment value in the memory
CAUTION:
Need to push the [BAND] key when storing the adjustment value in the memory. Otherwise, the transceiver is not
adjusted properly.
CAUTION!: DO NOT
adjustments are adjusted). Otherwise, the transceiver do not work properly.
NOTE:
GREDE AND RANGE
: 13.8 V DC
: 12 A or more
: 0.1–100 W
: 1.8–600 MHz
: 50 Ω
: Less than 1.2 : 1
: 0.1–600 MHz
: ±1 ppm or better
: 100 mV or better
: 0.1–1200 MHz
: 0.1 µV–32 mV
(–127 to –17 dBm)
adjust following adjusment items (Because they are adjusted automatically when other
ADJUSTMENT ITEMS
FREQUENCY
REFERENCE VOLATGE
PROTECT TIME
PROTECT TEMPERATURE
FAN TEMPERATURE
*DTCS
SIGNAL OUTPUT
*S-METER
*SQUELCH LEVEL (WIDE)
*SQUELCH LEVEL (NARROW)
*Need to adjust about manually adjustment items (shown pages 3, 4 and 5)
EQUIPMENT
FM deviation meter
Oscilloscope
Audio generator
Attenuator
: [DIAL]
: [M/CALL] key
: [SET/LOCK] key
: [S.MW/MW] key
: [BAND] key
DISPLAY
[Fr1]–[Fr8]
[rE–], [rE+]
[PCV], [PCU]
[DTA], [DTB]
[DT], [CT]
6
GREDE AND RANGE
Frequency range : 0–600 MHz
Measuring range : 0 to ±5 kHz
Frequency range : DC–600 MHz
Measuring range : 0.01–10 V
Frequency range : 300–3000 Hz
Measuring range : 1–500 mV
Power attenuation : 50 or 60 dB
Capacity : 150 W or more
[PT]
[FT]
[SL]
[SqW]
[SqN]
