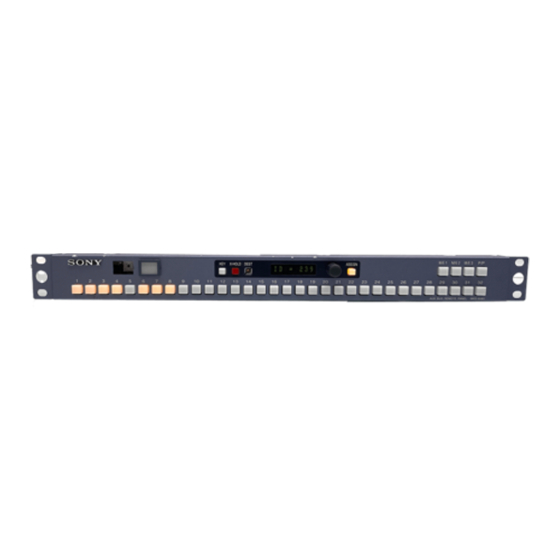

AUX BUS REMOTE PANEL
MKS-8080
MKS-8082
MAINTENANCE MANUAL
1st Edition (Revised 4)
Serial No. 10001 and Higher: MKS-8080
Serial No. 10001 and Higher: MKS-8082

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MKS-8080 and is the answer not in the manual?

Questions and answers

Related Manuals for Sony MKS-8080

Summary of Contents for Sony MKS-8080

  • Page 1 AUX BUS REMOTE PANEL MKS-8080 MKS-8082 MAINTENANCE MANUAL 1st Edition (Revised 4) Serial No. 10001 and Higher: MKS-8080 Serial No. 10001 and Higher: MKS-8082...
  • Page 2 Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres. Pour toute réparation faire appel à une personne compétente uniquement. MKS-8080/8082...
  • Page 3 Operation Manual. 6. When performing the installation, keep the rear of the unit 10 cm (4 inches) or more away from walls in order to obtain proper exhaust and radiation of heat. MKS-8080/8082 1 (P)

  • Page 5: Table Of Contents

    Notes on Repair Parts .................. 2-1 2-2. Exploded Views ..................2-2 2-3. Electrical Parts List ..................2-5 2-4. Supplied Accessories List ................. 2-33 2-5. Power Cords List ..................2-33 2-6. Optional Fixtures List ................2-33 3. Semiconductor Pin Assignments 1 (E) MKS-8080/8082...
  • Page 6 4. Overall Block Diagrams (including Frame Wiring) Overall (MKS-8080) ................... 4-1 Overall (MKS-8082) ................... 4-2 CPU-323 (MKS-8080/8082) ............... 4-3 5. Schematic Diagrams CPU-323 ...................... 5-2 CPU-449 ...................... 5-8 DP-356 ...................... 5-12 DP-357 ...................... 5-13 SW-1084 ....................5-15 SW-1091 ....................5-23 6.

  • Page 7: Manual Structure

    Manual Structure Purpose of this manual This manual is the maintenance manual of AUX Bus Remote Panel MKS-8080 and MKS-8082. This manual is intended for use by trained system and service engineers, and describes the information for maintenance and detailed service.

  • Page 8: Contents

    . Windows and MS-DOS are registered trademarks of Microsoft Corporation. . IBM and AT are registered trademarks of International Business Corporation. Other system names, product names, and company names appearing in this manual are trademarks or registered trademarks of their respective holders. 4 (E) MKS-8080/8082...

  • Page 9: Service Overview

    When installing the flexible card wire, put it with the blue Top plate band up. PSW 3x6 Portion A Blue band PSW 3x6 Wiring clip CPU box (The illustration indicates MKS-8082.) (The illustration indicates MKS-8082.) 1-1 (E) MKS-8080/8082...

  • Page 10: Removal Of Front Panel

    1-2. Main Parts Location 1-1-3. Removal of Front Panel 1. Remove the eight screws (B3 x 6). MKS-8080 2. Remove the four screws (PSW3 x 6), then remove the * * * * * S/N 10001 to 14219: CPU-323 board rack angles.

  • Page 11: Switching Regulator Replacement

    Do not disassemble the switching regulator. use specified component in this manual. 1. Remove the top plate. (Refer to Section 1-1-1.) The MKS-8080/8082 has a fuse and an IC link for circuit 2. Raise the wiring clip. protection. 3. Remove the flexible card wire from the connector A fuse and an IC link will blow when abnormality occurs (CN1).

  • Page 12: Software Update Of The Cpu-323 Board

    Required Program Files Every time the remote control unit receives the data, The program files will be supplied to Sony Sales Office/ the screen below is displayed. Service Center when the software is updated. Regarding these files, contact your local Sony Sales Office/Service >...

  • Page 13: Download Via S-Bus Data Link

    – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – SONY ROUTING SYSTEM SETUP MENU MKS–80xx...

  • Page 14: Flash Memory Replacement

    . RS-232C Cable 9-pin (female)-9-pin (female) cross cable Required Program Files The program files will be supplied to Sony Sales Office/ Service Center when the software is updated. Regarding these files, contact your local Sony Sales Office/Service Center.
  • Page 15 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – ROM starts. Welcome to Monitor 2011 (c)SONY ### Reprogram By Xmodem ### [?, h] : Help Finished..[280064] byte...
  • Page 16 Enter “v” on the screen and press the [Enter] key. The Filename: remctrl.gbf current version name is displayed. Protocol: XMODEM Packet#: 1231 R321x> v Sony S-BUS Control Unit Ver 3.27 Jan 19 2012 22:10:35 Bytes transferred: 157568 Elapsed 0:59 (2.66KB/s) BKS-R Series Major Version : 3.27 Minor Version : 001 41.8%...

  • Page 17: Download Via S-Bus Data Link

    . The unleaded solder melts at a temperature about 40 dC higher than the ordinary solder, therefore, it is recom- R321x> v mended to use the soldering iron having a temperature Sony S-BUS Control Unit Ver 3.27 Jan 19 2012 22:10:35 regulator. BKS-R Series .

  • Page 18: Writing/Rewriting The Pld Data

    1. Connect the PLD Download Tool to the parallel port of the personal computer. 2. Connect the cable (8-pin connector) coming from the PLD Download Tool to the following connectors on the target boards. Target board (Model Name) Ref. No. Project file No. SW-1091 board (MKS-8080) CN102 E_000_001_33_xx SW-1084 board (MKS-8082) CN110 E_000_001_34_xx No setup is required in each board.

  • Page 19: Spare Parts

    Therefore, specified parts should be used in the case of replacement. 2. Standardization of Parts Some repair parts supplied by Sony differ from those used for the unit. These are because of parts common- ality and improvement. Parts list has the present standardized repair parts.

  • Page 20: Exploded Views

    1-766-174-11 o CONNECTOR, SQUARE TYPE (D-SUB) 1-779-059-11 o PIN, CONNECTOR (PC BOARD) 9P 1-794-141-11 s INLET (WITH NOISE FILTER) 2-068-008-00 s WASHER 3-204-398-02 o CHASSIS (2ND) 3-204-404-04 o PLATE (2ND), TOP 7-682-548-04 s SCREW +B3X8 7-682-947-01 s SCREW +PSW 3X6 7-685-647-79 s SCREW +BVTP3X10 MKS-8080/8082...
  • Page 21 1-786-251-11 s SWITCH, TACTILE 1-786-252-11 s SWITCH, TACTILE 2-236-956-00 s SCREW,STEP 3-206-389-01 o BRACKET (3U), RACK MOUNT 3-565-714-00 o SHAFT,CHASSIS 7-624-200-01 s NUT, PUSH 1.5 7-682-547-04 s SCREW +B3X6 7-682-947-01 s SCREW +PSW 3X6 7-684-023-04 s NUT M3 TYPE2 MKS-8080/8082...
  • Page 22 Front Panel (MKS-8080) TO/FROM CPU BOX PSW 3x6 B 3x6 N1.5, PUSH FROM CPU BOX PSW 3x6 B 3x6 Part No. SP Description A-8344-328-A s MOUNTED CIRCUIT BOARD, SW-1091 A-8344-393-A s PANEL SUB ASSY, FRONT X-3167-051-1 s KNOB ASSY,VOLUME 1-473-469-11 s ENCODER, ROTARY...

  • Page 23: Electrical Parts List

    2-3. Electrical Parts List ---------------------------------------- CPU-323 BOARD ;Suffix -12 ;MKS-8080/8082 (CPU-323 BOARD ;Suffix -12 ;MKS-8080/8082) ---------------------------------------- Ref. No. Ref. No. or Q'ty Part No. SP Description or Q'ty Part No. SP Description 2pcs 1-533-189-11 s HOLDER, FUSE C310 1-126-392-11 s CAPACITOR,CHIP ELECT100MF/6.3V...
  • Page 24 (CPU-323 BOARD ;Suffix -12 ;MKS-8080/8082) (CPU-323 BOARD ;Suffix -12 ;MKS-8080/8082) Ref. No. Ref. No. or Q'ty Part No. SP Description or Q'ty Part No. SP Description IC36 8-759-252-59 s IC MAX202CSE R233 1-216-065-91 s RESISTOR,CHIP 4.7K 1/10W(2012) IC37 8-759-396-99 s IC MAX489CSD-TE2 R234 1-216-065-91 s RESISTOR,CHIP 4.7K 1/10W(2012)
  • Page 25 ---------------------------------------- CPU-323 BOARD ;Suffix -13 ;MKS-8080/8082 (CPU-323 BOARD ;Suffix -13 ;MKS-8080/8082) ---------------------------------------- Ref. No. Ref. No. or Q'ty Part No. SP Description or Q'ty Part No. SP Description 2pcs 1-533-189-11 s HOLDER, FUSE C314 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF 4pcs...
  • Page 26 (CPU-323 BOARD ;Suffix -13 ;MKS-8080/8082) (CPU-323 BOARD ;Suffix -13 ;MKS-8080/8082) Ref. No. Ref. No. or Q'ty Part No. SP Description or Q'ty Part No. SP Description IS13 1-540-151-11 s SOCKET, IC R237 1-218-835-11 s RESISTOR,CHIP 330 1/10W (1608) R238 1-218-835-11 s RESISTOR,CHIP 330 1/10W (1608) L301 1-419-630-11 s COIL, CHOKE 4.7UH...
  • Page 27 --------------------------------------------- CPU-323 BOARD ;Suffix -14, -15 ;MKS-8080/8082 (CPU-323 BOARD ;Suffix -14, -15 ;MKS-8080/8082) --------------------------------------------- Ref. No. Ref. No. or Q'ty Part No. SP Description or Q'ty Part No. SP Description 2pcs 1-533-189-11 s HOLDER, FUSE C314 1-107-826-91 s CAP, CHIP CERAMIC 0.1MF B...
  • Page 28 (CPU-323 BOARD ;Suffix -14, -15 ;MKS-8080/8082) (CPU-323 BOARD ;Suffix -14, -15 ;MKS-8080/8082) Ref. No. Ref. No. or Q'ty Part No. SP Description or Q'ty Part No. SP Description IS13 1-540-151-21 s SOCKET, IC R237 1-218-835-91 s RES, CHIP 330 (1608)
  • Page 29 ----------------------------- CPU-449M BOARD ;MKS-8080/8082 (CPU-449M BOARD ;MKS-8080/8082) ----------------------------- Ref. No. Ref. No. or Q’ty Part No. SP Description or Q’ty Part No. SP Description A-1842-452-A s MOUNTED CIRCUIT BOARD, CPU-449M C213 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 2pcs 7-682-547-04 s SCREW +B 3X6 C214 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005...
  • Page 30 (CPU-449M BOARD ;MKS-8080/8082) (CPU-449M BOARD ;MKS-8080/8082) Ref. No. Ref. No. or Q’ty Part No. SP Description or Q’ty Part No. SP Description 8-719-056-48 s DI 1SS388 IC13 6-718-691-01 s IC EPCS16SI8N(AMK)-MKS-V311 D101 6-502-197-01 s DI SML-D12M8WT86SM IC15 6-706-487-01 s IC TC7SH08FU...
  • Page 31 (CPU-449M BOARD ;MKS-8080/8082) (CPU-449M BOARD ;MKS-8080/8082) Ref. No. Ref. No. or Q’ty Part No. SP Description or Q’ty Part No. SP Description 1-218-818-91 s RES,SQUARE TYPE CHIP 220(4532) R305 1-218-855-91 s RES, CHIP 2.2K (1608) 1-208-903-81 s RES, CHIP 4.7K (1005)
  • Page 32 8-759-523-94 s IC TC74VHC32FT(EL) IC120 8-759-523-94 s IC TC74VHC32FT(EL) IC121 8-759-523-94 s IC TC74VHC32FT(EL) IC121 8-759-523-94 s IC TC74VHC32FT(EL) IC122 8-759-523-94 s IC TC74VHC32FT(EL) IC122 8-759-523-94 s IC TC74VHC32FT(EL) IC123 8-759-523-94 s IC TC74VHC32FT(EL) IC123 8-759-523-94 s IC TC74VHC32FT(EL) 2-14 MKS-8080/8082...
  • Page 33 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP) C408 1-163-038-00 s CAPACITOR, CERAMIC 0.1MF/25V C501 1-163-038-00 s CAPACITOR, CERAMIC 0.1MF/25V C502 1-163-038-00 s CAPACITOR, CERAMIC 0.1MF/25V C503 1-163-038-00 s CAPACITOR, CERAMIC 0.1MF/25V C504 1-163-038-00 s CAPACITOR, CERAMIC 0.1MF/25V C505 1-163-038-00 s CAPACITOR, CERAMIC 0.1MF/25V 2-15 MKS-8080/8082...
  • Page 34 8-759-524-07 s IC TC74VHC138FT(EL) Q216 8-729-048-50 s TRANSISTOR 2SK3018-T106 IC104 8-759-661-33 o IC ISPLSI2032E-DP319 Q217 8-729-048-50 s TRANSISTOR 2SK3018-T106 IC105 8-759-277-63 s IC TC7W14FU (TE12R) Q218 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q219 8-729-048-50 s TRANSISTOR 2SK3018-T106 IC106 8-759-524-07 s IC TC74VHC138FT(EL) 2-16 MKS-8080/8082...
  • Page 35 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q439 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q313 8-729-029-10 s TRANSISTOR DTC143TUA-T106 Q440 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q314 8-729-029-10 s TRANSISTOR DTC143TUA-T106 Q441 8-729-029-10 s TRANSISTOR DTC143TUA-T106 Q315 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q442 8-729-029-10 s TRANSISTOR DTC143TUA-T106 2-17 MKS-8080/8082...
  • Page 36 8-729-029-10 s TRANSISTOR DTC143TUA-T106 R212 1-216-645-11 s RESISTOR,CHIP 560 1/10W(2012) Q534 8-729-029-10 s TRANSISTOR DTC143TUA-T106 R213 1-216-609-11 s RESISTOR,CHIP 18 1/10W (2012) Q535 8-729-029-10 s TRANSISTOR DTC143TUA-T106 R214 1-216-609-11 s RESISTOR,CHIP 18 1/10W (2012) Q536 8-729-029-10 s TRANSISTOR DTC143TUA-T106 2-18 MKS-8080/8082...
  • Page 37 1-216-644-11 s RESISTOR,CHIP 510 1/10W (2012) R408 1-216-645-11 s RESISTOR,CHIP 560 1/10W(2012) R272 1-216-645-11 s RESISTOR,CHIP 560 1/10W(2012) R409 1-216-627-11 s RESISTOR,CHIP 100 1/10W (2012) R273 1-216-644-11 s RESISTOR,CHIP 510 1/10W (2012) R410 1-216-645-11 s RESISTOR,CHIP 560 1/10W(2012) 2-19 MKS-8080/8082...
  • Page 38 1-216-627-11 s RESISTOR,CHIP 100 1/10W (2012) R546 1-216-644-11 s RESISTOR,CHIP 510 1/10W (2012) R468 1-216-645-11 s RESISTOR,CHIP 560 1/10W(2012) R547 1-216-645-11 s RESISTOR,CHIP 560 1/10W(2012) R469 1-216-627-11 s RESISTOR,CHIP 100 1/10W (2012) R548 1-216-620-11 s RESISTOR CHIP 51 1/10W (2012) 2-20 MKS-8080/8082...
  • Page 39 S513 1-786-251-11 s SWITCH, TACTILE RB104 1-236-908-11 s RESISTOR,NETWORK 10K (3216) S514 1-786-251-11 s SWITCH, TACTILE RB105 1-236-908-11 s RESISTOR,NETWORK 10K (3216) S515 1-786-251-11 s SWITCH, TACTILE RB106 1-236-908-11 s RESISTOR,NETWORK 10K (3216) S516 1-786-251-11 s SWITCH, TACTILE 2-21 MKS-8080/8082...
  • Page 40 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP) C405 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C406 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C407 1-126-396-11 s CAPACITOR,ELECT 47MF/16V(CHIP) C408 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C501 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF C502 1-107-826-11 s CAPACITOR,CHIP CERAMIC 0.1MF 2-22 MKS-8080/8082...
  • Page 41 1-475-218-11 s ENCODER, ROTARY (SWITCH) Q213 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q214 8-729-048-50 s TRANSISTOR 2SK3018-T106 IC101 8-759-524-08 s IC TC74VHC139FT(EL) IC102 8-759-524-07 s IC TC74VHC138FT(EL) Q215 8-729-048-50 s TRANSISTOR 2SK3018-T106 IC103 8-759-524-07 s IC TC74VHC138FT(EL) Q216 8-729-048-50 s TRANSISTOR 2SK3018-T106 2-23 MKS-8080/8082...
  • Page 42 8-729-029-10 s TRANSISTOR DTC143TUA-T106 Q436 8-729-029-10 s TRANSISTOR DTC143TUA-T106 Q310 8-729-029-10 s TRANSISTOR DTC143TUA-T106 Q437 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q311 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q438 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q312 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q439 8-729-048-50 s TRANSISTOR 2SK3018-T106 2-24 MKS-8080/8082...
  • Page 43 Q530 8-729-048-50 s TRANSISTOR 2SK3018-T106 R110 1-216-864-11 s CONDUCTOR, CHIP (1608) Q531 8-729-048-50 s TRANSISTOR 2SK3018-T106 Q532 8-729-029-10 s TRANSISTOR DTC143TUA-T106 R111 1-216-864-11 s CONDUCTOR, CHIP (1608) Q533 8-729-029-10 s TRANSISTOR DTC143TUA-T106 R112 1-216-864-11 s CONDUCTOR, CHIP (1608) 2-25 MKS-8080/8082...
  • Page 44 1-218-823-11 s RESISTOR,CHIP 100 1/10W (1608) R336 1-218-823-11 s RESISTOR,CHIP 100 1/10W (1608) R258 1-218-823-11 s RESISTOR,CHIP 100 1/10W (1608) R337 1-218-841-11 s RESISTOR,CHIP 560 1/10W (1608) R259 1-218-823-11 s RESISTOR,CHIP 100 1/10W (1608) R338 1-211-986-11 s RESISTOR,CHIP 51 1/10W (1608) 2-26 MKS-8080/8082...
  • Page 45 1-218-840-11 s RESISTOR,CHIP 510 1/10W (1608) R532 1-211-986-11 s RESISTOR,CHIP 51 1/10W (1608) R454 1-218-840-11 s RESISTOR,CHIP 510 1/10W (1608) R533 1-218-840-11 s RESISTOR,CHIP 510 1/10W (1608) R455 1-211-975-11 s RESISTOR,CHIP 18 1/10W (1608) R534 1-218-841-11 s RESISTOR,CHIP 560 1/10W (1608) 2-27 MKS-8080/8082...
  • Page 46 1-786-251-12 s SWITCH, TACTILE R611 1-218-841-11 s RESISTOR,CHIP 560 1/10W (1608) S502 1-786-251-12 s SWITCH, TACTILE R612 1-218-841-11 s RESISTOR,CHIP 560 1/10W (1608) S503 1-786-251-12 s SWITCH, TACTILE R613 1-218-823-11 s RESISTOR,CHIP 100 1/10W (1608) S504 1-786-251-12 s SWITCH, TACTILE 2-28 MKS-8080/8082...
  • Page 47 ----------------------------------- (SW-1084 BOARD ;Suffix -12 ;MKS-8082) SW-1091 BOARD ;Suffix -11 ;MKS-8080 ----------------------------------- Ref. No. Ref. No. or Q'ty Part No. SP Description or Q’ty Part No. SP Description S505 1-786-251-12 s SWITCH, TACTILE A-8344-328-A s MOUNTED CIRCUIT BOARD, SW-1091 S506...
  • Page 48 (SW-1091 BOARD ;Suffix -11 ;MKS-8080) (SW-1091 BOARD ;Suffix -11 ;MKS-8080) Ref. No. Ref. No. or Q’ty Part No. SP Description or Q’ty Part No. SP Description D604 8-719-036-60 s LED L501B-SRG-P Q602 8-729-027-50 s TRANSISTOR DTC123JKA-T146 Q603 8-729-027-50 s TRANSISTOR DTC123JKA-T146...
  • Page 49 ----------------------------------- (SW-1091 BOARD ;Suffix -11 ;MKS-8080) SW-1091 BOARD ;Suffix -12 ;MKS-8080 ----------------------------------- Ref. No. Ref. No. or Q’ty Part No. SP Description or Q'ty Part No. SP Description RB109 1-236-908-11 s RESISTOR,NETWORK 10K (3216) A-8344-328-A s MOUNTED CIRCUIT BOARD, SW-1091...
  • Page 50 (SW-1091 BOARD ;Suffix -12 ;MKS-8080) (SW-1091 BOARD ;Suffix -12 ;MKS-8080) Ref. No. Ref. No. or Q'ty Part No. SP Description or Q'ty Part No. SP Description D407 8-719-801-78 s DIODE 1SS184 Q415 8-729-027-50 s TRANSISTOR DTC123JKA-T146 D408 8-719-801-78 s DIODE 1SS184...

  • Page 51: Supplied Accessories List

    2-4. Supplied Accessories List ---------------------------------------- (SW-1091 BOARD ;Suffix -12 ;MKS-8080) PACKING MATERIALS & SUPPLIED ACCESSORIES ---------------------------------------- Ref. No. Ref. No. or Q'ty Part No. SP Description or Q'ty Part No. SP Description R501 1-218-823-11 s RESISTOR,CHIP 100 1/10W (1608) 1-779-713-11 o CONNECTOR, COAXIAL...
  • Page 53 In addition, for semiconductors with ID Nos., refer to the separate CD-ROM titled “Semiconductor Pin Assignments” (Sony Part No. 9-968-546-xx) that allows searching for parts by semiconductor type or ID No. The semiconductors in the manual or on the CD-ROM are listed by equivalent types.
  • Page 54 TC74VHCT574AFT(EL) ..........TC74HC574P TC7SET04FU(TE85R) ............TC7S04F TC7W14FU(TE12R) ............. TC7W14FU TC7WH14FK(TE85R) ........... TC7W14FU TL5001CD ................TL5001 TL5001CDR ................. TL5001 TL712CPS ................ TL712CP TL712CPSR ..............TL712CP TL7705CPS-B ..............TL7705CP TL7705CPS-B-E20 ............TL7705CP UPC29M33T-E1 ............L78M05T-FA UPD434008ALE-15 ..........UPD434008LE-20 UPD444008LE-12-A ........... UPD434008LE-20 MKS-8080/8082...
  • Page 55 Overall Overall MKS-8080 MKS-8080 Section 4 Overall Block Diagrams (including Frame Wiring) CP301 CN301 SWITCHING REGULATOR IC301 IC101 DC/DC AC 100 to 240V IC302 EN301 EEPROM IC202 IC106 3.3V ROTARY DC/DC CN101 FLIP FLOP REMOTE 1 ENCODER SBUS (S-BUS) TRANS...
  • Page 56 Refer to page 4-3 for CPU-323 block diagram. DECOD7 DECOD2 MKS-8082 DECOD5 DECOD3 11207 and Higher Refer to page 4-2 for CPU-449 block diagram. DECOD6 DECOD4 DECODERS CN107 CN103 IC100, IC101 IC102, IC119-IC123 IC103-IC118 DATA DISPLAY SELECTOR SD410 SD260 SD420 SD270 SW-1084 Overall MKS-8082 MKS-8080/8082...
  • Page 57 CPU-323 CPU-323 MKS-8080/8082 MKS-8080/8082 CP301 CN301 SWITCHING IC301 CONTROL,Q301-Q304,D301 REGULATOR DC-DC CN302 NM CONVERTER AC 100 to 240V FFC 36PIN MONO IC13 DTRO MULTI REMOTE 1 RTSH (S-BUS) TXDH CONT 512 k-byte RXDH REMOTE 2 IC37 IC18 (RS422) CN3 D-SUB 9PIN...
  • Page 59 Section 5 Schematic Diagrams Index Board Function Model Page CPU-323 System Control Board MKS-8080 MKS-8082 CPU-449 System Control Board MKS-8080 MKS-8082 DP-356 Display Board MKS-8082 5-12 DP-357 Display Board MKS-8082 5-13 SW-1084 Switch Board MKS-8082 5-15 SW-1091 Switch Board MKS-8080...
  • Page 60 TC74VHC123AF(EL) C20 ELECT 10uF/16V→CERAMIC 10uF IC17 IC14 (4/5) TC74VHC4040F(EL) IC14 (5/5) C48 22uF/16V→22uF/6.3V TC74VHC08F(EL) 20MHz TC74VHC08F(EL) IC16 (3/7) XOUT C53, C54 TC74VHC04F(EL) IC16 (7/7) 0.1uF 10pF 0.1uF 10uF/16V→22uF/6.3V TC74VHC04F(EL) R91 8.2k→1k CPU-323 (1/3) BOARD NO. 1-678-829-12, 13 MKS-8080 MKS-8082 MKS-8080/8082...
  • Page 61 2SC2412K-T-146-QR 2SC2412K-T-146-QR DATA DATA RB205 C211 0.1uF C206 0.1uF R243 RS232CTX T1IN T1OUT RS232CRTS T2IN T2OUT RS232CRX R1OUT R1IN RS232CCTS R2OUT R2IN (EMC) C207 C208 0.1uF 0.1uF IC36 CPU-323 (2/3) MAX202CSE-T C212 BOARD NO. 1-678-829-12, 13 0.1uF MKS-8080 MKS-8082 MKS-8080/8082...
  • Page 62 C311 220uF/6.3V→82uF/6.3V Q304 Q303 C309 C312 100uF/16V→150uF/16V SI4410DY-T1-REVA 2SA1611T1-M5M6 0.1uF C313 ELECT 4.7uF/35V→CERAMIC 4.7uF L301, L302 10uH→4.7uH L303 15uH→42uH R310 2.2k→22k IC301 TL5001CDR C308 R310 0.1uF R311 100k R309 220k C313 4.7uF CPU-323 (3/3) BOARD NO. 1-678-829-12, 13 MKS-8080 MKS-8082 MKS-8080/8082...
  • Page 63 19 BFSIO RESET 0.1uF BF510 C40 0.1uF IC16 (6/7) TC74VHC04F(EL) RS422RXD RS422TXD 0.1uF RS422OE IC16 (3/7) TC74VHC04F(EL) IC16 (7/7) TC74VHC04F(EL) (3/3) TC74VHC123AF(EL) IC14 (4/5) IC14 (5/5) TC74VHC08F(EL) TC74VHC08F(EL) IC17 TC74VHC4040F(EL) 0.1uF 0.1uF CPU-323 (1/3) BOARD NO. 1-678-829-14, 15 MKS-8080 MKS-8082 MKS-8080/8082...
  • Page 64 2SC2412K-T-146-QR %RD1 DATA DATA RB205 C211 0.1uF C206 0.1uF R243 RS232CTX T1IN T1OUT RS232CRTS T2IN T2OUT RS232CRX R1OUT R1IN RS232CCTS R2OUT R2IN (EMC) C207 C208 0.1uF 0.1uF IC36 MAX202CSE-T C212 0.1uF CPU-323 (2/3) BOARD NO. 1-678-829-14, 15 MKS-8080 MKS-8082 MKS-8080/8082...
  • Page 65 C312 R308 C306 150uF 0.1uF R302 R306 4.7k R304 R307 1.8k R305 2.2k Q304 Q303 C309 SI4410DY-T1-REVA 2SA1611T1-M5M6 0.1uF IC301 TL5001CDR C308 R310 0.1uF 2.2k C313 R311 4.7uF 100k R309 220k CPU-323 (3/3) BOARD NO. 1-678-829-14, 15 MKS-8080 MKS-8082 MKS-8080/8082...
  • Page 66 IO/DIFFIO_L1p IO/DIFFIO_T24n TC7SA34FU(T5RSONYF) PWRDOWN 0.1uF IO/DIFFIO_T14p/PADD10 IO/DIFFIO_T18n 2SA1774TL-QR OUT- C111 C115 IO/DIFFIO_T19p/PADD2 IO/DIFFIO_T24p 0.1uF C112 0.1uF IO/DIFFIO_T17p/PADD4 IO:1 R120 CN102 0.1uF IO/DIFFIO_T21p IO/DIFFIO_T18p 0.022uF TL712CPSR CPU-449 (1/4) 100k IO/DIFFIO_T12n/PADD13 IO:5 IO/DIFFIO_T23n IO/DIFFIO_T20p/PADD0 R121 BOARD NO. 1-885-245-11 CPU-449_1 SERIAL IF MKS-8080/8082...
  • Page 67 RB15 4.7k 0.1uF IC36 MAX3222IPWR FB25 001-K7 3V_RS232CTX DIN1 DOUT1 FB26 +3.3V 001-K7 3V_RS232CRTS DIN2 DOUT2 FB27 001-K7 3V_RS232CRX ROUT1 RIN1 FB28 001-K7 3V_RS232CCTS ROUT2 RIN2 0.1uF 0.1uF (EMC) 0.1uF +3.3V PWRDOWN CPU-449 (2/4) 0.1uF BOARD NO. 1-885-245-11 CPU-449_2 MKS-8080/8082...
  • Page 68 150uF R302 R306 0.1uF 4.7k R304 R307 1.8k R305 2.2k Q304 C309 Q303 SI4410BDY-T1 0.1uF 2SA1611T1-M5M6 IC301 CPU-449 (3/4) TL5001CDR 4 6 5 C308 R310 0.1uF 2.2k BOARD NO. 1-885-245-11 C313 R311 4.7uF 100k CPU-449_3 R309 220k 5-10 5-10 MKS-8080/8082...
  • Page 69 R212 SBEn[0] SBEn[1] IO/DIFFIO_B4n OP_SRAM_BEn[0] R218 IO/DIFFIO_T2p SBEn[1] IO/DIFFIO_B8p OP_SRAM_BEn[1] IO/DIFFIO_T4n/DATA9 +2.5V 50mA IO/DIFFIO_B9p IC204 IC201 R1LV1616RBG-5SI IO/DIFFIO_T4p IO:14 R1114Q251D-TR-FA IO:15 R219 R220 +3.3V VOUT IO:17 C223 C209 IO:18 0.47uF IO:19 CPU-449 (4/4) BOARD NO. 1-885-245-11 CPU-449_4 5-11 5-11 MKS-8080/8082...
  • Page 70 IC114 IC115 IC116 IC117 IC118 SLY2016 SLG2016 SLY2016 SLG2016 SLY2016 SLG2016 SLY2016 SLG2016 C111 C114 C115 C116 C117 C118 C119 C120 10uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF C113 0.1uF DP-356 BOARD NO. 1-683-607-11, 12 MKS-8082 5-12 5-12 MKS-8080/8082...
  • Page 71 DP-357 DP-357 SUFFIX: -11, 12 SUFFIX: -11, 12 C102 10uF C101 0.1uF PRSET1 PRSET2 CN101 DISP-BUS DP69 DP69 DP70 DP70 CN102 IC101 IC102 SLG2016 SLG2016 C103 C104 0.1uF 0.1uF ADDRESS/DATA-BUS DP-357 BOARD NO. 1-683-607-11, 12 MKS-8082 5-13 5-13 MKS-8080/8082...
  • Page 73 C121 CN107 TC74VHC32FT(EL) 0.1uF SD360 IC105 (4/4) TC7W14FU(TE12R) IC109 TC74VHC138FT(EL) IC112 (4/5) TC74VHC32FT(EL) IC113 (4/4) TC7W14FU(TE12R) C118 0.1uF DP69 IC110 DP70 SD410 IC113 (3/4) TC74VHC138FT(EL) SD420 TC7W14FU(TE12R) C120 SD410 0.1uF SD420 SW-1084 (1/6) BOARD NO. 1-683-609-11 MKS-8082 5-15 5-15 MKS-8080/8082...
  • Page 75 14 14 A1 A1 SD420 SD420 Y1 Y1 13 13 A2 A2 Y2 Y2 12 12 Y3 Y3 11 11 G1 G1 Y4 Y4 10 10 Y5 Y5 Y6 Y6 SW-1084 (1/6) Y7 Y7 BOARD NO. 1-683-609-12 MKS-8082 5-17 5-17 MKS-8080/8082...
  • Page 76 SWG5 SWR5 SWHL5 SWG13 SWR13 SWHL13 SWG6 SWR6 SWHL6 SWG14 SWR14 SWHL14 SWG7 SWR7 SWHL7 SWG15 SWR15 SWHL15 SWG8 SWR8 SWHL8 SWG16 SWR16 SWHL16 SD10 SD20 SD30 SD40 SD50 SD60 SW-1084 (2/6) BOARD NO. 1-683-609-11, 12 MKS-8082 5-18 5-18 MKS-8080/8082...
  • Page 77 0.1uF 0.1uF IC302 (3/3) (4/4) IC301 IC302 (2/3) TC74VHC74FT(EL) TC74VHC74FT(EL) TC7WH14FK(TE85R) C301 C302 0.1uF 0.1uF MARK CHANGED INFORMATION SUFFIX NO. IC301 Suffix 12 and Higher TC7W14FU(TE12R)→TC7WH14FK(TE85R) IC303, IC304, IC305 TC74VHC574FT(EL)→TC74VHCT574AFT(EL) SW-1084 (3/6) BOARD NO. 1-683-609-11, 12 MKS-8082 5-19 5-19 MKS-8080/8082...
  • Page 78 SWG21 SWR21 SWHL21 SWG29 SWR29 SWHL29 SWG22 SWR22 SWHL22 SWG30 SWR30 SWHL30 SWG23 SWR23 SWHL23 SWG31 SWR31 SWHL31 SWG24 SWR24 SWHL24 SWG32 SWR32 SWHL32 SD70 SD80 SD90 SD100 SD110 SD120 SW-1084 (4/6) BOARD NO. 1-683-609-11, 12 MKS-8082 5-20 5-20 MKS-8080/8082...
  • Page 79 DESTG5 DESTR5 DESTHL5 DESTG13 DESTR13 DESTHL13 DESTG6 DESTR6 DESTHL6 DESTG14 DESTR14 DESTHL14 DESTG7 DESTR7 DESTHL7 DESTG15 DESTR15 DESTHL15 DESTG8 DESTR8 DESTHL8 DESTG16 DESTR16 DESTHL16 SD310 SD330 SD340 SD350 SD320 SD360 SW-1084 (5/6) BOARD NO. 1-683-609-11, 12 MKS-8082 5-21 5-21 MKS-8080/8082...
  • Page 80 MEG1 MER1 MEHL1 MEG2 MER2 MEHL2 MEG3 MER3 MEHL3 BRIGHT-NESS PPG1 PPR1 PPHL1 001,002,003,004,005 MARK CHANGED INFORMATION SUFFIX NO. SD280 SD290 SD300 IC601, IC602, IC603 Suffix 12 and Higher TC74VHC574FT(EL)→TC74VHCT574AFT(EL) SW-1084 (6/6) BOARD NO. 1-683-609-11, 12 MKS-8082 5-22 5-22 MKS-8080/8082...
  • Page 81 RB102 D100 1S2837-T1 IC102 (2/4) TC7W14FU(TE12R) R100 IC102 (1/4) C108 47uF TC7W14FU(TE12R) IC103 IC104 SLG2016 SLG2016 C109 0.1uF C112 C110 C111 47uF 0.1uF 0.1uF SW-1091 (1/6) IC102 (4/4) BOARD NO. 1-684-388-11 PRESET L PRESET R TC7W14FU(TE12R) MKS-8080 5-23 5-23 MKS-8080/8082...
  • Page 83 IC104 SLG2016 SLG2016 IC106 (2/2) TC7SET04FU(TE85R) C109 C114 C113 0.1uF 0.1uF 0.1uF IC102 C112 C110 C111 TC7WH14FK(TE85R) 47uF 0.1uF 0.1uF (3/4) SW-1091 (1/6) IC102 (4/4) BOARD NO. 1-684-388-12 IC107 (2/2) PRESET L PRESET R TC7SET04FU(TE85R) TC7WH14FK(TE85R) MKS-8080 5-25 5-25 MKS-8080/8082...
  • Page 84 SWG2 SWG10 SWG3 SWG11 SWG4 SWG12 SWG5 SWG13 SWG6 SWG14 SWG7 SWG15 SWG8 SWG16 SD10 MARK CHANGED INFORMATION SUFFIX NO. SD40 IC203, IC206 Suffix 12 and Higher TC74VHC574FT(EL)→TC74VHCT574AFT(EL) SW-1091 (2/6) BOARD NO. 1-684-388-11, 12 MKS-8080 SW_BRITE 001,003,004,005,006 5-26 5-26 MKS-8080/8082...
  • Page 85 ∗1 IC301 (2/4) IC301 (3/4) R301 TC7WH14FK(TE85R) TC7WH14FK(TE85R) C303 C305 C306 C307 0.1uF 0.1uF 0.1uF 0.1uF IC302 (2/3) TC74VHC74FT(EL) ∗1 IC302 (3/3) (4/4) IC301 TC74VHC74FT(EL) TC7WH14FK(TE85R) C301 C302 0.1uF 0.1uF SW-1091 (3/6) BOARD NO. 1-684-388-11, 12 MKS-8080 5-27 5-27 MKS-8080/8082...
  • Page 86 SWG18 SWG26 SWG19 SWG27 SWG20 SWG28 SWG21 SWG29 SWG22 SWG30 SWG23 SWG31 SWG24 SWG32 MARK CHANGED INFORMATION SUFFIX NO. SD70 SD100 IC401, IC402 Suffix 12 and Higher TC74VHC574FT(EL)→TC74VHCT574AFT(EL) SW-1091 (4/6) BOARD NO. 1-684-388-11, 12 MKS-8080 SW_BRITE 001,002,003,005,006 5-28 5-28 MKS-8080/8082...
  • Page 87 001,002,003,004,005 MEG3 PPG1 MARK CHANGED INFORMATION SUFFIX NO. IC501 Suffix 12 and Higher TC74VHC574FT(EL)→TC74VHCT574AFT(EL) ∗1 SD280 IC501 001,002,003,004,006 TC74VHCT574AFT(EL) SD-BUS SD-BUS SW_BRITE 001,002,003,004,006 SW-1091 (5/6) SW-1091 (6/6) BOARD NO. 1-684-388-11, 12 BOARD NO. 1-684-388-11, 12 MKS-8080 MKS-8080 5-29 5-29 MKS-8080/8082...
  • Page 89 Section 6 Board Layouts Index Board Function Model Page CPU-323 System Control Board MKS-8080 MKS-8082 CPU-449 System Control Board MKS-8080 MKS-8082 DP-356 Display Board MKS-8082 DP-357 Display Board MKS-8082 SW-1084 Switch Board MKS-8082 SW-1091 Switch Board MKS-8080 6-12 MKS-8080/8082...
  • Page 90 R307 C305 IC301 R308 C306 R309 C307 L301 R310 C308 L302 R311 C309 L303 R312 C310 R313 C311 C312 C313 C314 RB205 RB206 Q301 Q302 CPU-323 -B SIDE- Q303 CN301 Q304 S201 SUFFIX: -12 CN302 CP301 D301 D302 D303 MKS-8080/8082...
  • Page 91 IC38 R307 C306 IC301 R308 C307 R309 C308 L301 R310 C309 L302 R311 C310 L303 R312 C311 R313 C312 C313 C314 RB205 RB206 Q301 Q302 CN301 Q303 CPU-323 -B SIDE- CN302 Q304 S201 SUFFIX: -13 CP301 D301 D302 D303 MKS-8080/8082...
  • Page 92 C305 IC301 R308 C306 R309 C307 L301 R310 C308 L302 R311 C309 L303 R312 C310 R313 C311 C312 C313 C314 RB205 RB206 Q301 Q302 Q303 CN301 Q304 S201 CPU-323 -B SIDE- CN302 SUFFIX: -14, 15 CP301 D301 D302 D303 MKS-8080/8082...
  • Page 93 CPU-449 FB21 C228 -B SIDE- FB22 C229 C230 FB23 SUFFIX: -11 C231 FB24 FB25 C232 FB26 C233 C234 FB27 FB28 C235 FB32 C236 C237 FB33 C238 FB34 FB35 C239 FB36 C240 C241 FB201 FB202 C242 FB203 C243 C244 C245 MKS-8080/8082...
  • Page 95 IC112 IC113 IC114 IC115 IC116 IC117 IC118 IC119 IC120 IC121 IC122 ————————————————————————— IC123 DP-357 (1-683-608-11, 12) ————————————————————————— :B SIDE C101 C102 C103 C104 CN101 CN102 DP-357 DP-357 -A SIDE- -B SIDE- IC101 IC102 SUFFIX: -11, 12 SUFFIX: -11, 12 MKS-8080/8082...
  • Page 96 R420 R531 S212 D302 Q220 Q416 Q542 R252 R421 R532 S213 D303 Q221 Q417 Q543 R253 R422 R533 S214 D304 Q222 Q418 Q544 R254 R423 R534 S215 D305 Q223 Q419 Q545 R255 R424 R535 S216 D306 Q224 Q420 Q546 MKS-8080/8082...
  • Page 97 IC106 IC107 IC108 IC109 IC116 RB103 CN105 CN106 CN107 S401 S402 S403 S404 S405 S406 S407 S408 S409 S410 S411 S412 S413 S414 S415 S416 S601 S602 S603 S604 SW-1084 -A SIDE- SUFFIX: -11 SW-1084 -B SIDE- SUFFIX: -11 MKS-8080/8082...
  • Page 98 R515 RB106 D206 Q215 Q411 Q537 R236 R405 R516 RB107 D207 Q216 Q412 Q538 R237 R406 R517 RB108 D208 Q217 Q413 Q539 R238 R407 R518 D301 Q218 Q414 Q540 R239 R408 R519 S201 D302 Q219 Q415 Q541 6-10 6-10 MKS-8080/8082...
  • Page 99 SW-1084 SW-1084 SW-1084 -A SIDE- SUFFIX: -12 SW-1084 -B SIDE- SUFFIX: -12 6-11 6-11 MKS-8080/8082...
  • Page 100 RB102 S408 IC105 Q406 R279 RB103 S409 D100 IC203 Q407 R301 RB104 S410 D101 IC206 Q408 R302 RB105 S411 D201 IC301 Q409 R303 RB106 S412 D202 IC302 Q410 R304 RB107 S413 D203 IC303 Q411 R305 RB108 S414 6-12 6-12 MKS-8080/8082...
  • Page 101 R107 R411 S209 C501 Q301 R108 R412 S210 C503 IC101 Q302 R109 R413 S211 C601 IC102 Q303 R110 R414 S212 IC103 Q401 R202 R415 S213 CN101 IC104 Q402 R219 R416 S214 CN102 IC105 Q403 R220 R501 S215 6-13 6-13 MKS-8080/8082...
  • Page 103 20 V AC range are suitable. (See Fig. A) To Exposed Metal Parts on Set 0.15 µ F 1.5 k Z voltmeter (5.25V) Earth Ground Fig A. Using an AC voltmeter to check AC leakage. MKS-8080/8082...
  • Page 104 MKS-8080 (SY) Printed in Japan Sony Corporation MKS-8082 (SY) J, E 2012. 3 08 9-967-970-05 ©2001...
