Diodes: 1,2,3,4,5,7,8,9 are instaled
Diode: 6 is not instaled
My version is with Tone 1750Hz, European i think, RX 30kHz-200MHz, TX in amateur bands only, the serial number if needed
is: 02101 buyed in 18.06.97 as new in Poland.
Sorry for my bugs.
Can You type me what diodes ? I think 1 and 3.
Rafa´ SP6-1313WR, Klub SP6KBE :) Kontakt: jarel@box43.gnet.pl
Info on the diodes from another European user:
d129
---- (d111 none)
d112
d113
d114
d d
1 1
1 1
6 5

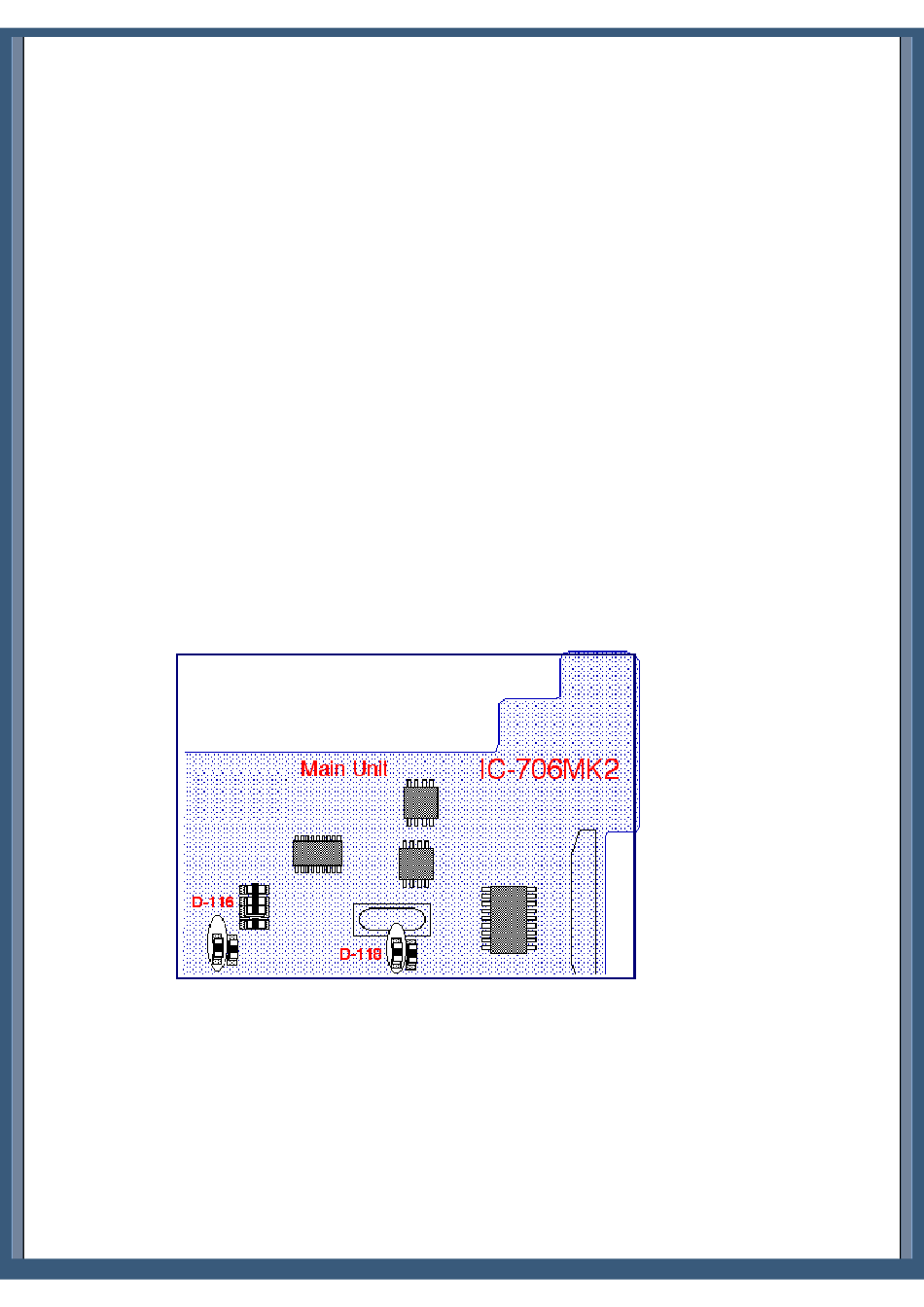

D116 and D118 are responsible for out of band TX. D115 and D119 enables RX from 30KHz to 200MHz. D113 is responsible for
6M RX and D114 is responsible for 6M TX. I do not have info about D129 and D112.
Rafa3 SP6-1313WR, Klub SP6KBE :) Kontakt: jarel@box43.gnet.pl
http://www.kb2ljj.com/data/icom/ic-706-MKII.htm (3 di 30)23/08/2009 23.05.07
1[] [] 2
O O
CP3
<__]
d d
1 1
1 1
8 9
B4916F 8[] []9
O O
