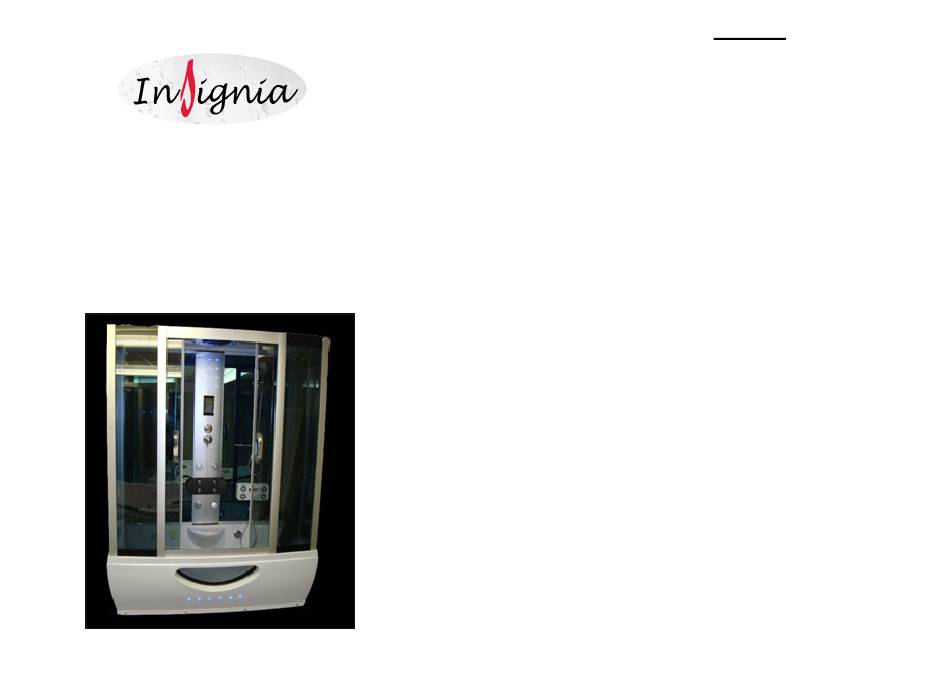

Model: PO1057
PO1058
(with/without whirlpool)
Assembly & Fitting Instructions
For the latest fitting instructions please visit www.insigniarange.co.uk
1650x850x2280
1450x850x2280
Contents
Introduction
Staring the Installation
Connecting The Shower Accessories 27
Water Connections
Electric Connections
Product Testing
Frequently asked Questions
For the latest fitting instructions please visit www.insigniarange.co.uk
3
5
6
7
15
28
30
31
38
39
40
43
44
Advertisement
Related Manuals for Insignia PO1057
Summary of Contents for Insignia PO1057
-
Page 1: Table Of Contents
Contents Introduction Electrical Requirements Tools Required Model: PO1057 1650x850x2280 What’s in the boxes Staring the Installation PO1058 1450x850x2280 Connecting The Shower Accessories 27 (with/without whirlpool) Water Connections Assembly & Fitting Instructions Electric Connections Product Testing Testing for Leaks Safety Warranty Information... - Page 2 Thank you for your recent purchase of an Insignia steam shower. ASSEMBLY AND SIMPLE PLUMBING Please read this booklet with great care to ensure you get the best out of your build and have a shower that will last for many...
-
Page 3: Electrical Requirements
UNDER NO CIRCUMSTANCES UNDERTAKE THIS YOURSELF!!! REMEMBER: These showers are designed to be free standing and movable Note for electrician. This product comes with 13 amp plug(s) fitted from their location should you have need to replace anything. AL- with RCD unit. We leave the way you prefer to connect this to your- WAYS USE Flexible braided water inlet pipes at least a metre long self due to continued additions to current regulations. -
Page 4: What's In The Boxes
Whilst the next steps show you how to assemble your shower we want to make sure you have a correct build to ensure you get a trouble free shower. What’s In The Boxes? Please check with pictures, some of the items have been assem- bled by ourselves in order for ease of recognition as to what they are and can be used as reference in later construction Bath shower tub did you order whirlpool? If so check now... - Page 5 Roof section including Radio Speaker, Ozone, led lights extractor Rear of bath you will see Steam Generator and electric box Fitted steam outlet (1), water filler(2) and water inlet (3) (whirlpool only) For identification later this is ozone For the latest fitting instructions please visit www.insigniarange.co.uk For the latest fitting instructions please visit www.insigniarange.co.uk...
- Page 6 You now have three other boxes, the contents should read as below (subject to occasional modifications) Screw Packs 8 x Door wheels 4 x door stops 2 x Door handles 2 x Door trim magnets 2 x Trailing edge door trims 1 x Centre column inc jets computer control back rest all fitted 1 x Foot spa 1 x foot spa chrome hose...
- Page 7 2 x back glass and 2 x side glass Door box and contents For the latest fitting instructions please visit www.insigniarange.co.uk For the latest fitting instructions please visit www.insigniarange.co.uk...
- Page 8 VERY IMPORTANT Adjust bath Feet Have you got everything? If not please contact your supplying dealer now. Remember NEVER book your tradesman until every- thing has arrived, been checked and is present. No replacement / missing parts can obtained free of charge during or after build only within the timescale permitted (48 hours after delivery) and always BEFORE build.
- Page 9 Now while you have access, remember everything is normally lose Rear column upright and fitted for transit only. Check tightness of head rest chrome fit- tings to bath. Note why not loosen and silicone gently be- tween chrome leg and bath mating surface, now tighten, good pre- ventative measure against water!!! Think the same about any Notice cut out to lower other fixing during build.
- Page 10 You now have the right hand side panel in place and the right hand Now you have attached the three panels, work your way round re- rear panel. The next stage is to take the centre column control peating the same process attaching the right back panel and side panel and screw to the right hand rear glass frame.
- Page 11 Inside the shower now check the inner corner at the front you will Secure the crossbar to the side frame now see retaining screws that will hold the sides together along with the aluminium trim you have just fitted. Squeeze the joint firmly tight align the holes and screw in each.
- Page 12 Taking now the front left glass, notice the black band, the wider one goes to the top. (PICTURES BELOW) Seal lightly along the rear edge of glass frame where it will fit into the channel and press home to the left upright column. Repeat this right hand side. Bottom retaining column screw repeat both sides top and bottom.
- Page 13 With all the shower cabin now built, it is time to fit all accessories and shower functions found inside the cabin. To check where each part fits take a look again at the picture below: Door stop fitted to lower crossbar Press on door trim.
- Page 14 The left hand rear glass has the shelves fitted through holes in glass and tightened by the 4 x retaining screws and washers. Do not over tighten anything, to avoid glass shattering!!! On the right hand glass fit the hand shower riser through glass, attach longer silver flexi hose to hand shower and attach to the water inlet of the hand riser bar.
- Page 15 ARE THEY ALL TIGHT INCLUDING THE ONES PRE FITTED? Note: Shower electrics Connections. These are only coupled for transit and never tightened from the factory. At this stage you will need to connect the following. These are all 12V and considered “safe” for DIY connection as Looking again at the picture above, there are 3 x braided hose con- each is labelled and low voltage.
- Page 16 1. On/Off Switch TESTING PRODUCT. 2. Radio frequency 3. Volume setting With the shower still not fully positioned as you will require it. 4. Steam Unit operation—Press this button to active the steam Complete the following tests: function. If no water is present the unit will not function for safety reasons.
- Page 17 The underwater light operation is activated by pressing the light To check tub operation. button (number 5 on the previous page) on the control panel. This is connected into the same circuit as the roof light. The button at the rear of the tub behind head rest as you look from outside is on / off whirlpool The button towards the front of the tub head rest as viewed from outside is air bleed.
- Page 18 Pressure Requirements from your house supply. with a washing machine or dishwasher, it is highly recommended accessible water valve taps are installed to turn off the shower We recommend a bar pressure between 2 and 3 bar. If you have a when not In use.
-
Page 19: Testing For Leaks
Our completed shower should now look like this: TESTING FOR WATER LEAKS LEAVING SHOWER 24 HOURS AFTER BUILD ALLOWING SEALENT TO CURE HAVE YOU BUILT THIS CORRECTLY? FIND OUT NOW. With all connections tight, the waste and hoses checked, jets fully sealed, your shower still around18 inches from its designated final resting point and the silicone sealer fully cured (hence leaving for 24 hours at min) Switch on the overhead shower NOT massage jets... -
Page 20: Safety
28 days from the day this product was delivered to you. For close proximity to the person using it. cost and enabling kindly contact Insignia on 0844 800 3069. Never use this shower if you have been drinking alcohol. - Page 21 And for the smaller items Please note you are not covered for consequential or incidental just contact Insignia on 0844 800 3069 for on the spot advice and damage however caused relating to any product part failure. This help.
-
Page 22: Spare Part
Returned Goods FAQs What water pressure is required to operate you showers correctly and what Your attention is drawn to the terms and conditions. Any returned about your baths and basin taps? Item must be accompanied by a return form. Using our customer 2.5 bar is what we consider optimum pressure for all. - Page 23 After build check 100% for leaks and cure at the time. When high failure rate, we could go on. With Insignia we guarantee only the latest cured he should never have needed to come back. Sorry for bad news! technology is used, even if a customer has ordered from our advertising some- thing we have deleted, we upgrade free of charge before delivery.
- Page 24 I am a big guy, will the shower trays or baths you sell support my weight. cleaning, use a mild non abrasive cleaner and avoid No problem unless you are massive in which case you would probably not fit in detergents, disinfectants or cleaning products that come in an aerosol can.
- Page 25 delivery. If out of warranty you will be contacted and advised of cost first. Pay- Only a matter of minutes, no need to take taps off the bath or shower and cost ment can be made instantly over the telephone to avoid delay. is minimal.
- Page 26 Whatever is missing has been sucked into the system, if small it would get fired out of the jets but if a large section it will jam the pump. This is what has hap- pened to you. You now need a tradesman to remove the cover of the pump and the remove the offending item from the impeller.
