Audio board

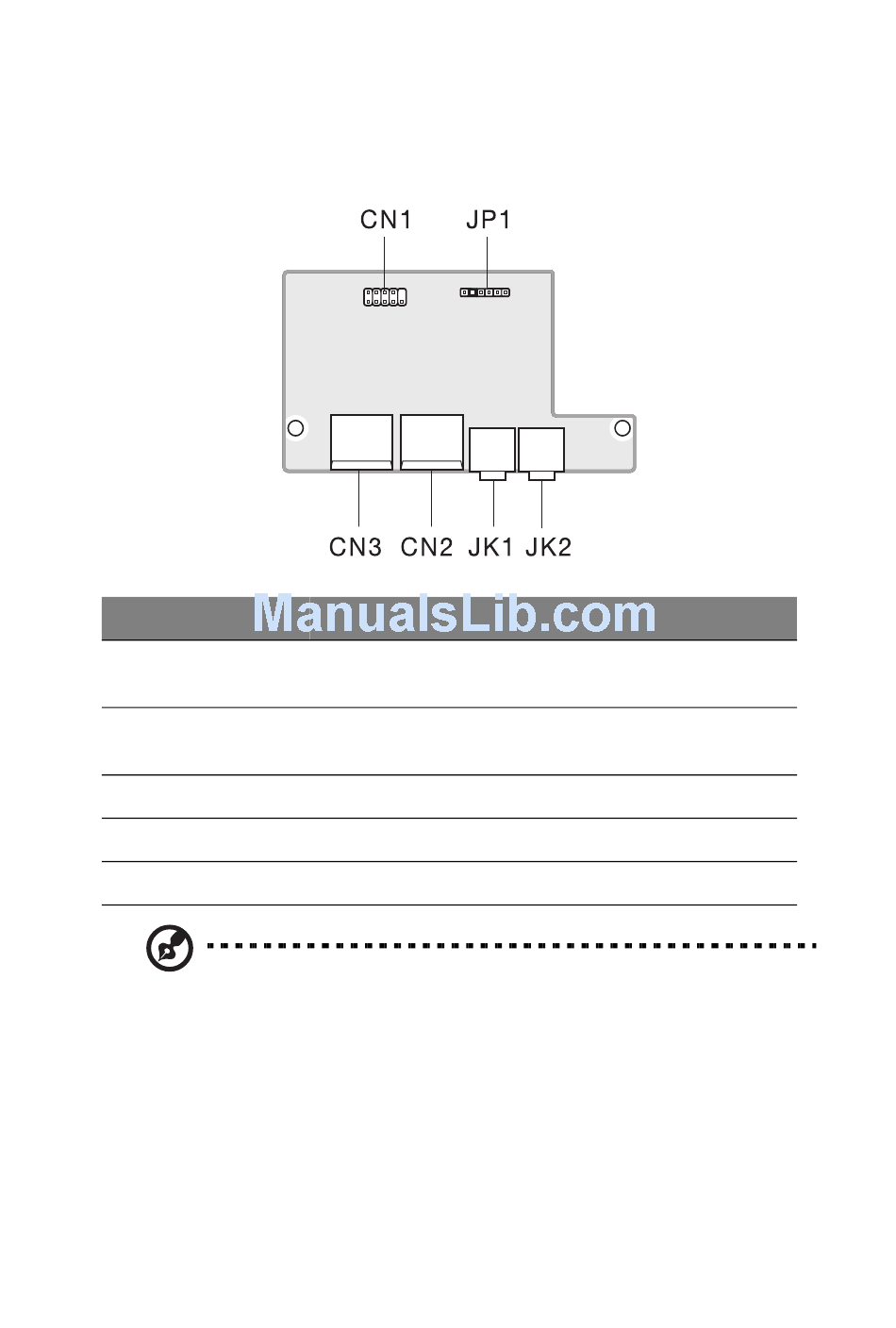

The audio board that came with your computer should look like the
figure that follows.
Label
JP1
CN1
CN2 and CN3
JK1
JK2
Note: The system has two microphone-in ports (front and rear).
However, you can not use both of them at the same time. The
default setting for your system enables the front microphone-in
port and disables the one at the back. Refer to the Veriton 5200
series Online guide for instructions on how to enable the rear
microphone-in port.
Description
Audio connector - connects to the AUDIO2
connector of the mainboard
USB connector - connects to the USB2 connector of
the mainboard
USB ports
Microphone-in port (front)
Audio-out port
