Summary of Contents for D-Link DWR-920V

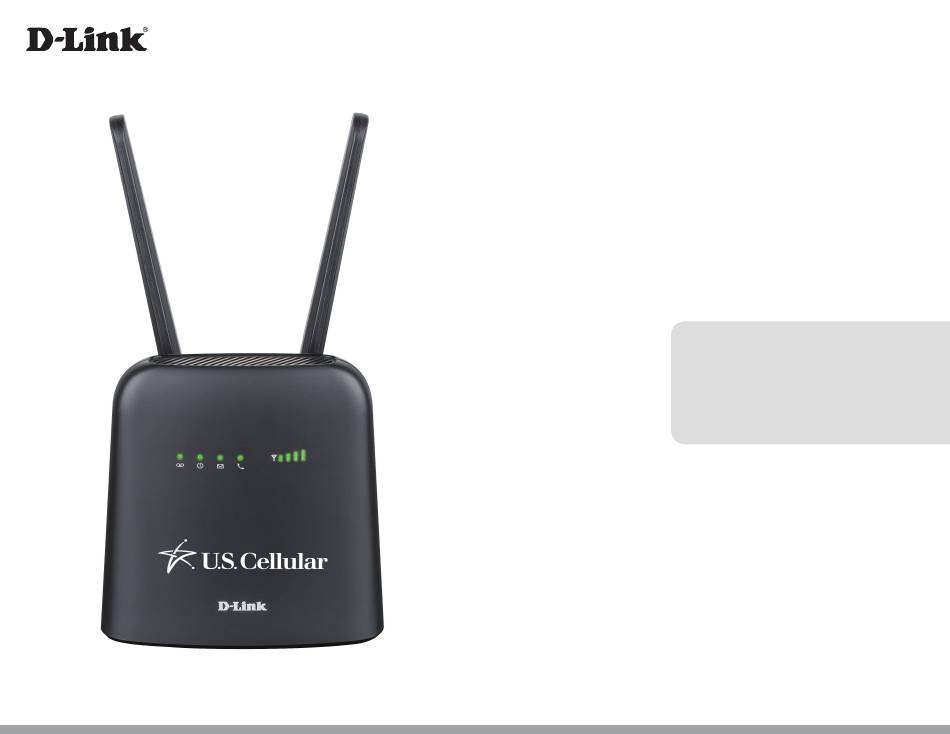

- Page 1 Version 1.00 | 04/12/2019 User Manual U.S. Cellular Home Phone DWR-920V...
- Page 2 Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description April 12, 2019 • Initial release for U.S.
-
Page 3: Table Of Contents
Quick Access .................11 Call Info ..................12 Call Timer ................12 Black List & White List ............13 SMS ....................15 Short Messages ..............15 System ....................18 System Information ............18 Admin Settings ..............19 Settings Profile ..............22 Firmware Upgrade ..............24 Help ....................25 D-Link DWR-920V User Manual... -
Page 4: Product Overview
U.S. Cellular Home Phone + Ethernet Cable Preinstalled SIM/UICC Card 12V 1A Power adapter Telephone Cable + Power Bank 2 x 4G Blade Antennas If any of these items are missing or damaged, please contact your reseller. D-Link DWR-920V User Manual... -
Page 5: System Requirements
• Safari 4 or higher • Chrome 20 or higher Windows Users: Make sure you have the latest version of ® Java installed. Visit www.java.com to download the latest version. Subject to services and service terms available from your carrier. D-Link DWR-920V User Manual... -
Page 6: Introduction
The U.S. Cellular Home Phone can be installed quickly and easily almost anywhere. Its user friendly LED indicators make it easy to know when you have a waiting voicemail or when you’ve received a SMS message. Note: This device only works with the US Cellular Home VoLTE Network. D-Link DWR-920V User Manual... -
Page 7: Hardware Overview
Press this button to power on/off the device. Power Input Receptacle for the included power bank. Use an Ethernet cable to configure your advanced settings by accessing the web user interface. Phone Connect a phone here that uses a regular phone line. D-Link DWR-920V User Manual... -
Page 8: Led Indicators
Registered to IMS network and ready for voice calls Solid Blue Voice call in progress Telephone Solid Red Failed IMS registration Blinking Red No SIM/UICC card detected or invalid SIM/UICC card Signal Strength Blinking Red Indicates signal strength D-Link DWR-920V User Manual... -
Page 9: Power Bank
Sequential LED’s to indicate the percentage of battery left in the power bank. Power LED Indicator Button Press this button to light up the Power LED Indicators. Input Receptacle for the power adapter. Output Receptacle for the DC connector. D-Link DWR-920V User Manual... -
Page 10: Installation
This section will guide you through the installation process. Placement of the device is very important. Do not place the DWR-920V U.S. Cellular Home Phone in an enclosed area such as a closet, cabinet, or in an attic or garage. Ensure that your DWR-920V U.S. - Page 11 Using the DC connector cable, connect one end to the OUTPUT socket of the power bank and the other end to the power input socket of the DWR-920V. Connect the power adapter to INPUT socket of the power bank and the other end into a wall outlet or power strip.
-
Page 12: Advanced Setup
IP address http://192.168.0.1 into a browsers address field. Log in using the username “admin” and leave the password field blank. Click Sign in to continue. After logging in, you can access the WebGUI for features such as SMS messaging and voicemail. D-Link DWR-920V User Manual... -
Page 13: Navigation
From the SMS tab, you can send and receive SMS text messages. System The System tab allows you to view system information, change your login information, configure your settings profiles and upgrade the firmware. Help The Help tab provides you with information for troubleshooting your device. D-Link DWR-920V User Manual... -
Page 14: Quick Access
Section 3 - Advanced Setup Quick Access A quick access page will be displayed on the initial home page for the DWR-920V. The phone number tied to your SIM card. The IP Multimedia Subsystem ID. Voicemail This area displays the number of voicemail messages received by the device. -
Page 15: Call Info
Section 3 - Advanced Setup Call Info Call Timer This page gives you a telephone record history for the DWR-920V. A chronological number given to each call you receive. Delete Check this box to select and delete a call log in your telephone record. -
Page 16: Black List & White List
A chronological number given to each White Listed number. Delete Check this box to select and delete White Number. White Number The White Listed number. ADD NEW White Address Enter the number you would like to White List here. D-Link DWR-920V User Manual... - Page 17 A chronological number given to each Black Listed number. Delete Check this box to select and delete Black Number. Black Number The Black Listed number. ADD NEW Black Address Enter the number you would like to Black List here. D-Link DWR-920V User Manual...
-
Page 18: Sms
On the Short Messages page you can organize, send and receive Short Message Service (SMS) messages by selecting between the Setup, Inbox and Drafts tab. These messages can either be saved to the DWR-920V’s internal memory or on the SIM/UICC card itself. - Page 19 Enter the phone number of the intended recipient here. Content Type your message content here. Click Send to send your message. Click Save as Draft to save the message as a draft and send it later. D-Link DWR-920V User Manual...
- Page 20 Delete Check this box to select and delete a message in your drafts folder. The SMS recipient’s number. Time The time the message was last edited. Content The SMS message’s content. D-Link DWR-920V User Manual...
-
Page 21: System
Identity (IMSI). This is used to identify and authenticate users on cellular devices. Local Number The phone number tied to your SIM card. Model Name The model number of your D-Link device. System Uptime The length of time since the last restart. D-Link DWR-920V User Manual... -
Page 22: Admin Settings
Section 3 - Advanced Setup Admin Settings This section allows you to customize your administrator settings, change the device interface’s language and adjust the date and time settings for the DWR-920V. Click Apply to save changes. ACCOUNT Username Adjust your login username. - Page 23 Time Zone Select your current Coordinated Universal Time Zone (UTC). Synchronization You can specify in hours how frequently the DWR-920V will update the time from the Cycle SNTP server. Selected Date and Reflects the current date and time of the device per the settings.
- Page 24 Time Daylight Savings Select Enable if your region observes daylight savings. Start Date Enter the details of your region’s daylight savings start date. End Date Enter the details of your region’s daylight savings end date. D-Link DWR-920V User Manual...
-
Page 25: Settings Profile
Browse your computer for previously exported settings. Click Apply Import to upload the settings to your device. EXPORT PROFILE Click the Click Me button to download the To Get Current current settings of your DWR-920V. Profile D-Link DWR-920V User Manual... - Page 26 Section 3 - Advanced Setup RESET & REBOOT Select the Reset to Default button to reset Reset to default the DWR-920V to factory default settings. Select the Reboot button to reboot the Reboot DWR-920V. D-Link DWR-920V User Manual...
-
Page 27: Firmware Upgrade
Section 3 - Advanced Setup Firmware Upgrade This page allows you to upgrade your DWR-920V’s firmware manually or through the remote server. UPGRADE MY HOME PHONE (MANUAL) Upgrade My Home Select Manual from the drop down menu to manually upgrade your DWR-920V’s Phone firmware. -
Page 28: Help
Section 3 - Advanced Setup Help This section provides answers for frequently asked questions regarding the DWR-920V U.S. Cellular Home Phone. U.S. Cellular Home Phone: HELP content U.S. Cellular Home Phone FAQs Will my U.S. Cellular Home Phone work in areas with no or low... -
Page 29: How To Use Your Device
Please disable the telephone’s answering system to enable the voicemail service. When you receive a new voicemail, the voicemail LED on your DWR-920V U.S. Cellular Home Phone will blink green. 1. Lift the handset of your telephone. - Page 30 2. The confirmation tone verifies another phone number if the 2. The confirmation tone verifies that the feature is deactivated. telephone is not answered that the feature is activated. 3. Hang up the telephone. 3. Hang up the telephone. D-Link DWR-920V User Manual...
-
Page 31: Troubleshooting
Section 5 - Troubleshooting Troubleshooting This chapter provides solutions to problems that can occur during the setup and configuration of the DWR-920V U.S. Cellular Home Phone. Read the following descriptions if you are having problems. What kind of phone do I need to use with the DWR-920V U.S. Cellular Home Phone? Most standard touch-tone phones may be used. -
Page 32: Technical Specifications
Certification • Standard 6-pin SIM card interface • RoHS • FCC LED Status Indicators • Power • Voicemail • SMS • Telephone • Signal Strength Power Input • DC 12V 1A power adapter and power bank D-Link DWR-920V User Manual... -
Page 33: Regulatory Information
20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and consider removing the no- collocation statement. D-Link DWR-920V User Manual...
