4. Setting Up Parameter in Each Group

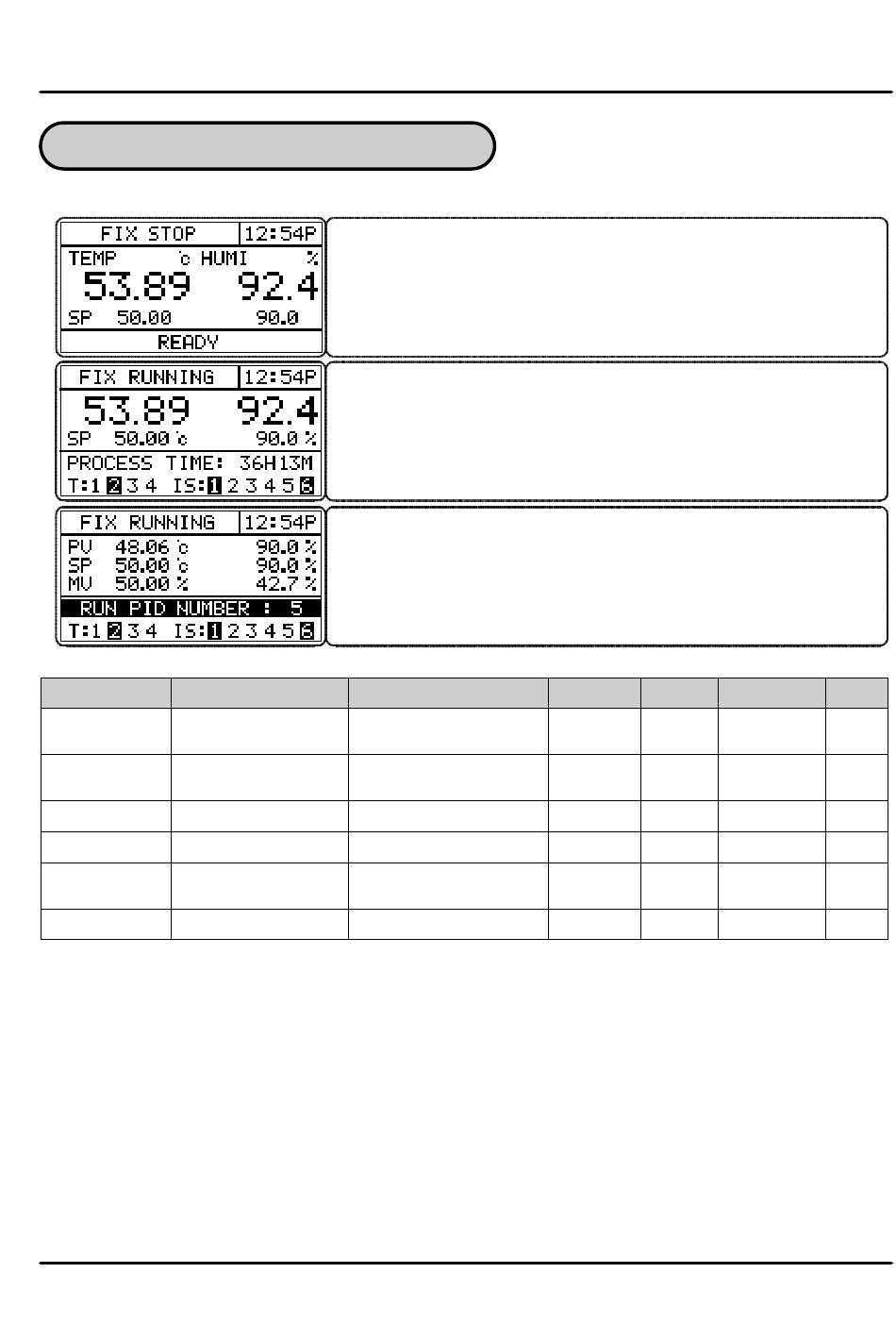

4.1 FIX Mode

Symbol Parameter
T.SP TEMP SP
H.SP HUMI SP
P.TM PROCESS TIME
T.MV TEMP MV
H.MV HUMI MV
R.PID RUN PID NUMBER
FIX Mode is controlling Temperature & Humidity with fixed SP
FIX STOP : Stop state
SP : Set point (Setting by "SET" key)
READY : Ready to running
Start running by "RUN/STOP" key
FIX running 1st screen
FIX RUNNING : Fix running state
PROCESS TIME : Running time
T : State of ON/OFF
IS : State of Inner Signal
FIX running 2nd screen
PV : Process value of temperature & humidity
MV : Manipulate value
RUN PID NUMBER : Running PID Number
(Display "TEMP, HUMI AUTO TUNING" when the auto tuning)
Range
T.EU(0.0 ∼ 100.0%)
H.EU(0.0 ∼ 100.0%)
00H00M ∼ 99H59M
0.0 ∼ 100.0
0.0 ∼ 100.0
1 ∼ 6
.8.
Display Unit
T.EU
Always
When HUMI
H.EU
OPER=ON
TIME
Always
%
Always
When HUMI
%
OPER=ON
ABS
Always
Default Edit
T.EU
O
(0.0%)
H.EU
O
(0.0%)
00H00M
X
0.0%
X
0.0%
X
×
X
