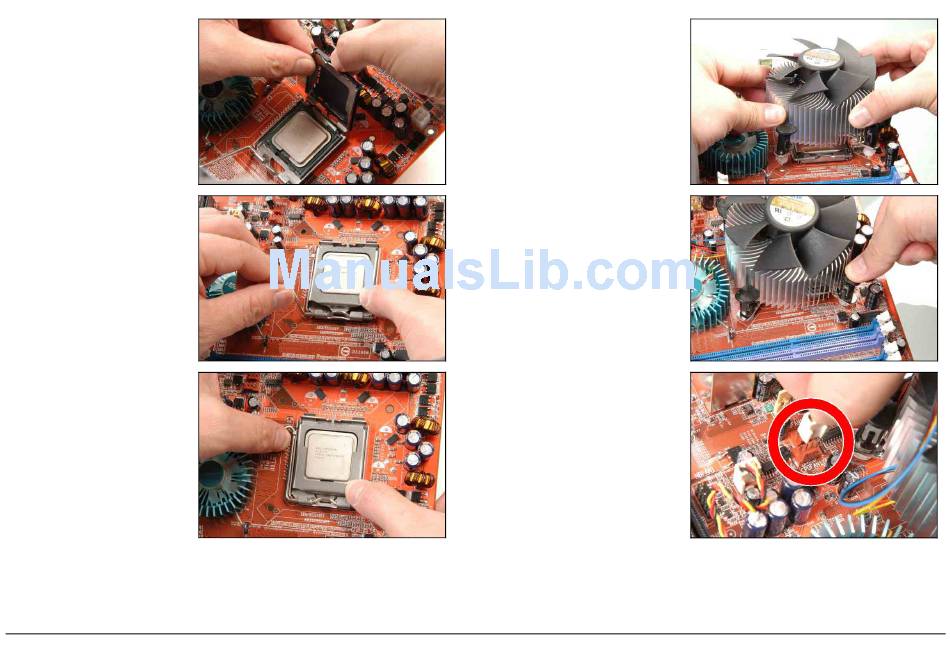

5. Use your left hand to
hold the load plate, and
use your right thumb to
peel the cap off.
The cap plays an
※
important role in
protecting contact pins.
In order to prevent bent
pin, PUT ON the cap after
operation or testing.
6. Lower the plate onto the
CPU package. Engage
the load lever while
gently pressing down the
load plate.
7. Secure the lever with the
hook under retention
tab.
IL9 Pro/IL9 Pro-V
8. Place the heatsink and
fan assembly onto the
socket. Align the four
fasteners toward the
four mounting holes on
the motherboard.
9. Press each of the four
fasteners down into the
mounting holes. Rotate
the fastener clock-wise
to lock the heatsink and
fan assembly into
position.
10. Attach the four-pin
power plug from the
heatsink and fan
assembly to the CPU FAN
connector.
A higher fan speed will be helpful for better airflow and
※
heat-dissipation. Nevertheless, stay alert to not touch any
heatsink since a high temperature generated by the
working system is still possible.
